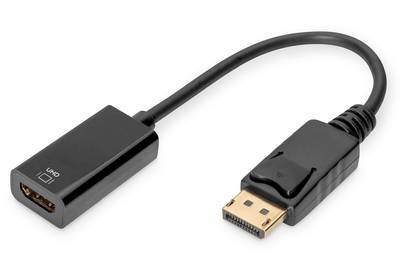

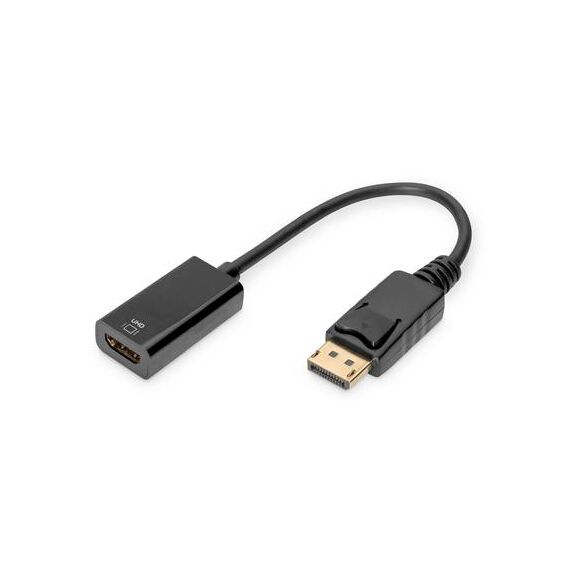

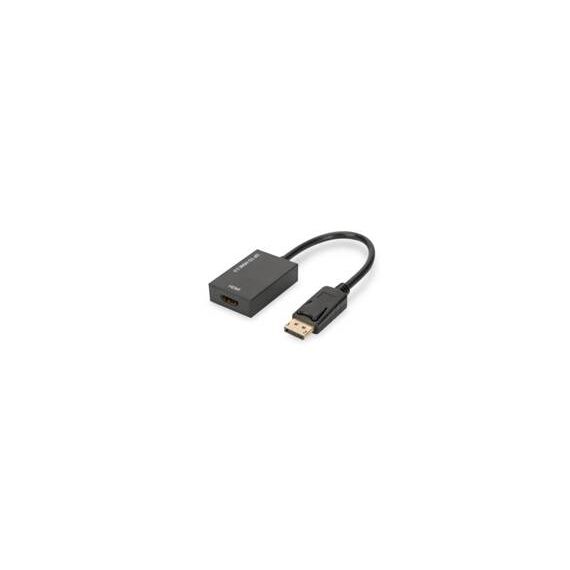

Assmann / Video converter / DisplayPort / HDMI / black | AK-340415-002-S
Please sign in so that we can notify you about a reply
Product Features
· Intregrates a complete DisplayPort receiver and complete HDMI transmitter for video format conversation· Intregrated HDMI2.0 transmitter, up to supporting 4K x 2K@60Hz, 4K x 2K@30HZ and 1080P / 3D videos.
· Support DP++ Dual-Mode
· Supports DisplayPort 1.2 and 4 lanes at 1.62Gbps, 2.7Gbps and 5.4Gbps
· Full HDCP 1.4 / 2.2 content protection support.
· Deep Color 24bit
· Audio input formats: 8-ch LPCM, compressed audio (AC-3, DTS) and HBR audio format up to 24-bit audio sample size and 192 khz frame rate.
· Maximal bandwidth: 21,6 Gbps
· HBR-Version/transfer mode: HBR2 (5,40 Gbit/s per lane)
Special Features
· Support DP++ Dual-Mode· 4K Ultra HD resolution for best entertainmen
· Supports 4 lanes at both with data rates up to 2.7 Gbps
· Supports resolutions up to 4096 x 2160
· Deep Color 24bit
· Built in automatic receiver equalization
Product Specification
| Device Type | Video converter |
| Max Resolution | 4096 x 2160 |
| Interfaces | 1 x DisplayPort input - 20 pin DisplayPort - male ¦ 1 x HDMI output - 19 pin HDMI Type A - female |
| Features | Active adapter (signal regeneration), HDCP |
| Miscellaneous | Miscellaneous |
| Compliant Standards | DisplayPort 1.2 |
| Length | 20 cm |
| Enclosure Colour | Black |
Features - Digitus - AK-340415-002-S
Type
- DisplayPort - HDMI
More Details
Product Code
04:252252
EAN Code
4016032427476
Manufacturer
Digitus
