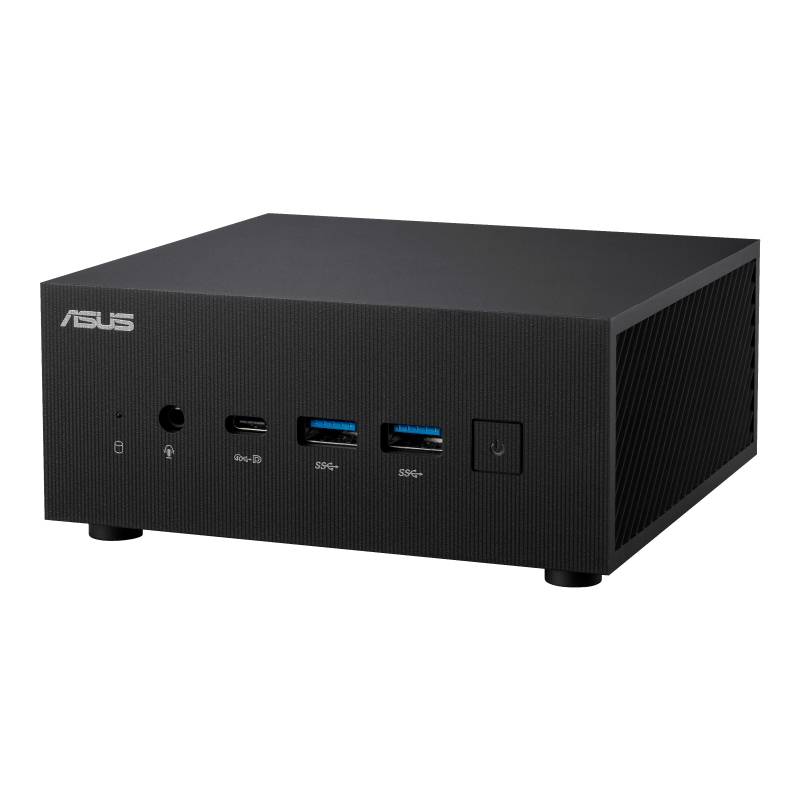

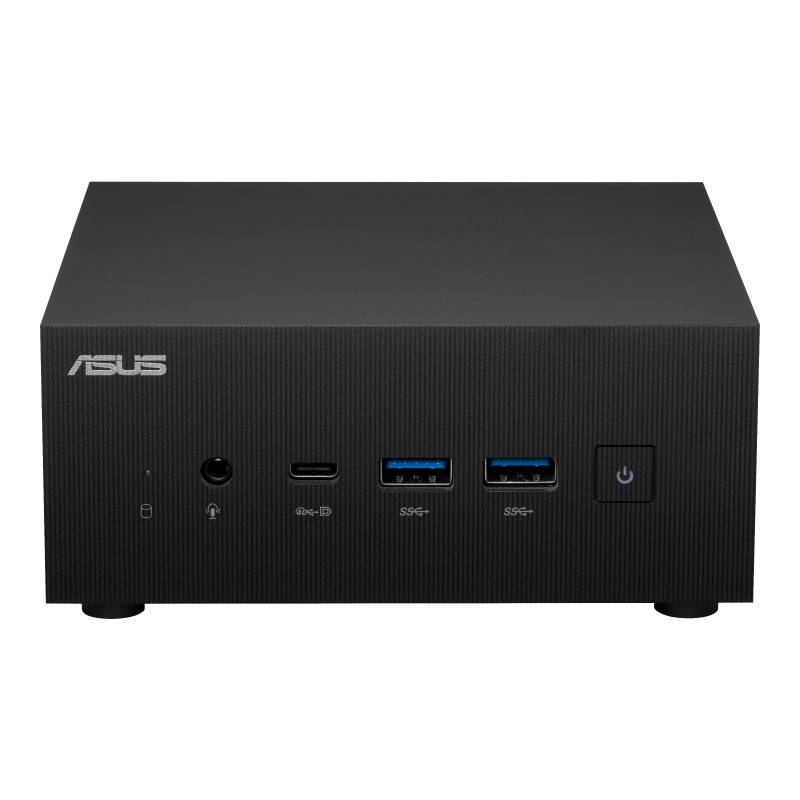

ASUS ExpertCenter PN53 S5064MD / Mini PC / Ryzen 5 7535H / 3.3 GHz / RAM 8 GB / SSD 256 GB / Radeon 660M / Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) WLAN: | 90MS02H1-M00200
Please sign in so that we can notify you about a reply
Product Specification
| Type | Personal computer |
| Product Form Factor | Mini PC |
| Colour | Black |
| Processor / Chipset | Processor / Chipset |
| CPU | AMD Ryzen 5 7535H |
| Clock Speed | 3.3 GHz |
| Max Turbo Speed | 4.55 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Cache Memory | Cache Memory |
| Installed Size | L3 Cache - 16 MB |
| Cache Per Processor | 16 MB |
| RAM | RAM |
| Installed Size | 8 GB |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Hard Drive | Hard Drive |
| Type | SSD - M.2 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express 4.0 |
| Features | NVM Express (NVMe) |
| Storage Controller | Storage Controller |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | AMD Radeon 660M |
| Video Interfaces | HDMI, DisplayPort |
| Networking | Networking |
| Ethernet Ports | 2.5 Gigabit Ethernet |
| Ethernet Controller | Realtek RTL8125B-CG |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) |
| Features | Dual stream (2x2) |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 internal 2.5" |
| Slots | 2 M.2 Card |

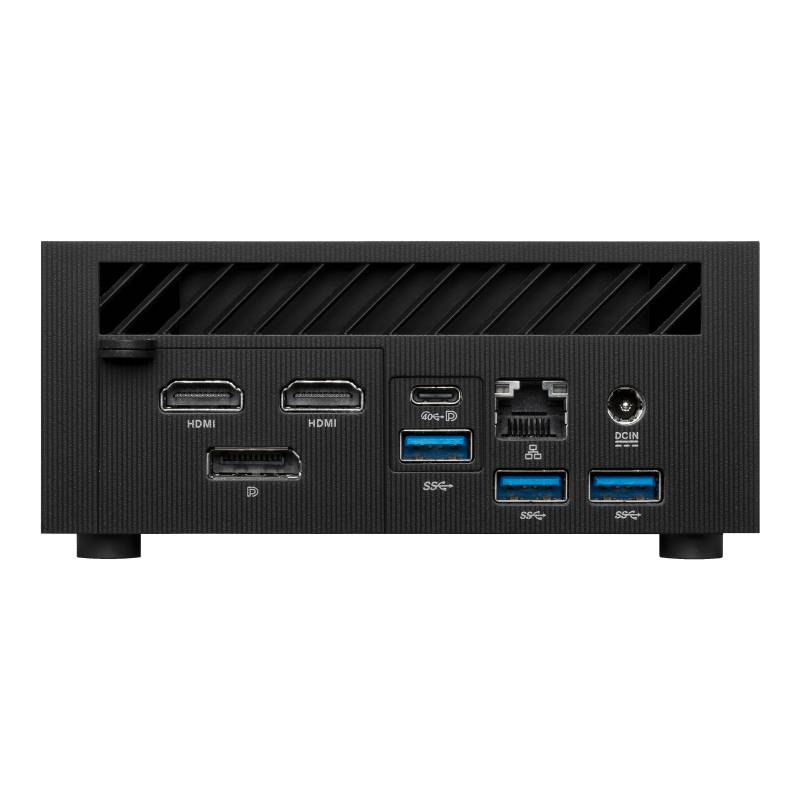

| Interfaces | 1 x LAN (2.5Gigabit Ethernet) 1 x DisplayPort 1.4/USB4 5 x USB 3.2 Gen 1 (2 front, 3 rear) 1 x headphones/microphone (1 front) 2 x HDMI USB-C 3.2 Gen 2/DisplayPort |
| Miscellaneous | Miscellaneous |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | Yes |
| Compliant Standards | UL, VCCI, C-Tick, BSMI, CB, CCC, FCC |
| Power | Power |
| Device Type | Power adapter |
| Power Provided | 150 Watt |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12 cm |
| Depth | 13 cm |
| Height | 5.8 cm |
| Weight | 900 g |
Features - Asus - 90MS02H1-M00200
CPU Type
- AMD Ryzen
Capacity
256GB
More Details
Product Code
03:208963
EAN Code
4711387197950
Manufacturer
Asus
