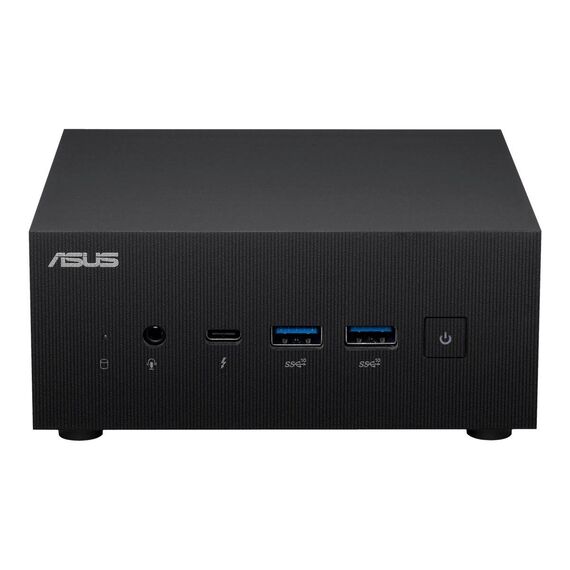

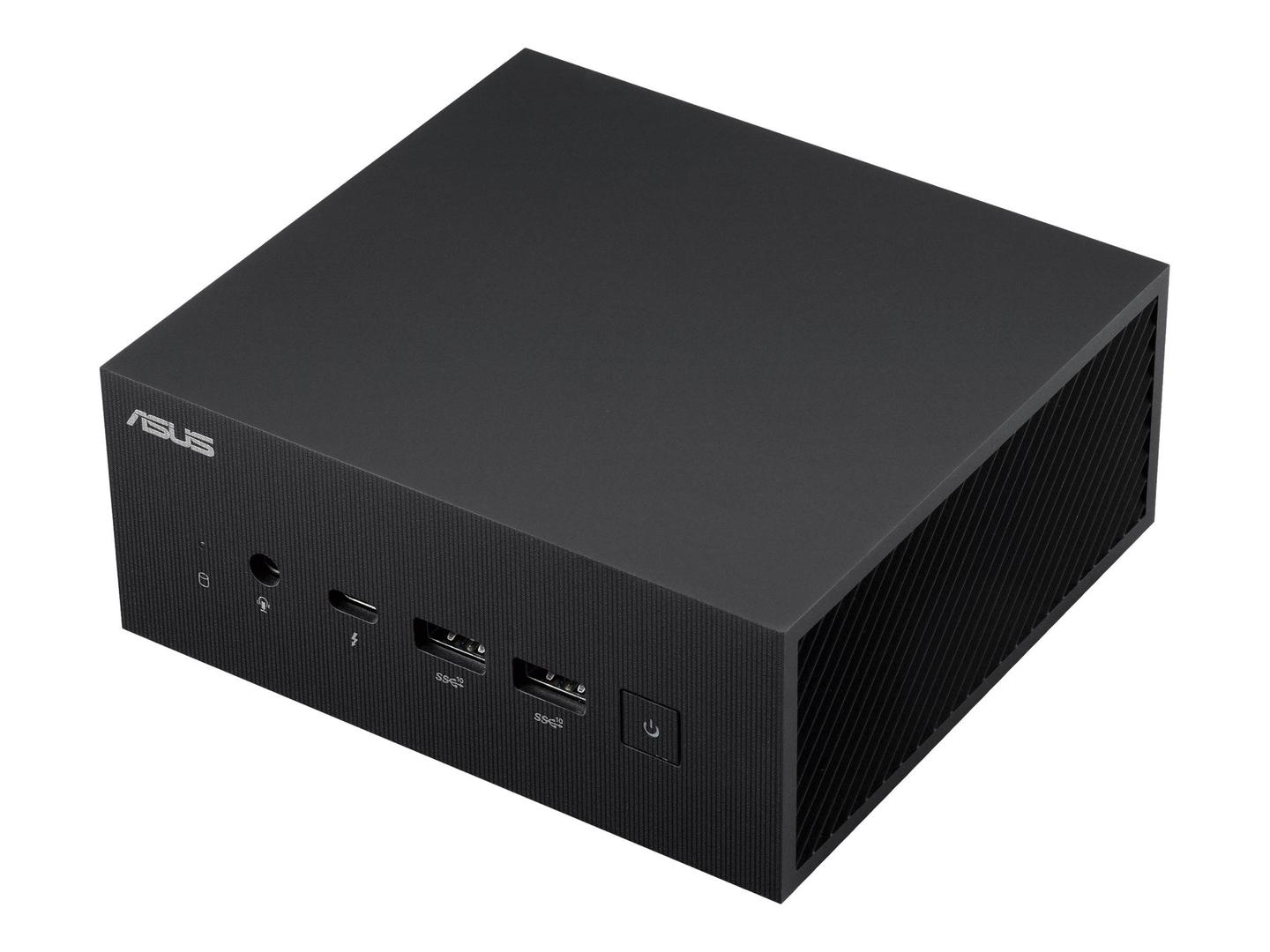

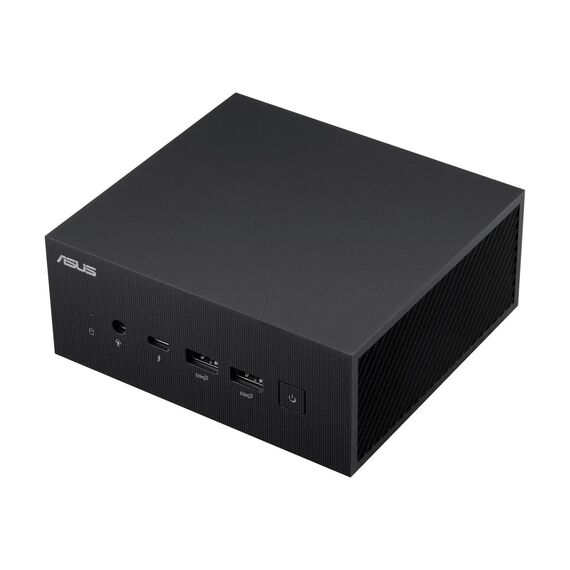

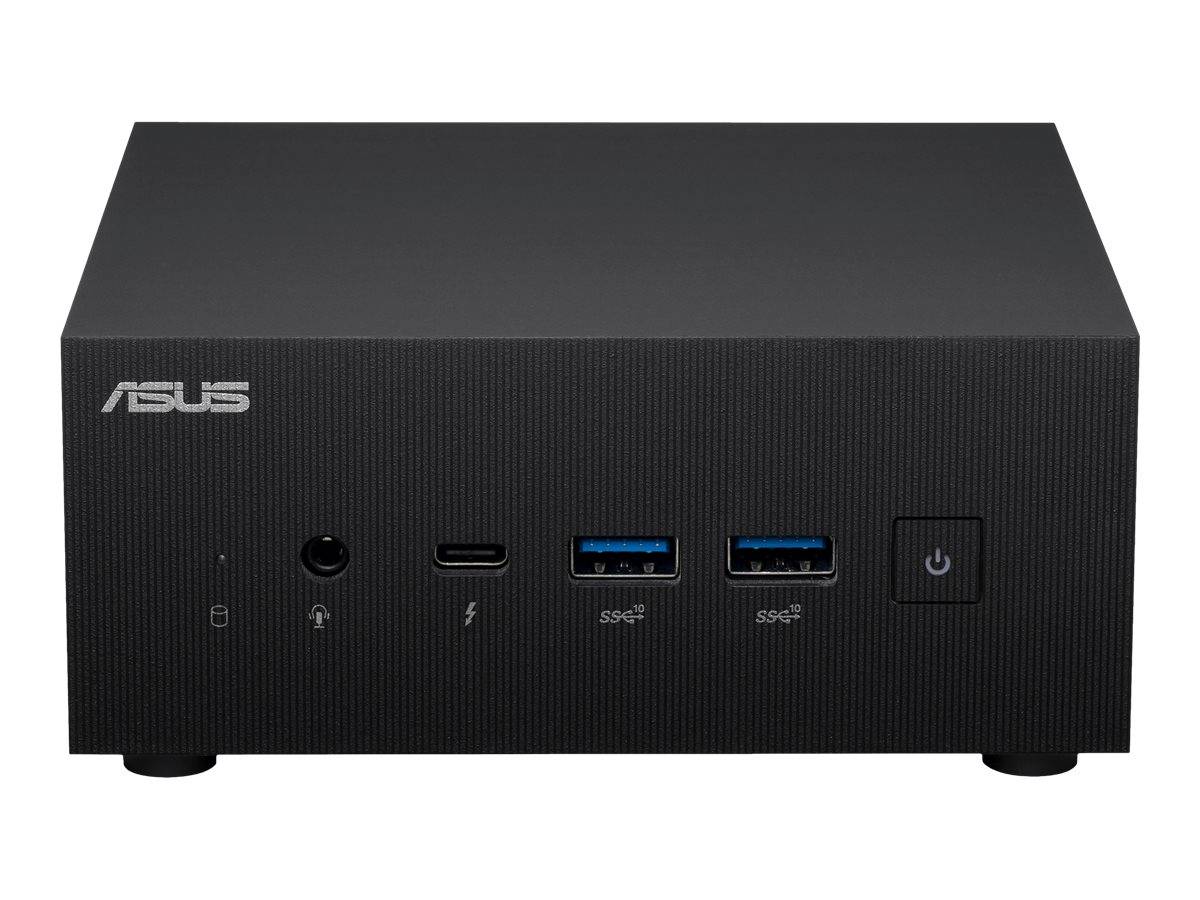

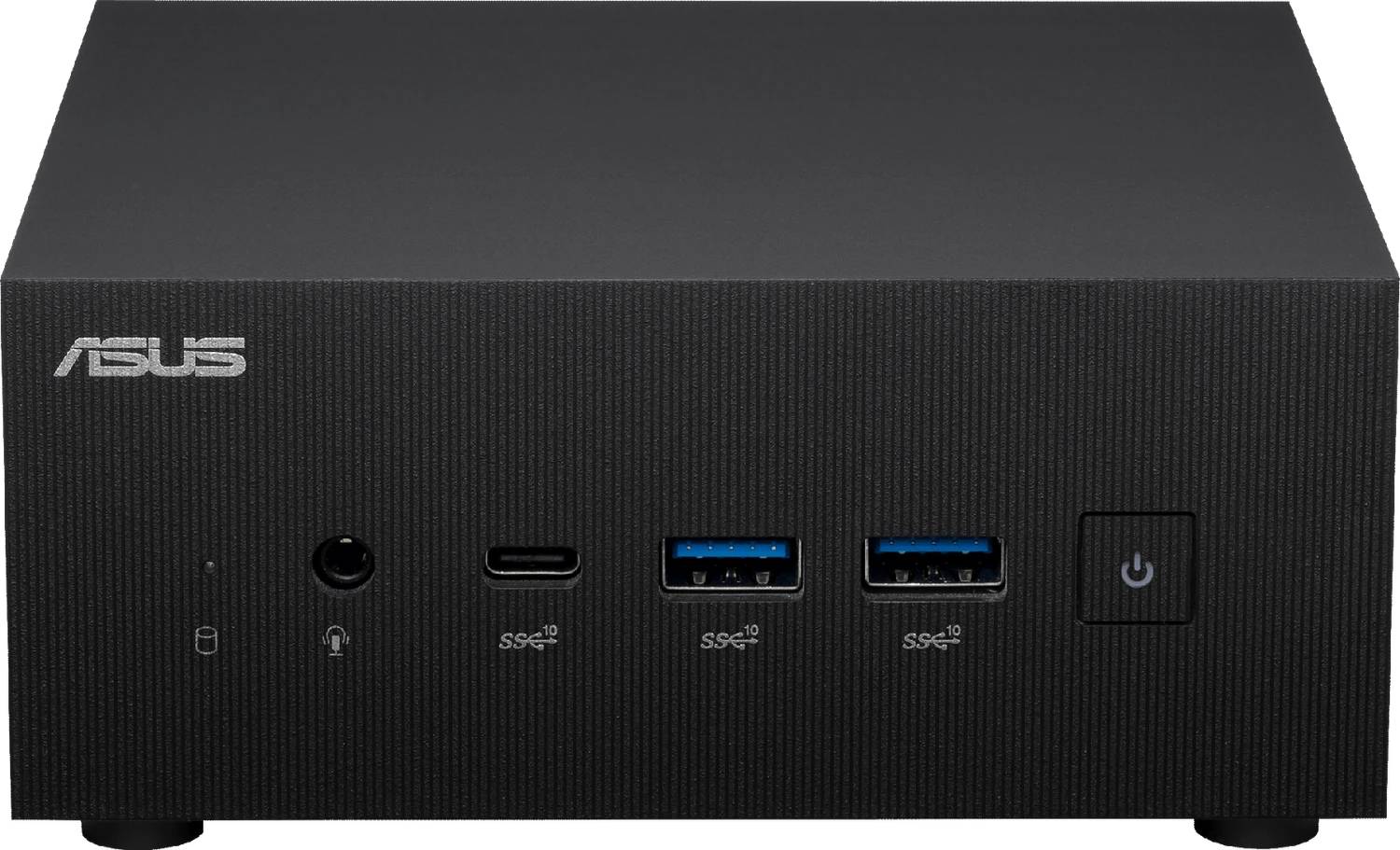

ASUS ExpertCenter PN64 BB7004MDE1 / Barebone / mini PC / 1 x Core i7 13700H / 3.7 GHz / RAM 0 GB / Intel Iris Xe Graphics / GigE, 2.5 GigE, Bluetooth 5.2, 802.11ax (Wi-Fi 6E) / WLAN: Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) / no OS | 90MR00W2-M00040
Please sign in so that we can notify you about a reply
Product Features
- Superior computing performance
ASUS ExpertCenter PN64 is powered by the Intel Processors which deliver superior performance for you to save you time and increase your ability to do the things you want. Comparing to previous generation, PN64 has 23% increase on overall system performance, and over 2 times increase for daily multitask computing. With such great improvement, it helps you process intensive business operations more efficiently. - Faster and better DDR5 RAM
ASUS ExpertCenter PN64 is powered by the Intel Core CPU supporting the next gen memory - DDR5. Supporting DDR5 allows you to transfer data faster than DDR4. Comparing to DDR4, DDR5 memory modules bring a higher level of bandwidth and speed, it improves 34% faster on memory read and 37% on write. DDR5 helps you to drive greater performance and productivity. - Modern, space-saving design
Compact and stylish, ASUS ExpertCenter PN64 has a contemporary look that suits any home or office - Military standard tests
To ensure maximum reliability and durability, ASUS MiniPC PN64 has been tested through military standard 810H.
Special Features
- Powered by the Intel Core processor
- Hybrid architecture design with powerful performance-cores and efficient-cores for improved multitasking, streaming experience and intelligent workload optimization
- DDR5-4800 memory support allows your computer to transfer data faster than DDR4

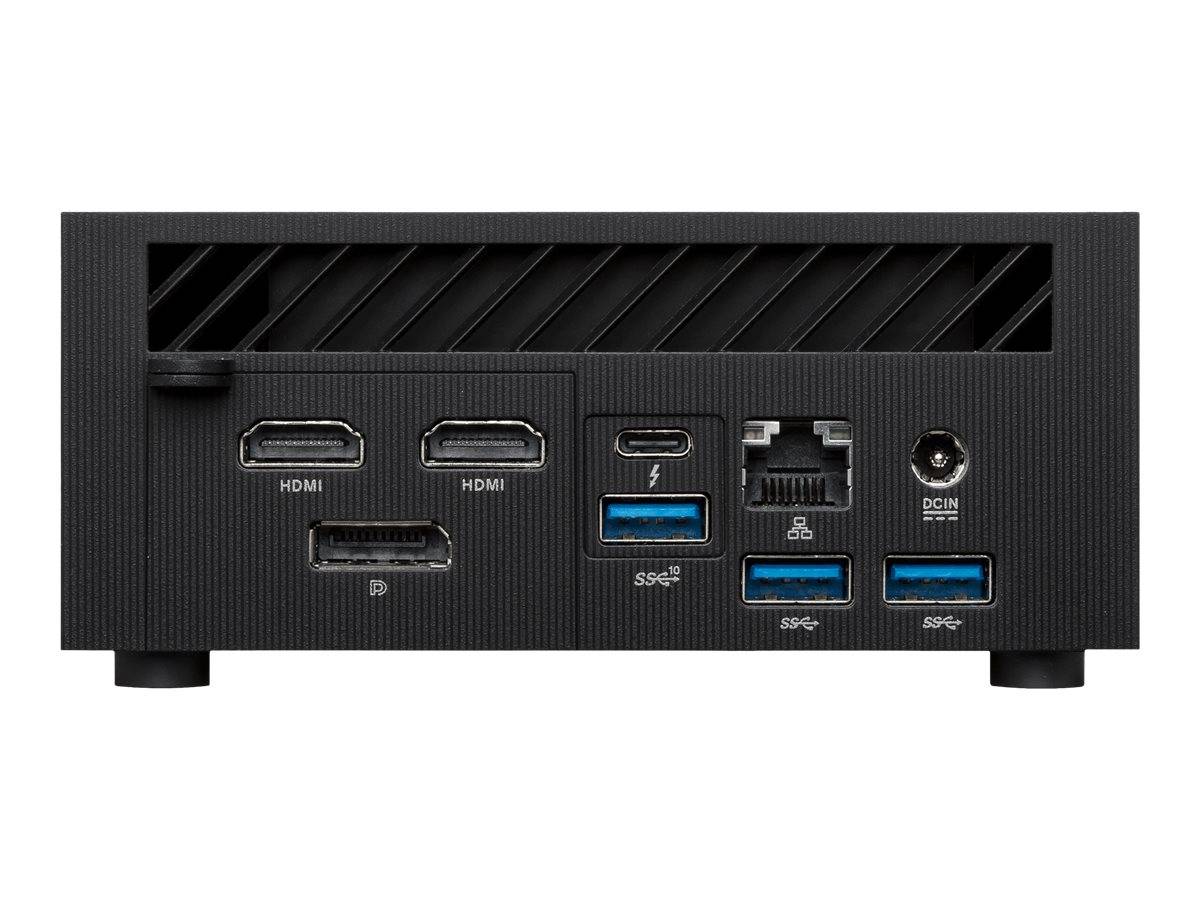

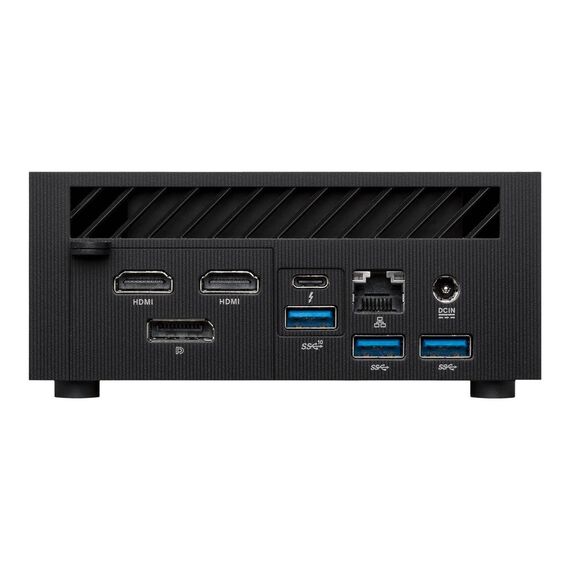

- 4 display located in the rear I/O panel including dual HDMI
- Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
- Support DisplayPort 1.4 and Power Delivery input through rear USB Type-C port
- Onboard 2.5GbE LAN delivering faster Ethernet connectivity
- Advanced fan control to achieve better heat dissipation
Product Specification
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Colour | Eco black |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Core i7 (13th Gen) 13700H |
| Clock Speed | 3.7 GHz |
| Max Turbo Speed | 5 GHz |
| Number of Cores | 14-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | Cache Memory |
| Installed Size | 24 MB |
| Cache Per Processor | 24 MB |
| RAM | RAM |
| Installed Size | 0 GB |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (Total) / 2 (empty) |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Storage Controller | Storage Controller |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel Iris Xe Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Networking | Networking |
| Ethernet Ports | 2.5 Gigabit Ethernet |
| Ethernet Controller | Intel I226-V |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) |
| Features | Dual stream (2x2) |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 M.2 Card |
| Interfaces | 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x Thunderbolt 4/DisplayPort 1.4/USB-C (1 front, 1 rear) (Power Delivery) ¦ 2 x USB 3.2 Gen 1 ¦ 1 x headphones/microphone (1 front) ¦ 2 x HDMI 2.0 ¦ 3 x USB 3.2 Gen 2 (2 front, 1 rear) |
| Miscellaneous | Miscellaneous |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Power | Power |
| Device Type | Power adapter |
| Power Provided | 120 Watt |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12 cm |
| Depth | 13 cm |
| Height | 5.8 cm |
| Weight | 750 g |
Features - Asus - 90MR00W2-M00040
CPU Type
- Intel Core i7
More Details
Product Code
03:206802
EAN Code
4711387084236
Manufacturer
Asus
