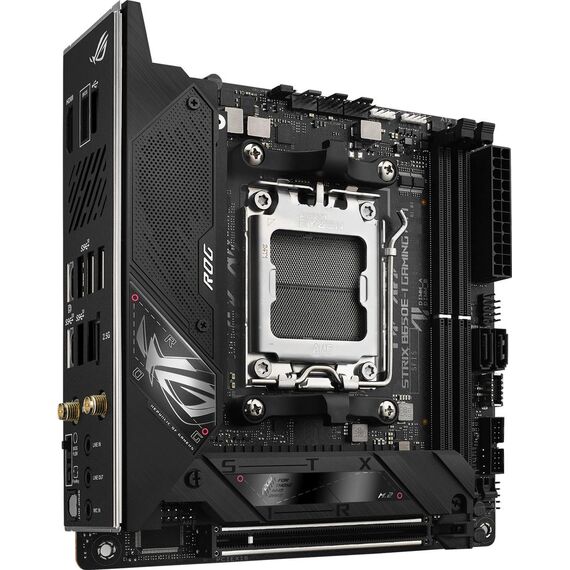

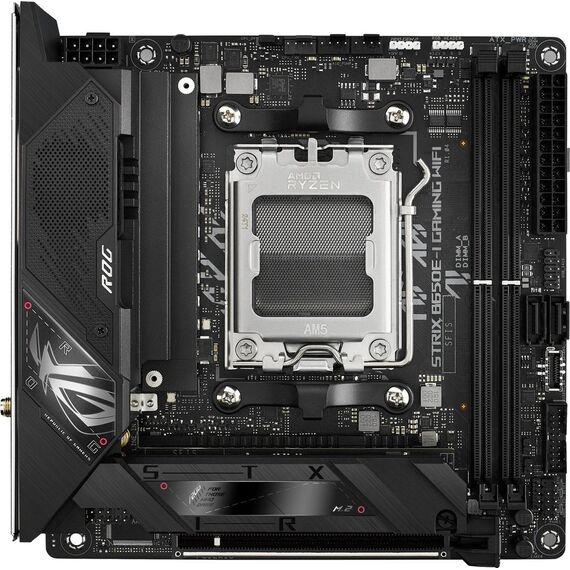

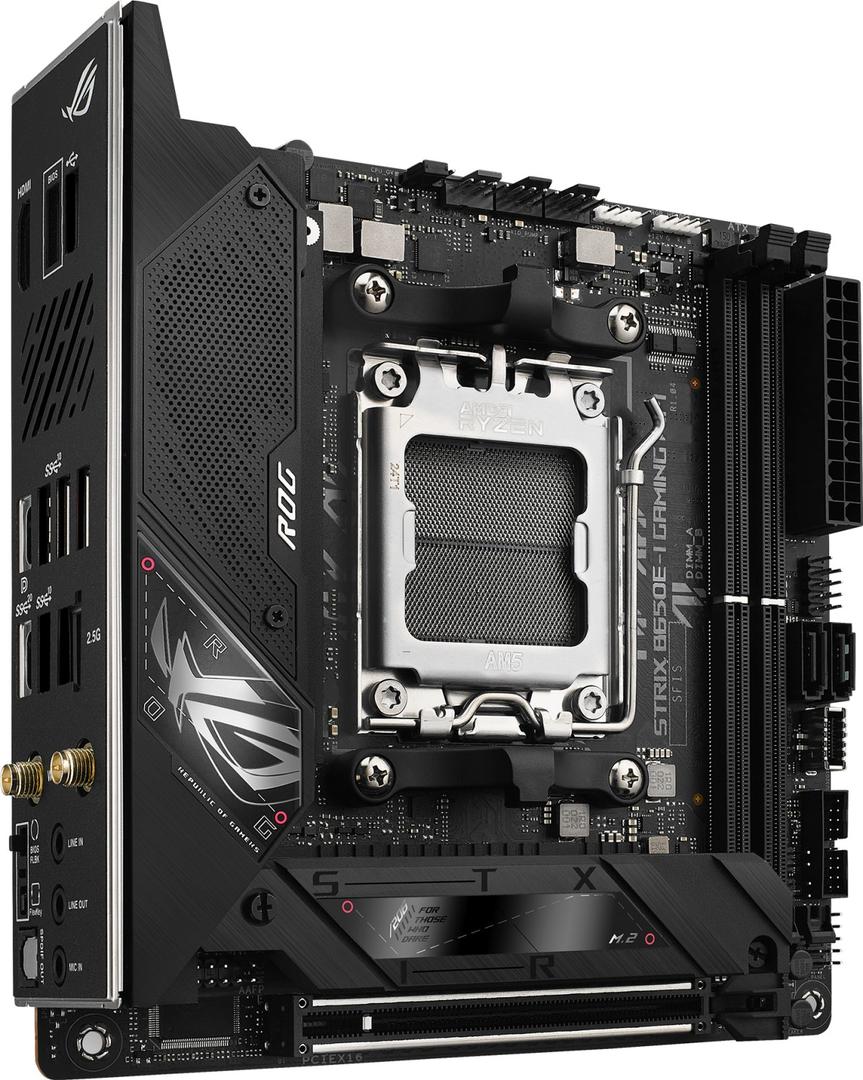

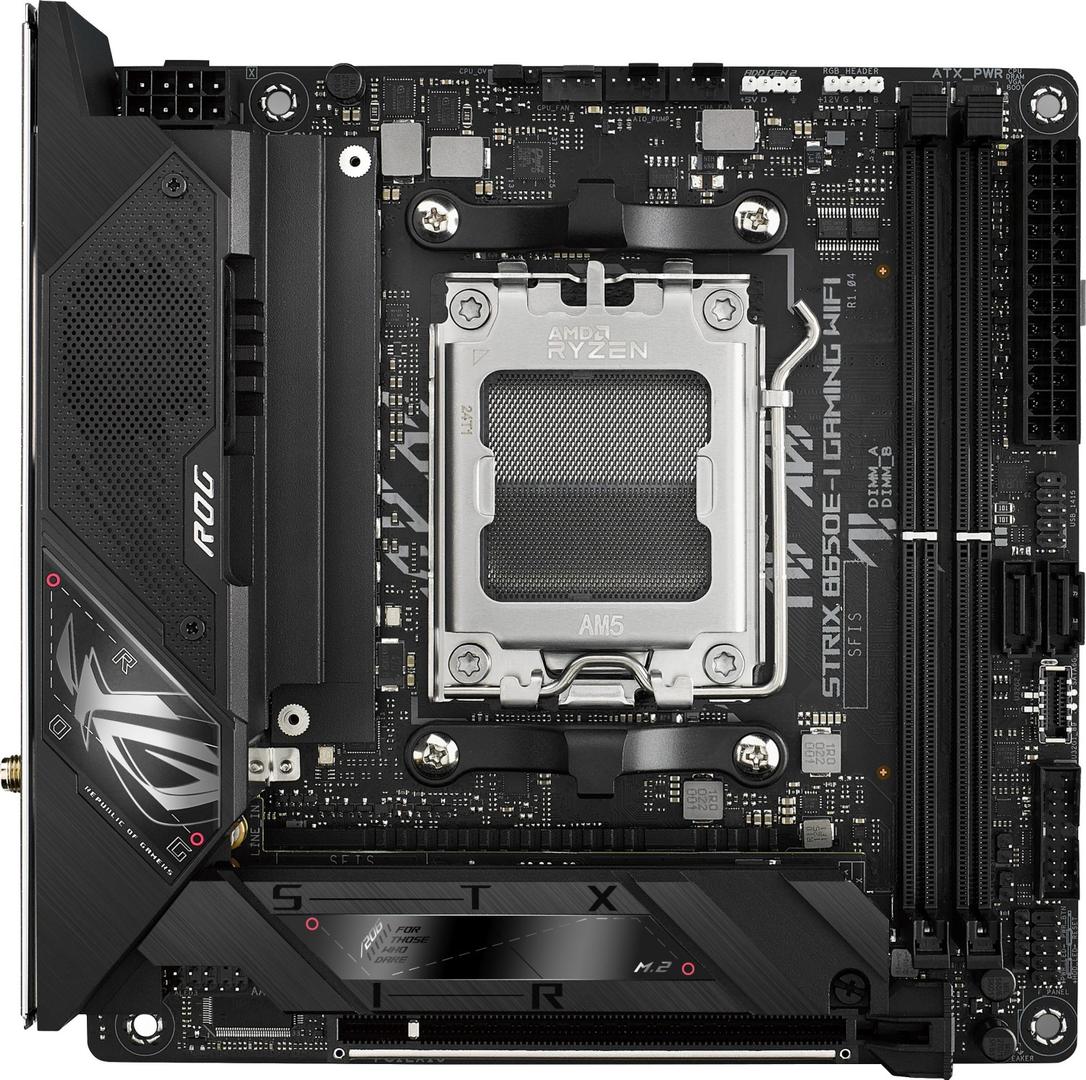

ASUS ROG Strix B650E-I Gaming WiFi / Motherboard / mini ITX / Socket AM5 / AMD B650 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 / 2.5 Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-chann | 90MB1BI0-M0EAY0
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - mini ITX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 64 GB |
| Technology | DDR5 |
| Bus Clock | 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5200 MHz, 5000 MHz |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |

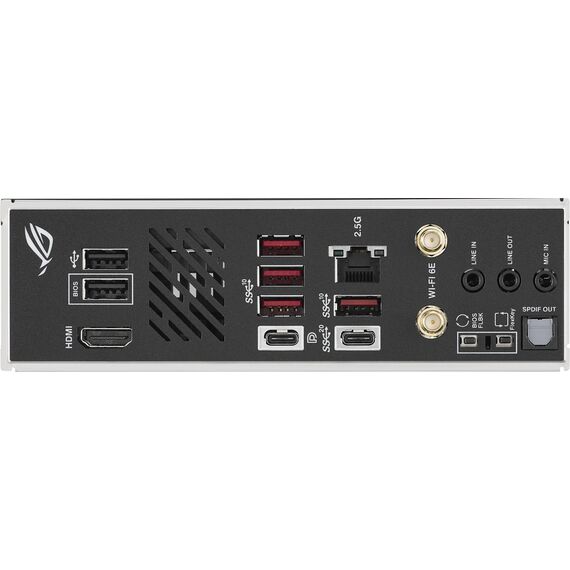

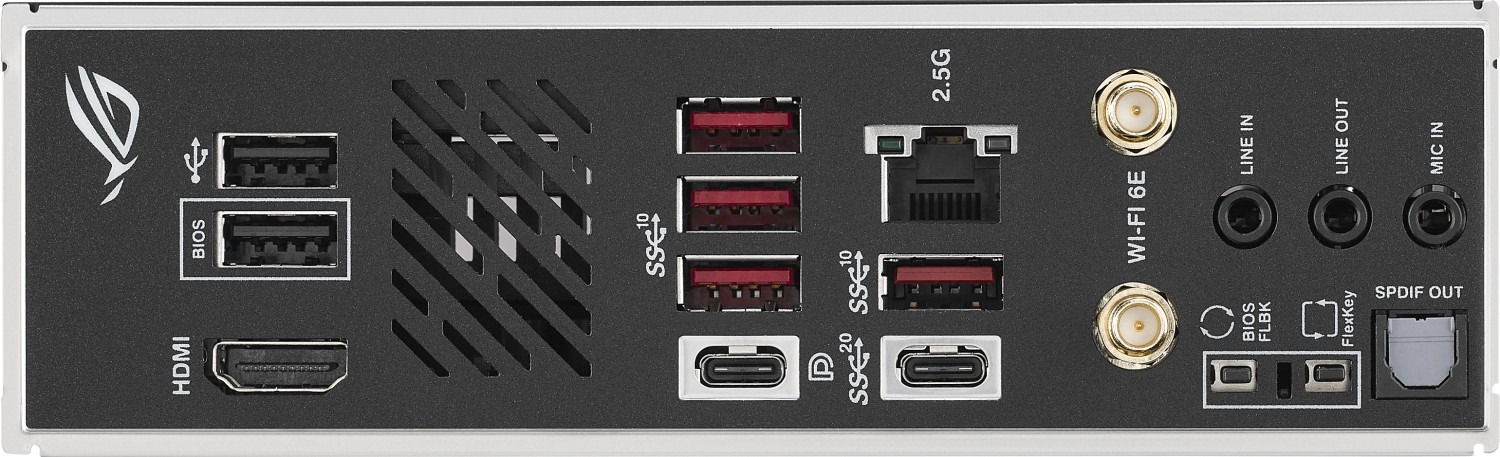

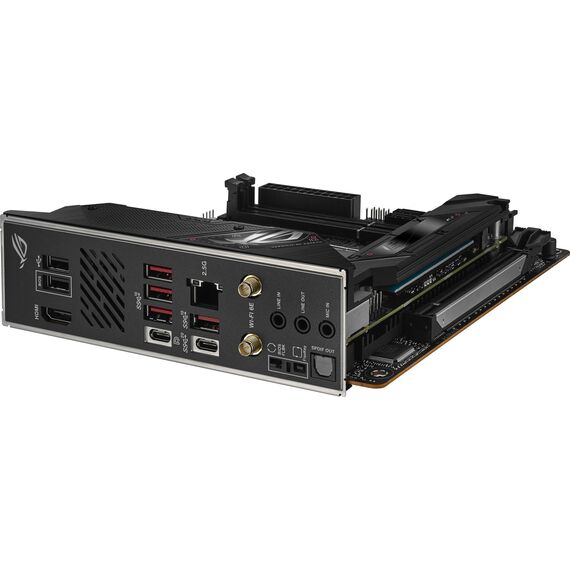

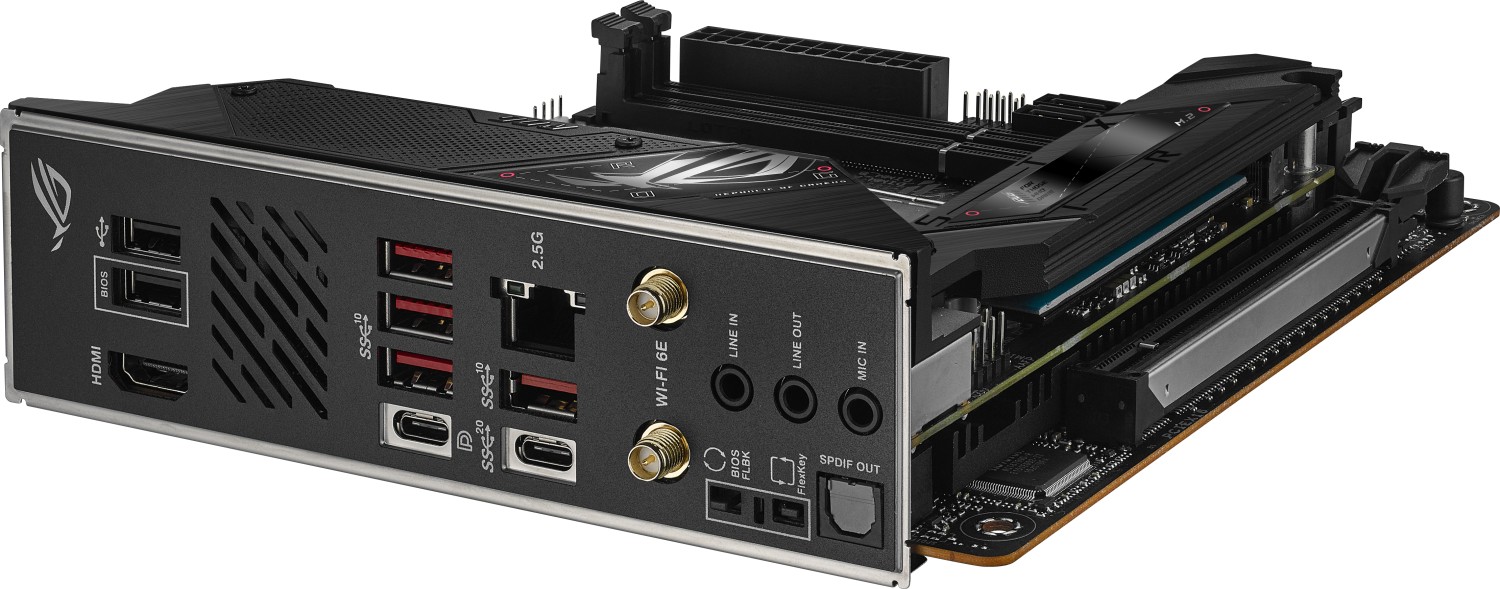

| Interfaces | 1 x HDMI ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 4 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x SPDIF out ¦ 2 x aerial |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), LANGuard, ASUS SafeSlot, 10 Layer PCB, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, 10K Black Metallic Capacitors, LED-illuminated audio jacks, DIY Friendly Design, FlexKey button, 70A Power Stage, 10+2 Phase Power Design, Savitech SV3H712 amplifier, M.2 Q-Latch, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, ASUS Enhanced Memory Profile (AEMP) |
| Miscellaneous | Miscellaneous |
| Included Accessories | Cable ties, M.2 bracket, STRIX stickers, ROG thank you card, thermal pad for M.2 SSD, ROG key chain, ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 Q-Latch, panel cable, M.2 screw package |
| Cables Included | 2 x Serial ATA cable ¦ 1 x USB 2.0 splitter cable |
| Software Included | ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, Antivirus, WinRAR, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 days trial), ASUS AURA Creator, Sonic Suite Companion, MyAsus, Armoury Crate, Sonic Studio III, Sonic Radar III, ASUS Fan Xpert 4 |
| Compliant Standards | VCCI Class B ITE, JATE, FCC Part 15 Class B, EU RoHS, EU REACH |
| Width | 17 cm |
| Depth | 17 cm |
| Package Details | Box |
Features - Asus - 90MB1BI0-M0EAY0
More Details
Product Code
03:200127
EAN Code
4711081957881
Manufacturer
Asus
