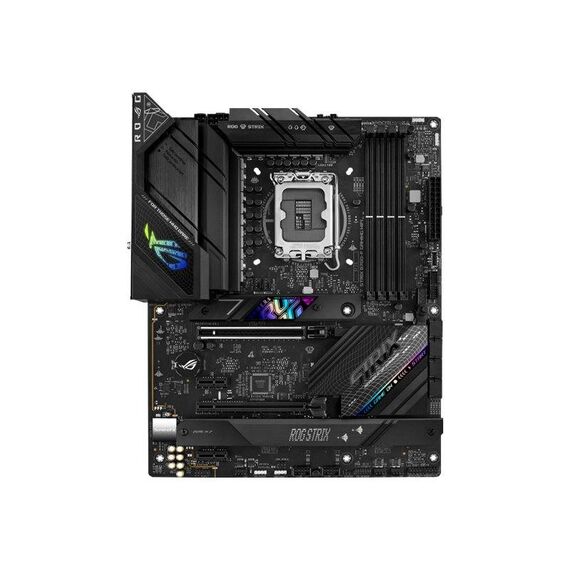

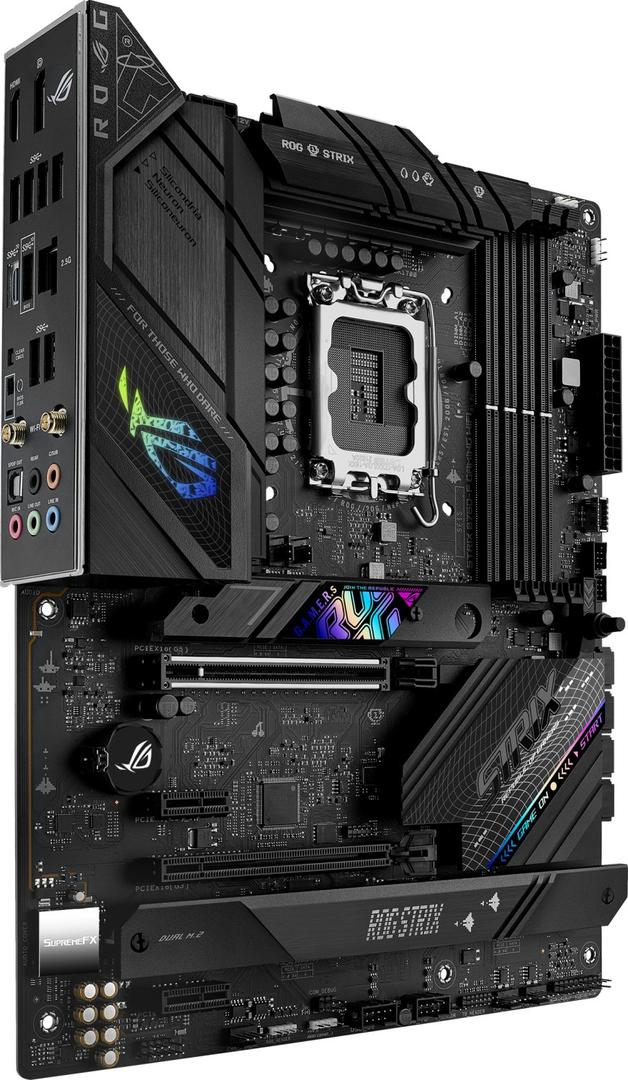

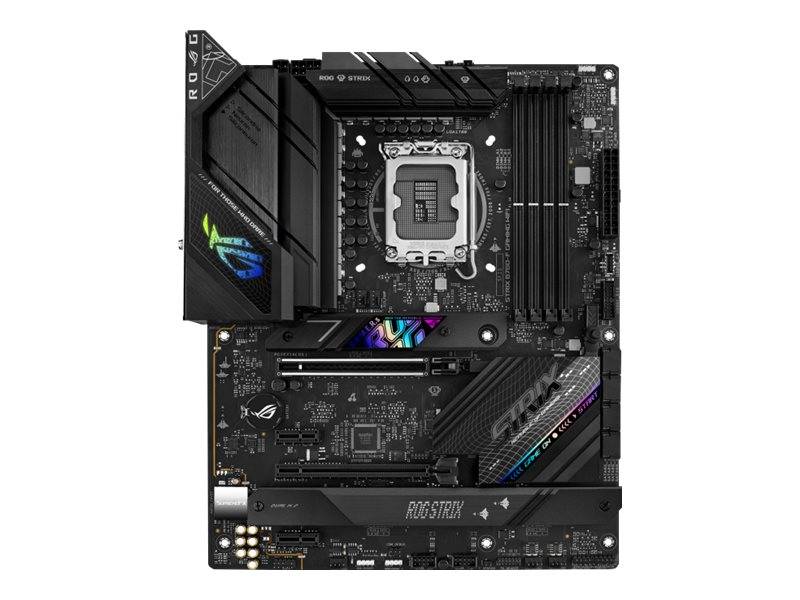

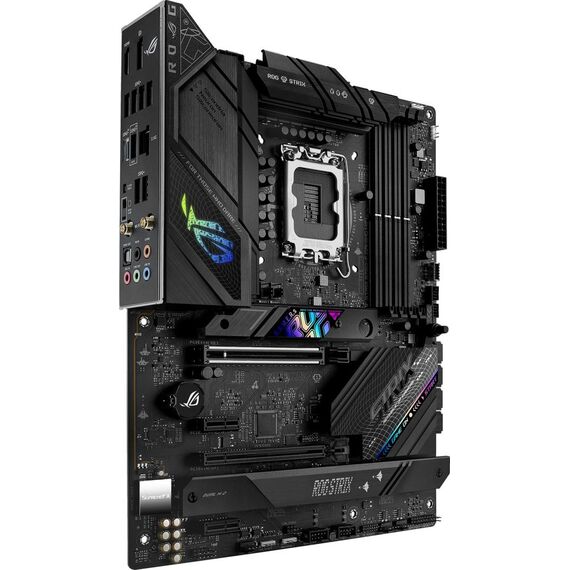

ASUS ROG STRIX B760-F GAMING WIFI / Motherboard / ATX / LGA1700 Socket / B760 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2 / 2.5 Gigabit LAN, Bluetooth, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1CT0-M0EAY0

Product Features

• Power architecture
  16 + 1 power stages, each rated to 60 A, deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
• Alloy chokes and durable capacitors
  High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
• Six-layer PCB
  A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
• DDR5 domination
  ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the STRIX B760-F, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.
• AEMP II
  ASUS Enhanced Memory Profile (AEMP) is an exclusive hardware and firmware solution to overclock generic memory modules. AEMP's second version allows for automatic tuning of kits during system startup and leverages the PCB trace optimizations of the STRIX B760-F to push frequencies higher than ever before. AEMP II can even overclock mixed kits in a quad-DIMM arrangement, and the vast library of support now extends to nearly every DDR5 module that does not otherwise have XMP support.
• VRM heatsink array
  Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors.
• M.2 heatsinks
  Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.
• CPU fan headers
  Positioned near the top of the motherboard, a pair of PWM/DC fan headers give easy access for CPU coolers.
• AIO pump fan header
  A dedicated PWM/DC header connects self-contained water-cooling setups.
• 4-pin fan headers
  The STRIX B760-F features four chassis fan headers, each supporting auto-detection of PWM or DC fans.
• PCIe performance
  The top x16 expansion slot is ready for the future with incredible PCIe 5.0 bandwidth, and it is protected with a SafeSlot retention bracket to support the bulk of the latest graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.
• Wi-Fi 6E
  Onboard Wi-Fi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
• Intel 2.5G Ethernet
  Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel 2.5 Gbps Ethernet.
• USB
  The STRIX B760-F comes loaded with multiple high-speed USB options. All of the rear I/O ports are USB 3.2-compliant, with the fastest being a USB 3.2 Gen 2x2 Type-C port for data transfers up to 20 Gbps. A chassis port can also receive turbo treatment via the USB Gen 3.2 Gen 2 front-panel connector.
• ROG SupremeFX
  ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The STRIX B760-F implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
• Undeniably ROG STRIX
  Keeping true to its roots, the STRIX B760-F is proudly decorated with allusions to games of yesteryear. Scattered decals create a techno-retro fusion backdrop that is punctuated with vibrant highlights and a signature illuminated ROG logo on the I/O shroud.
• Outshine the competition
  ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

Special Features

• Power architecture
• Alloy chokes and durable capacitors
• Six-layer PCB
• DDR5 domination
• AEMP II
• VRM heatsink array
• M.2 heatsinks
• CPU fan headers
• AIO pump fan header
• 4-pin fan headers
• PCIe performance
• Wi-Fi 6E technology
• Intel 2.5G Ethernet
• ROG SupremeFX
• Undeniably ROG STRIX
• Outshine the competition

Product Specification
