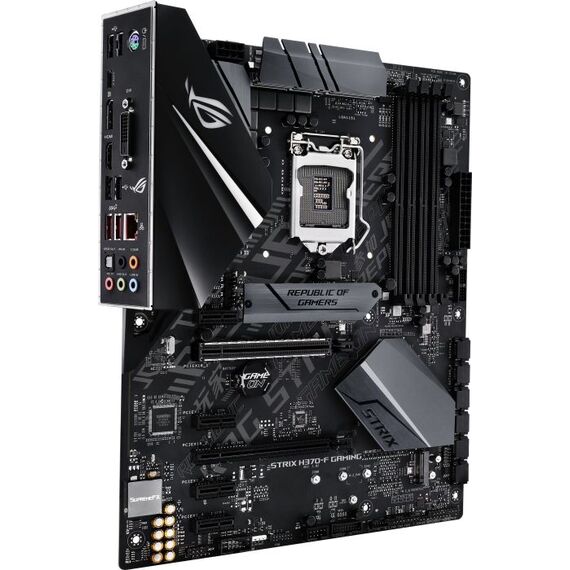

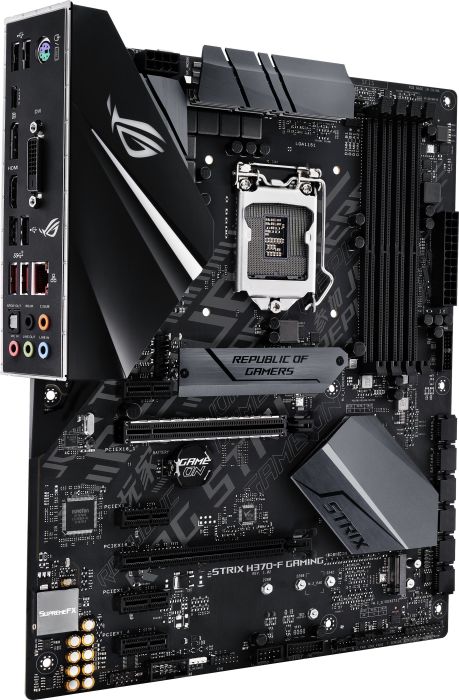

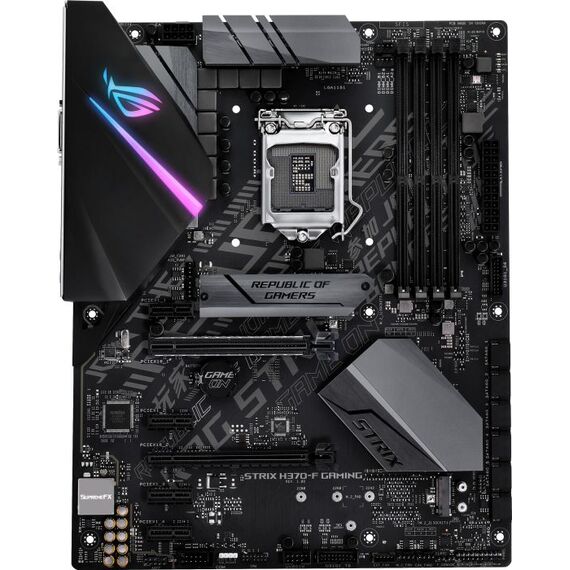

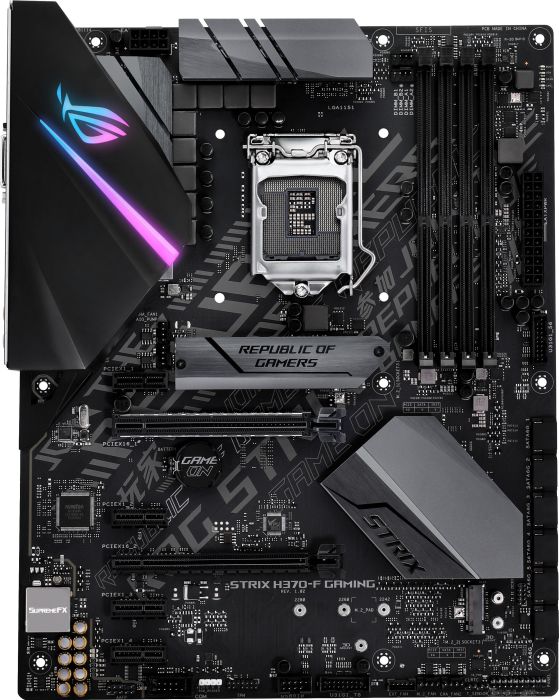

ASUS ROG STRIX H370-F GAMING / Motherboard / ATX / LGA1151 Socket / H370 / USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB0WF0-M0EAY0
Please sign in so that we can notify you about a reply
ASUS ROG STRIX H370-F GAMING / Motherboard / ATX / LGA1151 Socket / H370 / USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB0WF0-M0EAY0
Special Features
- Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with dual M.2 and Intel Optane Memory compatibility
- ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
- Fan Xpert 4 with GPU temperature sensing allows for dynamic fan calibration and optimized system cooling while gaming
- Unmatched personalization with ASUS exclusive Aura Sync RGB lighting and a 3D-printing friendly mount
- Pre-mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel H370 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type | HD Audio (8-channel) |
| Audio Codec | SupremeFX (S1220A) |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 4 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |
| RAID Features | Intel Rapid Storage Technology |

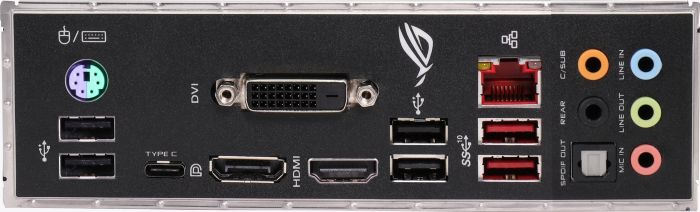

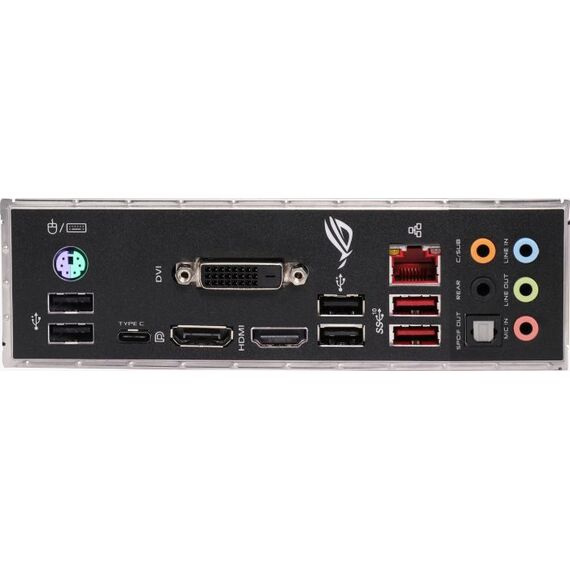

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x DVI-D ¦ 1 x TOSLINK |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 support |
| Sleep / Wake Up | Wake on LAN (WOL), wake on ring (WOR) |
| Hardware Features | Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, SupremeFX Shielding technology, AMD CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, dual headphone amplifiers, LANGuard, ASUS Gamer's Guardian, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, 3D printing friendly, Intel Optane Memory Ready, Sonic Radar III, Sonic Studio III, pre-mounted I/O shield, Sonic Studio Link |
| Included Accessories | Cable ties, ROG Door Hanger, 1 x M.2 screw, ROG fan stickers, RGB (RGBW) LED strip extension cable, 3D printing mount package |
| Cables Included | 4 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, Overwolf, ASUS EZ Flash 3, ROG Aura, ROG GameFirst IV, ASUS ROG RAMCache II, ROG CloneDrive |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB0WF0-M0EAY0
More Details
Product Code
04:257148
EAN Code
4712900906073
Manufacturer
Asus
