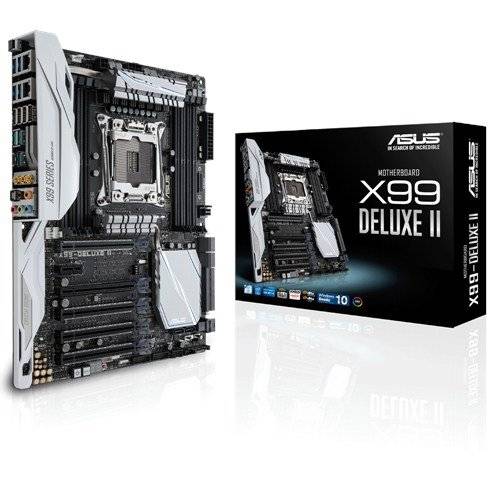

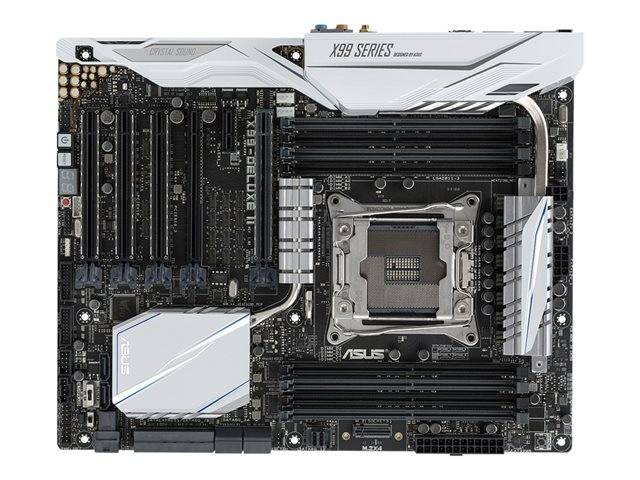

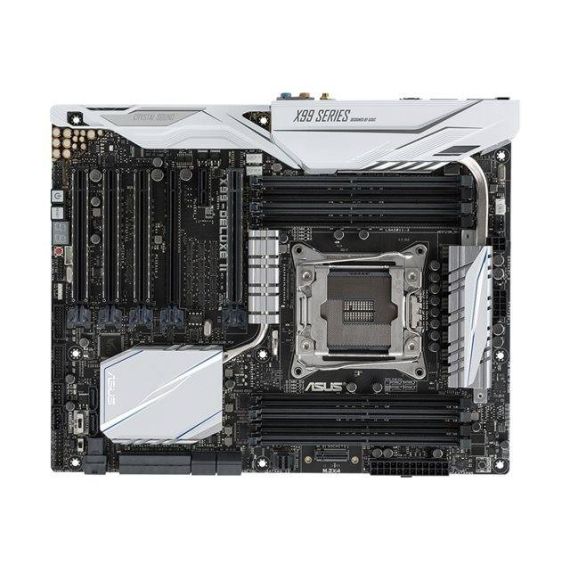

ASUS X99-DELUXE II / Motherboard / ATX / LGA2011-v3 Socket / X99 / USB 3.0, USB 3.1, USB-C / Bluetooth, 2 x Gigabit LAN, Wi-Fi / HD Audio (8-channel) | 90MB0QB0-M0EAY0
ASUS X99-DELUXE II / Motherboard / ATX / LGA2011-v3 Socket / X99 / USB 3.0, USB 3.1, USB-C / Bluetooth, 2 x Gigabit LAN, Wi-Fi / HD Audio (8-channel) | 90MB0QB0-M0EAY0
Description Awaken the true performance with one click and pioneered OC socket, plus unparalleled connectivity with 3x3 802.11ac Wi-Fi with this X99-DELUXE II. Special Features
Product features
|
Product Specification
Product Type | Motherboard - ATX |
Chipset Type | Intel X99 Express |
Processor Socket | LGA2011-v3 Socket |
Max Processors Qty | 1 |
Compatible Processors | Core i7 Extreme Edition, Core i7 |
Max Size | 128 GB |
Technology | DDR4 |
Bus Clock | 2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3333 MHz (O.C.) |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Intel Extreme Memory Profiles (XMP), quad channel memory architecture |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC1150 |
Compliant Standards | DTS Connect, High Definition Audio, DTS Studio Sound |
Network Controller | Intel I211-AT / I218V |
Network Interfaces | Bluetooth, 2 x Gigabit Ethernet, 802.11a/b/g/n/ac |
Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 4 x PCIe 3.0 x16 ( dual x16 mode; triple: x16, x16, x8 mode; quad: x8, x8, x8, x8 mode ) ¦ 1 x PCIe 2.0 x16 ( x4 mode ) ¦ 1 x PCIe 2.0 x1 |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin SATA, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 3.0 -connectors: 1 x M.2, 2 x U.2 ¦ SATA-600 -connectors: 4 x 7pin Serial ATA |
RAID Features | Intel Smart Response Technology |
Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 ¦ 4 x USB 3.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x TOSLINK ¦ 3 x USB 3.1 ¦ 1 x USB-C |
Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.0 - header ¦ 1 x Thunderbolt - header ¦ 1 x SPDIF out - header |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
BIOS Type | AMI |
BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, USB BIOS Flashback, UEFI BIOS, ACPI 5.0 support, ASUS EZ Flash 3, SMBIOS 3.0 support |
Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
Hardware Features | Jack retasking, ASUS Anti-Surge Protection, MemOK!, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS Precision Tweaker 2, NVIDIA 3-way SLI Technology Support, Teaming Technology, Intel Extreme Memory Profile (XMP) support, NVIDIA Quad SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Intel Smart Response Technology, Q-Code, AMD Quad CrossFireX technology support, AMD 3-way CrossFireX technology support, ASUS Wi-Fi GO!, DirectKey, ASUS Enhanced DRAM Overcurrent Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, Turbo LAN, Dual Intelligent Processors 5, LANGuard, Memory O.C. Design, ASUS OC Socket, USB 3.1 Boost, ASUS Overvoltage Protection, ASUS Crystal Sound 3, ASUS 5X Protection II, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, Intel Turbo Boost Technology 3.0 |
Included Accessories | I/O back plate, 1 x M.2 screw, ASUS 3T3R Wi-Fi moving aerials, thermistor cable, M.2 X4 bracket, fan extension card, Hyper M.2 x4 Mini card, ASUS ThunderboltEX 3 card |
Cables Included | 8 x Serial ATA cable ¦ 1 x 3-way SLI bridge |
Software Included | Drivers & Utilities, ASUS AI Charger+, ASUS AI Suite III, ASUS EZ Update, ASUS Turbo App, Antivirus (OEM version), Mobo Connect, PC Cleaner, Media Streamer, HyStream, ASUS EZ Flash 3 |
Width | 30.5 cm |
Depth | 24.4 cm |
Service & Support | 3 years warranty |
Service & Support Details | Limited warranty - 3 years |
