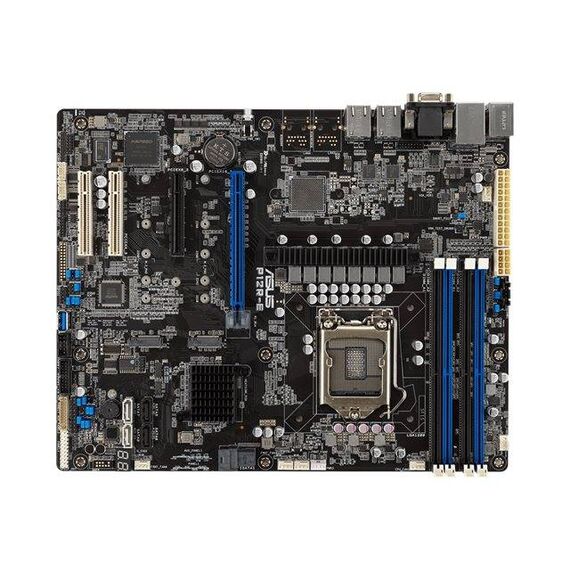

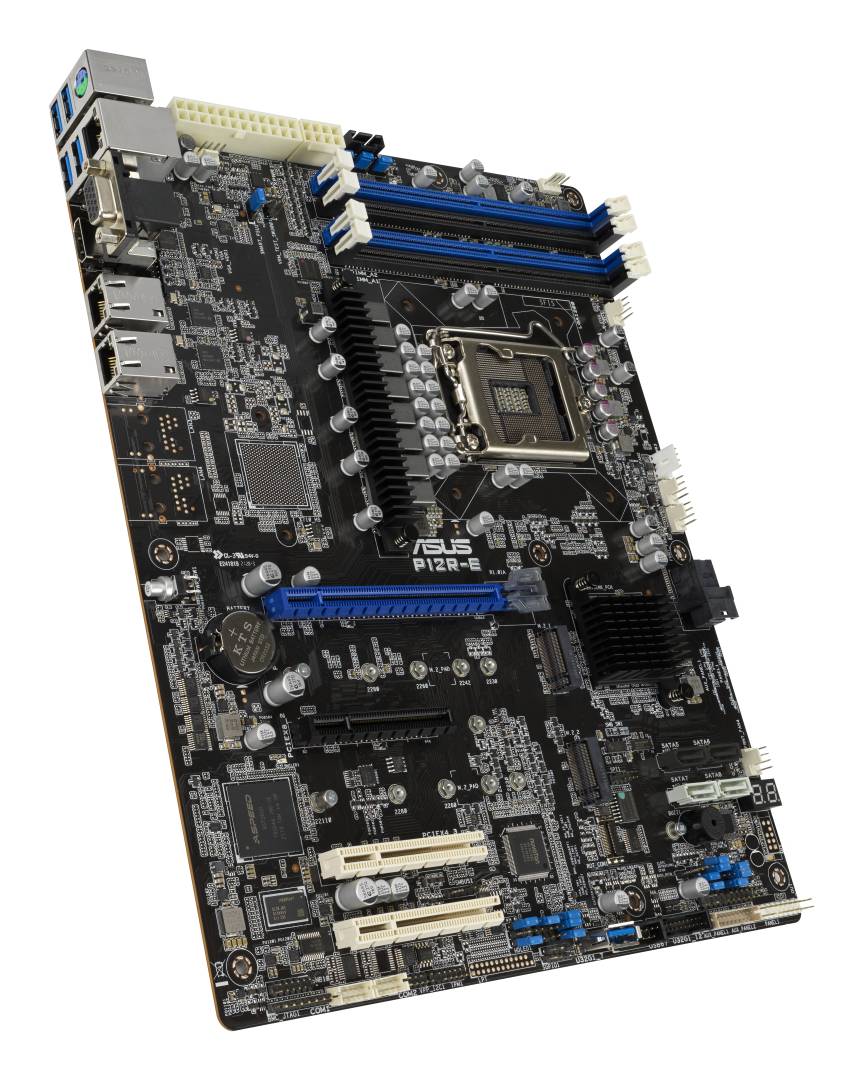

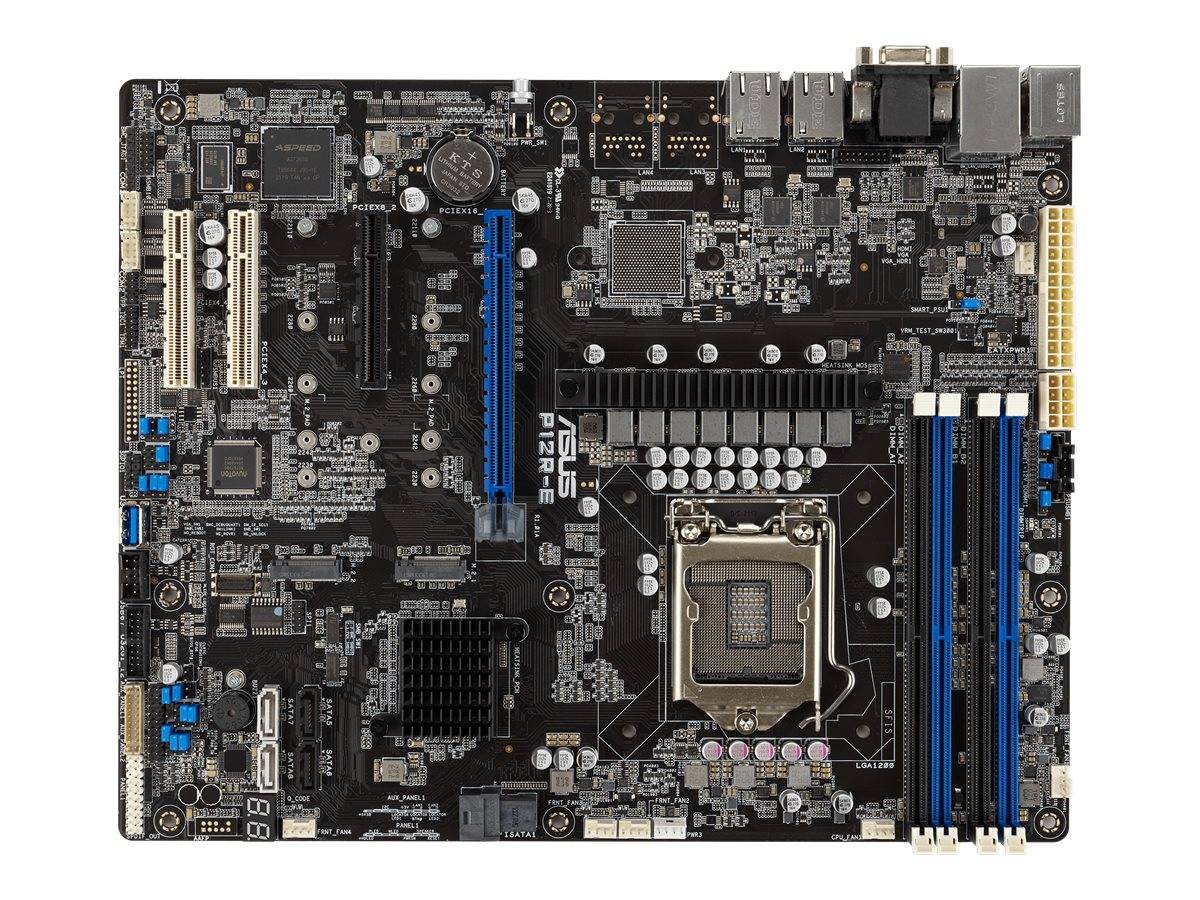

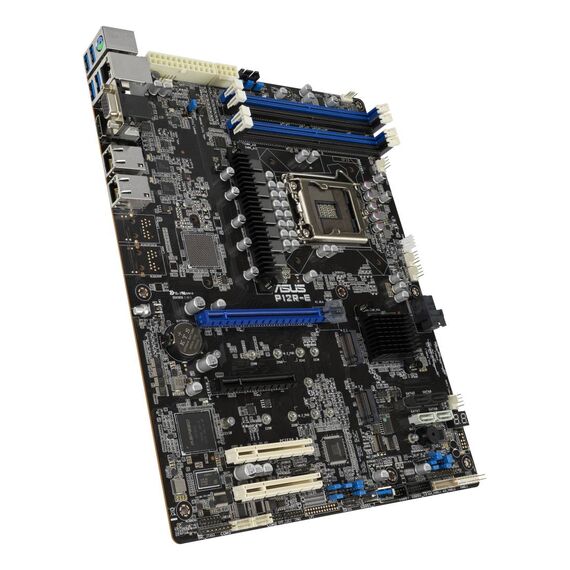

ASUS P12R-E / Motherboard / ATX / LGA1200 Socket / C256 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2 / 2 x 10 Gigabit LAN / onboard graphics | 90SB0A90-M0UAY0
Please sign in so that we can notify you about a reply
ASUS P12R-E / Motherboard / ATX / LGA1200 Socket / C256 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2 / 2 x 10 Gigabit LAN / onboard graphics | 90SB0A90-M0UAY0
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel C256 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Xeon E |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2666 MHz, 2933 MHz, 3200 MHz |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Graphics Controller | ASPEED AST2600 |
| Dedicated Video Memory | 64 MB |
| Network Controller | 2 x Intel I210AT |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (x16 mode (x8 mode if PCI Express 4.0 x8 slot is occupied)) ¦ 1 x PCIe 4.0 x8 ¦ 2 x PCIe 3.0 x8 (x4 mode) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin SATA, 1 x mini-SAS HD - 8 devices ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2 |

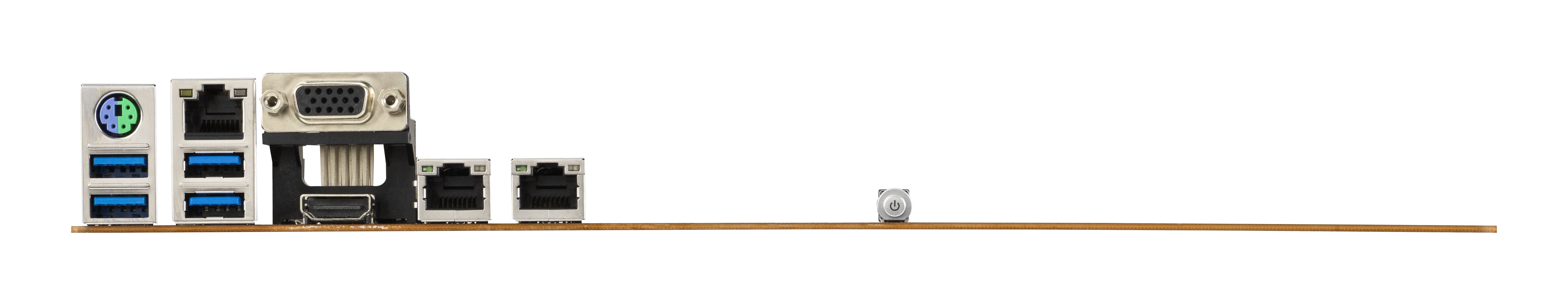

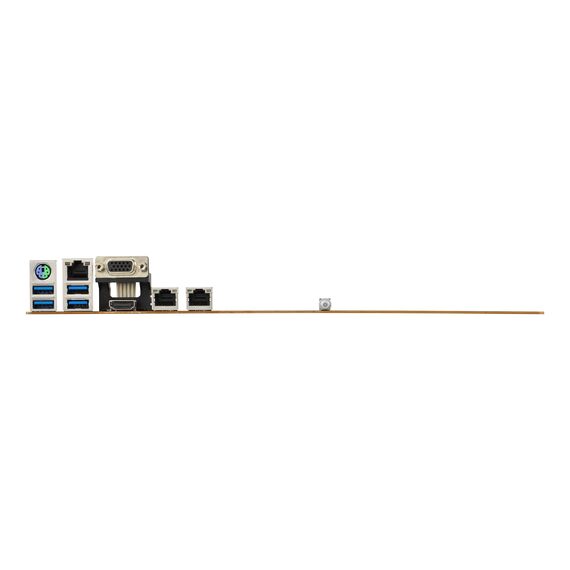

| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 1 x management ¦ 1 x HDMI ¦ 1 x VGA ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 3.1 Gen 2 |
| Internal Interfaces | 1 x serial - header ¦ 2 x USB 3.2 Gen 1 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Included Accessories | I/O back cover |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Weight | 760 g |
| Shipping Weight | 1.3 kg |
Features - Asus - 90SB0A90-M0UAY0
More Details
Product Code
07:254153
EAN Code
4711081420217
Manufacturer
Asus
