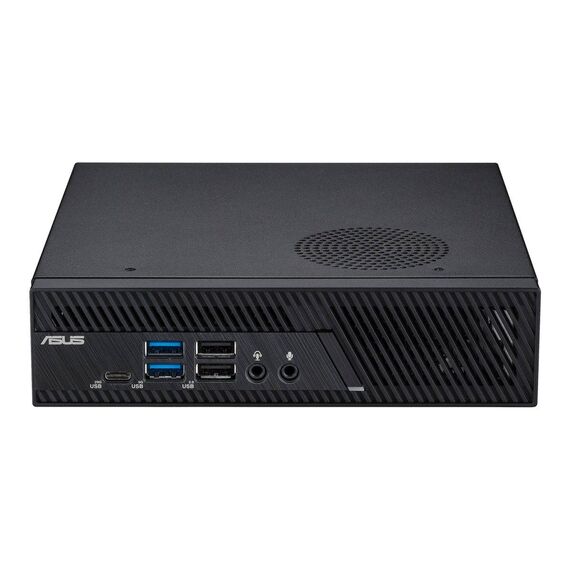

ASUS PB63 B7016MH / Mini PC / Core i7 13700 / 2.1 GHz / RAM 16 GB / SSD 512 GB / NVMe / UHD Graphics 770 / Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) WLAN: / Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) / no OS / monitor | 90MS02R1-M000H0
Please sign in so that we can notify you about a reply
Product Specification
| Type | Personal computer |
| Product Form Factor | Mini PC |
| Built-in Devices | Air cooling solution |
| Embedded Security | Trusted Platform Module (TPM) Security Chip |
| Colour | Black |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Core i7 (13th Gen) 13700 |
| Clock Speed | 2.1 GHz (P-core) / 1.5 GHz (E-core) |
| Max Turbo Speed | 5.2 GHz (P-core) / 4.1 GHz (E-core) |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| Chipset Type | Intel B760 |
| Cache Memory | Cache Memory |
| Installed Size | 30 MB |
| Cache Per Processor | 30 MB |
| RAM | RAM |
| Installed Size | 16 GB / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (Total) / 0 (empty) |
| Hard Drive | Hard Drive |
| Type | SSD - M.2 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express 4.0 |
| Features | NVM Express (NVMe) |
| Storage Controller | Storage Controller |
| Type | SATA |
| Channel Qty | 1 |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel UHD Graphics 770 |
| Video Interfaces | HDMI, DisplayPort |
| Networking | Networking |
| Ethernet Controller | Intel I219 |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) |
| Features | Dual stream (2x2) |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 2 (total) / 1 (free) x PCIe 4.0 x4 - 2280 (for SSD) |
| Interfaces | 3 x USB 2.0 (2 front, 1 rear) ¦ 2 x USB 3.2 Gen 1 (2 front) ¦ 2 x USB 3.2 Gen 2 (2 rear) ¦ 1 x USB-C 3.2 Gen 2x2 (1 front) ¦ 1 x HDMI (1 rear) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear) ¦ 1 x microphone - mini-jack (1 front) ¦ 1 x audio line-out - mini-jack (1 front) ¦ 1 x aerial (1 rear) ¦ 2 x DisplayPort (2 rear) |
| Miscellaneous | Miscellaneous |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | Yes |
| Compliant Standards | UL, VCCI, C-Tick, BSMI, CB, CCC, FCC |
| Power | Power |
| Device Type | Power supply |
| Power Provided | 150 Watt |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Sustainability Information | Sustainability Information |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Certified | Yes |
| Dimensions & Weight | Dimensions & Weight |
| Width | 17.5 cm |
| Depth | 17.5 cm |
| Height | 4.42 cm |
| Weight | 1.18 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 36 cm |
| Shipping Depth | 24 cm |
| Shipping Height | 6.8 cm |
| Shipping Weight | 2.61 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% |
Features - Asus - 90MS02R1-M000H0
CPU Type
- Intel Core i7
Capacity
512GB
More Details
Product Code
04:444845
EAN Code
4711387339701
Manufacturer
Asus
