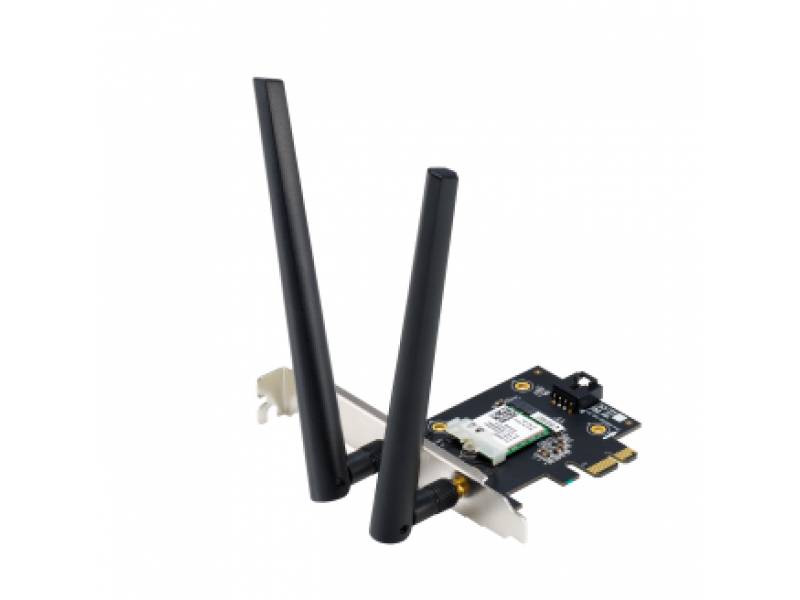

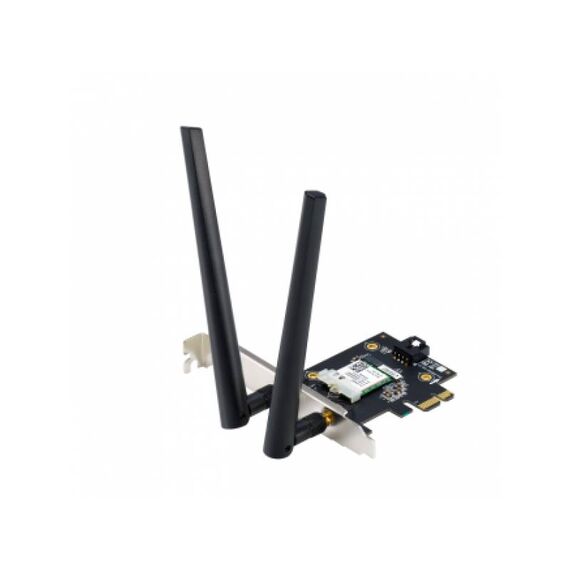

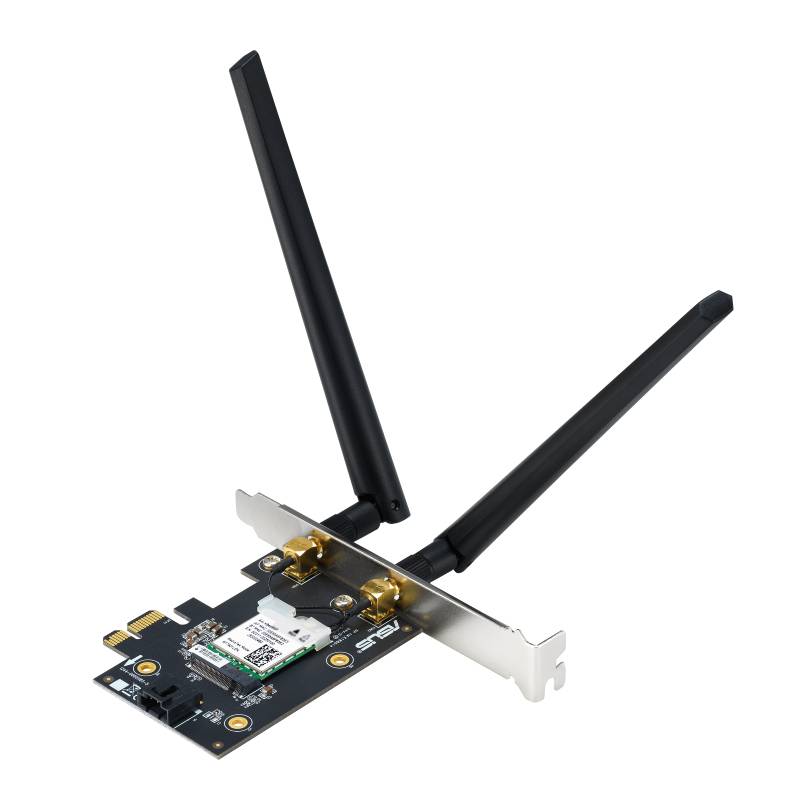

ASUS PCE-AXE5400 / Network adapter / PCIe low profile / Bluetooth 5.2, Wi-Fi 6E | 90IG07I0-ME0B10
Product Features
- Less congested Wi-Fi
ASUS PCE-AXE5400 is a Wi-Fi 6E PCIe card that allows your PC to connect to a Wi-Fi 6E router via the dedicated 6 GHz band. This means it will not compete for bandwidth with non-Wi-Fi 6E devices. The 6 GHz band provides up to seven extra 160 MHz channels, providing more bandwidth, more flexibility, and less congestion. - Ultrafast Wi-Fi 6E desktop upgrade
With Wi-Fi 6E's 6 GHz technology and wide 160 MHz channels, PCE-AXE5400 delivers wireless speeds that are up to 4.6x faster than Wi-Fi 5 devices, making it perfect for even the most bandwidth-demanding tasks. - Low latency, fast Wi-Fi
PCE-AXE5400 adds powerful OFDMA and MU-MIMO functionality to your PC. Instead of making your PC wait in turn with other connected devices when transferring wireless data to the router, these technologies allow each device's data to be sent simultaneously. The result is increased network efficiency and lower latency for maximum Wi-Fi performance. - Instant Bluetooth upgrade
Slot PCE-AXE5400 into your PC for an instant upgrade to the Bluetooth 5.2 technology and enjoy faster transmit speeds and greater range compared to Bluetooth 4.2. Your PC will enjoy fast and stable connections to all your wireless peripherals. - Enhanced network security with WPA3
PCE-AXE5400 uses the WPA3 Wi-Fi security protocol, providing your PC with an extra layer of protection against external attacks to give you added peace of mind. Accelerate and de-risk your technology transformations with leading expertise. Quickly go from ideas to outcomes while maximizing the value of your IT investment.
Special Features
- ASUS Wi-Fi 6E total solution - optimized capabilities and performance
- 6 GHz band - less congestion and interference for Wi-Fi connections
- Bluetooth 5.2 - improved signal range, faster transmit speeds and less interference
- Ultrafast Wi-Fi 6 and Wi-Fi 6E - 4.6x faster speeds, improved connection efficiency and better network security
- Reduced dead zones with external antenna - freestanding transceiver and connecting cable allows easy positioning for excellent reception
Product Specification
Device Type | Network adapter |
Form Factor | Plug-in card - low profile |
Interface (Bus) Type | PCI Express x1 |
Networking | Networking |
Connectivity Technology | Wireless |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) |
Spread Spectrum Method | OFDMA |
Data Transfer Rate | 2402 Mbps |
Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
Features | MU-MIMO technology, 160MHz bandwidth support |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, Bluetooth 5.2 |
Aerial | Aerial |
Antenna | External detachable |
Antenna Qty | 2 |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 2 x aerial |
Miscellaneous | Miscellaneous |
Included Accessories | Low-profile bracket, 2 x Wi-Fi aerials |
Cables Included | 1 x USB header cable |
Encryption Algorithm | WPA3 |
Compliant Standards | WEEE, REACH, FCC Part 15 Class B, UKCA |
Software / System Requirements | Software / System Requirements |
OS Required | Windows 11 |
Dimensions & Weight | Dimensions & Weight |
Width | 2.159 cm |
Depth | 12.05 cm |
Height | 8.803 cm |
Weight | 49.7 g |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
