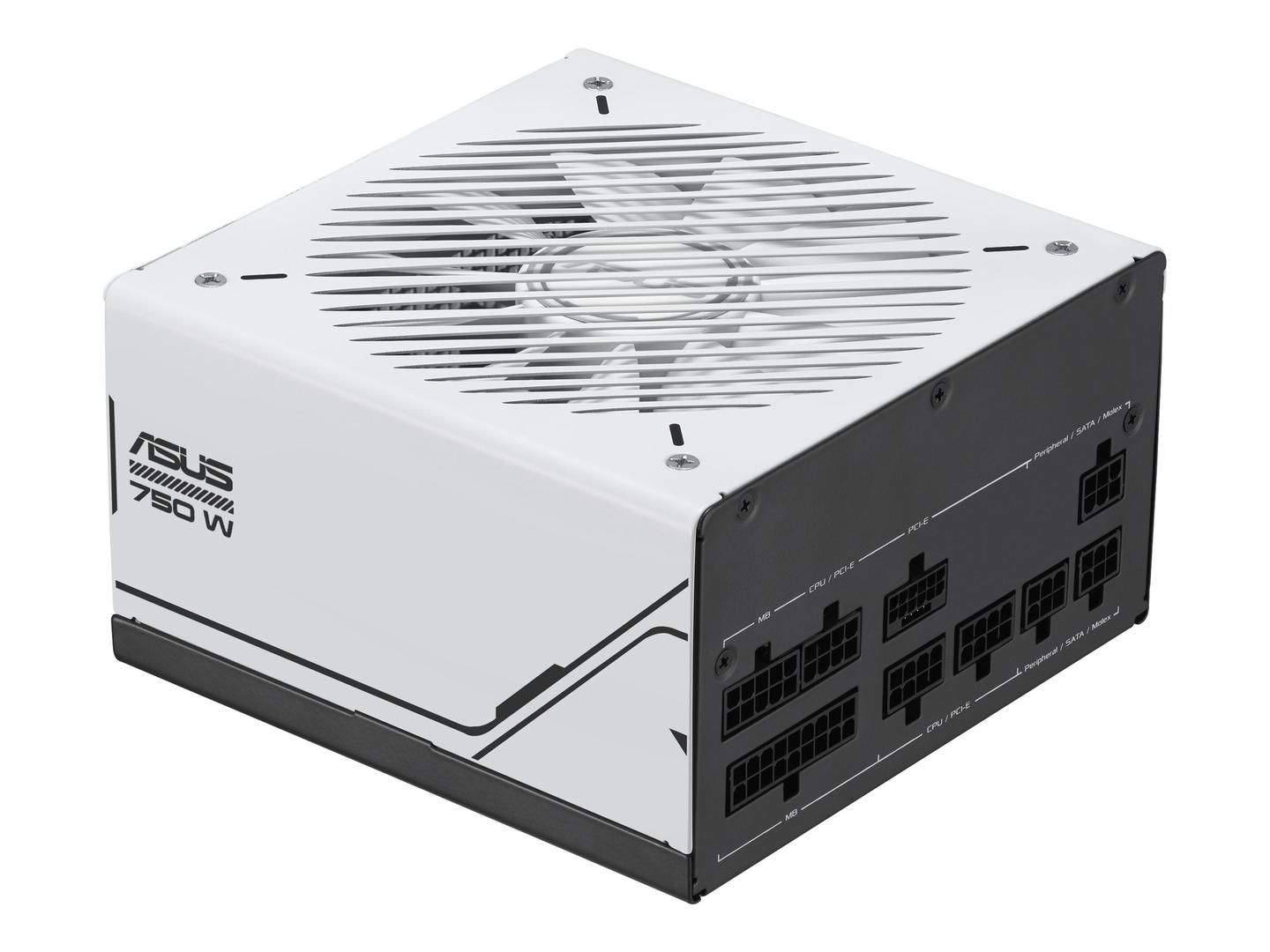

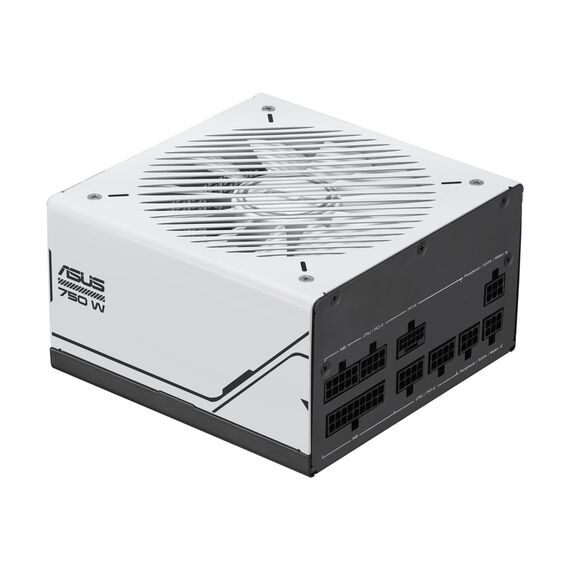

ASUS PRIME - Power supply (internal) - ATX12V 3.0/ EPS12V - 80 PLUS Gold - AC 100-240 V - 750 Watt - active PFC - black, white | 90YE00U1-B0NA00
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.0/ EPS12V |
| PSU Form Factor | ATX |
| Colour | Black, white |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Power Output Connectors Details | 1 x power 24 pin ATX <br /> 2 x power 8 pin EPS12V <br /> 1 x 12VHPWR <br /> 3 x 2 x 8 pin PCI Express power with detachable 2 pin section <br /> 5 x 15 pin Serial ATA power <br /> 3 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 20 A <br /> +5V - 20 A <br /> +12V - 62 A <br /> -12V - 0.3 A <br /> +5VSB - 2.5 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | |
| Cables Included | AC power cable <br /> Power 24 pin ATX modular cable 61 cm <br /> 2 x power 8 pin EPS12V modular cable 65 cm <br /> 16-pin 12VHPWR power modular cable 67.5 cm <br /> 16-pin 12VHPWR to 2x8 pin PCI Express power modular cable 67.5 cm <br /> 8 pin PCI Express power with detachable 2 pin section modular cable 67.5 cm <br /> 15 pin Serial ATA power modular cable 52 cm <br /> 15 pin Serial ATA power modular cable 64 cm <br /> 4 pin power modular cable 70 cm |
| MTBF | 120,000 hours |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular |
| Compliant Standards | RoHS |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 8 years |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 15 cm |
| Height | 8.6 cm |
| Weight | 1.466 kg |
