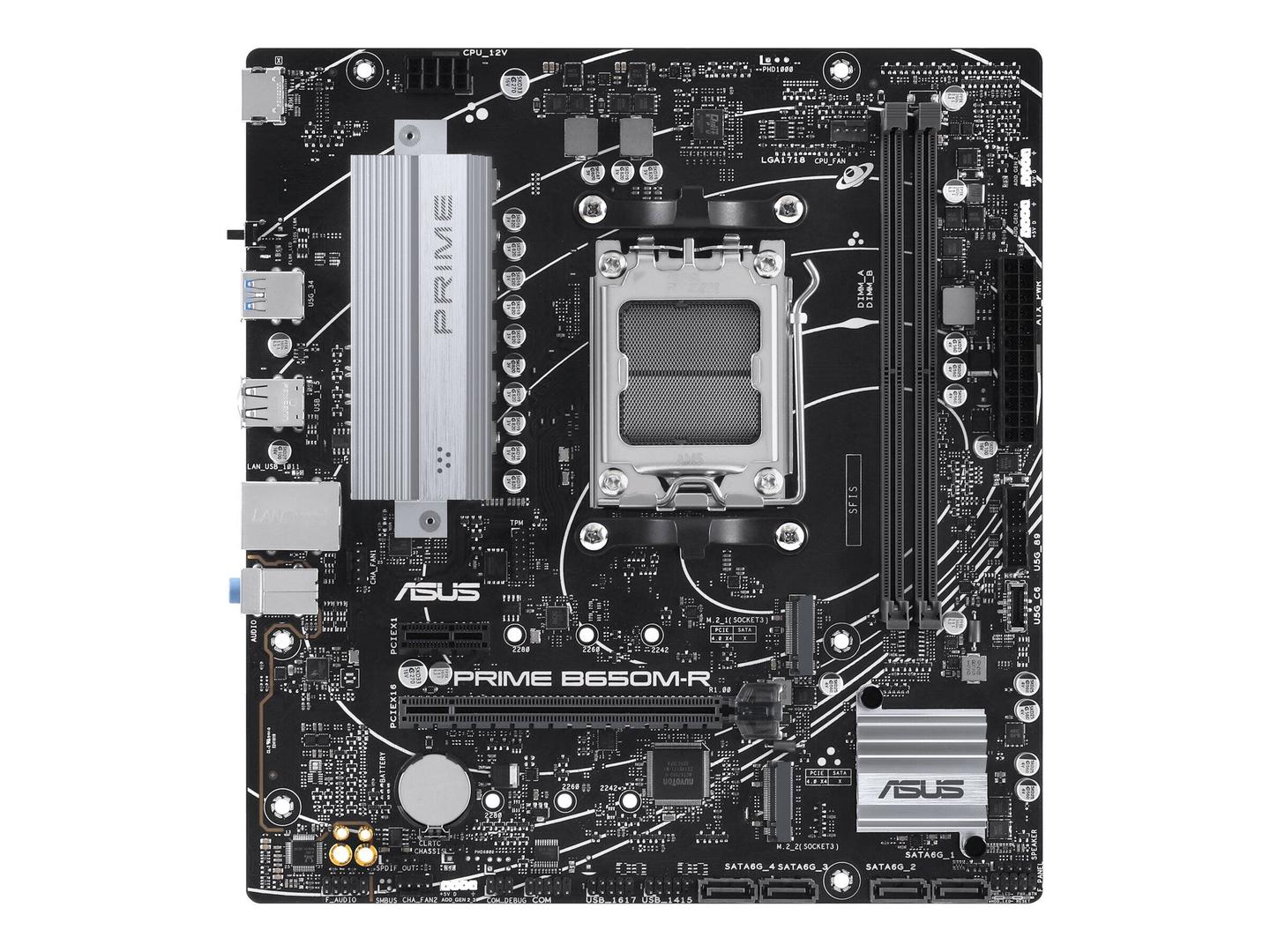

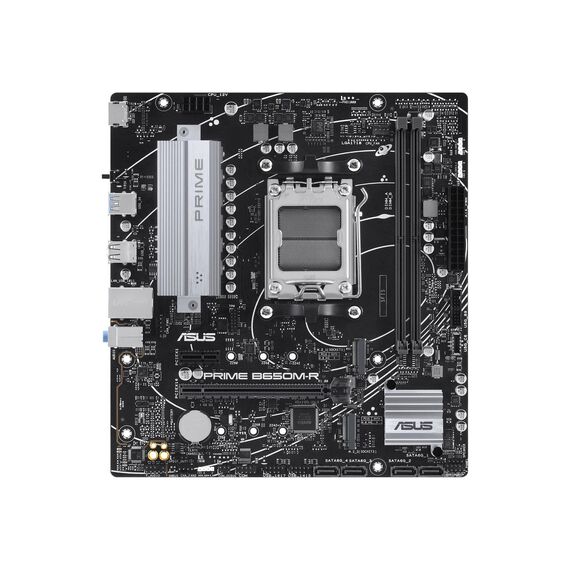

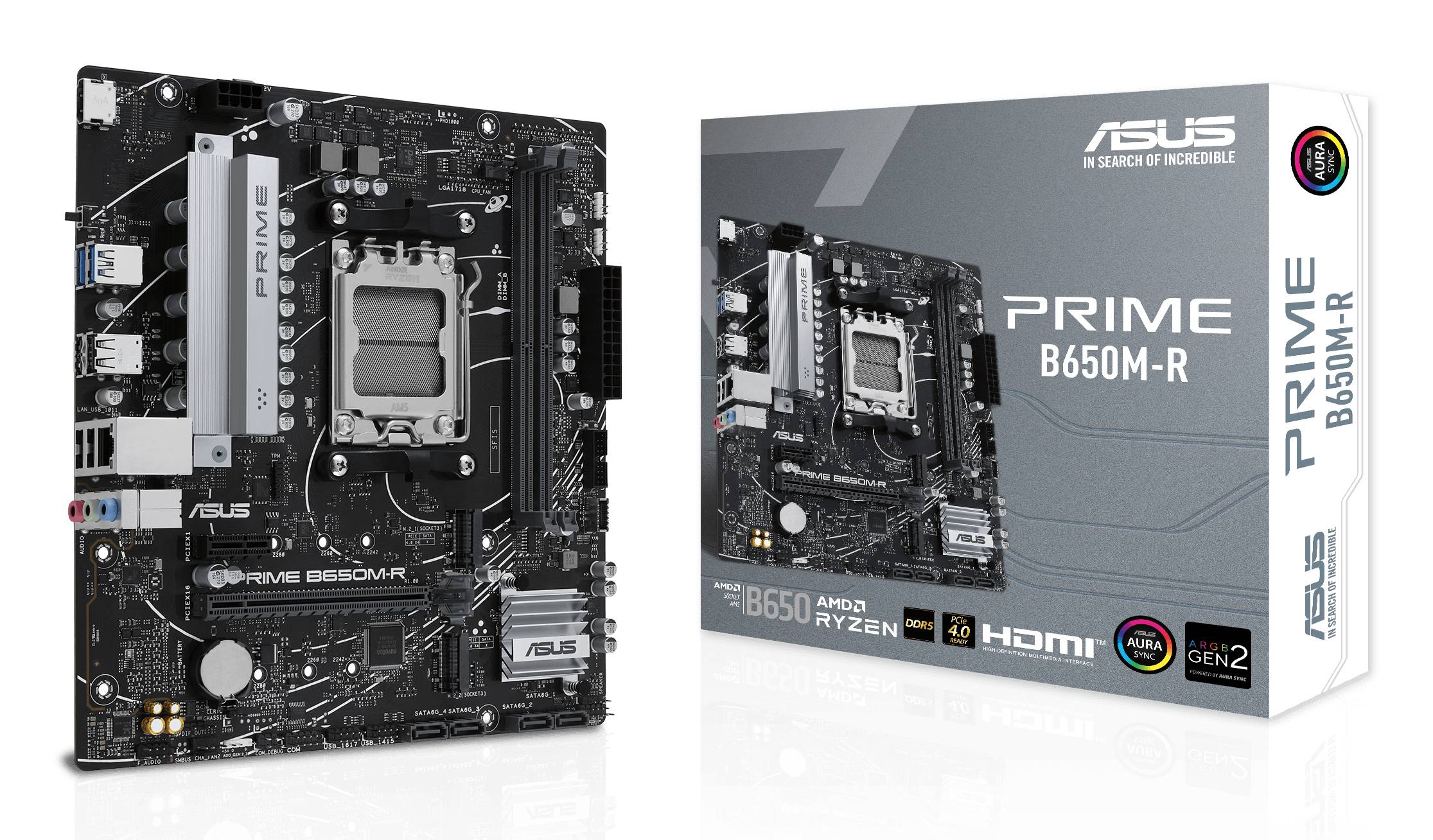

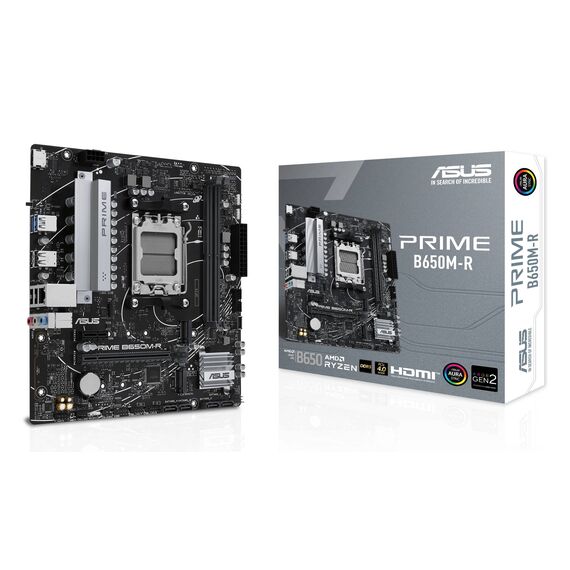

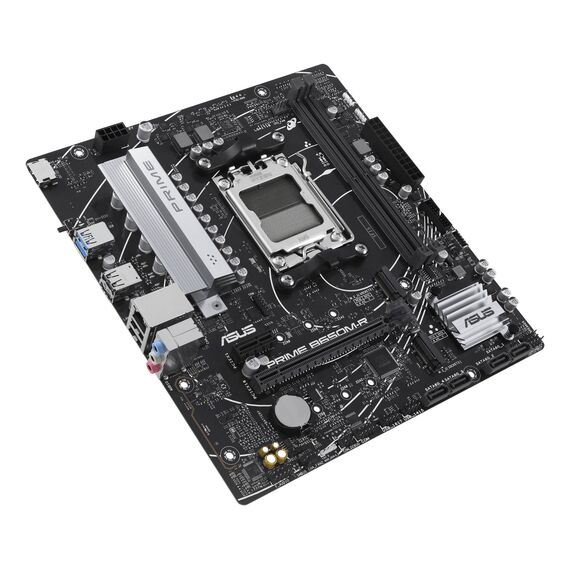

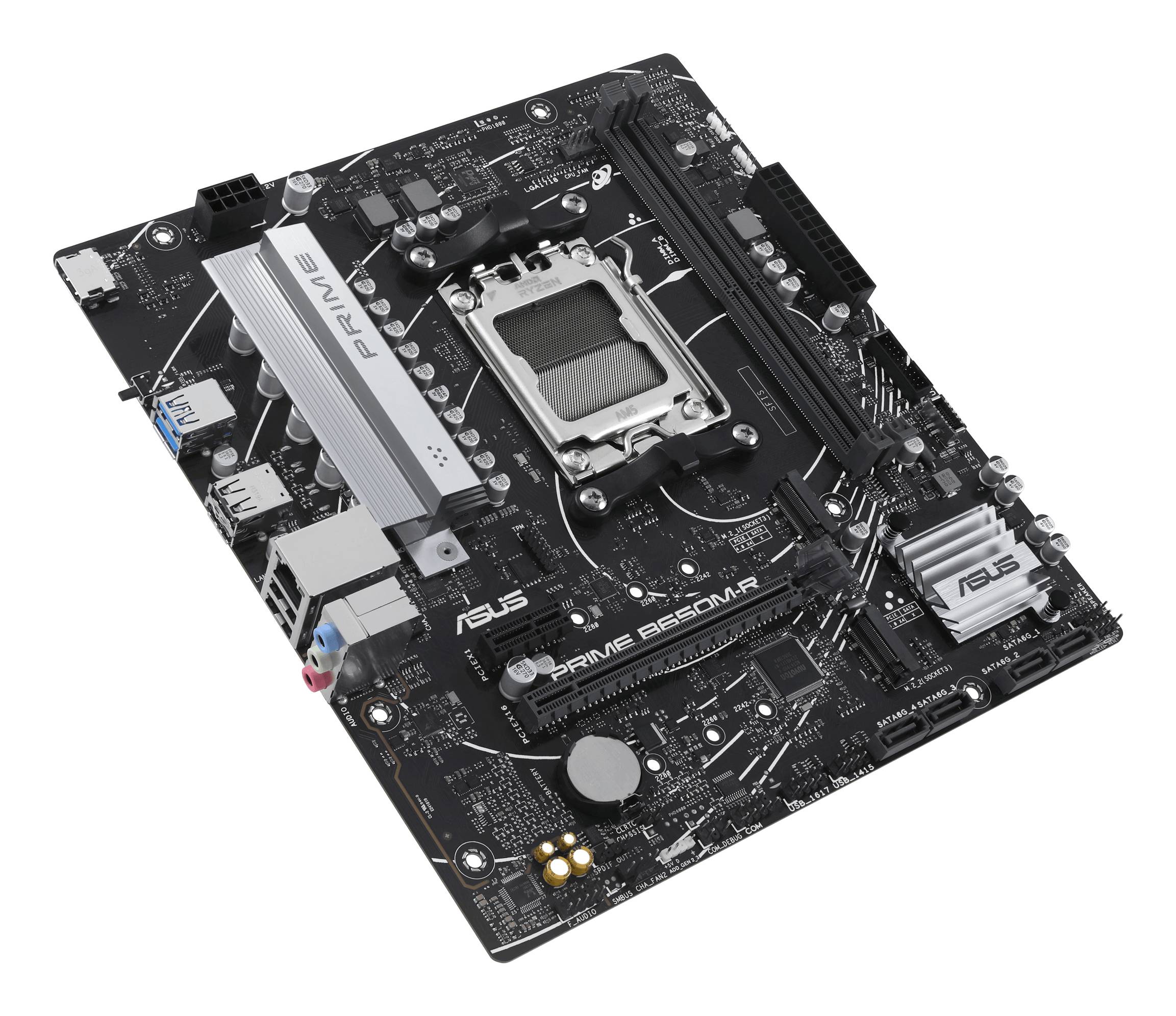

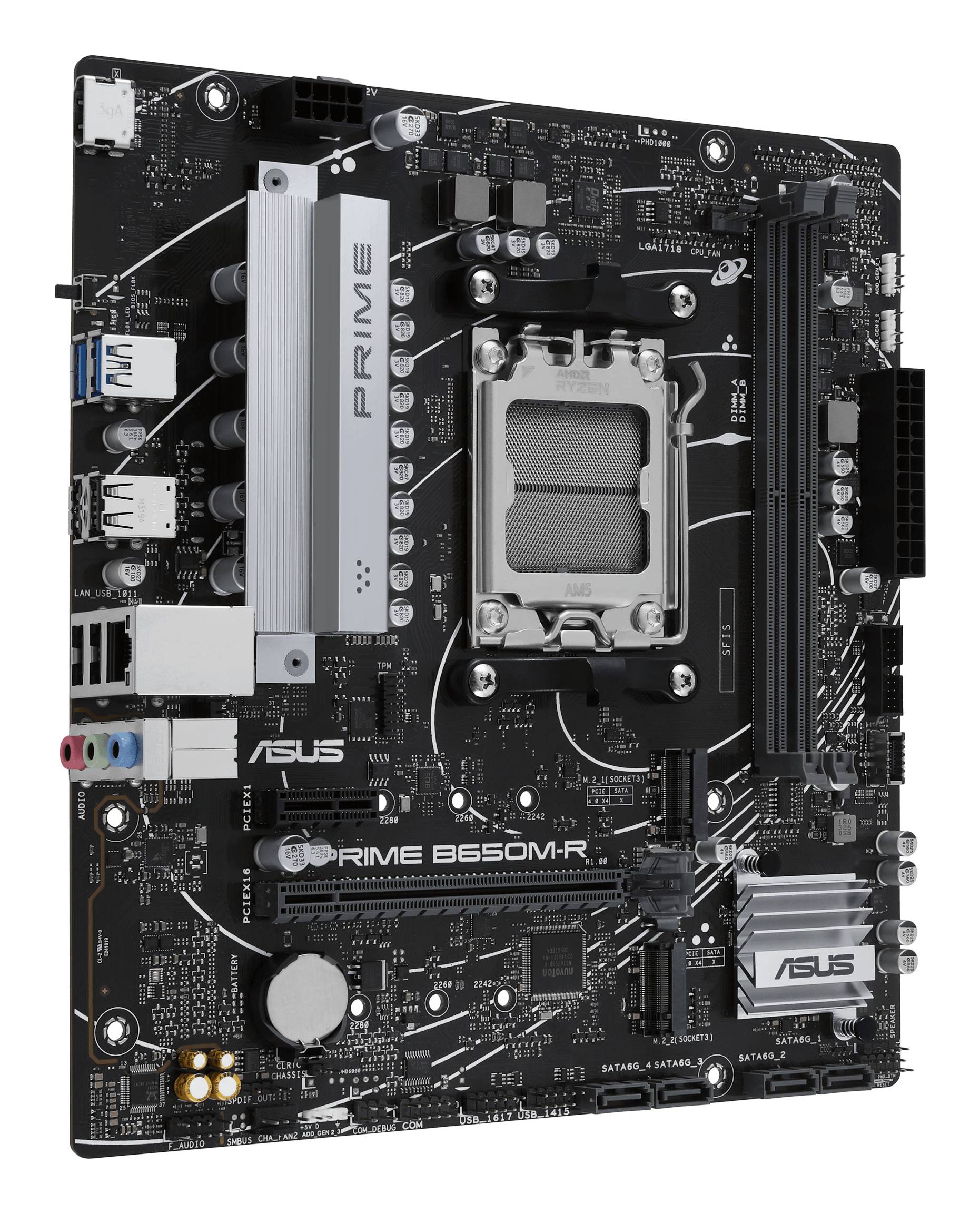

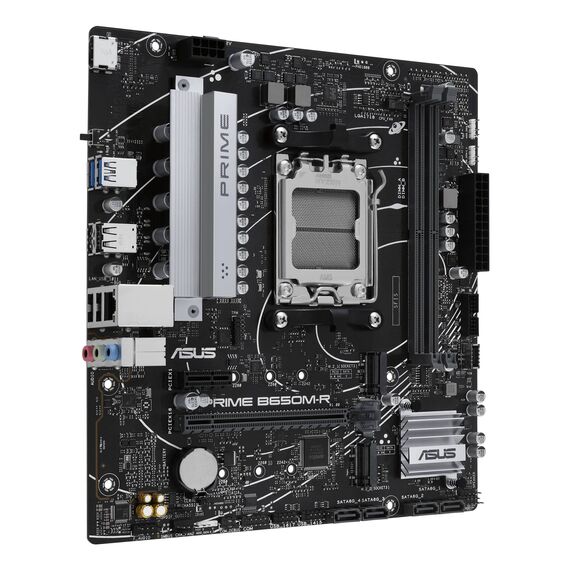

ASUS PRIME B650M-R - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) | 90MB1H30-M0EAY0
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000 Series) |
| Supported RAM | |
| Max Size | 96 GB |
| Technology | DDR5 |
| Bus Clock | 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, AMD EXPO technology |
| Audio | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x8/x4 mode) ¦ 1 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| RAID Features | AMD RAID Xpert2 Technology |

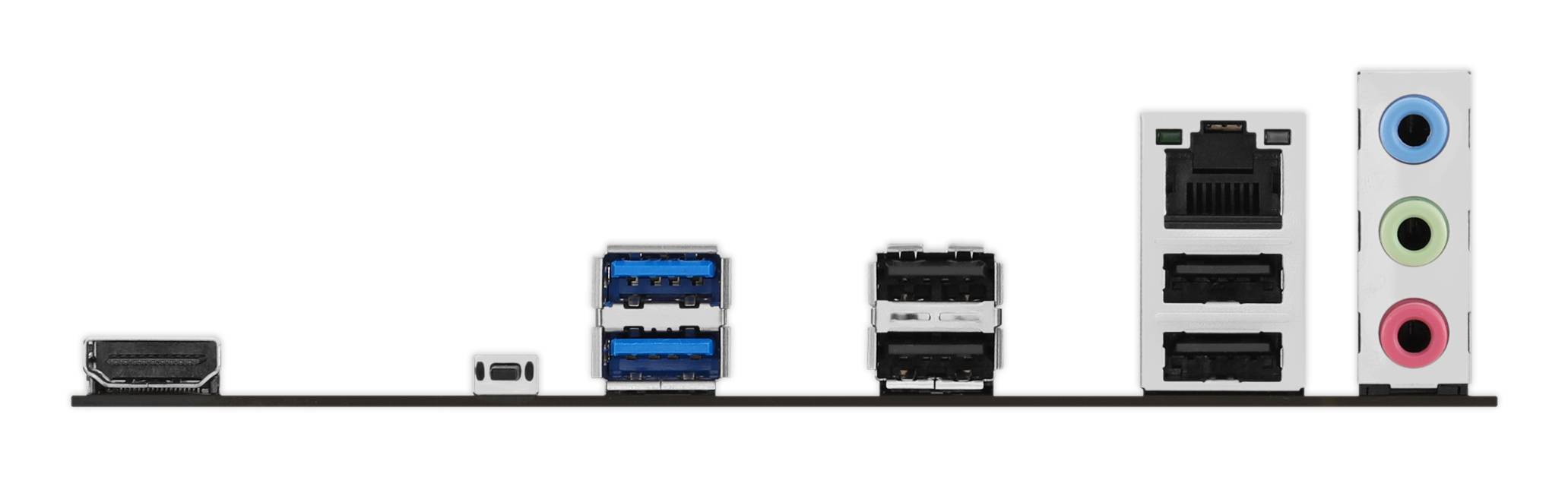

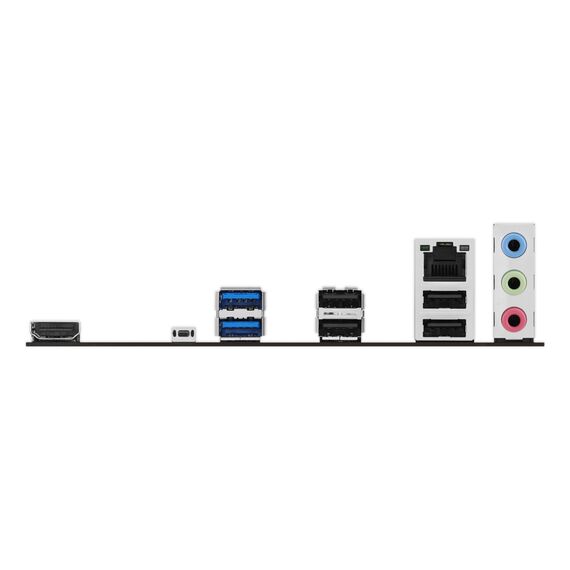

| Interfaces | 1 x HDMI ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x speaker - header ¦ 1 x SPI - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, 6 Layer PCB, overvoltage protection, ASUS 5X Protection III, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, DIY Friendly Design, Q-LED Core, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED |
| Miscellaneous | |
| Included Accessories | IO shield, 2 x M.2 anchors |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, ASUS AURA Creator, Armoury Crate, Norton 360 Deluxe (60 days trial), ASUS Fan Xpert 2+, WinRAR (40 days trial) |
| Width | 23.6 cm |
| Depth | 22.1 cm |
Features - Asus - 90MB1H30-M0EAY0
More Details
Product Code
04:458315
EAN Code
4711387429761
Manufacturer
Asus
