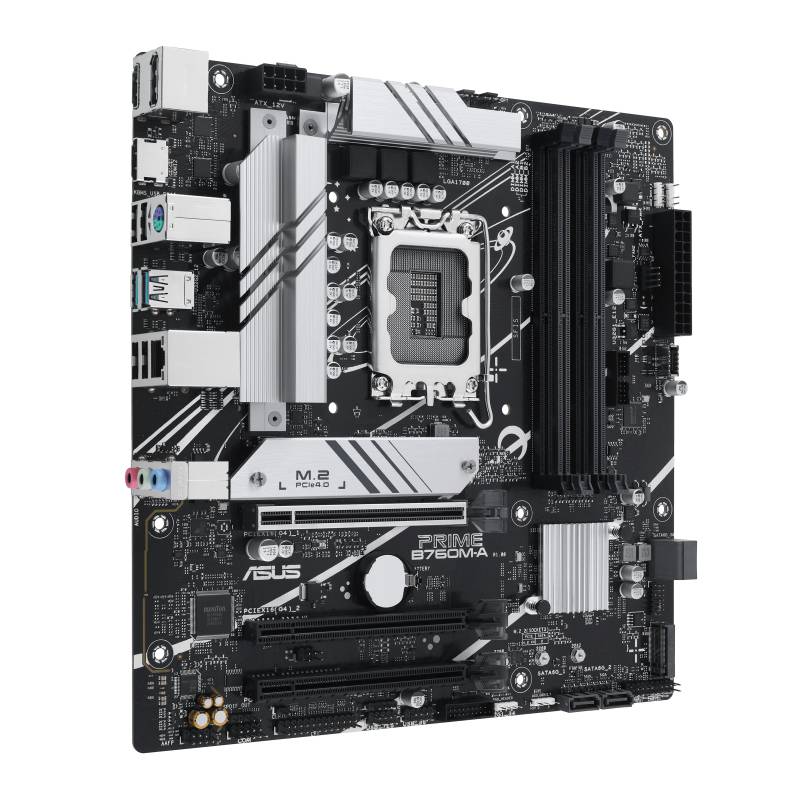

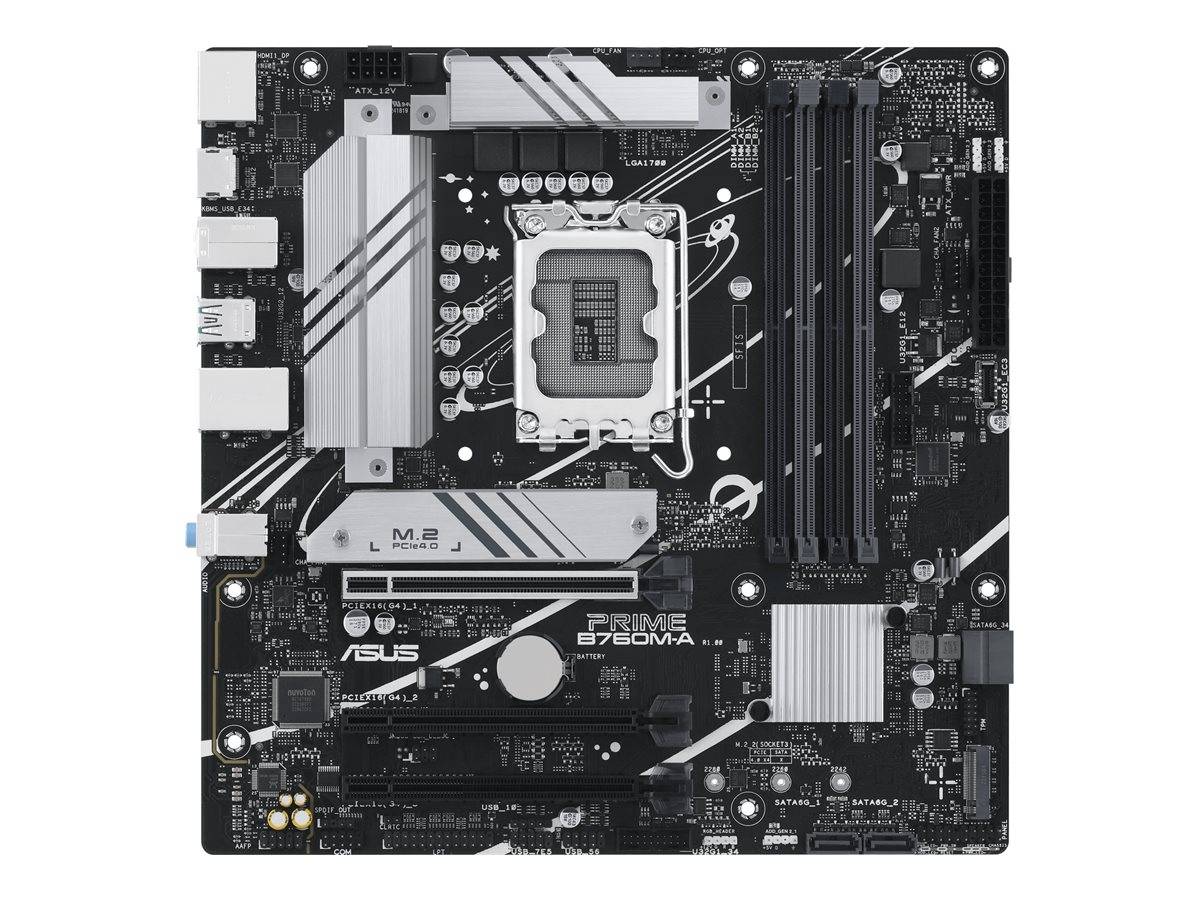

ASUS PRIME B760M-A-CSM / Motherboard / micro ATX / LGA1700 Socket / B760 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1EK0-M1EAYC
Please sign in so that we can notify you about a reply
Product Features
- Enhanced connectivity
Equipped with a variety of interfaces including DisplayPort, HDMI, USB 3.2 Gen 2, and LAN (2.5 Gigabit Ethernet), this motherboard offers versatile connectivity options for a wide range of peripherals and devices. - High-speed memory support
Supports DDR5 SDRAM technology, enabling speeds up to 7200 MHz (O.C.), which significantly boosts performance for demanding applications and gaming. - Robust power design
Features ASUS ProCool power connectors and a VRM heatsink design, ensuring stable power delivery and improved thermal performance for processor-intensive tasks. - Advanced cooling
Includes M.2 heatsink and comprehensive cooling controls, accessible via ASUS UEFI BIOS, to keep your system running cool and stable under heavy workloads. - Immersive audio experience
High definition audio with 8-channel support provides an immersive listening experience, perfect for gaming, movies, and music.
Special Features
- Supports 12th and 13th Generation Intel Core processors for performance
- High-speed DDR5 memory support up to 7200 MHz (O.C.) for fast data transfer
- Dual M.2 slots for high-speed storage solutions, enhancing game loading and system boot times
- USB 3.2 Gen 2 support for fast data transfer rates, making file transfers quicker
- ASUS 5X Protection III ensures longevity and reliability with a suite of safeguards
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x16 (x1 mode) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 |
| RAID Features | Intel Rapid Storage Technology |

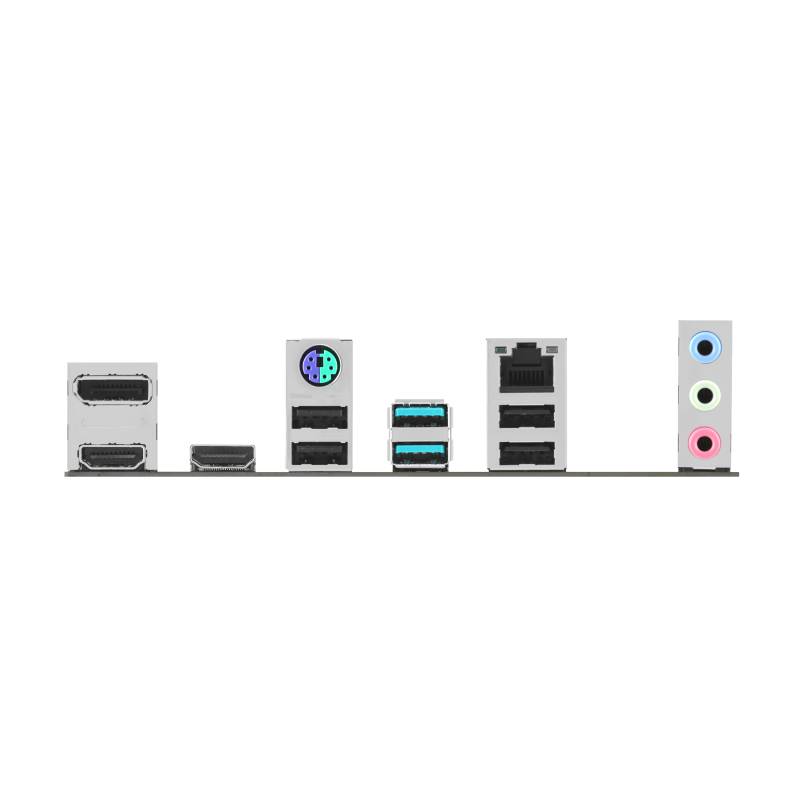

| Interfaces | 1 x DisplayPort ¦ 2 x HDMI ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 5 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x parallel - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, 6 Layer PCB, ProCool Power Connector, overvoltage protection, ASUS 5X Protection III, M.2 heatsink, ASUS ProCool, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, DIY Friendly Design, Windows 11 compatible, Q-LED Core, VRM heatsink design |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield, 1 x M.2 rubber package, M.2 screw package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, ASUS AURA Creator, Armoury Crate, Norton 360 Deluxe (60 days trial), ASUS Fan Xpert 2+ |
| Compliant Standards | DisplayPort 1.4 |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB1EK0-M1EAYC
CPU Socket
- Socket 1700
More Details
Product Code
04:428912
EAN Code
4711387140710
Manufacturer
Asus
