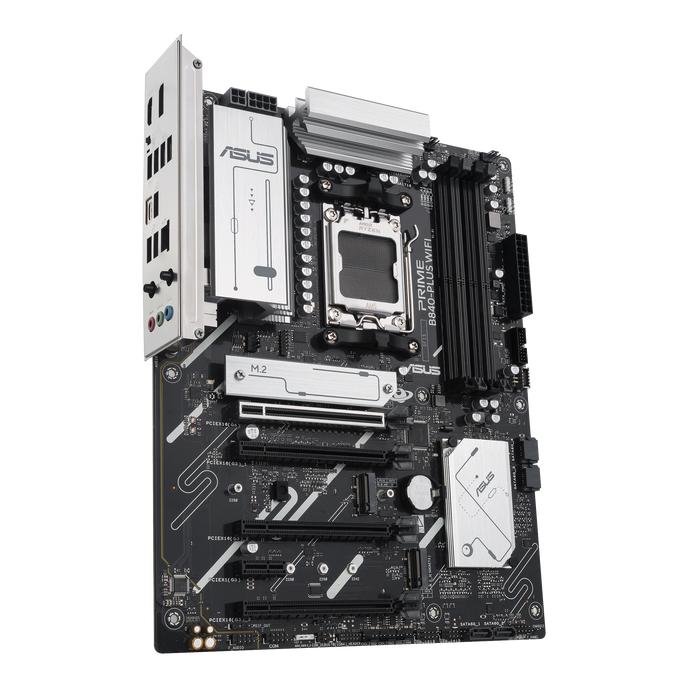

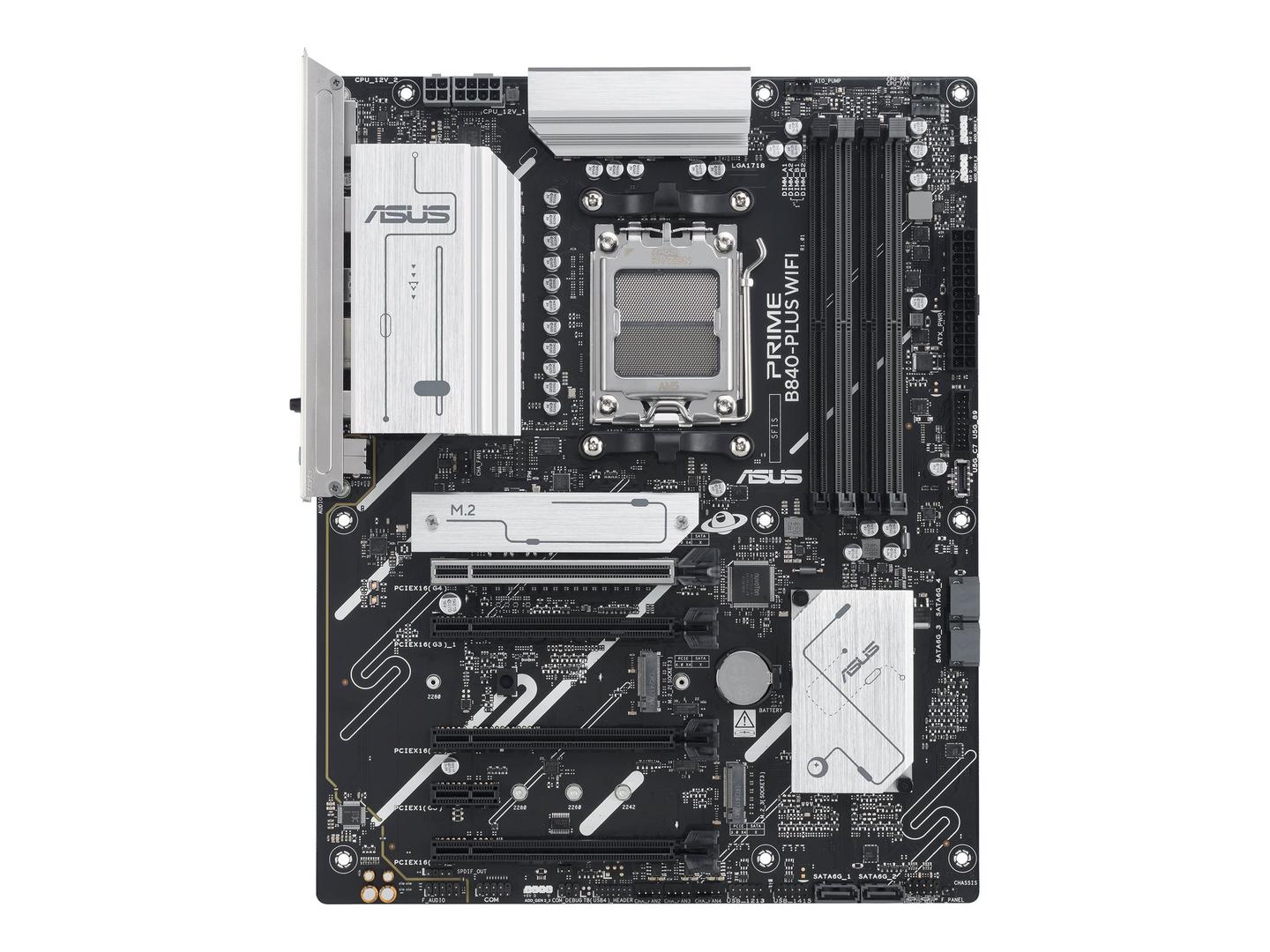

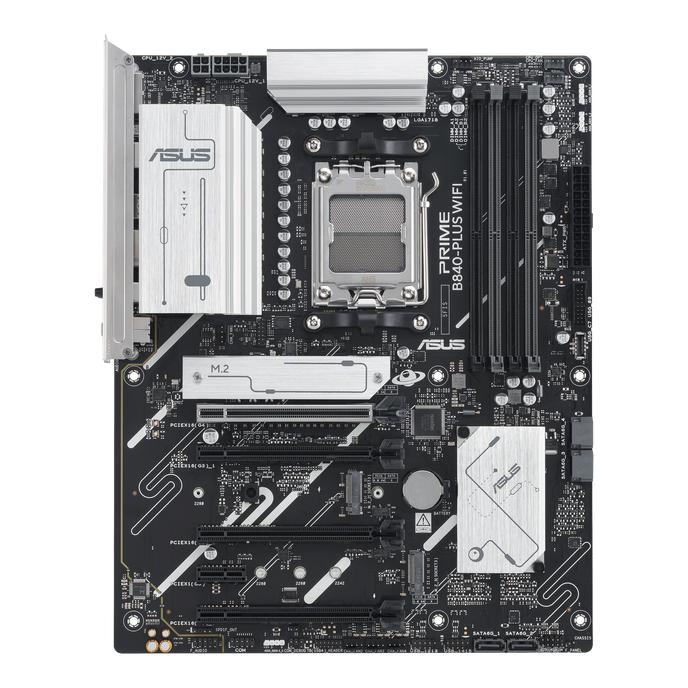

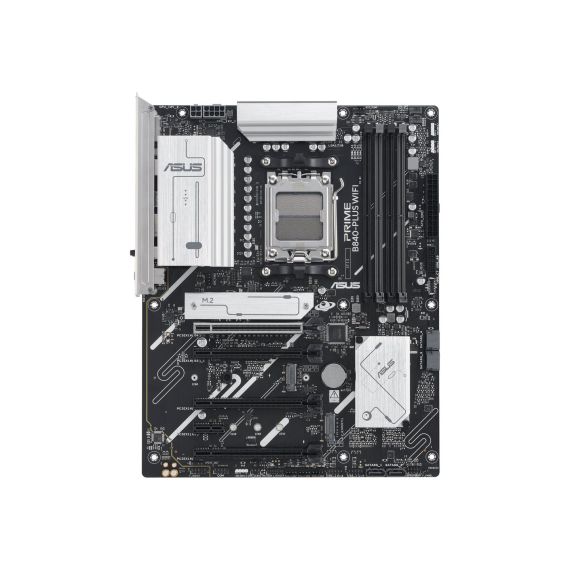

ASUS PRIME B840-PLUS WIFI - Motherboard - ATX - Socket AM5 - AMD B840 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E - onboard graphics (CPU required) - HD Audio (8-channel) | 90MB1IZ0-M0EAY0
Please sign in so that we can notify you about a reply
Product Features
- Robust connectivity options
The ASUS PRIME B840-PLUS WIFI provides an extensive array of connectivity options, including multiple USB ports, HDMI, and DisplayPort. This variety allows for easy connection of peripherals and display devices, enabling a versatile computing experience. - Advanced audio output
Featuring a high definition audio output with support for 8-channel audio, this motherboard delivers an immersive sound experience. Ideal for gamers and media professionals, it ensures high-quality audio playback. - Efficient power management
With a 24-pin main power connector and an 8-pin ATX12V connector, the motherboard ensures efficient power delivery to the installed components. This design helps maintain stability during intensive processing tasks. - Dynamic cooling solutions
Designed with cooling in mind, the motherboard includes a VRM heatsink and supports ASUS Control Center Express for monitoring system temperatures. This feature is crucial for maintaining optimal performance during extended use. - Reliable BIOS features
The motherboard is equipped with AMI BIOS, supporting ASUS EZ Flash 3 and ASUS UEFI BIOS EZ Mode for simple and effective system management. These features contribute to overall system reliability and user convenience.
Special Fetures
- Supports AMD Ryzen 7000/8000/9000 Series processors
- Features 4 DIMM slots for DDR5 SDRAM with speeds up to 3800 MHz
- Includes solid connectivity options with USB 3.2 Gen 2 and HDMI
- Equipped with ASUS 5X Protection III for enhanced reliability
- Offers advanced audio output with high definition audio
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B840 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 3800 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, on-die ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | AMD EXPO technology, dual channel memory architecture |
| Audio | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU <br /> 4 x DIMM 288-pin <br /> 1 x PCIe 4.0 x16 <br /> 2 x PCIe 3.0 x1 <br /> 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) <br /> 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 <br /> PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 <br /> PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x HDMI <br /> 1 x DisplayPort <br /> 1 x USB 3.2 Gen 2 <br /> 4 x USB 2.0 <br /> 1 x LAN (Gigabit Ethernet) <br /> 1 x PS/2 keyboard / mouse <br /> 1 x microphone - mini-jack <br /> 1 x audio line-in - mini-jack <br /> 1 x audio line-out - mini-jack <br /> 2 x USB 3.1 Gen 1 <br /> 1 x USB-C 3.1 Gen 2 |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header <br /> 2 x USB 3.2 Gen 1 - header <br /> 4 x USB 2.0 - header <br /> 1 x serial - header <br /> 1 x audio - header <br /> 1 x SPDIF out - header <br /> 1 x speaker - header <br /> 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Preboot eXecution Environment (PXE), ASUS EZ DIY, ASUS DIGI+ VRM, CrashFree BIOS 3, ASUS OptiMem II, ASUS 5X Protection III, LANGuard, overvoltage protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, ASUS Aura Sync, Lighting Control, ASUS Control Center Express (ACC Express), 6 Layer PCB, ASUS Enhanced Memory Profile (AEMP) |
| Miscellaneous | |
| Included Accessories | 3 x M.2 SSD screw package, IO shield, ASUS Wi-Fi Q-antenna |
| Cables Included | 2 x Serial ATA cable |
| Software Included | WinRAR, Norton 360 for Gamers (60 days trial), ASUS CPU-Z, PC Cleaner, ASUS TurboV EVO Utility, ASUS AI Suite III, ASUS Fan Xpert 2+, ASUS AURA Creator, Armoury Crate, Adobe Creative Cloud (free trial), WinRAR (40 days trial) |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB1IZ0-M0EAY0
CPU Socket
- Socket AM5
More Details
Product Code
03:260214
EAN Code
4711387797273
Manufacturer
Asus
