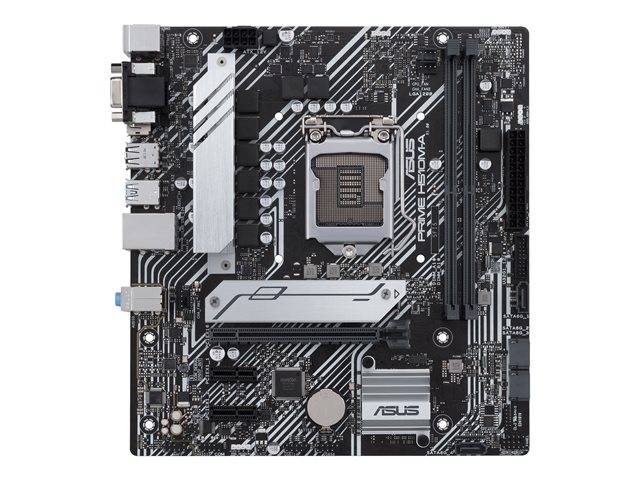

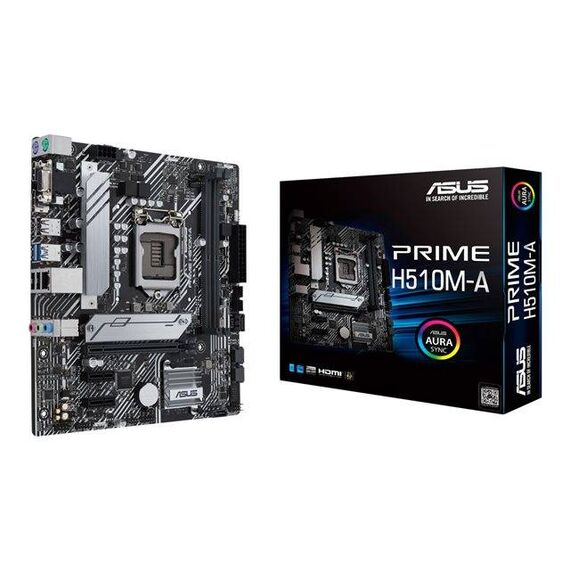

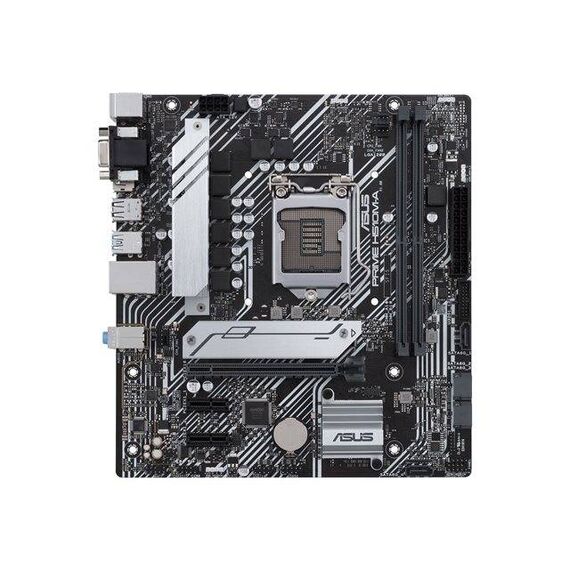

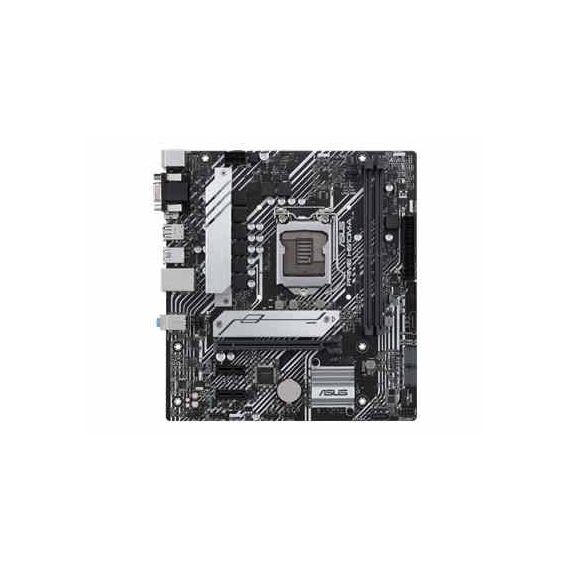

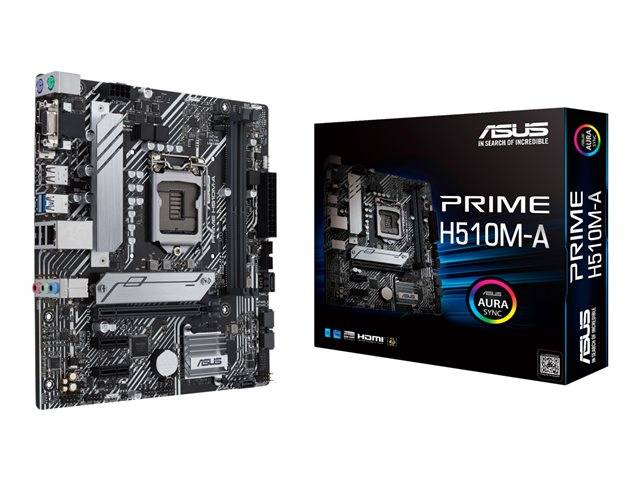

ASUS PRIME H510M-A / Motherboard / micro ATX / LGA1200 Socket / H510 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB17C0-M0EAY0
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H510 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 11th and 10th Generation Intel Core i5 / i7 / i9, 10th Generation Intel Core i3 / Pentium / Celeron) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887/ALC897 |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 (11th Gen Intel CPUs), PCIe 3.0 (10th Gen Intel CPUs)) ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |

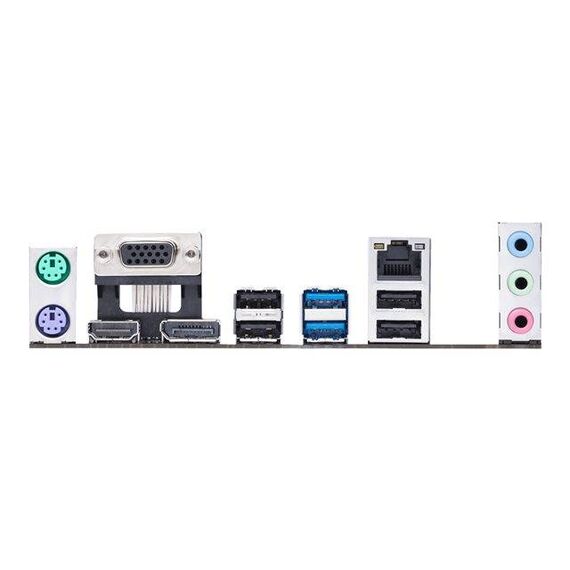

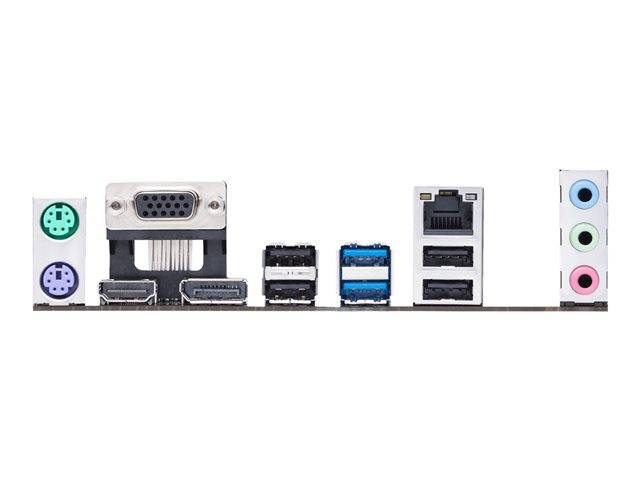

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 1 x PS/2 mouse ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS 5X Protection III, ASUS SafeSlot Core, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, Armoury Crate |

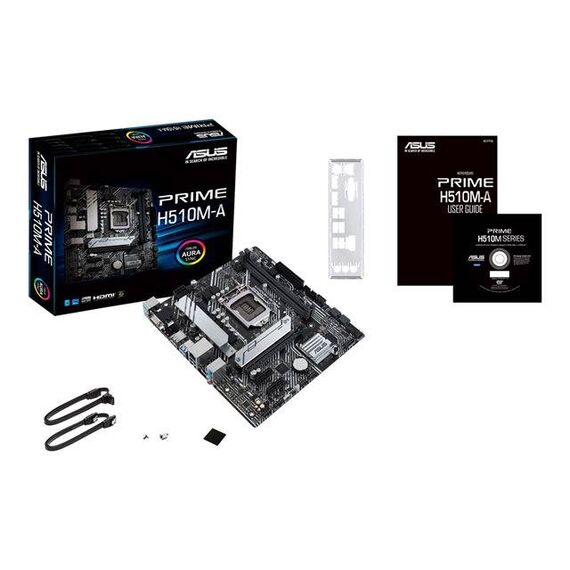

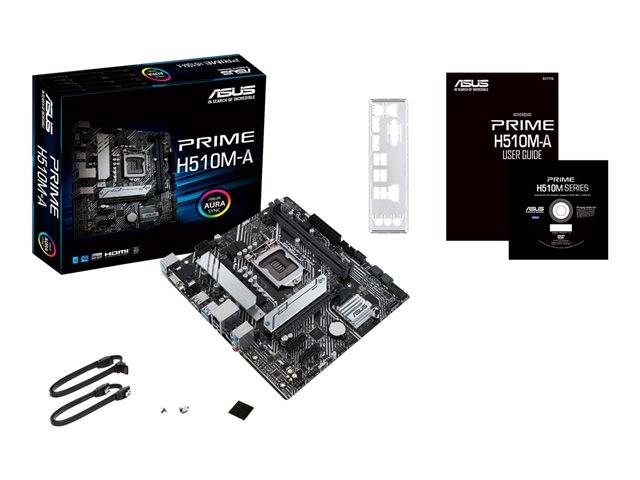

| Included Accessories | I/O back plate, 2 x M.2 screws, 1 x M.2 rubber package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (Trial), ASUS AURA Creator |
| Compliant Standards | DisplayPort 1.4 |
| Width | 22.6 cm |
| Depth | 21.1 cm |
Features - Asus - 90MB17C0-M0EAY0
More Details
Product Code
04:360380
EAN Code
4711081128465
Manufacturer
Asus
