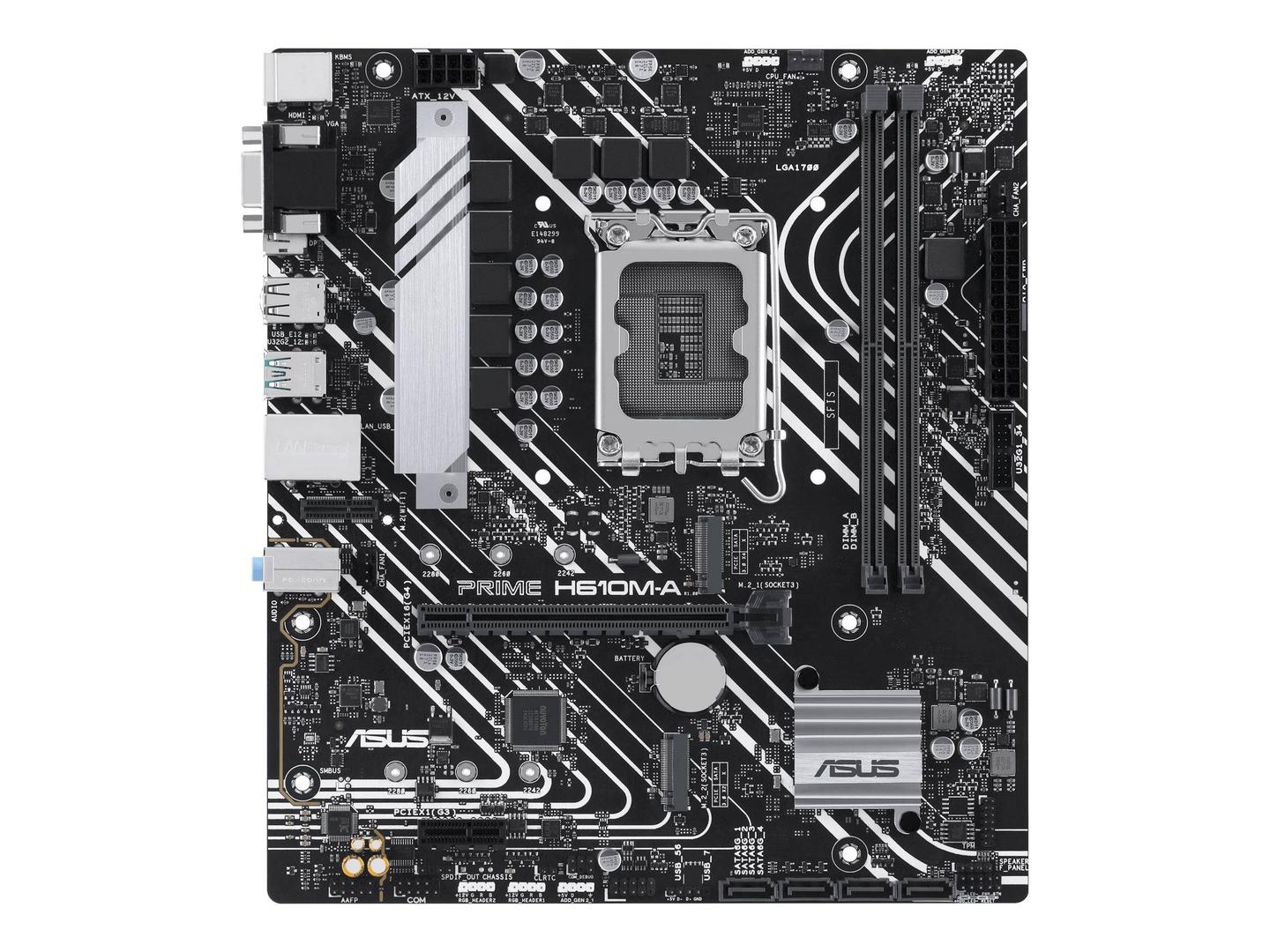

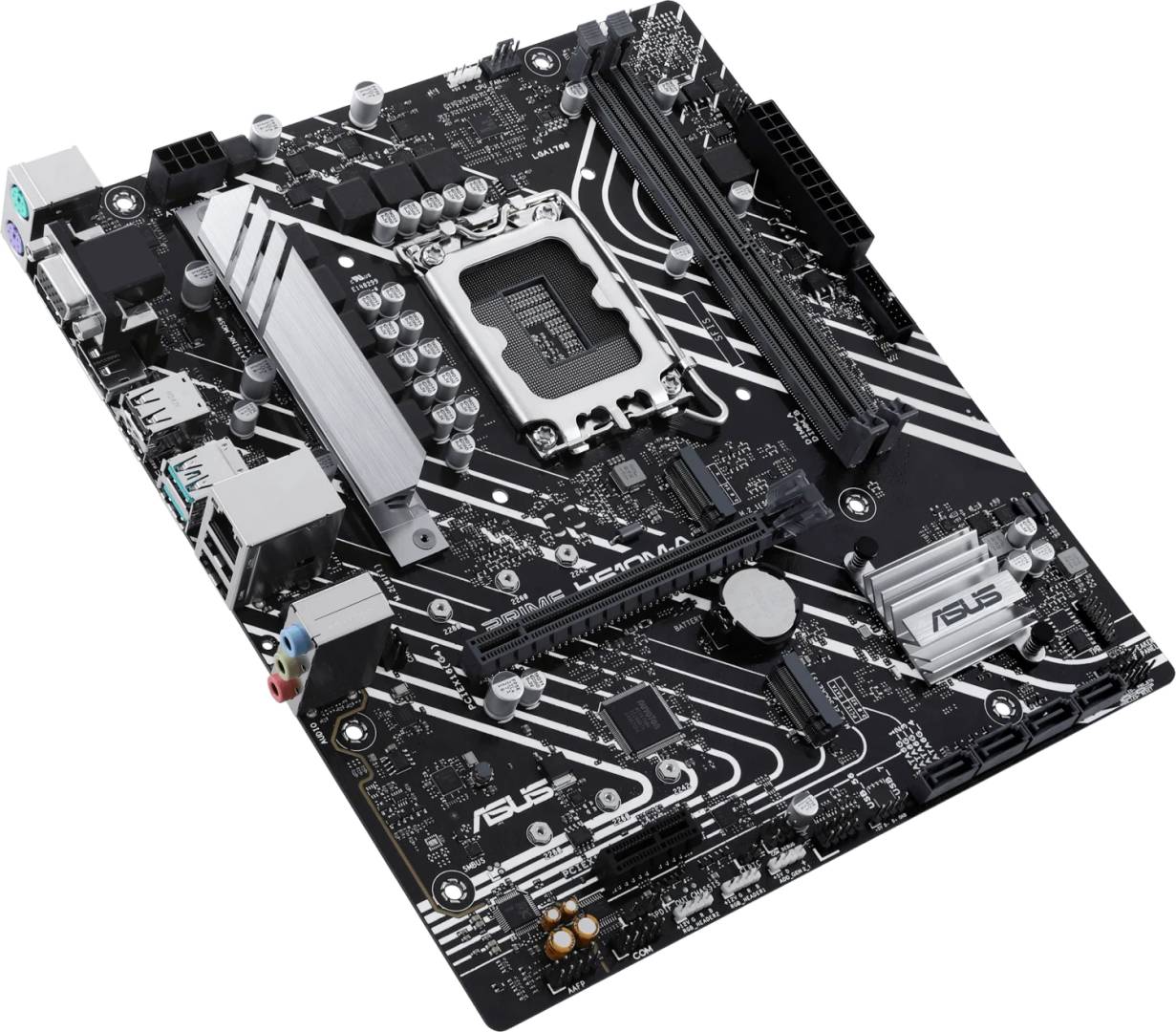

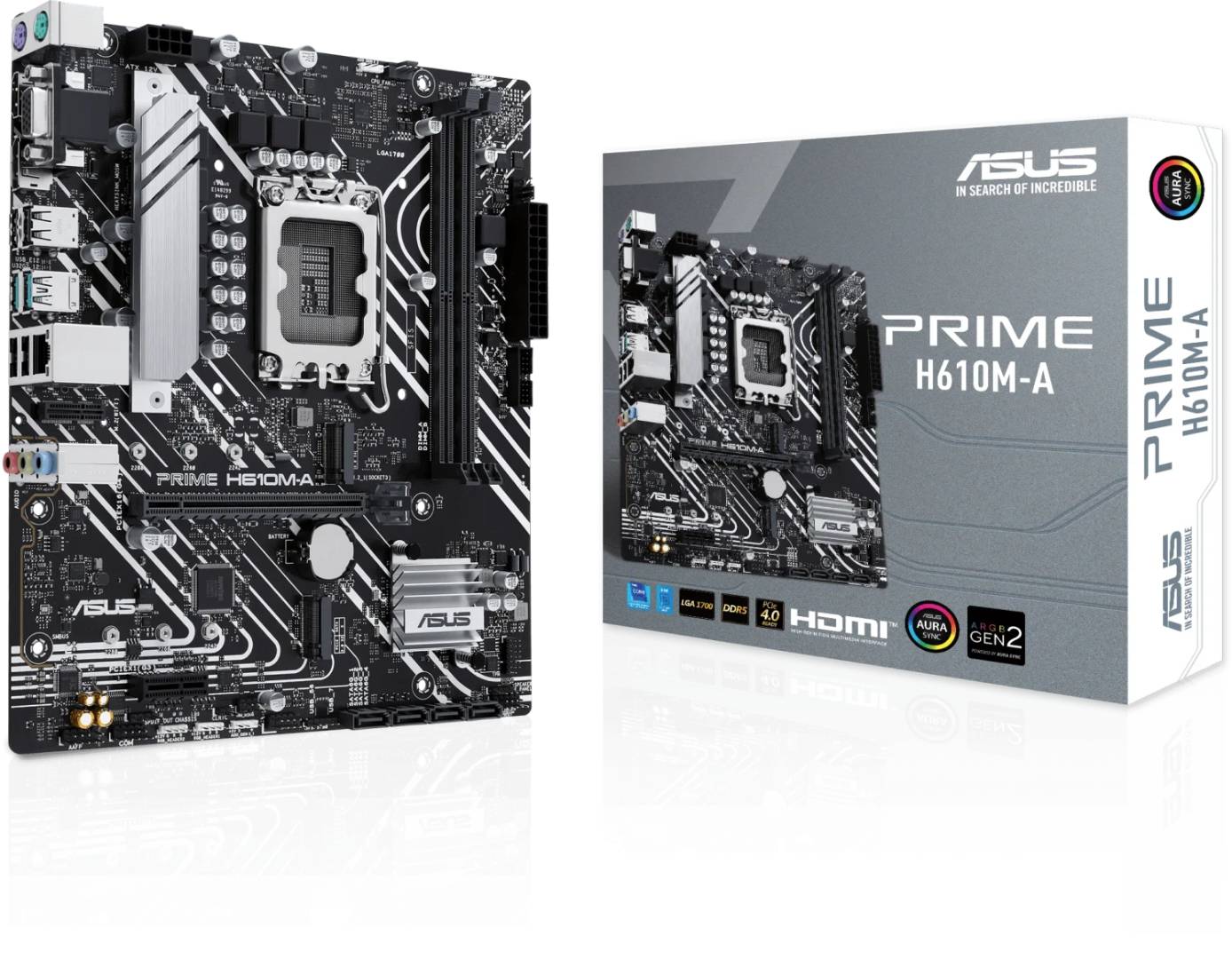

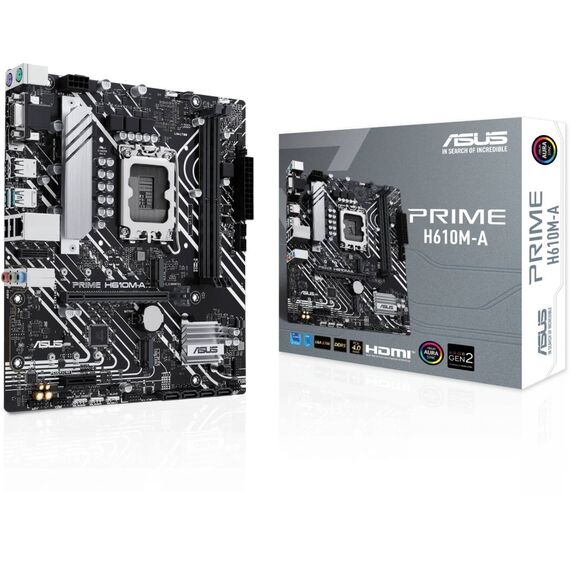

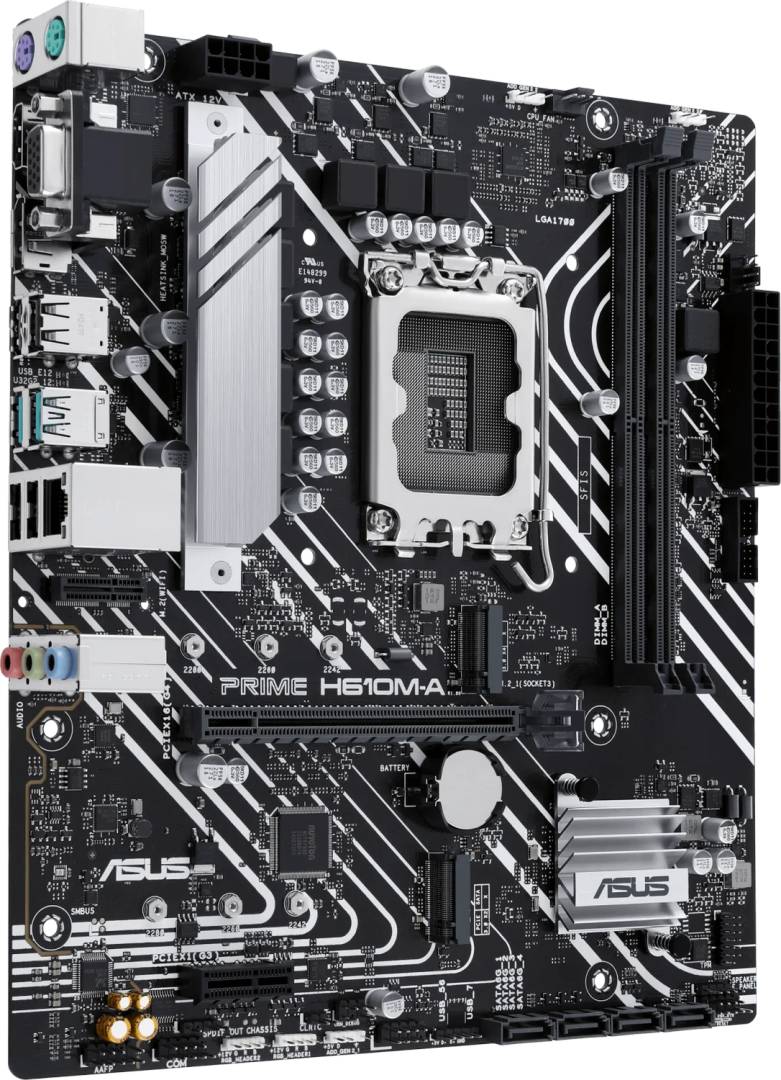

ASUS PRIME H610M-A-CSM / Motherboard / micro ATX / LGA1700 Socket / H610 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1G20-M0EAYC
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H610 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 96 GB |
| Technology | DDR5 |
| Bus Clock | 4800 MHz, 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 2 x M.2 |

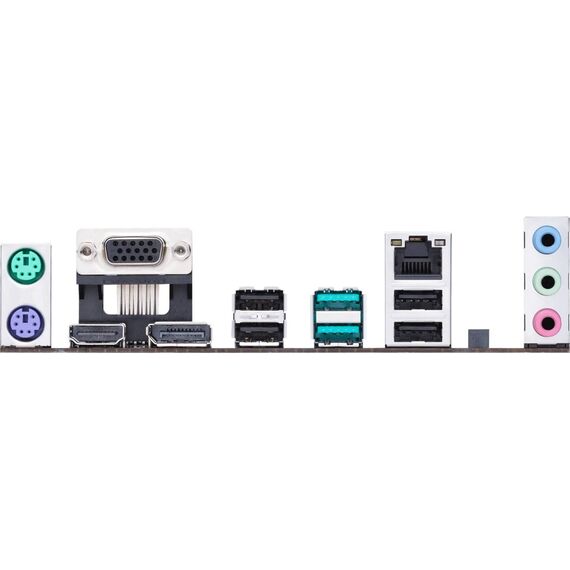

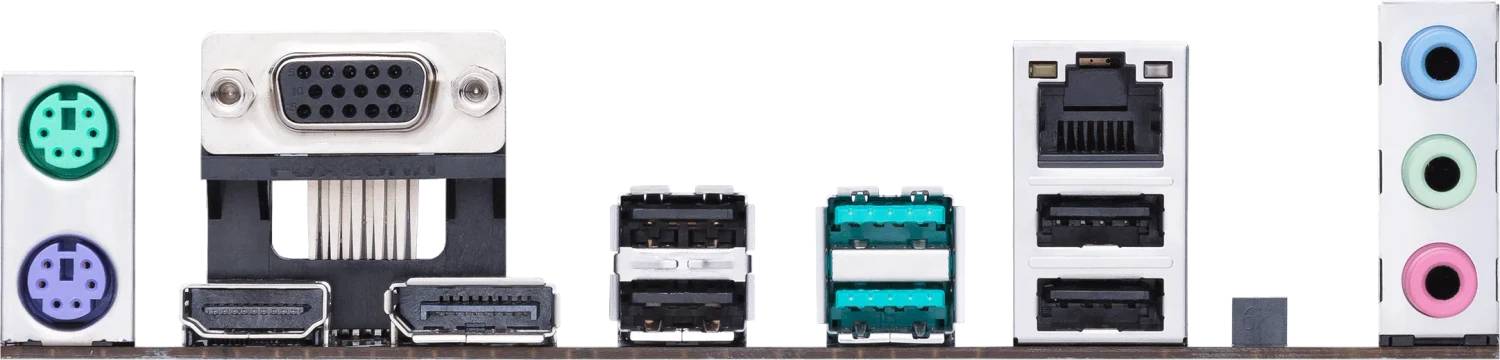

| Interfaces | 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x M.2 Key E ¦ LAN (Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, overvoltage protection, ASUS 5X Protection III, ASUS SafeSlot Core, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, Windows 11 compatible, Q-LED Core, VRM heatsink design |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield, ACC Express Activation Key Card, M.2 screw package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, ASUS AURA Creator, Armoury Crate, Norton 360 Deluxe (60 days trial), ASUS Fan Xpert 2+ |
| Width | 24.4 cm |
| Depth | 21.6 cm |
Features - Asus - 90MB1G20-M0EAYC
CPU Socket
- Socket 1700
More Details
Product Code
04:444737
EAN Code
4711387293911
Manufacturer
Asus
