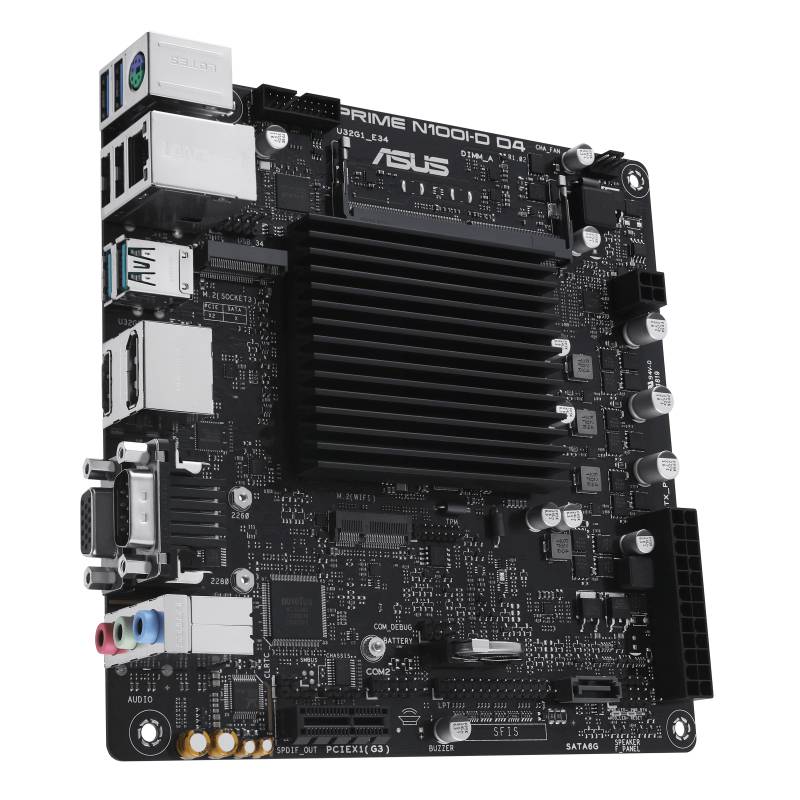

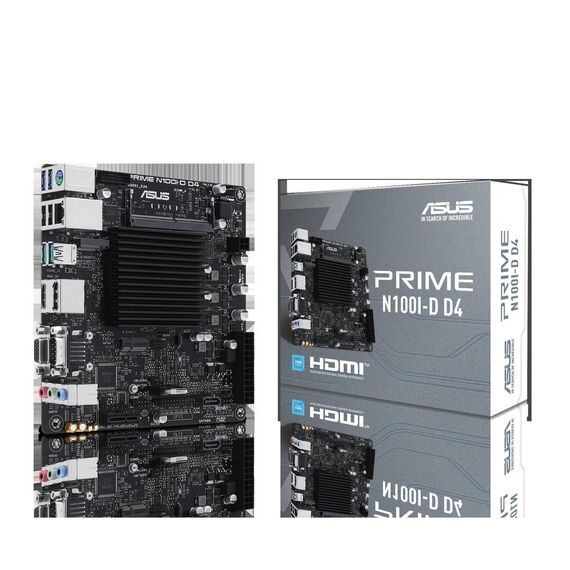

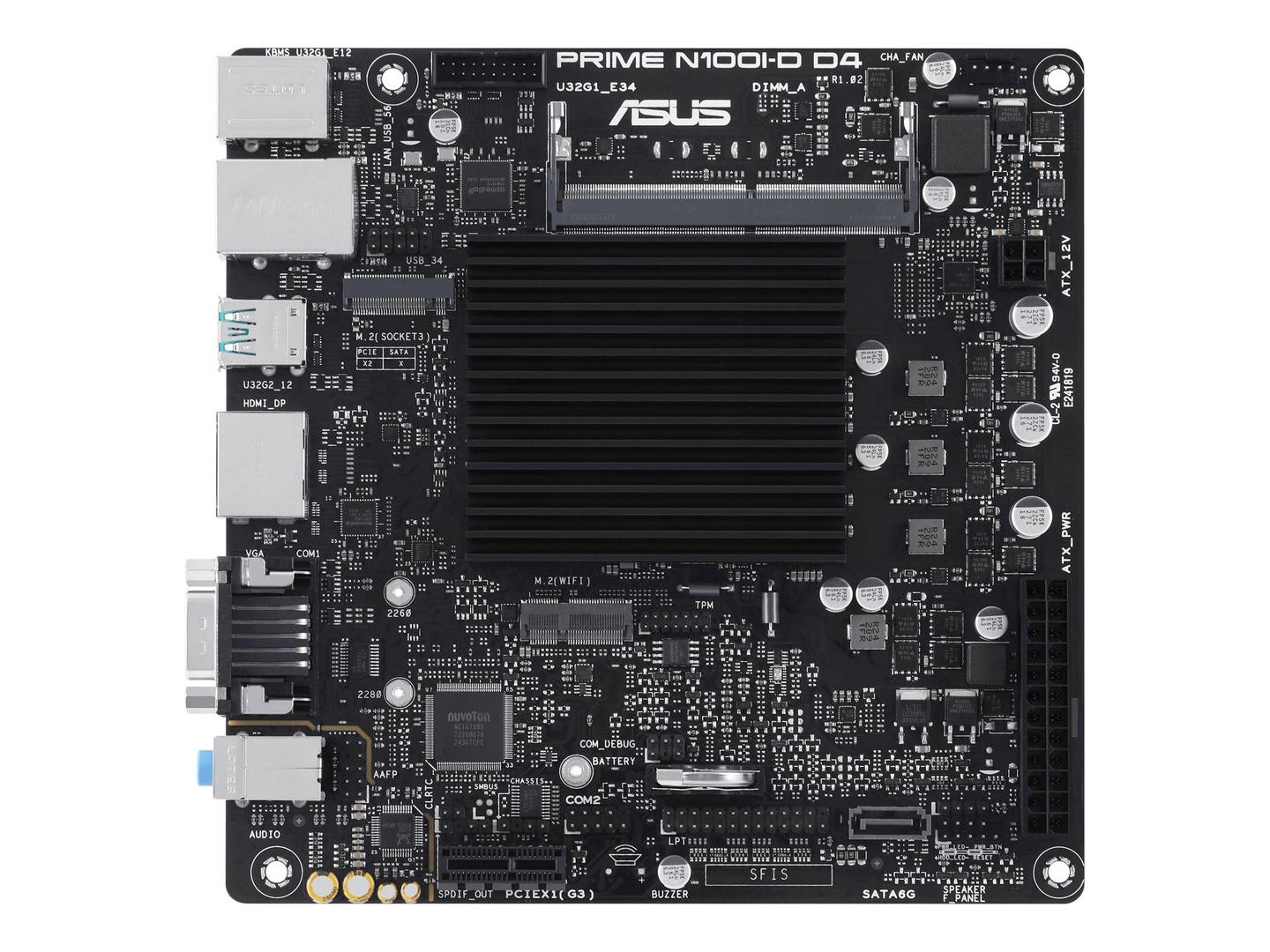

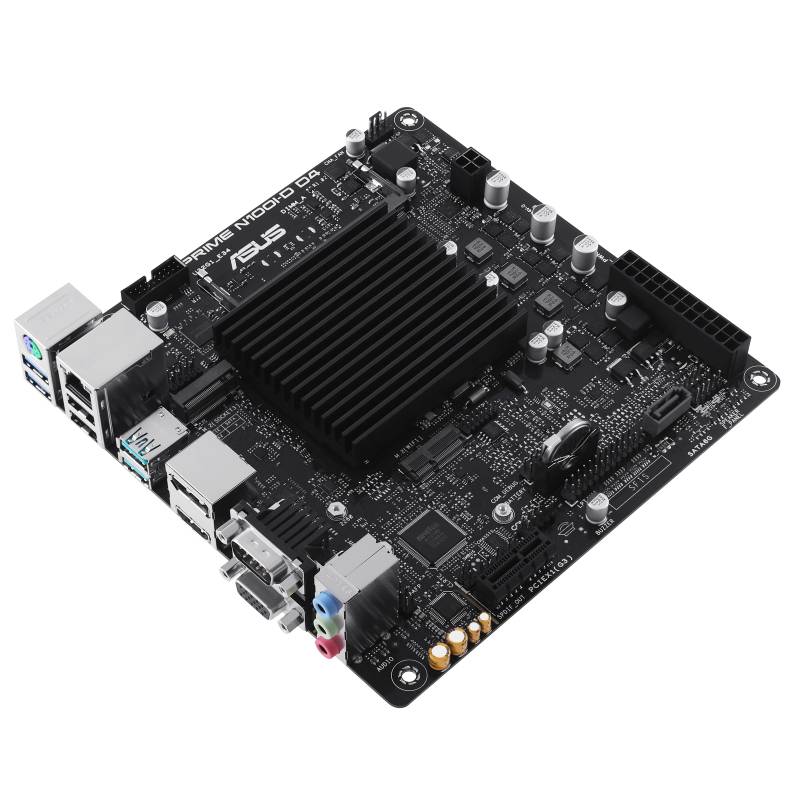

ASUS PRIME N100I-D D4 / Motherboard / mini ITX / Intel N-series N100 / USB 3.2 Gen 1, USB 3.2 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1F70-M0EAYC
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - mini ITX |
| Processor | Intel N-series N100 / 3.4 GHz (Quad-Core) |
| Max Processors Qty | 1 |
| Supported RAM | Supported RAM |
| Max Size | 16 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x SO-DIMM 260-pin ¦ PCIe 3.0 x1 ¦ M.2 socket (2260/2280 M.2 Key M slot) ¦ M.2 socket (for Intel CNVi wireless module) |
| Storage Interfaces | SATA-600 -connectors: 1 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2 |

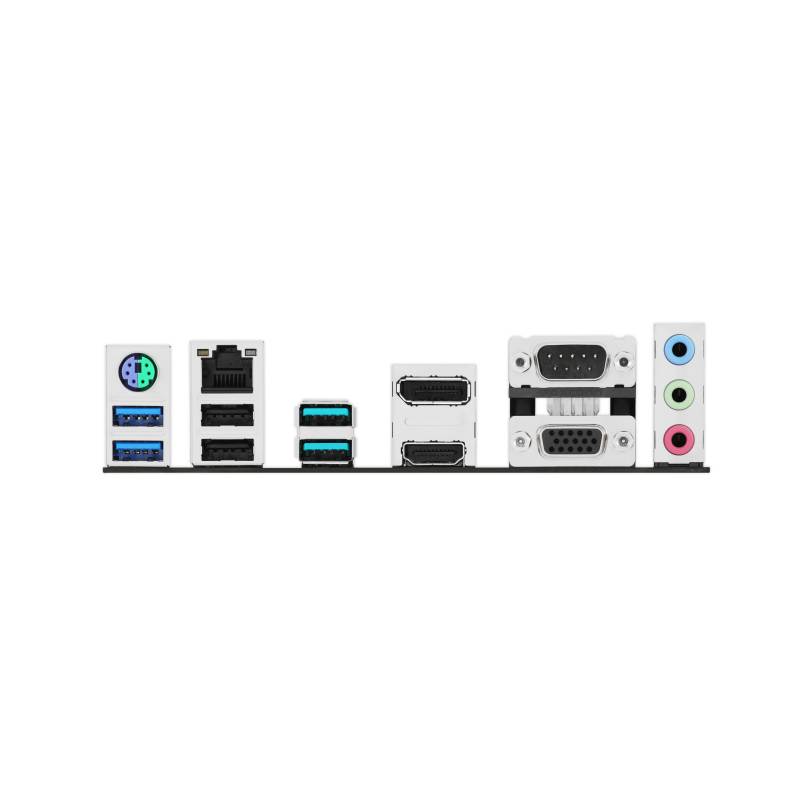

| Interfaces | 1 x HDMI ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x serial ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header ¦ 1 x speaker - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS Q-Design, ESD Guards, ASUS EZ DIY, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, Fanless Design Heatsink, ASUS Stainless Steel Back I/O, LANGuard, overvoltage protection, Q-LED Core |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield, M.2 screw package, M.2 Key E screw package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASUS CPU-Z, WinRAR, Norton 360 Deluxe (60 days trial) |
| Width | 17 cm |
| Depth | 17 cm |
Features - Asus - 90MB1F70-M0EAYC
More Details
Product Code
03:215527
EAN Code
4711387262320
Manufacturer
Asus
