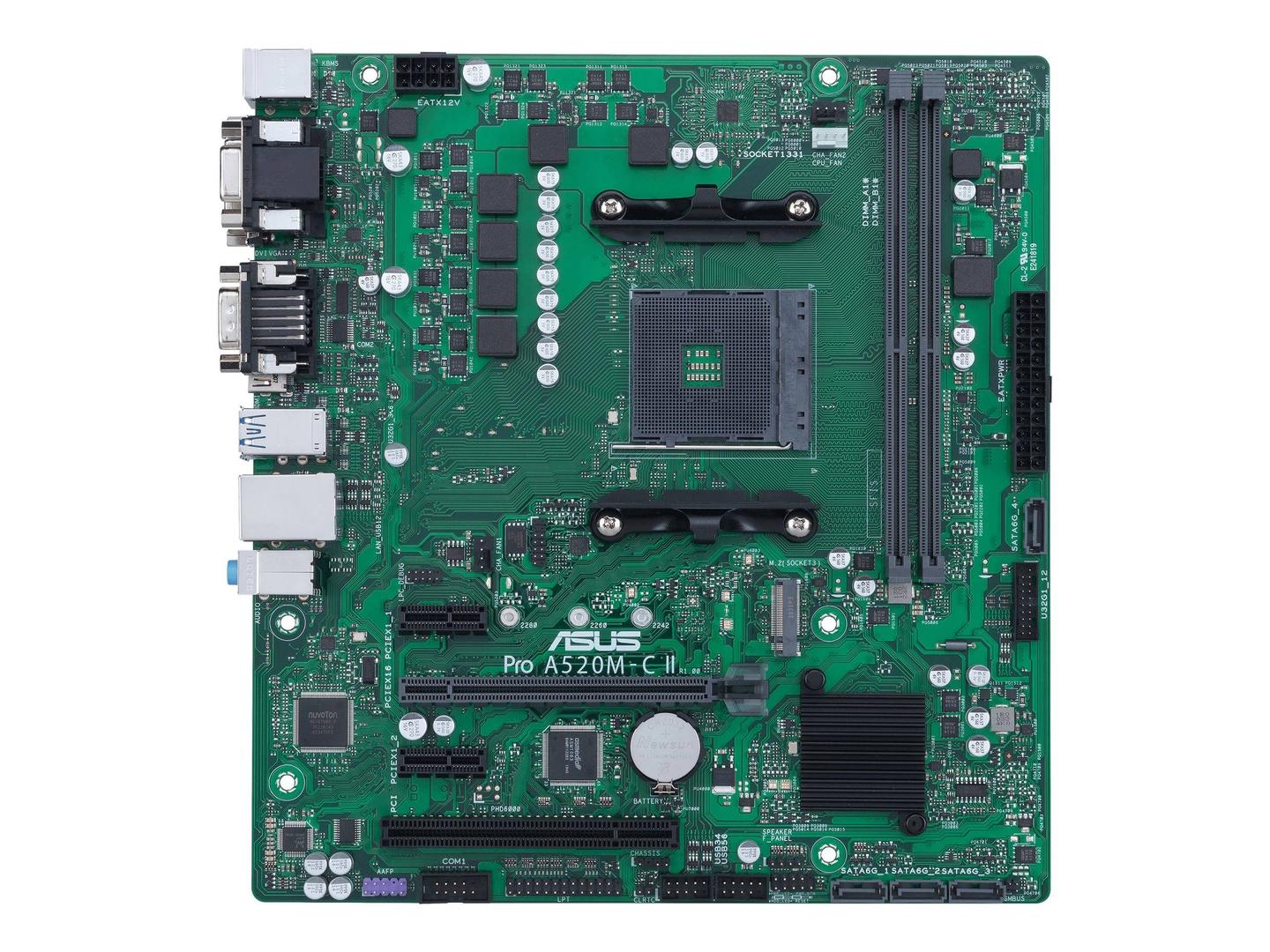

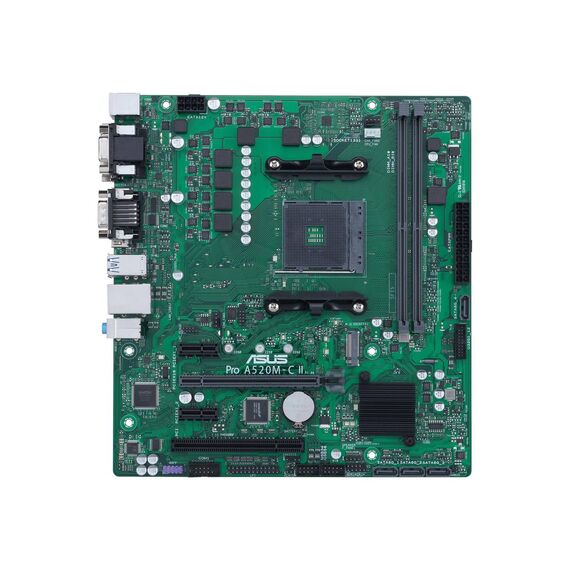

ASUS Pro A520M-C II/CSM / Motherboard / micro ATX / Socket AM4 / AMD A520 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) / ASUS Corporate Stable Model (CSM) | 90MB18F0-M0EAYC
Please sign in so that we can notify you about a reply
Product Features
- Internationally certified business motherboard
ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business. - ASUS self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware. - ASUS secure boot
ASUS business motherboard is set to check the firmware and signature of each piece of boot software. - Trusted Platform Module (TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity. - Certified NIST SP 800-147
ASUS business motherboard is certified by the national computer security standards.
Special Features
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- ASUS LPC debug header for more efficient troubleshooting
- Supports SMBUS header that connects to a DASH LAN for remote IT management
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
- Event log for capturing and managing detailed system information
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD A520 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Supported RAM | Supported RAM |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 4466 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x PCI ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces | 1 x VGA ¦ 1 x DVI-D ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x serial ¦ 1 x DisplayPort |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x audio - header ¦ 1 x LPC - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Chassis intrusion detection, jack retasking, Q-DIMM, ASUS EZ DIY, Q-Slot, audio jack detect technology, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), overcurrent protection, LANGuard, Moistureproof PCB, ASUS SafeSlot Core, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, TPM 2.0 IC Onboard |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield, ACC Express Activation Key Card, M.2 screw package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASUS Control Center Express |
| Compliant Standards | VCCI Class B ITE, JATE, WEEE, KC, FCC Part 15 Class B, EU RoHS, EU REACH |
| Width | 24.4 cm |
| Depth | 22.9 cm |
| Pricing Type | ASUS Corporate Stable Model (CSM) |
Features - Asus - 90MB18F0-M0EAYC
More Details
Product Code
04:420284
EAN Code
4711081250098
Manufacturer
Asus
