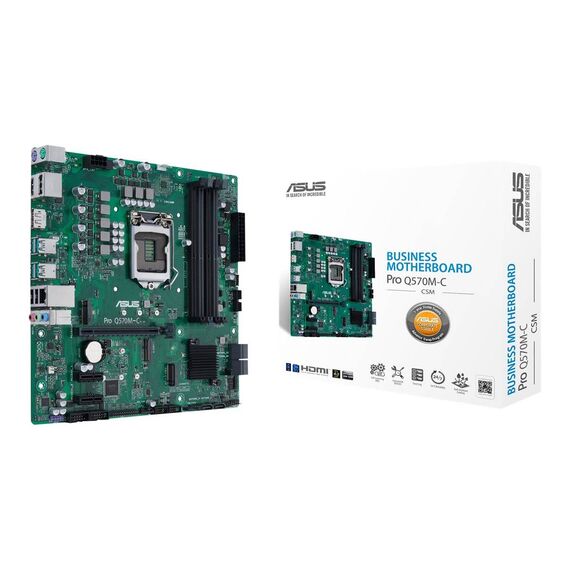

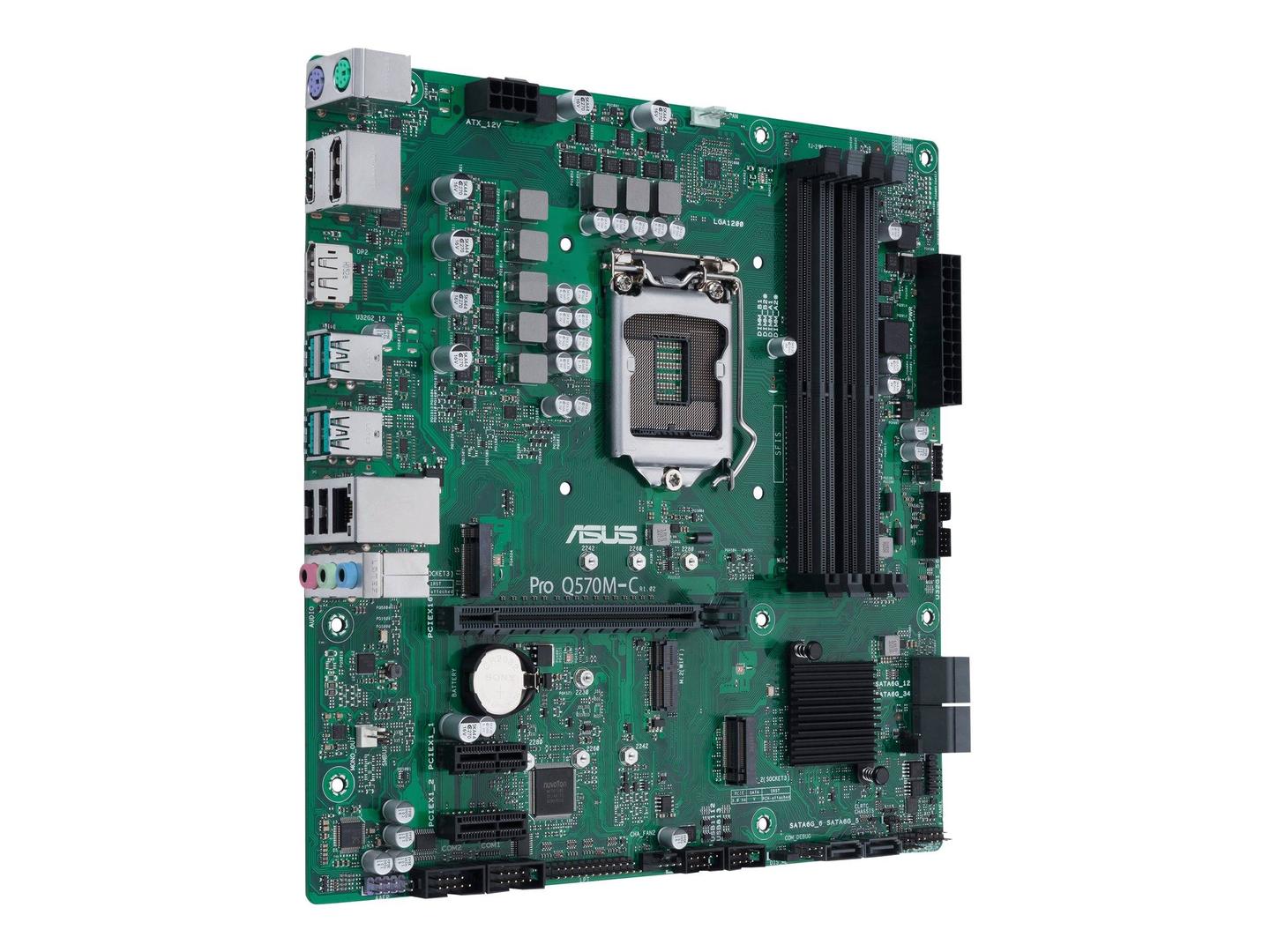

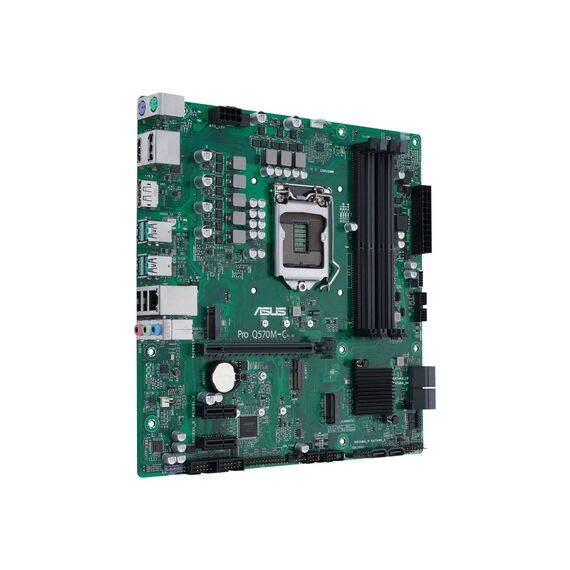

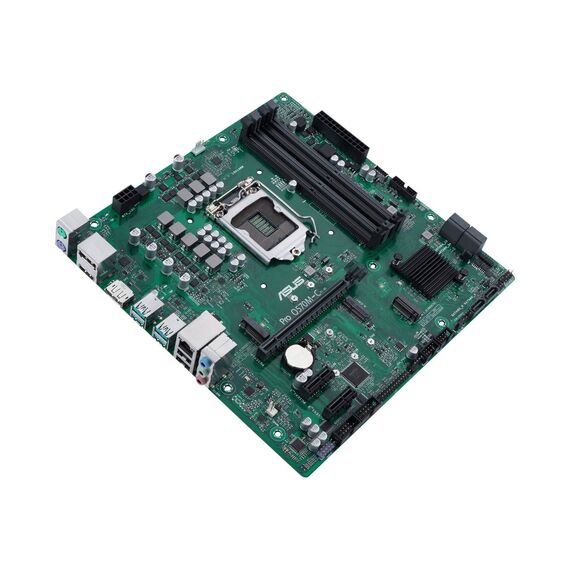

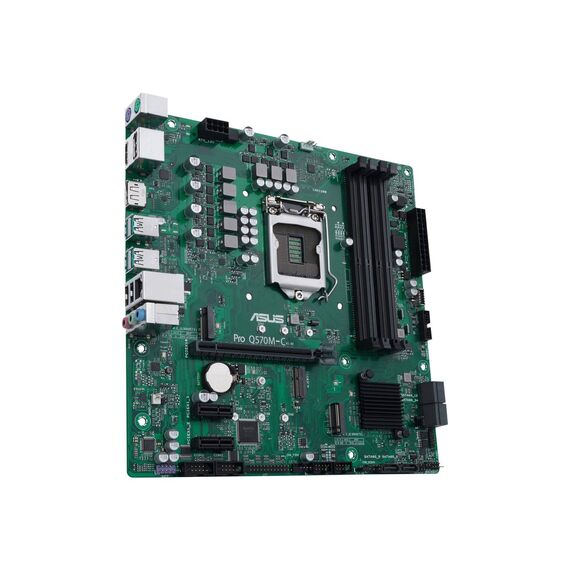

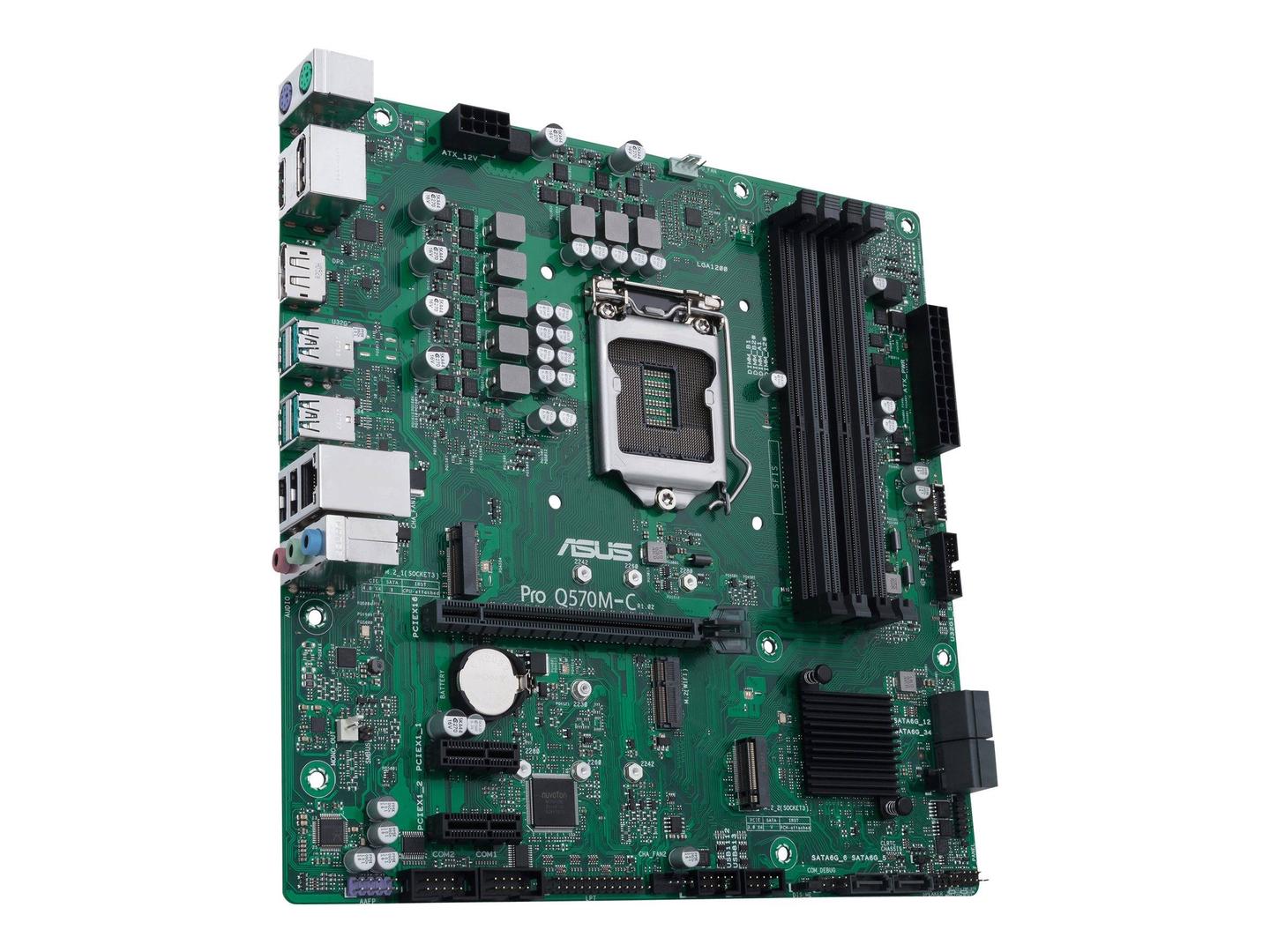

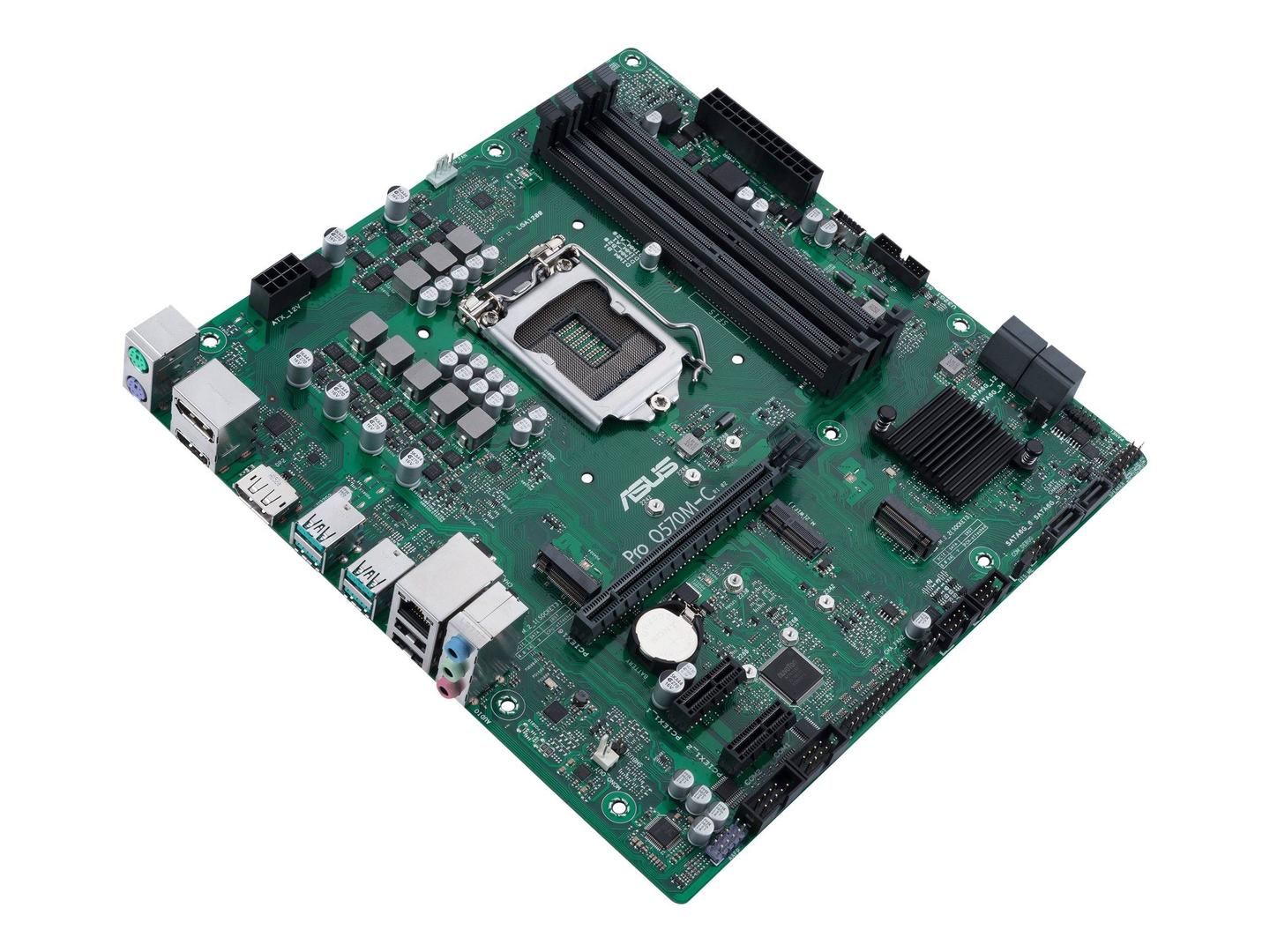

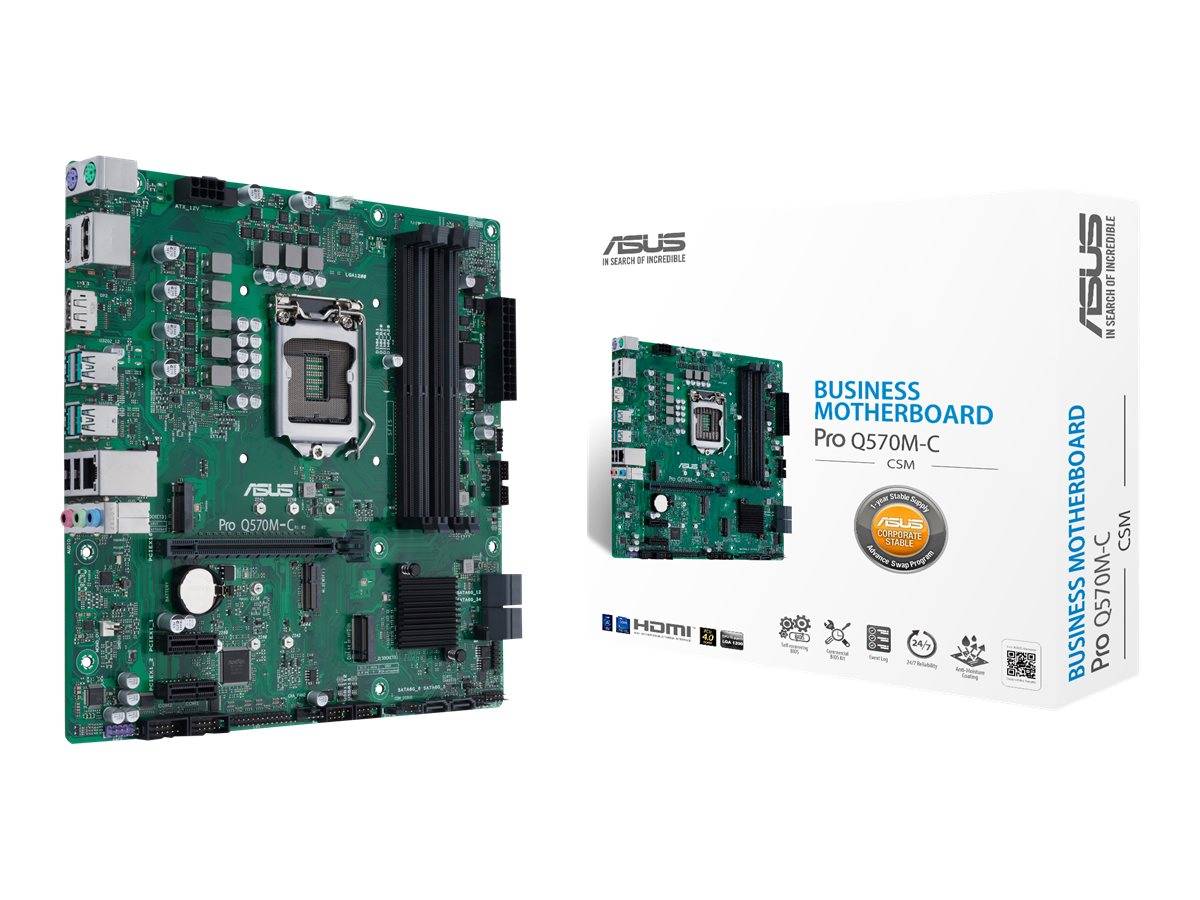

ASUS Pro Q570M-C/CSM / Motherboard / micro ATX / LGA1200 Socket / Q570 Chipset / USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1700-M0EAYC
Please sign in so that we can notify you about a reply
Special Features
- Intel LGA 1200 socket: ready for 11th Gen Intel Core processors
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- Supports SMBUS header that connects to a DASH LAN for remote IT management
- ASUS COM debug header for more efficient troubleshooting
- Event log for capturing and managing detailed system information
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
- Ultra-fast connectivity: PCIe 4.0, Intel 1Gb Ethernet and front header for USB 3.2 Gen 1 Type-C
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel Q570 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 11th Generation Intel Core and 10th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 (11th Gen Intel CPUs), PCIe 3.0 (10th Gen Intel CPUs)) ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID ¦ PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| RAID Features | Intel Rapid Storage Technology |

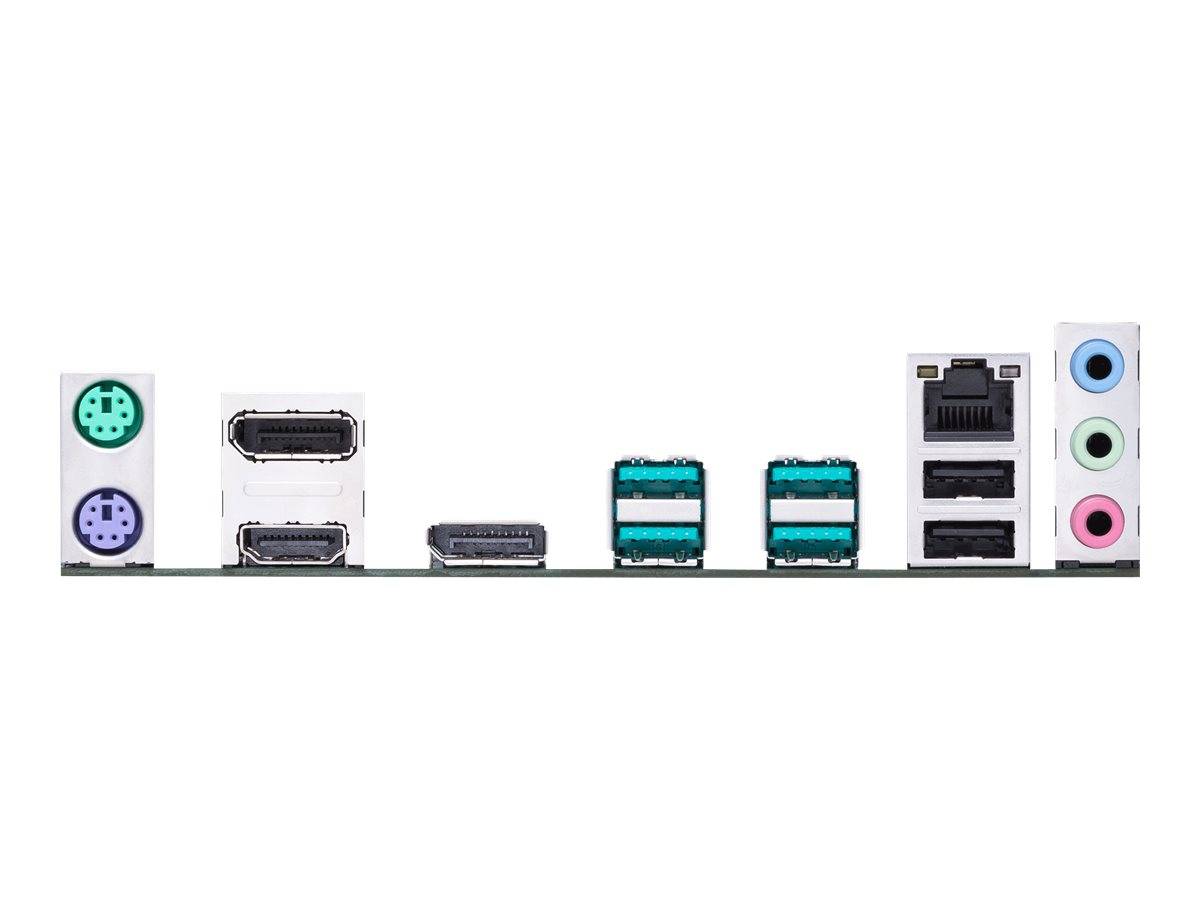

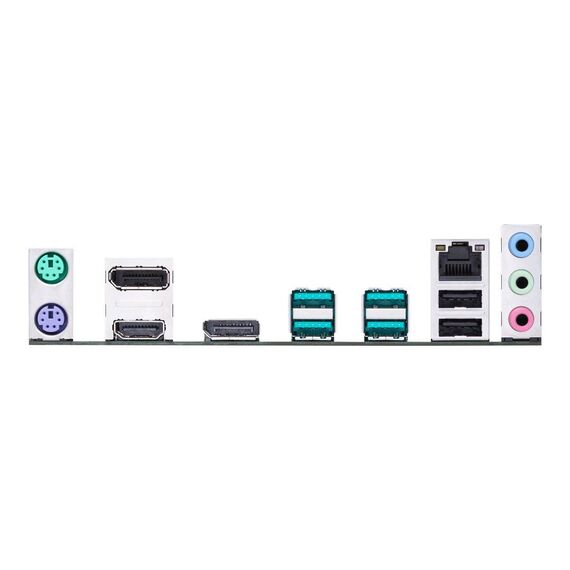

| Interfaces | 1 x HDMI ¦ 2 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header ¦ 2 x serial - header ¦ 1 x parallel - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Features | UEFI BIOS |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS EZ DIY, audio jack detect technology, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), Intel Optane Memory Ready, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, TPM 2.0 IC Onboard, ASUS Control Center Express (ACC Express) |
| Miscellaneous | Miscellaneous |
| Included Accessories | I/O back cover, 2 x M.2 screws |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities |
| Compliant Standards | DisplayPort 1.4 |
| Width | 24.4 cm |
| Depth | 24.4 cm |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
Features - Asus - 90MB1700-M0EAYC
More Details
Product Code
07:121747
EAN Code
4711081165248
Manufacturer
Asus
