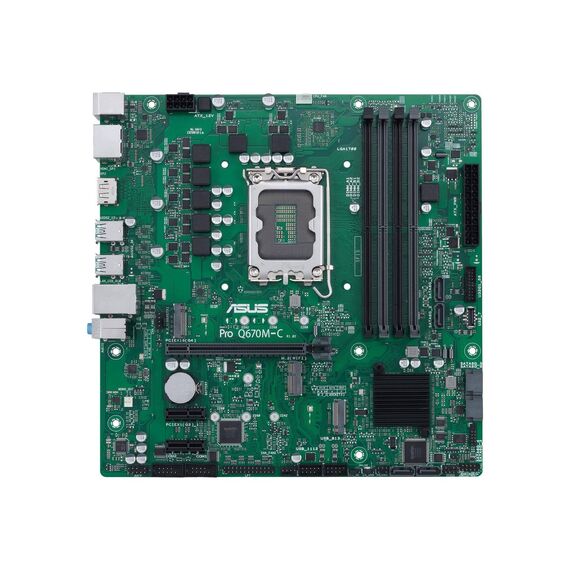

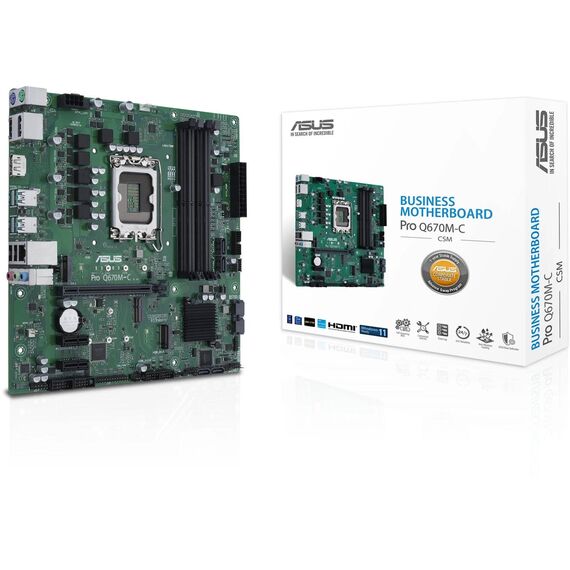

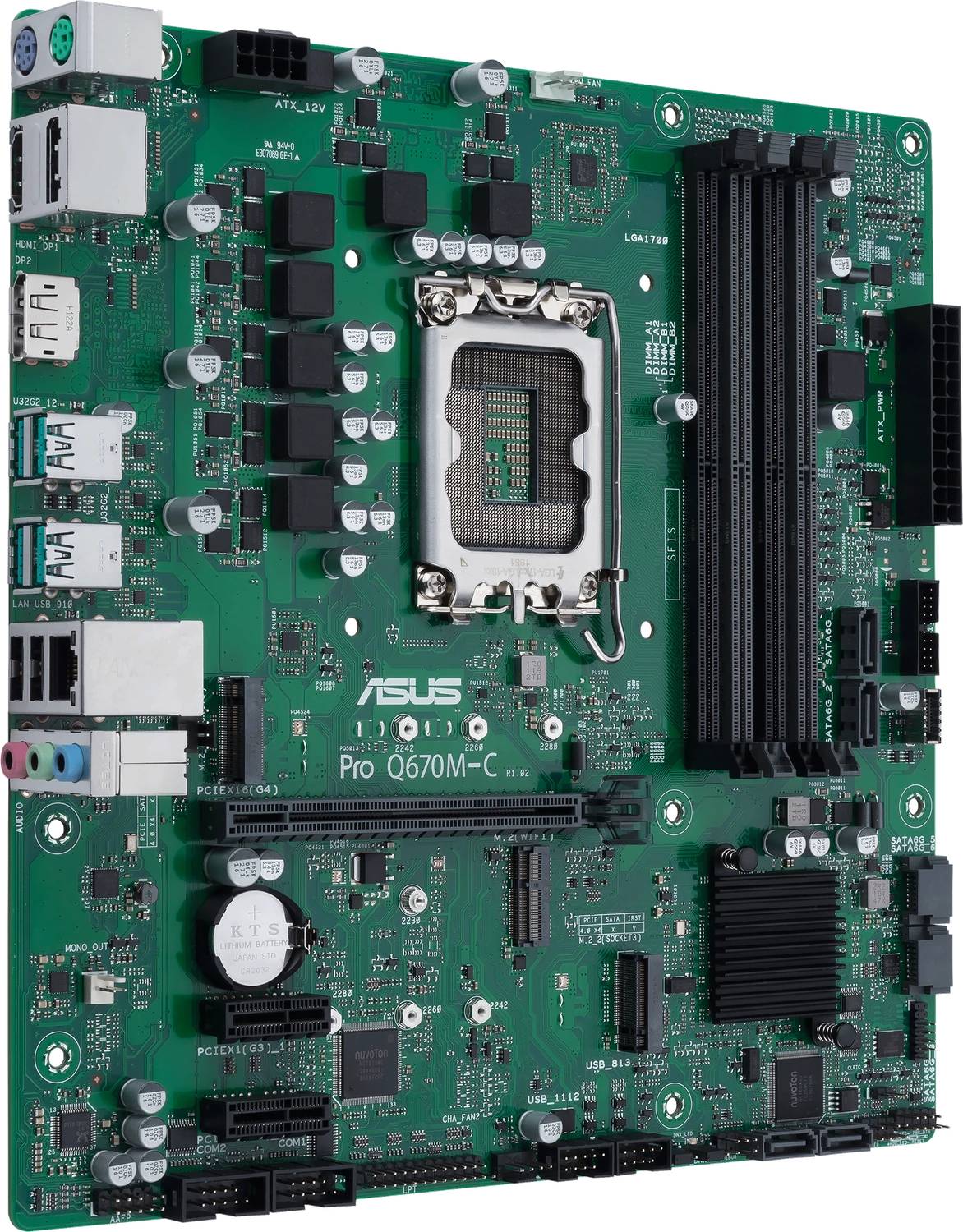

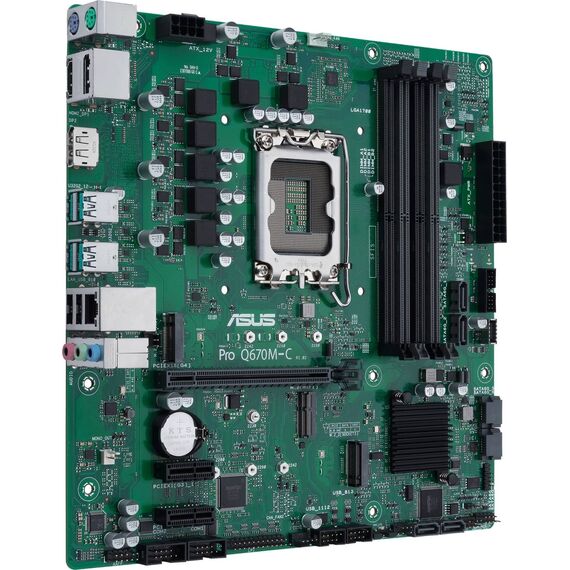

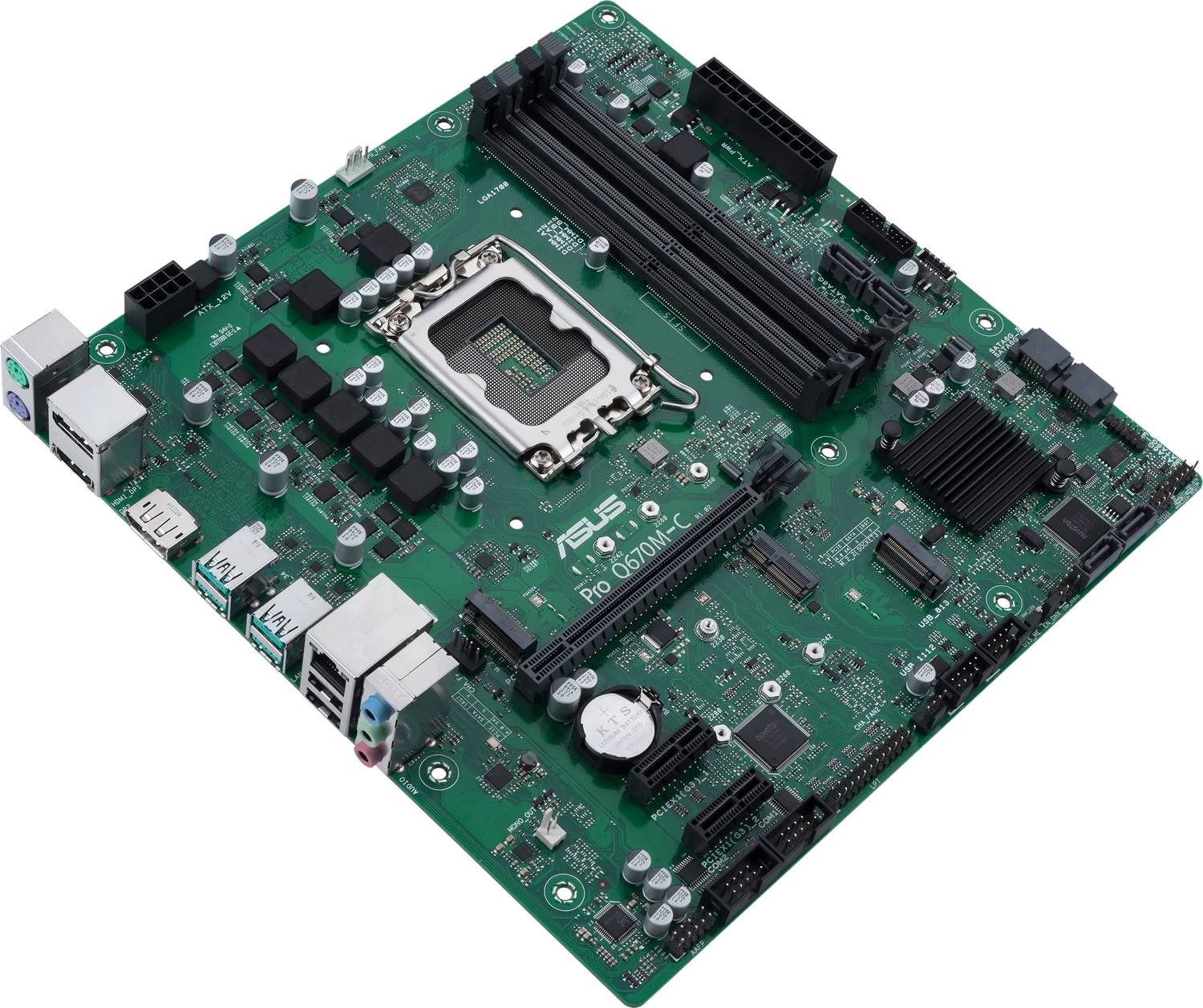

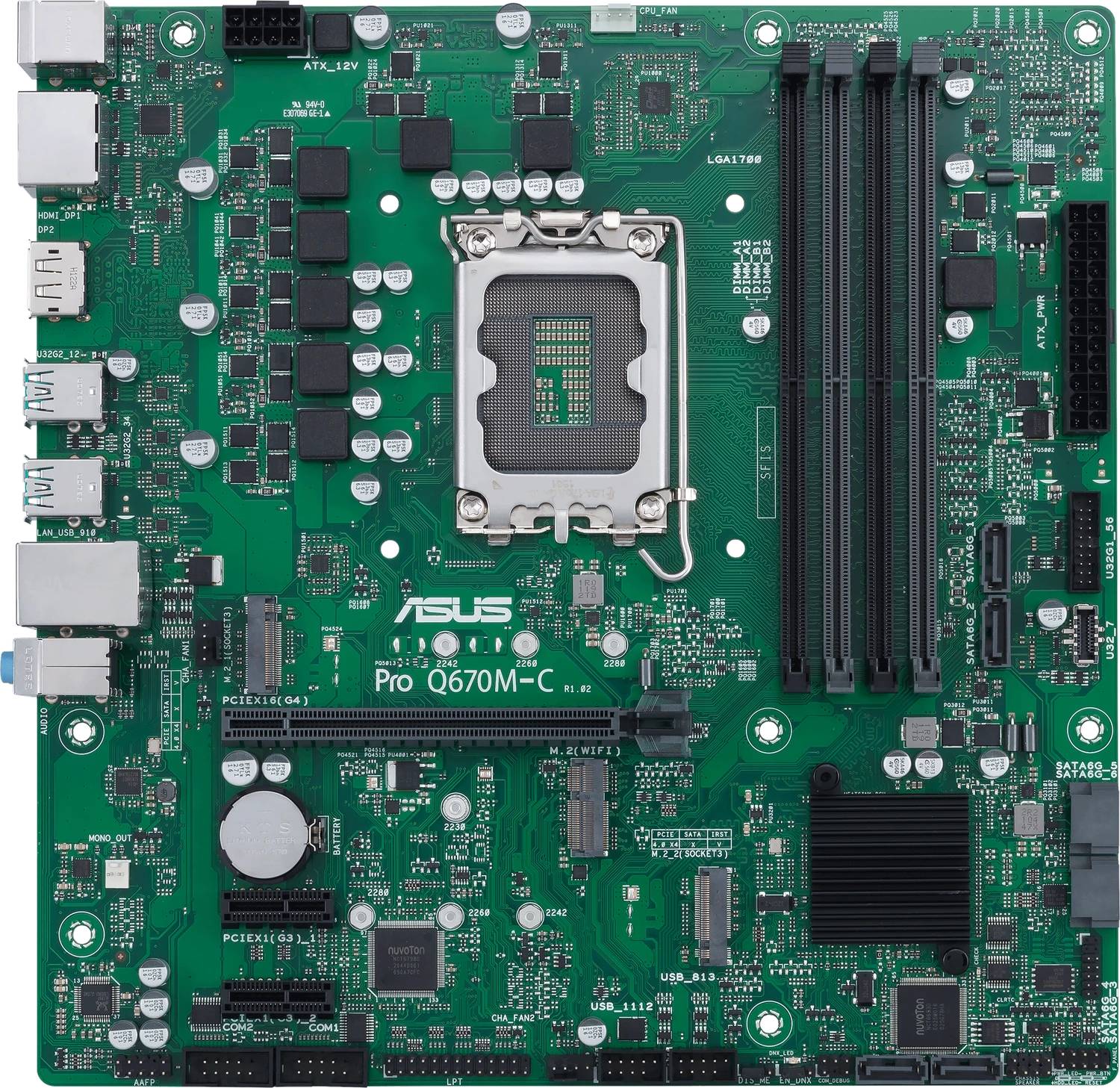

ASUS Pro Q670M-C-CSM / Motherboard / micro ATX / LGA1700 Socket / Q670 Chipset / USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB19E0-M2EAYC
Please sign in so that we can notify you about a reply
Product Features
- Internationally certified business motherboard
ASUS Business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS Business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business. - ASUS Boot Defender
ASUS Boot Defender ensures your PC is secure even before you boot up the OS and offers additional protection beyond the OS environment. On start-up, it verifies the BIOS code to detect attacks or corrupted firmware. It's designed to automatically protect and repair the compromised BIOS code to safeguard PCs from intrusions and attacks. The ASUS Defender controller uses hardware-based Root-of-Trust (ROT) with immutable and non-bypassable boot firmware to form a chain of trust (COT) with integrity for a secure computing system. - With ASUS self-recovering BIOS
The user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.
Special Features
- Intel LGA 1700 socket - ready for 12th Gen Intel Core processors
- ASUS CSM program - a stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS control center express - integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security - boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance - high-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization - an event log and commercial BIOS kit to enable easy maintenance
- Better serviceability - Q-LED diagnostic display and COM debug header to facilitate building and support processes
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel Q670 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 4800 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel I219LM |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| RAID Features | Intel Rapid Storage Technology |

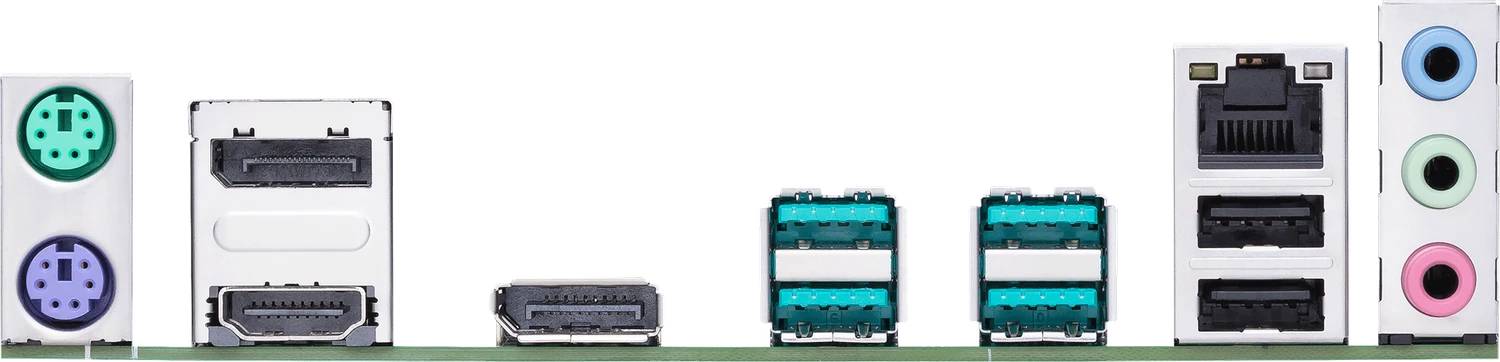

| Interfaces | 1 x HDMI ¦ 2 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header ¦ 2 x serial - header ¦ 1 x parallel - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS EZ DIY, audio jack detect technology, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), overcurrent protection, LANGuard, Moistureproof PCB, Intel Optane Memory Ready, Intel Turbo Boost Max Technology 3.0, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, TPM IC Onboard, ASUS OptiMem II, ASUS Control Center Express (ACC Express), Q-LED Core, ASUS Boot Defender |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC, RoHS, NIST SP800-147 |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB19E0-M2EAYC
CPU Socket
- Socket 1700
More Details
Product Code
03:220269
EAN Code
4711081518389
Manufacturer
Asus
