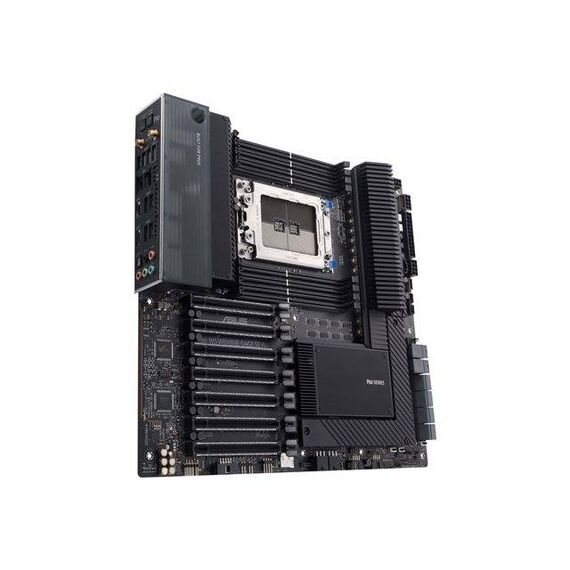

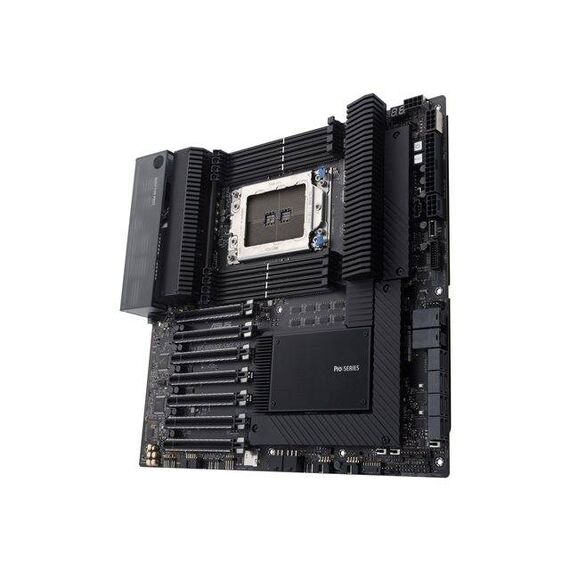

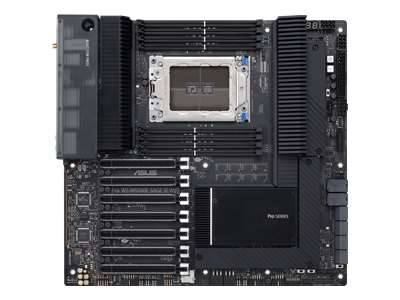

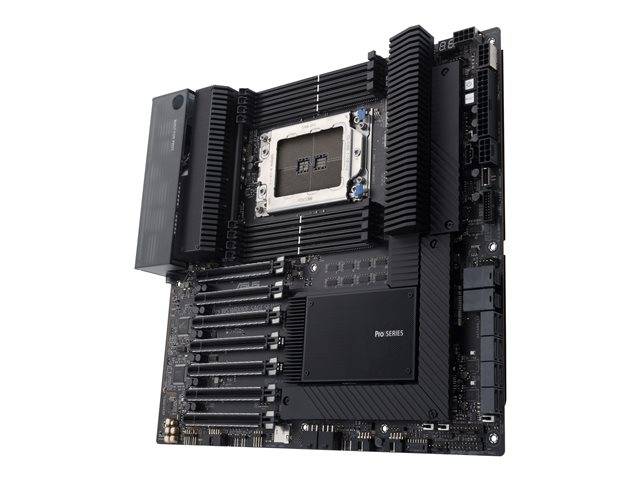

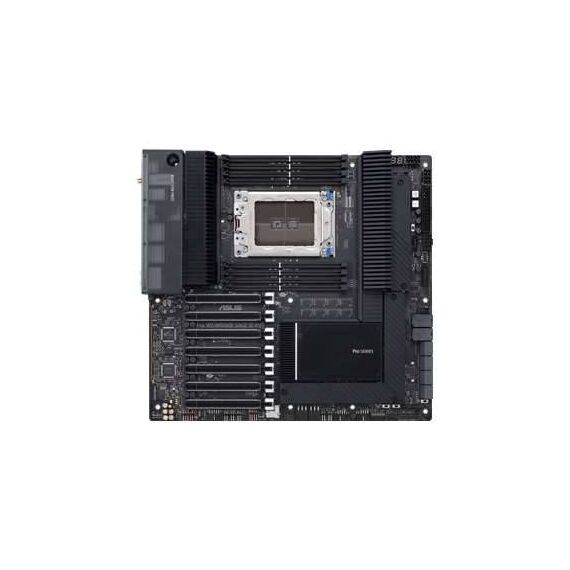

ASUS Pro WS WRX80E-SAGE SE WIFI / Motherboard / extended ATX / Socket sWRX8 / AMD WRX80 Chipset / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / 2 x 10 Gigabit LAN, Wi-Fi, Bluetooth / HD Audio (8-channel) | 90MB1590-M0EAY0
Product Specification
| Product Type | Motherboard - extended ATX |
| Chipset Type | AMD WRX80 |
| Processor Socket | Socket sWRX8 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen ThreadRipper PRO |
| Max Size | 2 TB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Registered, unbuffered, 3DS registered |
| Features | 8-channel memory architecture |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio, DTS:X Ultra |
| Network Controller | Intel X550-AT2 / Intel AX 200 |
| Network Interfaces | 2 x 10 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1 |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 7 x PCIe 4.0 x16 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID ¦ ASMedia ASM1061: SATA-600 -connectors: 4 x 7pin Serial ATA - RAID ¦ SATA-600 / PCIe 4.0 -connectors: 3 x M.2 - RAID ¦ SATA-600 / PCIe -connectors: 2 x U.2 |

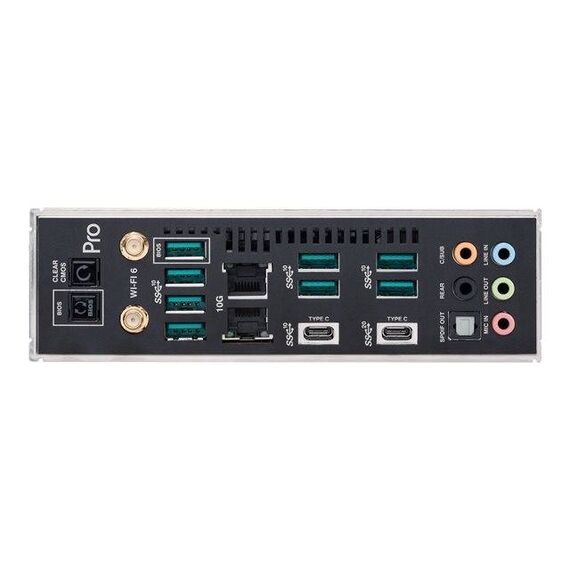

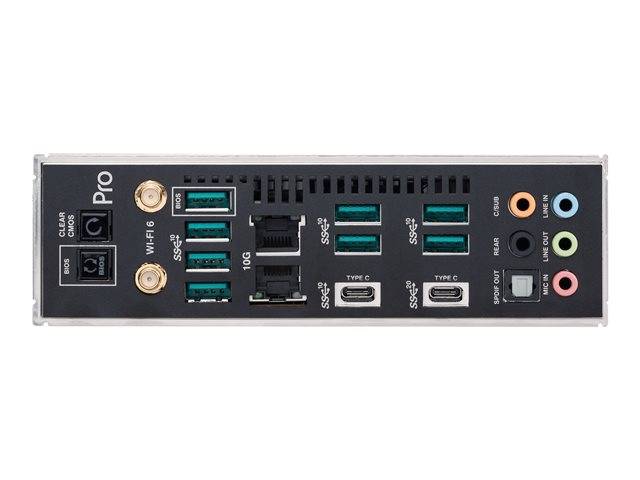

| Interfaces | 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C Gen2x2 ¦ 8 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (rear) - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x USB-C Gen2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x VGA - header ¦ 1 x serial - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 2 x 6-pin PCI Express power connectors, 8-pin PCI Express power connector |
| BIOS Type | AMI |
| BIOS Features | BIOS FlashBack, UEFI BIOS |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, NVIDIA 3-way SLI Technology Support, NVIDIA 2-way SLI Technology Support, NVIDIA 4-way SLI Technology Support, Q-Code, Clear CMOS Button, overcurrent protection, Turbo LAN, LANGuard, ASUS Crystal Sound 3, ASUS SafeSlot, pre-mounted I/O shield, ASMB9-iKVM, Armoury Crate, ASUS ProCool II |
| Included Accessories | 3 x M.2 screws, Q-Connector, ASUS Wi-Fi moving aerial, 3 x M.2 rubber package, Hyper M.2 x16 Gen 4 card |
| Cables Included | 6 x Serial ATA cable ¦ 1 x VGA cable |
| Software Included | Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (Trial) |
| Width | 30.98 cm |
| Depth | 33.02 cm |
| Service & Support | Limited warranty - 3 years |
Features - Asus - 90MB1590-M0EAY0
More Details
Product Code
03:158334
EAN Code
4711081066262
Manufacturer
Asus
