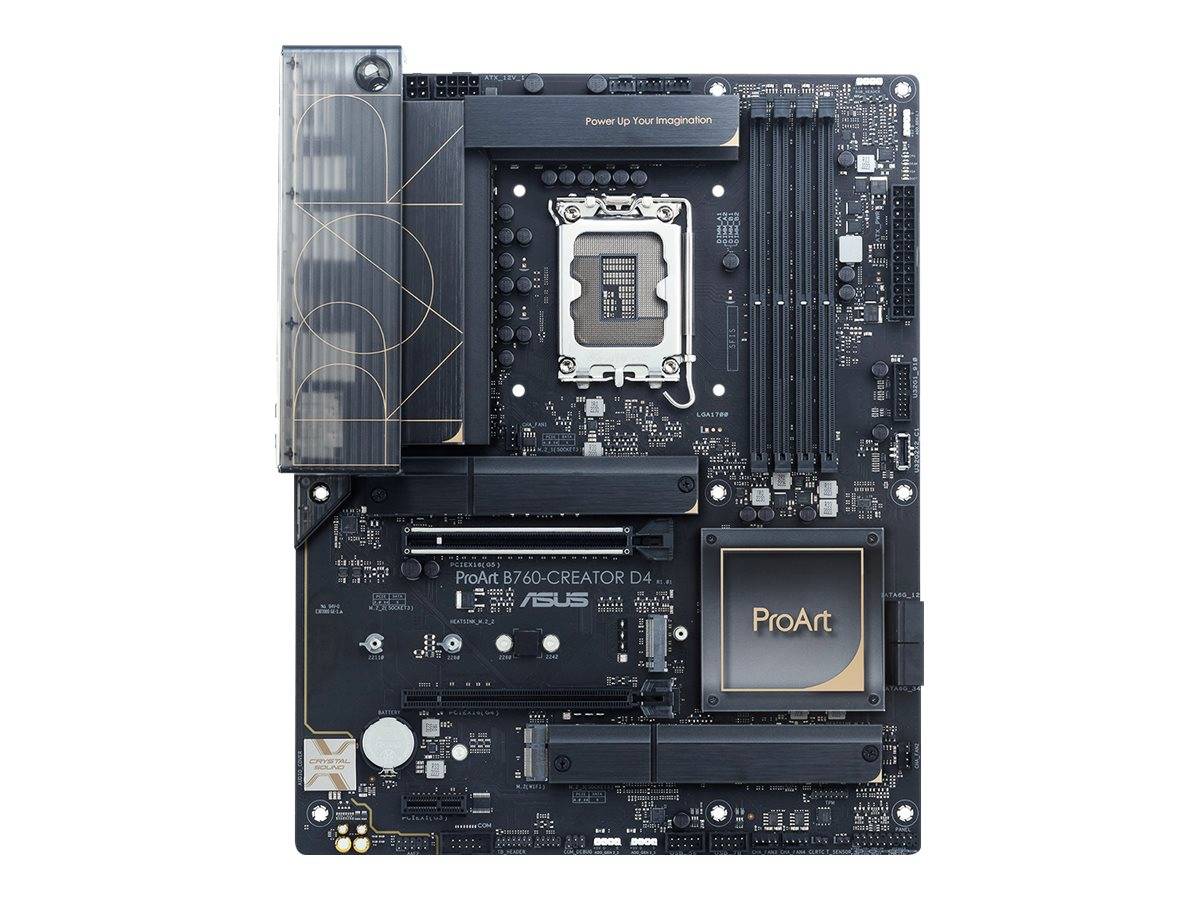

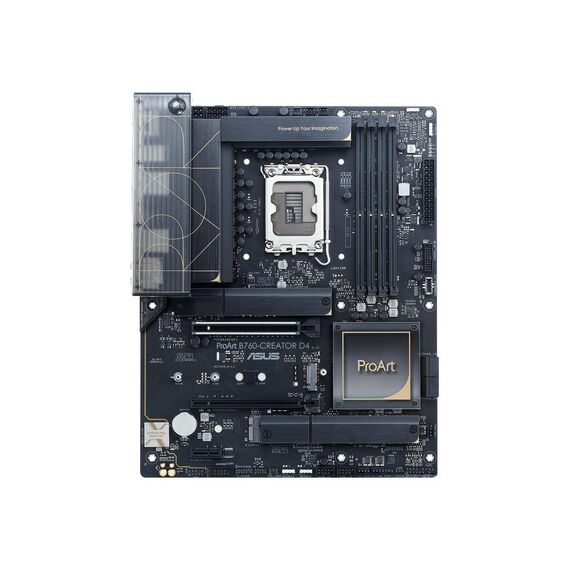

ASUS ProArt B760-CREATOR D4 / Motherboard / ATX / LGA1700 Socket / B760 Chipset / USB 3.2 Gen 1, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 / Gigabit LAN, 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1DU0-M0EAY0

Product Features

• PCIe 5.0 for graphics cards
  The Intel processors offer PCIe 5.0 support, which offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions.
• Front USB 3.2 Gen 2x2 Type-C
  A full complement of USB ports, including a front-panel USB 3.2 Gen 2x2 Type-C connector that provides data transfer speeds of up to 20 Gbps, supports high-end rigs loaded with peripherals.
• Thunderbolt/USB4 support
  The ProArt B760-Creator D4 features Thunderbolt 4 support via an on-board header. Additionally, this card has a daisy-chain function for multiscreen connections, and it supports a display resolution of up to 8K. It can also provide up to 100 watts of power to fast-charge devices.
• Dual Ethernet
  2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for Internet access and local network-attached storage (NAS), allowing for improved data organization and security.
• PCIe 4.0 M.2 storage
  The ProArt B760-Creator D4 features three onboard M.2 slots, two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives.
• 12 + 1 teamed power stages
  Rated for 50 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the demands of the Intel Core processors.
• Chokes and capacitors
  Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
• Digi+ power control
  The ASUS Digi+ voltage-regulator module (VRM) is one of the finest and ensures ultra-smooth power delivery to the CPU.
• ProCool power connectors
  These components are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.
• DDR4 memory
  ProArt B760-Creator D4 supports a large DDR4 memory across four slots. ASUS-exclusive OptiMem II technology improves trace layout to significantly reduce signal distance and crosstalk, enhancing memory stability and compatibility while giving memory kits higher clock speed margins.
• Two-way AI noise cancelation
  As working from home has become the normal for many users, clear online communication is more critical than ever. Two-way AI noise cancelation is an audio utility that leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back, so your calls and video conferences with partners and clients can be crystal clear.
• Trusted stability
  ProArt B760-Creator D4 is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.

Special Features

• PCIe 5.0 for graphics cards
• Front USB 3.2 Gen 2x2 Type-C
• Thunderbolt/USB4 support
• Dual Ethernet
• PCIe 4.0 M.2 storage
• 12 + 1 teamed power stages
• Chokes and capacitors
• Digi+ power control
• ProCool power connectors
• DDR4 memory
• Two-way AI noise cancelation
• Trusted stability
