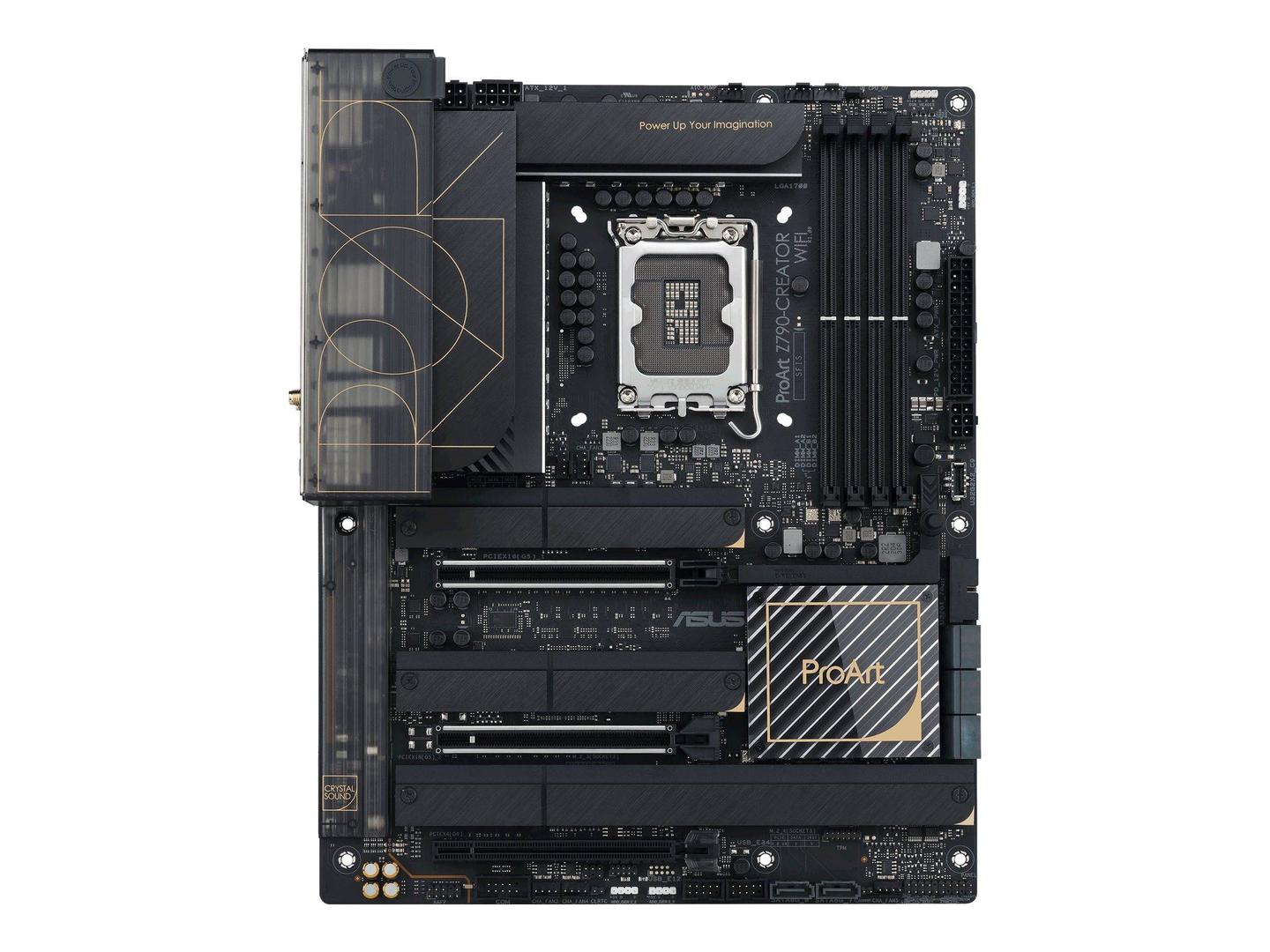

ASUS ProArt Z790-CREATOR WIFI / Motherboard / ATX / LGA1700 Socket / Z790 Chipset / USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2 / 10 Gigabit LAN, 2.5 Gigabit LAN, Bluetooth, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1DV0-M0EAY0
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z790 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALCS1220A |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 2 x Thunderbolt 4/USB4 ¦ 1 x HDMI ¦ 6 x USB 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x DisplayPort input ¦ 2 x aerial |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector, 6-pin ATX12V connector |
| Features | Features |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, MemTest86, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, overvoltage protection, ASUS SafeSlot, ASUS 5X Protection III, M.2 heatsink, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, FlexKey button, ASUS ProCool II, 16+1 Phase Power Design, M.2 Q-Latch, Quick Charge 4+, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, ASUS Enhanced Memory Profile (AEMP) II |
| Miscellaneous | Miscellaneous |
| Software Included | ASUS CPU-Z, ASUS AI Suite III, WinRAR, ASUS ProArt Creator Hub, ASUS Control Center Express, MyAsus, CreationFirst, Armoury Crate, Norton 360 Deluxe (60 days trial) |
| Compliant Standards | DisplayPort 1.4 |
| Width | 30.5 cm |
| Depth | 24.5 cm |
Features - Asus - 90MB1DV0-M0EAY0
CPU Socket
- Socket 1700
More Details
Product Code
07:129777
EAN Code
4711081988984
Manufacturer
Asus
