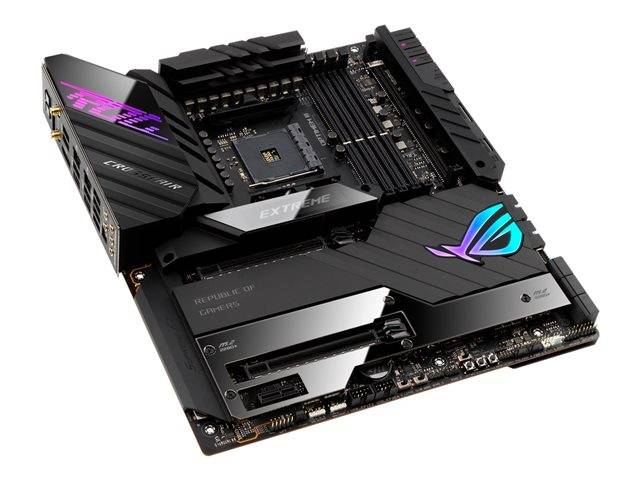

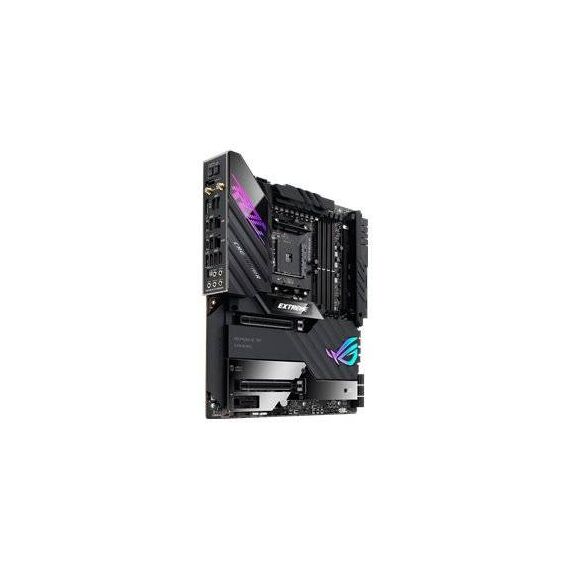

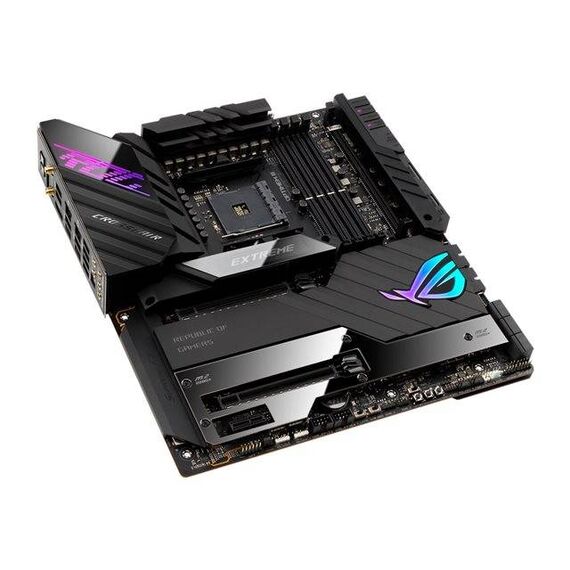

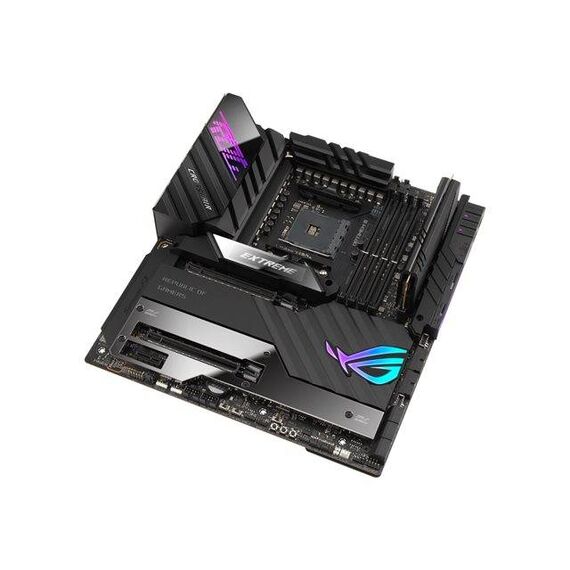

ASUS ROG CROSSHAIR VIII EXTREME / Motherboard / extended ATX / Socket AM4 / AMD X570 Chipset / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / 10 Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-chan
Please sign in so that we can notify you about a reply

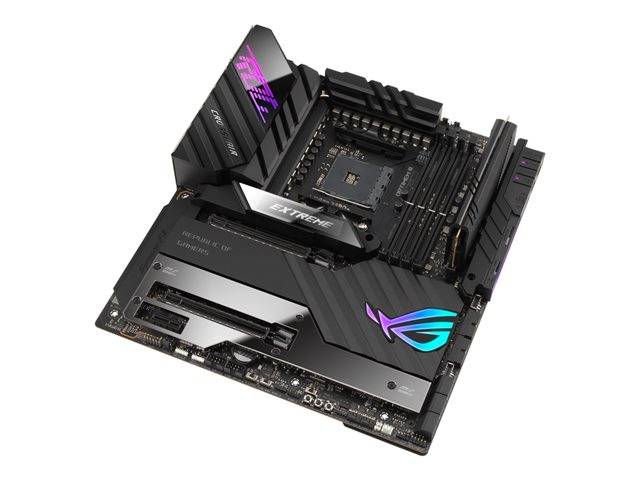

ASUS ROG CROSSHAIR VIII EXTREME / Motherboard / extended ATX / Socket AM4 / AMD X570 Chipset / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / 10 Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1860-M0EAY0
Product Specification
| Product Type | Motherboard - extended ATX |
| Chipset Type | AMD X570 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 5000 MHz (O.C.), 5100 MHz (O.C.) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Type | HD Audio (8-channel) |
| Audio Codec | SupremeFX (ALC4082) |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
| Network Controller | Intel I225-V / AQtion AQC113CS |
| Network Interfaces | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x16 (x8 mode) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 2 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x DIMM.2 - 2 devices |

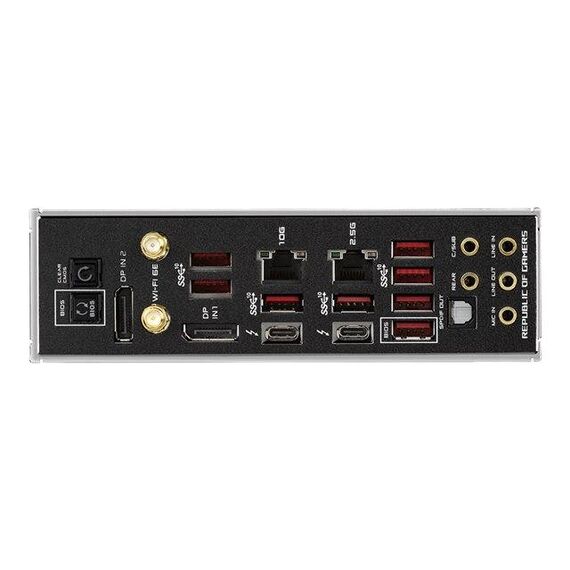

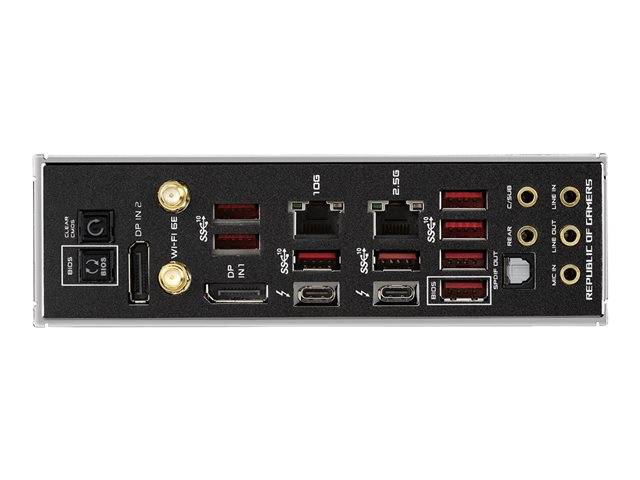

| Interfaces | 1 x LAN (10Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x Thunderbolt 4/DisplayPort/USB4 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x TOSLINK ¦ 8 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x DisplayPort input |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x USB-C Gen2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 2x2 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin PCI Express power connector |
| BIOS Type | AMI |
| BIOS Features | BIOS FlashBack, UEFI BIOS |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | DualBIOS, jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ProbeIt, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), NVIDIA 2-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS ROG Extreme OC, Q-Code, SupremeFX Shielding technology, ASUS DIGI+ Power Control, Preboot eXecution Environment (PXE), Status OLED, Clear CMOS Button, Dual Intelligent Processors 5, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, pre-mounted I/O shield, LN2 Switch, ASUS Aura Sync, Armoury Crate, ESS 9018 SABRE HiFi DAC, MicroFine Alloy Chokes, ASUS OptiMem III, LED-illuminated audio jacks, FlexKey button, ASUS ProCool II, ASUS HYDRANODE, M.2 Q-Latch |

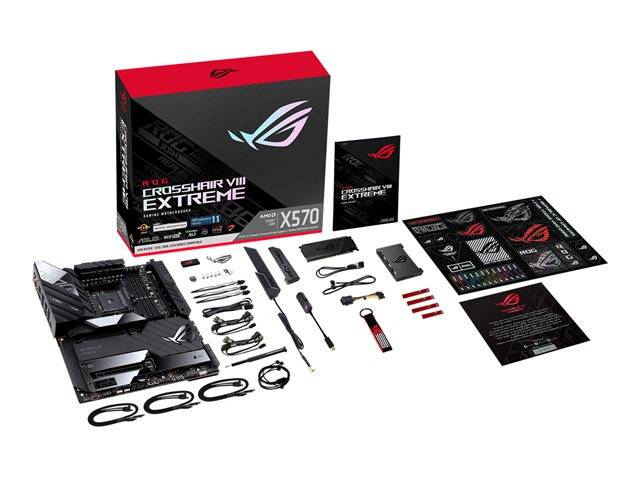

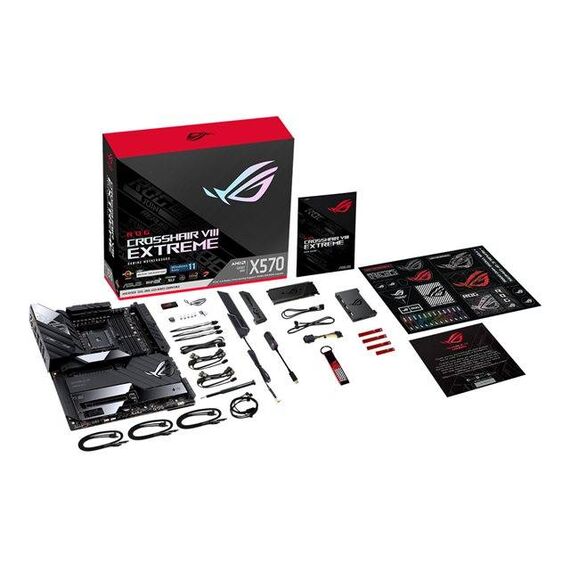

| Included Accessories | ROG fan stickers, DIMM.2 extension card, 3 thermistor cables, ROG thank you card, RGB Addressable LED extension cable, 4 x M.2 screws, screwdriver, thermal pad for M.2 SSD, ROG logo plate sticker, Q-Connector, ROG key chain, ASUS Wi-Fi moving aerial, USB drive, graphics card holder, 1 to 3 ARGB LED splitter cable, 1 to 4 fan splitter cable, ROG Fan Controller, ROG CLAVIS DAC |
| Cables Included | 3 x Serial ATA cable ¦ External fan power adapter cable |
| Software Included | ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, ASUS EZ Flash 3, DAEMON Tools, WinRAR, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer, BullGuard Internet Security (1 year licence), ROG GameFirst VI, ASUS AURA Creator, AIDA64 Extreme (1 year licence) |
| Width | 30.5 cm |
| Depth | 27.7 cm |
| Service & Support | Limited warranty - 3 years |
Features - Asus - 90MB1860-M0EAY0
More Details
Product Code
04:381398
EAN Code
4711081375852
Manufacturer
Asus
