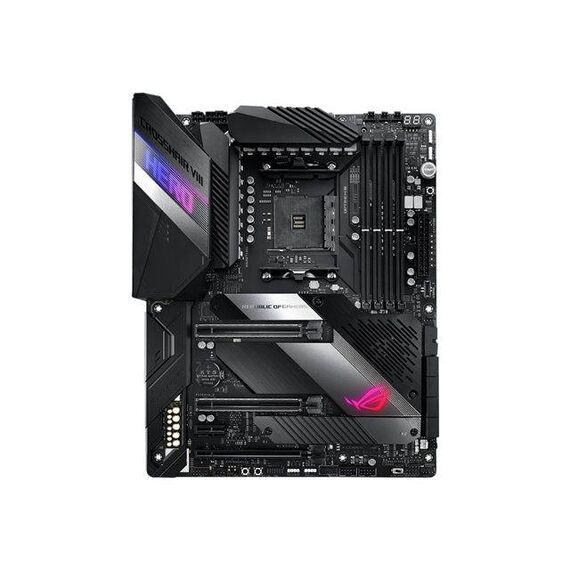

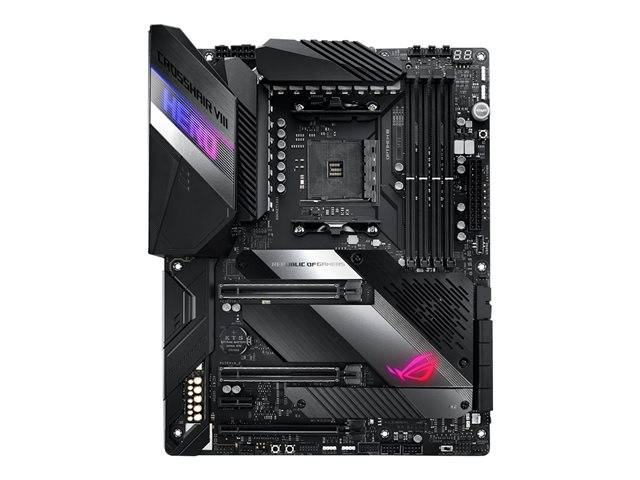

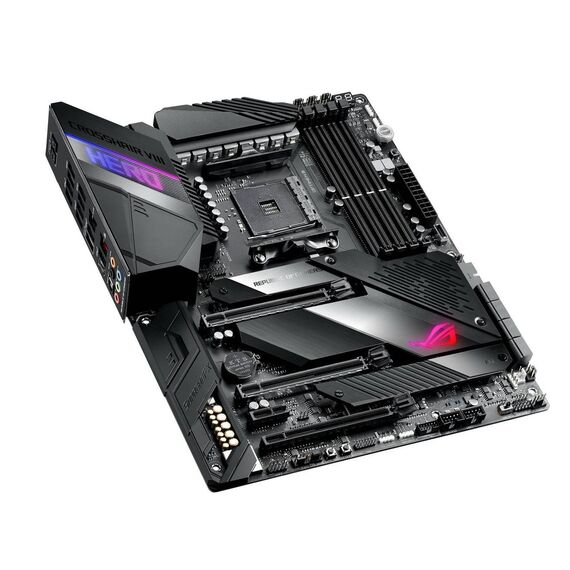

ASUS ROG Crosshair VIII Hero / Motherboard / ATX / Socket AM4 / AMD X570 / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / Gigabit LAN, 2.5 Gigabit LAN / HD Audio (8-channel) | 90MB1100-M0EAY0
Please sign in so that we can notify you about a reply
ASUS ROG Crosshair VIII Hero / Motherboard / ATX / Socket AM4 / AMD X570 / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / Gigabit LAN, 2.5 Gigabit LAN / HD Audio (8-channel) | 90MB1100-M0EAY0
Description
Featuring support for 3rd Gen AMD Ryzen CPUs, on-board, Realtek 2.5 Gbps LAN and PCIe 4.0, coupled with an overhauled metallic design and loaded with renowned ROG features, the Crosshair VIII Hero is the perfect foundation for your AMD Ryzen rig.
ASUS ROG Crosshair VIII Hero / Motherboard | 90MB1100-M0EAY0
Special Features
- Comprehensive thermal design: Active PCH heatsink, M.2 aluminum heatsink and ROG Cooling Zone
- High-performance networking: Integrated 2.5 Gbps Ethernet and Gigabit Ethernet, both with ASUS LANGuard protection, and support for GameFirst V software
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
- DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen. 2 addressable headers
- Advanced ROG audio: ROG SupremeFX S1220 is combined with the venerable ESS ES9023P to deliver high-fidelity audio to headsets and exotic cans
Product features
- Boosted performance, no bottlenecks
ROG Crosshair VIII Hero comes equipped with an optimized power-design layout and all the cooling headers you need to handle the prodigious power of the modern AMD Ryzen processors without performance-zapping thermal throttling. - Uncomplicated system tuning
ROG gives you powerful tools that make optimizing your system fast and easy. For those who relish fine-grained control, the UEFI BIOS has a wealth of advanced options organized into intuitive categories that provide the ability to tweak every aspect of your system. - Ultrafast connection
ROG Crosshair VIII Hero offers advanced connectivity to ensure seamless gaming experiences. With the latest ultrafast networking, including dual Ethernet with one 2.5G port, ROG Crosshair VIII Hero removes all bottlenecks for online and LAN play, minimizing lag and providing an overall smoother experience. Additionally, the M.2 supports AMD StoreMI technology to maximize the speed of your SSD for faster load times, and SupremeFX on-board audio provides superb sound, while saving a PCIe slot. - The power to personalize
ROG provides a range of intuitive software that enables easy control of your advanced gaming hardware and ensures seamless component compatibility. From RGB lighting, networking and audio to storage optimization and more, ROG gives you the power to personalize your system just the way you want.
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X570 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics) |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Type | HD Audio (8-channel) |
| Audio Codec | SupremeFX |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
| Network Controller | Intel I211-AT / Realtek RTL8125-CG |
| Network Interfaces | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 4 x USB 3.2 Gen 1 ¦ 7 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C Gen2 |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3.2 support, ACPI 6.2 support |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | C.P.R. (CPU Parameter Recall), ASUS Q-Design, GameFirst, Q-DIMM, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, NVIDIA 3-way SLI Technology Support, ASUS Extreme Tweaker, ASUS ROG Extreme OC, Q-Code, SupremeFX Shielding technology, AMD CrossFireX technology support, AMD 3-way CrossFireX technology support, Preboot eXecution Environment (PXE), Clear CMOS Button, Dual Intelligent Processors 5, LANGuard, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, M.2 heatsink, pre-mounted I/O shield, AMD StoreMI technology, ASUS Aura Sync, Armoury Crate, ESS ES9023P, ASUS Node, MicroFine Alloy Chokes, PowIRstage IR3555 MOSFETs, 10K Black Metallic Capacitors, ASUS OptiMem III, ProCool II Power Connector |
| Included Accessories | 1 x M.2 screw, ROG coasters, RGB (RGBW) LED strip extension cable, ROG big sticker, ROG thank you card, RGB Addressable LED extension cable |
| Cables Included | 4 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, RAMdisk, ASUS ROG RAMCache III, ROG GameFirst V, Sonic Studio Virtual Mixer |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Service & Support | Limited warranty - 3 years |
Features - Asus - 90MB1100-M0EAY0
More Details
Product Code
03:124952
EAN Code
4718017393751
Manufacturer
Asus
