ASUS ROG Loki SFX-L - Power supply (internal) - ATX 3.0 / SFX-L - 80 PLUS Titanium - AC 100-240 V - 1200 Watt - active PFC | 90YE00N0-B0NA00
Please sign in so that we can notify you about a reply
Product Features
- ROG heatsinks
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation. - Axial-tech fan design
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Loki PSUs, ASUS has scaled that design to 120 mm so it keeps things cool at low RPMs while producing less noise. - Dual ball fan bearings
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design. - 0 dB technology
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below. - ATX 3.0 compatible
The power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600 W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs. - ARGB-illuminated fan and Aura Sync
The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.
Special Fetures
- ROG heatsinks
- Axial-tech fan design
- Dual ball fan bearings
- 0 dB technology
- 80 PLUS platinum certified
- ATX 3.0 compatible
- ARGB-illuminated fan and Aura Sync
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX 3.0 / SFX-L |
| PSU Form Factor | SFX-L |
| Power Device | |
| Input Voltage | AC 100-240 V |

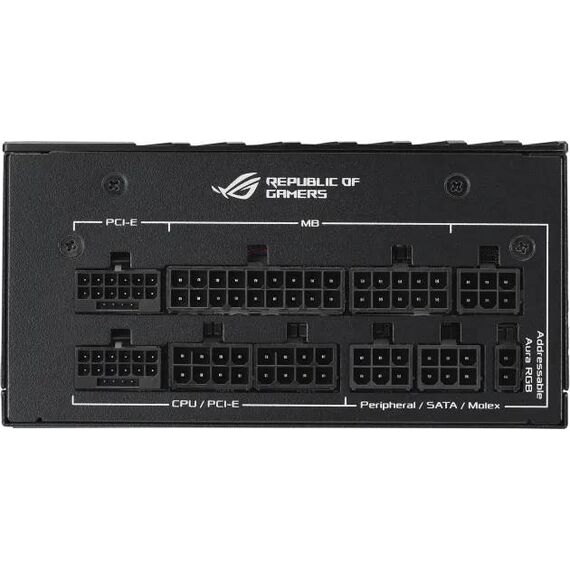

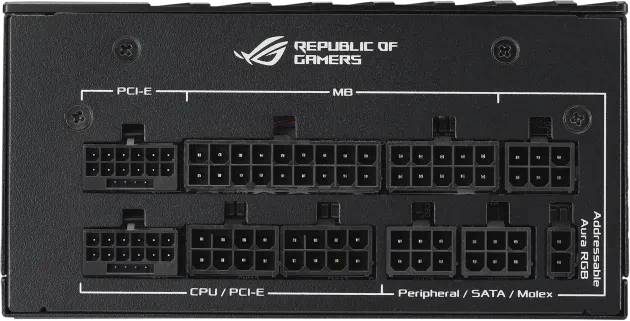

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power ¦ 6 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1200 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 100 A ¦ -12V - 0.8 A ¦ +5VSB - 2.5 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Titanium |
| Miscellaneous | |
| Included Accessories | SFX to ATX bracket |
| Cables Included | AC input cable - external ¦ Power 24 pin ATX modular cable 45 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 55 cm ¦ 2 x 16-pin 12VHPWR power cable 45 cm ¦ 16-pin 12VHPWR to 2x8 pin PCI Express power adapter 45 cm ¦ 2 x 3x Serial ATA modular cable ¦ ARGB sync cable 80 cm ¦ 4 pin internal power cable |
| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, ASUS Aura Sync, ROG heatsink, ARGB fan |
| Compliant Standards | RoHS |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years ¦ Limited warranty - RGB LEDs - 3 years |
| Dimensions & Weight | |
| Width | 12.5 cm |
| Depth | 12.5 cm |
| Height | 6.35 cm |
| Weight | 2.15 kg |
Features - Asus - 90YE00N0-B0NA00
More Details
Product Code
03:228565
EAN Code
4711081721574
Manufacturer
Asus
