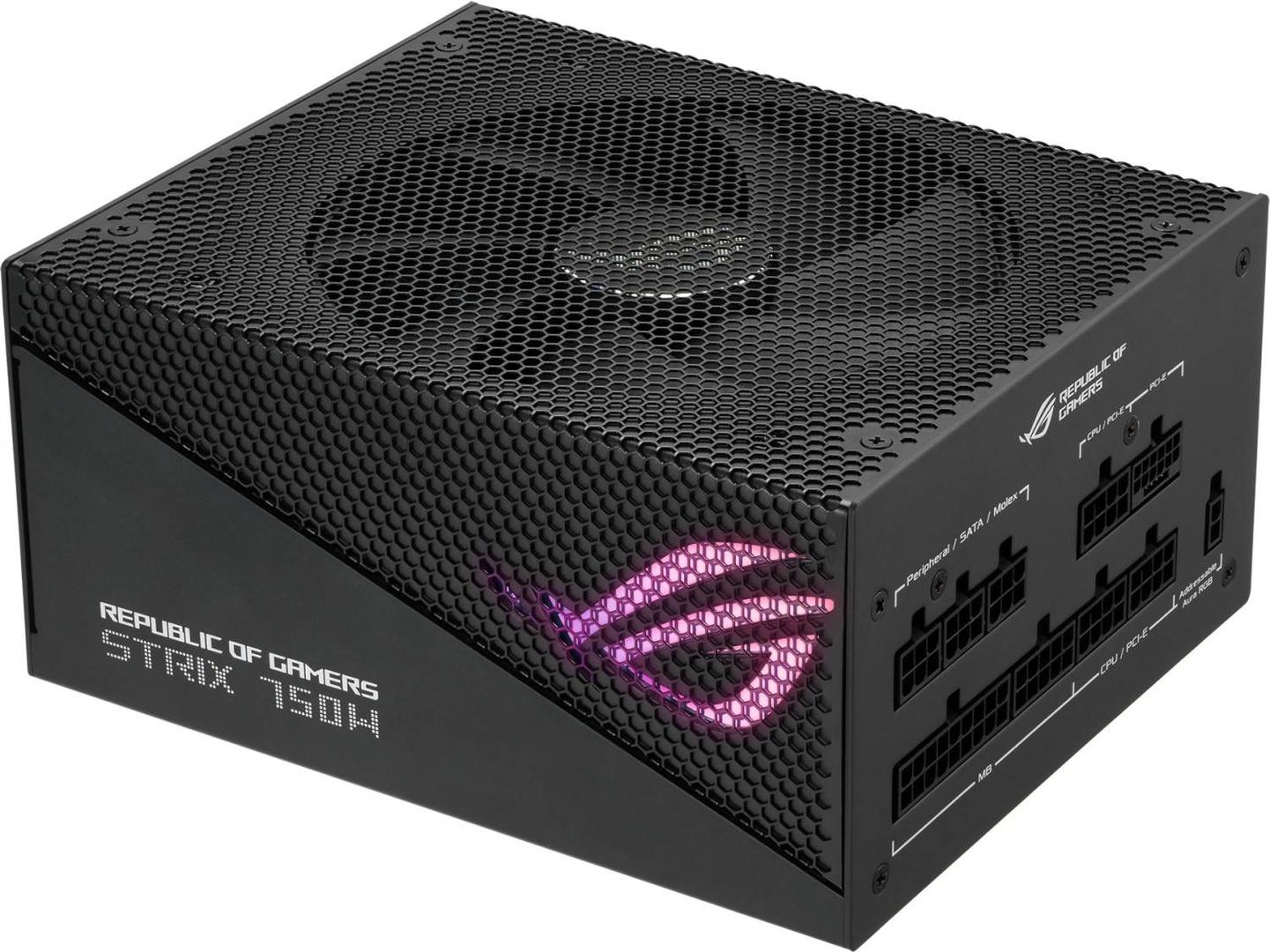

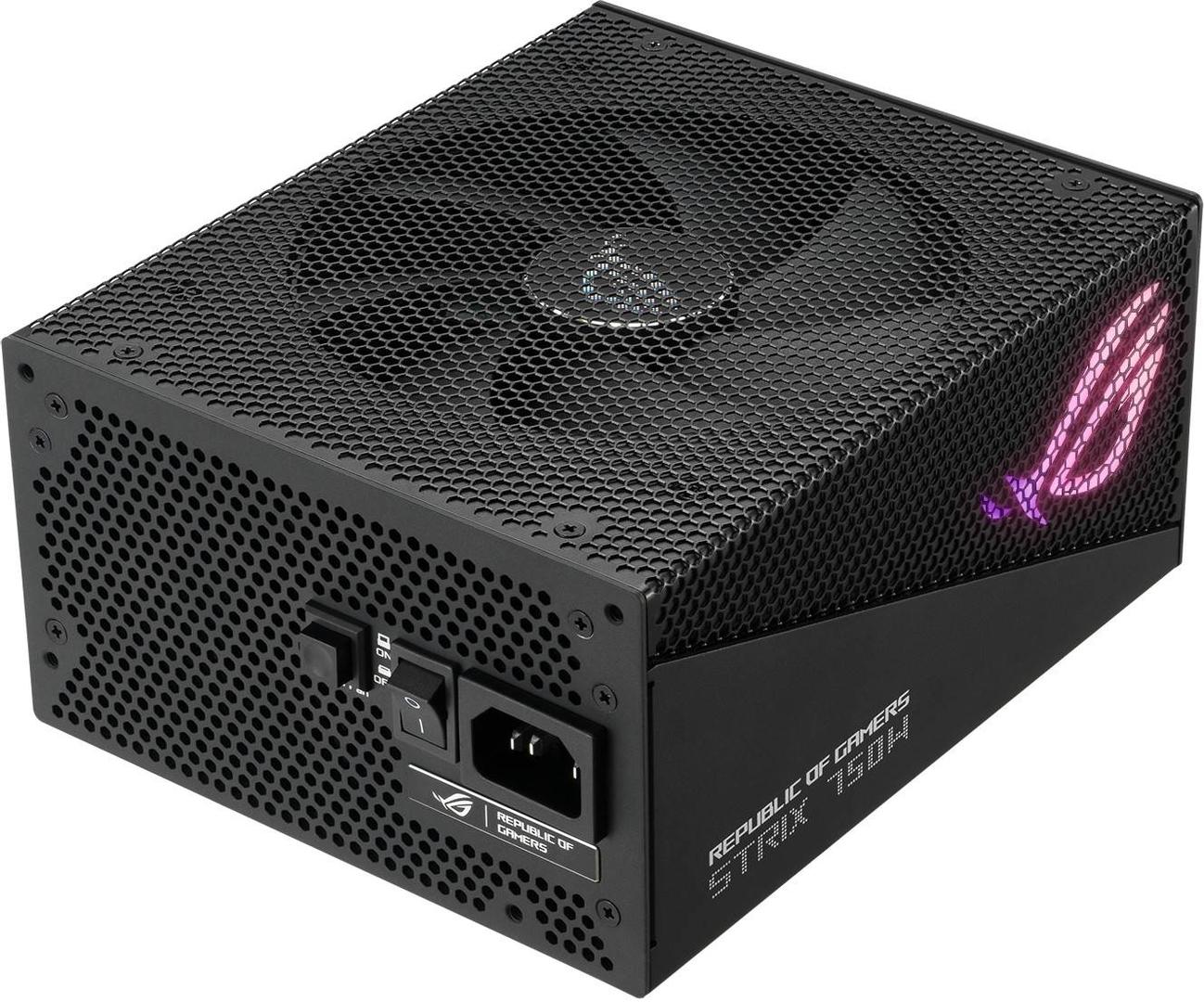

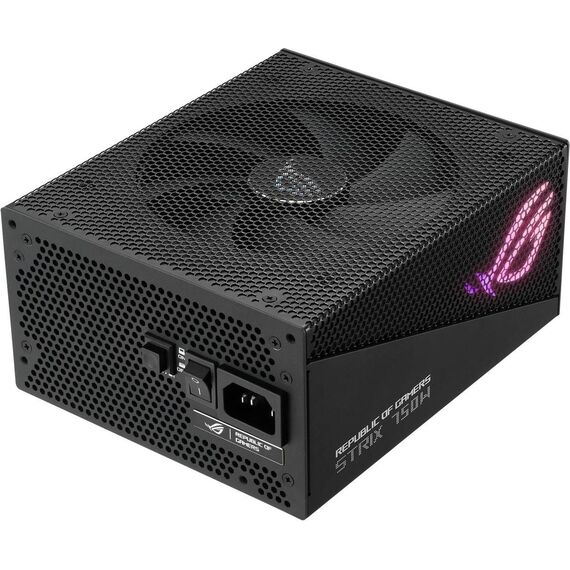

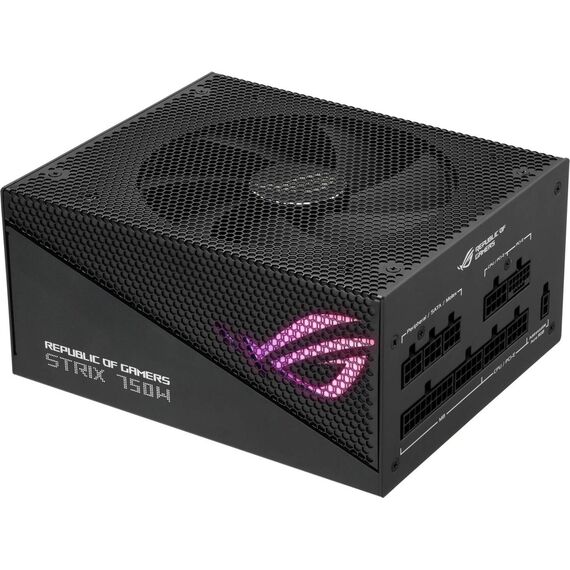

ASUS ROG-STRIX-750G / Power supply (internal) / ATX12V / 80 PLUS Gold / AC 100-240 V / 750 Watt | 90YE00P3-B0NA00
Product Features
- ROG heatsinks: Let it sink in
The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in significantly lower temperatures inside Strix PSUs. This extends the lifespan of components and allows 0 dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise stays whisper quiet, even under full load. - Axial-tech fan design: Better, faster, stronger
Originally the result of R&D efforts for top-end ROG graphics cards, Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. The enhanced efficiency allows the fan to keep things cool at low RPMs, resulting in less overall system noise and increased component lifespan. - Dual ball fan bearings: 2x longer lifespan
Different bearing types have unique pros and cons. In a PSU, durability is paramount, so ASUS built a dual ball bearing setup that will last up to twice as long as a sleeve bearing design. - 0 dB technology: Quiet intelligence
An onboard controller brings the 135 mm fan to a standstill when total draw power (TDP) is below 40%, letting you enjoy light gaming in relative silence. Above 40% TDP, the fans automatically start up again. - 80 Plus Gold certification: Heart of gold
Top-end Japanese capacitors ensure efficient operation and have helped the Strix earn an 80 Plus Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability. - Cosmetic customization
Getting everything looking right can be a challenging aspect of any setup. The ROG Strix Series PSUs aim to make your life a little easier with a convenient magnetic logo and stickers that help you reskin the visible side to your liking. - Fully modular cables
Keep your rig neat and tidy with fully modular cables. One 24-pin, two 6+2-pin PCI-e, and two 8-pin CPU cables come with embedded capacitors that reduce voltage ripple, and the included CableMod coupon will set you on your way towards next-level customization.
Special Features
- ROG heatsinks cover critical components. Lower temps result in a longer lifespan and reduced noise
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs
- 0 dB Technology lets you enjoy light gaming in relative silence
- An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components
- Cosmetic customization is enabled by a magnetic logo and stickers that help you reskin the visible side to your liking
- Fully modular cables keep your rig neat and tidy
Product Specification
Device Type | Power supply - internal |
Specification Compliance | ATX12V |
PSU Form Factor | ATX |
Power Device | Power Device |
Input Voltage | AC 100-240 V |

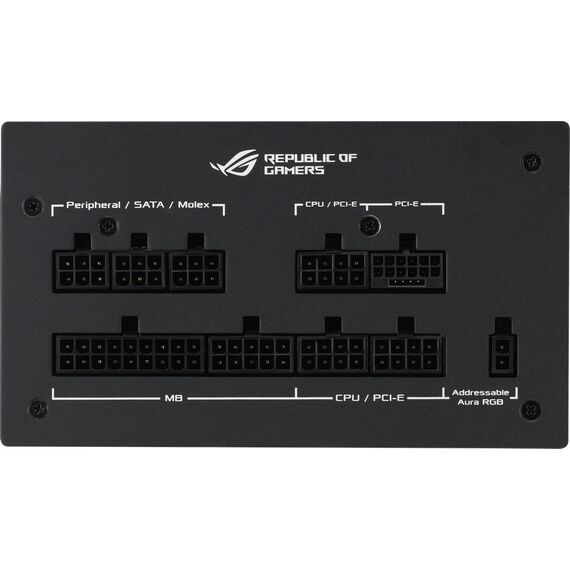

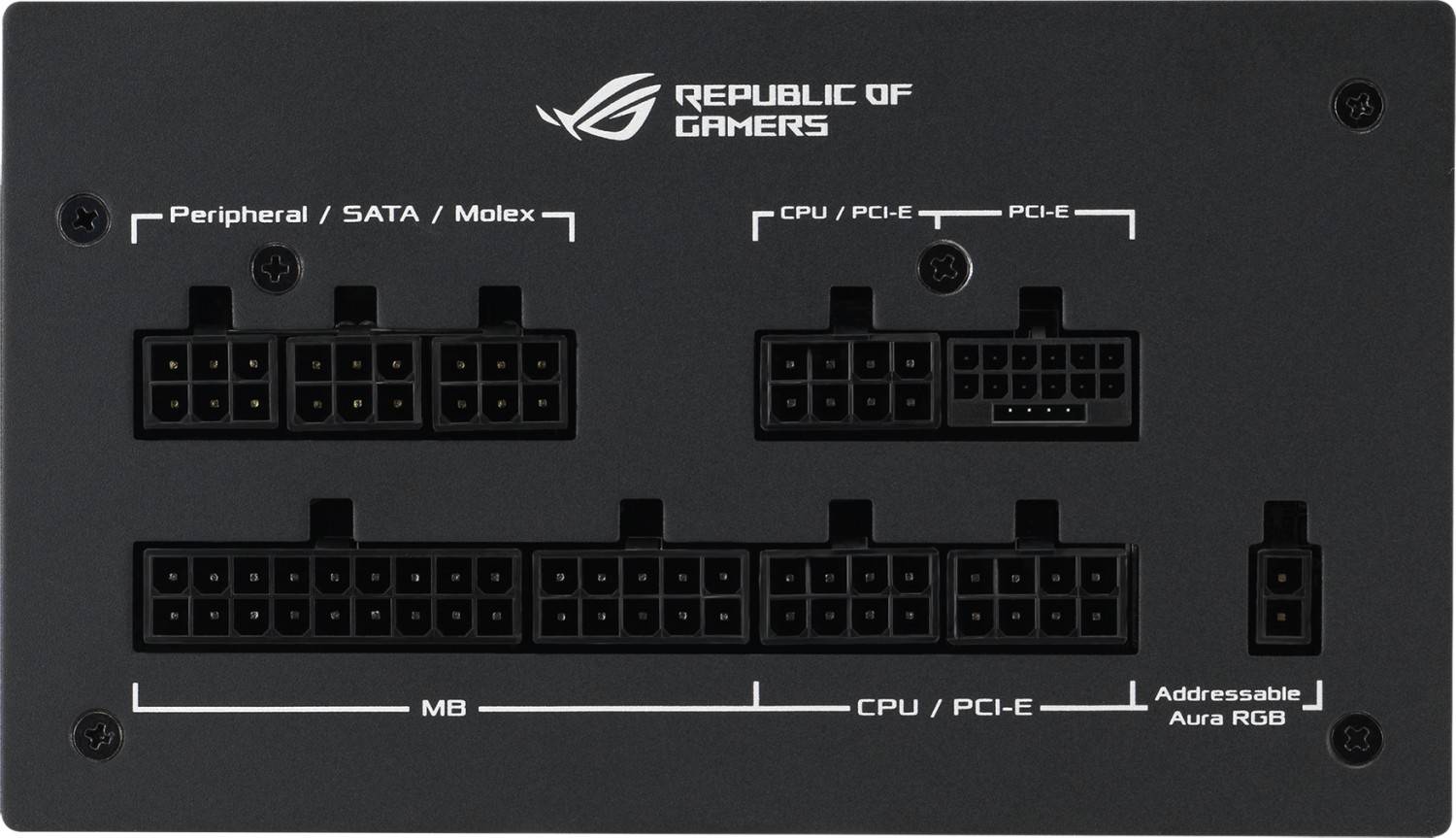

Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 750 Watt |
Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Gold |
Miscellaneous | Miscellaneous |
Included Accessories | 2 x ROG badges, ROG logo magnet, 3 x ROG labels |
Cables Included | ATX power cable 61 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 100 cm ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable ¦ 2 x power 15 pin SATA cable ¦ 4 pin internal power cable ¦ AC input cable - external |
Cooling System | 135 mm fan |
Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, ROG heatsink, Axial-tech fan design, 0db Technology |
Compliant Standards | CCC, RoHS, WEEE, EAC |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 10 years |
Dimensions & Weight | Dimensions & Weight |
Width | 15 cm |
Depth | 16 cm |
Height | 8.6 cm |
