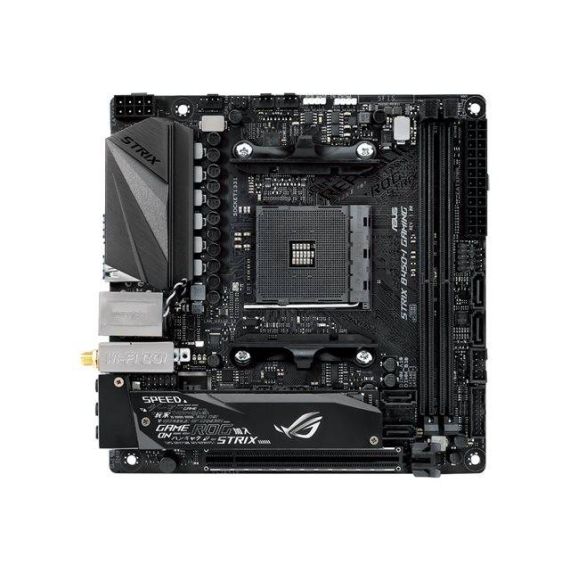

ASUS ROG STRIX B450-I GAMING / Motherboard / mini ITX / Socket AM4 / AMD B450 / USB 3.1 Gen 1, USB 3.1 Gen 2 / Bluetooth, Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB0Z50-M0EAY0
|
Description Featuring an advanced riser card that frees up real estate by elevating onboard audio and M.2 storage above the board, the ROG Strix B450-I Gaming packs the complete arsenal of ROG enhancements into the diminutive mini-ITX form factor. With intelligent overclocking and cooling, support for high-performance memory, numerous connectivity options, and a host of firmware and software utilities that enhance your experience, the ROG Strix B450-I Gaming is a compact gaming powerhouse. ASUS ROG STRIX B450-I GAMING / Motherboard / mini ITX / Socket AM4 / AMD B450 | 90MB0Z50-M0EAY0Special Features
Product features
|
Product Specification
| Product Type | Motherboard - mini ITX |
| Chipset Type | AMD B450 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports 1st and 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics) |
| Max Size | 32 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Max Allocated RAM Size | 2 GB |
| Type | HD Audio (8-channel) |
| Audio Codec | SupremeFX (S1220A) |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I211-AT |
| Network Interfaces | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st and 2nd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics)) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 3.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 2 x USB 3.1 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x HDMI |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x audio - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, Multilingual BIOS, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3.0 support, ACPI 6.0 support |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS TurboV, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, Dual Intelligent Processors 5, LANGuard, GameFirst IV, ASUS Gamer's Guardian, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, M.2 heatsink, Sonic Studio Link, ASUS Grid, NVM Express RAID support |
| Included Accessories | Cable ties, ASUS 2T2R Wi-Fi moving aerials, I/O back cover, 2 x M.2 screws, RGB (RGBW) LED strip extension cable, M.2 bracket, STRIX stickers |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, Overwolf, ROG GameFirst IV, ASUS ROG RAMCache II, Antivirus |
| Width | 17 cm |
| Depth | 17 cm |
| Service & Support | Limited warranty - 3 years |
Features - Asus - 90MB0Z50-M0EAY0
More Details
Product Code
03:540270
EAN Code
4718017081115
Manufacturer
Asus
