ASUS ROG STRIX B460-H GAMING / Motherboard / ATX / LGA1200 Socket / B460 / USB 3.2 Gen 1, USB 3.2 Gen 2x2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB13Q0-M0EAY0
Description

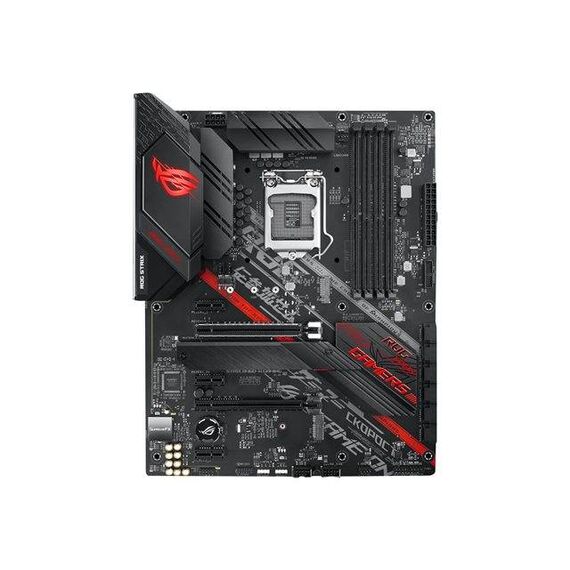

ROG Strix B460-H Gaming motherboard is instantly recognizable with its classic red-and-black color scheme and futuristic cybertext markings. It's packed with all the essentials, including robust hardware and intuitive ROG software to make it ideal for gamers and builders of all levels.
ASUS ROG STRIX B460-H GAMING / Motherboard | 90MB13Q0-M0EAY0
Special Features
- All-round performance
- Teamed power stages
- ProCool power connector
- Alloy choke & capacitor
- Leading connectivity
- Play your own style
- ROG gives you more
- UEFI BIOS
Product features
- All-round performance
The robust power design and comprehensive cooling features of Strix B460-H Gaming ensure great all-round performance, and an intuitive dashboard gives you full networking control so you can harness the full potential of your build. - Teamed power stages
Teamed power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand. - ProCool power connector
The ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation. - Alloy choke & capacitor
Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard. - Leading connectivity
ROG Strix B460-H Gaming provides you with the latest connectivity for supersmooth online experiences and blisteringly fast file transfers. Superior audio performance gives you a massive advantage, allowing you to pick up on the smallest audio cues for a completely immersive gaming experience. - Play your own style
The cyberpunk-inspired aesthetics of ROG Strix B460-H Gaming are accentuated with bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style. - ROG gives you more
ROG exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. - UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel B460 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Celeron, Core i5, Core i3, Core i7, Pentium Gold (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type | HD Audio (8-channel) |
| Audio Codec | SupremeFX (S1220A) |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode, x2 mode if two PCIe x1 slots are occupied) ¦ 3 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |

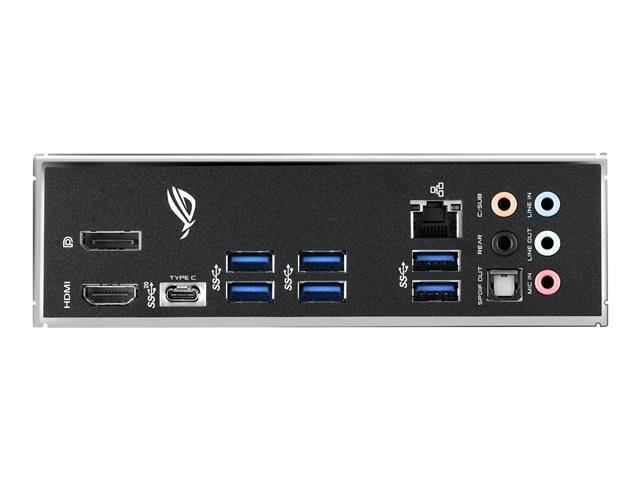

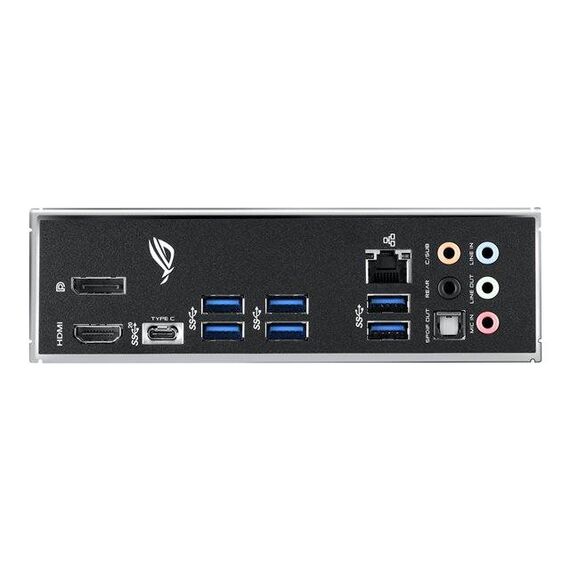

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB-C ¦ 1 x USB-C Gen2x2 ¦ 6 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x Thunderbolt - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Extreme Memory Profile (XMP) support, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, SupremeFX Shielding technology, AMD CrossFireX technology support, Preboot eXecution Environment (PXE), LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Intel Optane Memory Ready, Sonic Radar III, Sonic Studio III, ASUS ProCool, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem, ASUS Aura Sync, Armoury Crate, FlexKey button, GameFirst VI |
| Included Accessories | Cable ties, ROG fan stickers, 2 x M.2 screws, ROG thank you card, RGB Addressable LED extension cable, rubber pad |
| Cables Included | 4 x Serial ATA cable |
| Software Included | ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, Overwolf, ASUS EZ Flash 3, Antivirus, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Service & Support | Limited warranty - 3 years |
Features - Asus - 90MB13Q0-M0EAY0
More Details
Product Code
03:141052
EAN Code
4718017715140
Manufacturer
Asus
