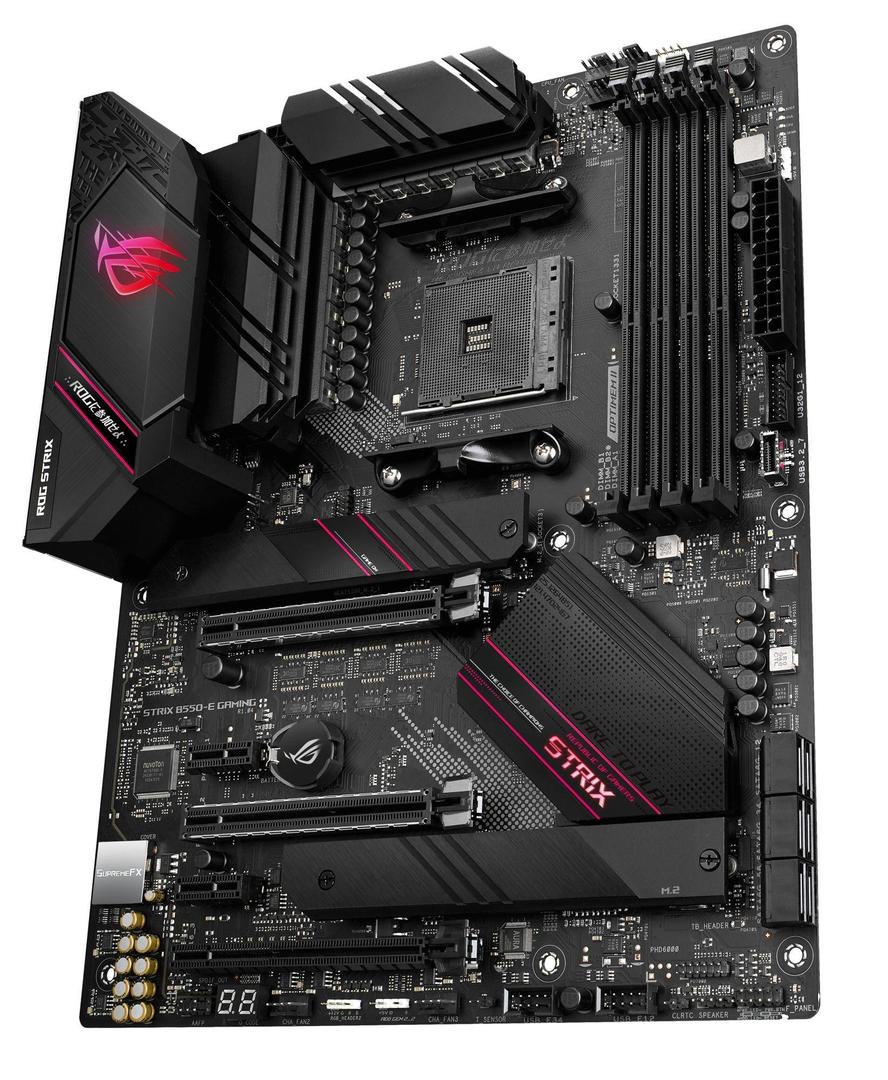

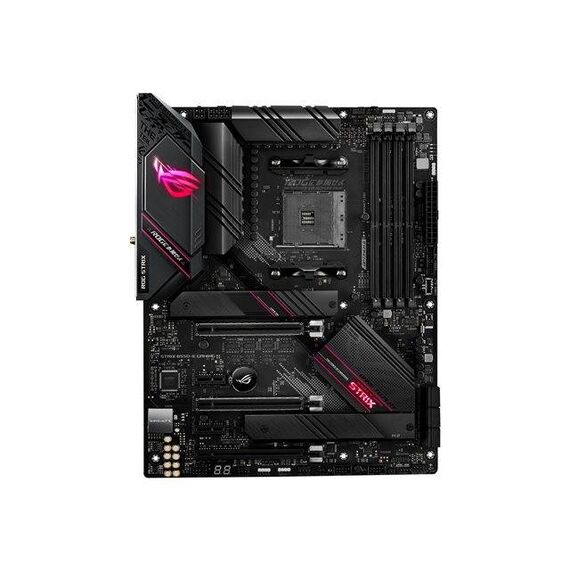

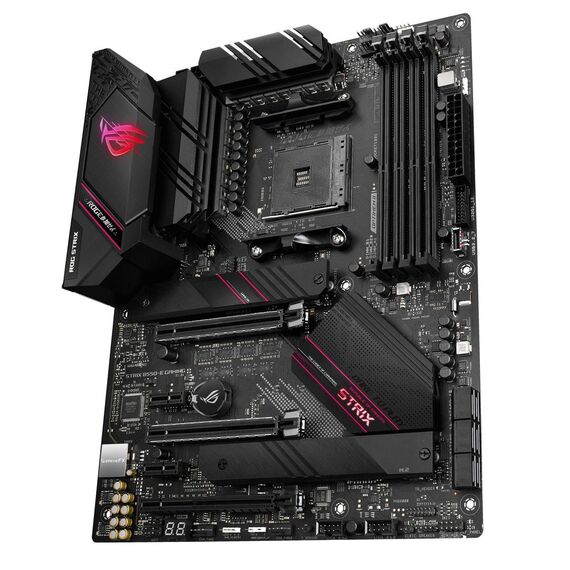

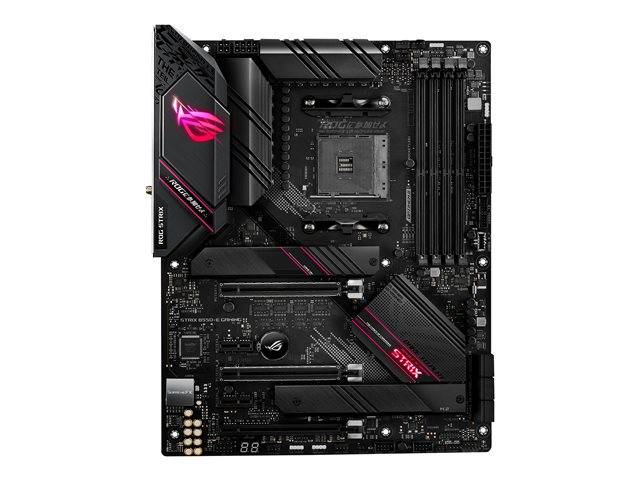

ASUS ROG STRIX B550-E GAMING / Motherboard / ATX / Socket AM4 / AMD B550 / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1470-M0EAY0
Please sign in so that we can notify you about a reply
ASUS ROG STRIX B550-E GAMING / Motherboard / ATX / Socket AM4 / AMD B550 / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1470-M0EAY0
Description
With robust power delivery and effective cooling, ROG STRIX B550-E GAMING is equipped to handle demanding CPUs. Boasting futuristic aesthetics, ROG STRIX B550-E GAMING gives you a head start on your dream build.
ASUS ROG STRIX B550-E GAMING / Motherboard | 90MB1470-M0EAY0
Special Features
- Advance your gaming immersion
- Audio cover
- Audio-line shielding
- Dual amplifiers
- ProCool power connector
- Cooler by design
- Play your own style
- Pre-mounted I/O shield
- Onboard Wi-Fi 6
Product features
- Advance your gaming immersion
ROG STRIX B550-E GAMING is PCIe 4.0-ready and provides connectivity options for smooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on subtle cues for a completely immersive gaming experience. - Audio cover
Effective shielding against electromagnetic interference preserves the integrity of audio signals for better sound quality. - Audio-line shielding
Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio. - Dual amplifiers
With two amps onboard you're able to pump exceptional audio to your favorite cans. - ProCool power connector
The ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation. - Cooler by design
ROG STRIX B550-E GAMING features comprehensive cooling options, configurable via the UEFI BIOS. - Play your own style
The cyberpunk-inspired aesthetics of ROG STRIX B550-E GAMING are accentuated with bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style. - Pre-mounted I/O shield
Patented I/O shield has a sleek finish and comes pre-mounted to make it easy to install on the motherboard. - Onboard Wi-Fi 6
Onboard Wi-Fi 6 supports ultra-fast wireless speeds, improved capacity and better performance in dense wireless environments, providing exceptional online gaming experiences.
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B550 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen) |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 3200 MHz |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Type | HD Audio (8-channel) |
| Audio Codec | SupremeFX (S1220A) |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
| Network Controller | Intel I255-V / Intel AX200 |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1 |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces | 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C Gen2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 4 x USB 2.0 ¦ 1 x DisplayPort ¦ 1 x HDMI |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x Thunderbolt - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | BIOS FlashBack, UEFI BIOS |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), NVIDIA 2-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Q-Code, SupremeFX Shielding technology, AMD 3-way CrossFireX technology support, Preboot eXecution Environment (PXE), LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, ASUS ProCool, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, FlexKey button, GameFirst VI |
| Included Accessories | External antenna, cable ties, 1 x M.2 screw, ROG fan stickers, RGB (RGBW) LED strip extension cable, ROG thank you card, RGB Addressable LED extension cable, rubber pad, ROG key chain |
| Cables Included | 4 x Serial ATA cable ¦ 1 x USB-C to mini-phone 3.5 mm cable |
| Software Included | ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, ASUS Turbo App, Overwolf, ASUS EZ Flash 3, Antivirus, WinRAR, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer |
| Compliant Standards | DisplayPort 1.2 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB1470-M0EAY0
More Details
Product Code
03:142190
EAN Code
4718017750264
Manufacturer
Asus
