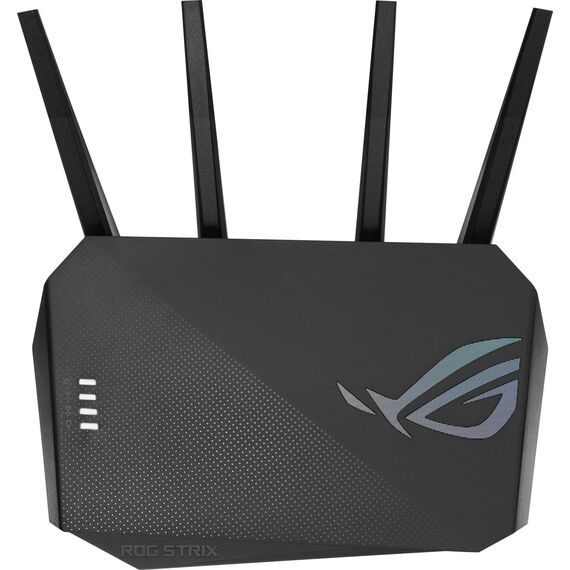

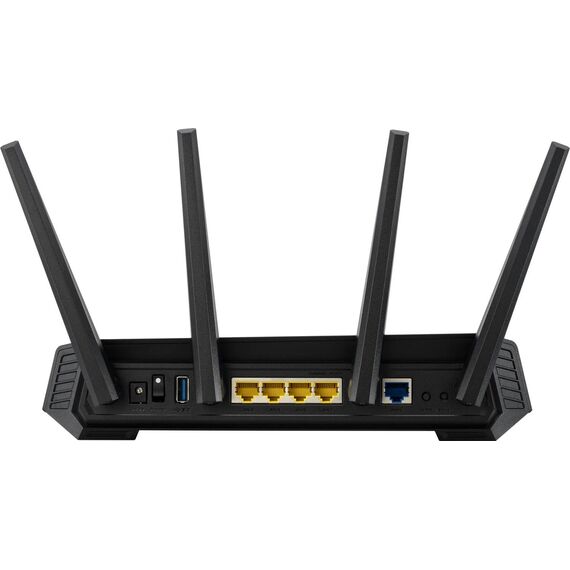

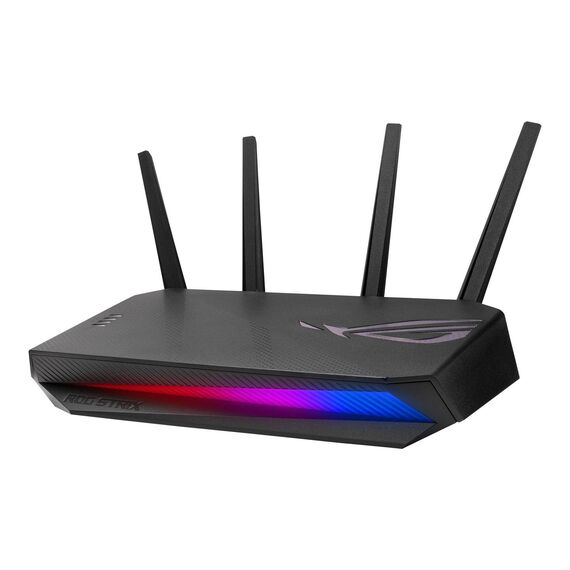

ASUS ROG STRIX GS-AX5400 / Wireless router / 4-port switch / GigE / 802.11a/b/g/n/ac/ax / Dual Band | 90IG06L0-MO3R10
Please sign in so that we can notify you about a reply
Product Features
- Wi-Fi 6: the ultimate gaming power
Wi-Fi 6 brings incredible speeds and coverage to your gaming network, and supports all your existing devices. - Gaming Port: give your gaming top priority
The dedicated Gaming Port on GS-AX5400 is a special LAN port that automatically prioritizes any wired device connected to it. You don't need to configure it, just connect your gaming PC or console to the gaming port to put it at the head of the queue for a fast, stable connection. - Instant Guard: make free Wi-Fi secure, wherever you are
The free public Wi-Fi you find in coffee shops, restaurants, hotels, airports and so on is rarely secure. ASUS Instant Guard uses VPN technology to create a secure data tunnel to your GS-AX5400, adding rock-solid security to any public Wi-Fi connections you use. - ASUS AiMesh support: create a whole-home mesh Wi-Fi system
ASUS AiMesh combines multiple AiMesh-compatible ASUS routers to create a whole-home mesh Wi-Fi system with centralized control. You can use a single SSID for your entire home network, with seamless coverage and no more dead zones!
Special Features
- New-generation Wi-Fi 6 - enjoy ultra-fast speeds up to 5400 Mbps with 160MHz Wi-Fi 6 channels
- Fully optimized gaming - Mobile Game Mode, dedicated Gaming Port and Gear Accelerator let you optimize any type of gaming on mobile, console or PC
- VPN Fusion - run a VPN and an ordinary internet connection simultaneously, allowing maximum speed even if other network users need to use a VPN
- More privacy, anywhere - Instant Guard secures public Wi-Fi connections anywhere in the world using GS-AX5400, with just a click
- ASUS AiMesh support - create a flexible, seamless whole-home mesh network with AiMesh-compatible routers
Product Specification
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Capacity | Guest networks: 6 ¦ MAC filter entries: 64 |
| Network / Transport Protocol | PPTP, L2TP, PPPoE, DHCP, DDNS |
| Routing Protocol | IGMP |
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPS, WPA3-Personal, WPA2-Personal, WPA-Personal |
| Wi-Fi Rating | AX5400 |
| Features | NAT support, VPN support, wake on LAN (WOL), IGMP snooping, MAC address filtering, IPv6 support, parental control, Access Point operational mode, dual WAN connection, SSH support, Wi-Fi Protected Setup (WPS), IPSec passthrough, DHCP server, static IP mode, port forwarding, reset button, IPv4 support, port triggering, 3G/4G USB Dongle Support, VPN Server, ASUSWRT, PPTP passthrough, L2TP passthrough, system log, beamforming technology, Adaptive QoS, Link Aggregation, VPN client, ASUS Router App, router mode, VPN Fusion, Airtime Fairness, DMZ support, Traffic Analyser, traffic monitoring, WDS repeater mode, ASUS AiMesh, Explicit Beamforming, Bandwidth Limiter, bridge mode, Amazon Alexa support, ASUS AiProtection Pro, Orthogonal Frequency Division Multiple Access (OFDMA), WPS button, ASUS Aura Lighting, RTSP Pass-Through, H.323 Pass-Through, AiMesh node mode |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
| Processor | 1 x 1.5 GHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | Power, WAN, 5 GHz, 2.4 GHz |
| Line Properties | Line Properties |
| Line Coding Format | 1024 QAM, OFDMA |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.2 Gen 1: 1 x |
| Aerial | Aerial |
| Aerial | External |
| Antenna Qty | 4 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 110-240 V (50/60 Hz) |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x network cable |
| Dimensions & Weight | Dimensions & Weight |
| Weight | 701.3 g |
Features - Asus - 90IG06L0-MO3R10
More Details
Product Code
03:165755
EAN Code
4711081173939
Manufacturer
Asus
