ASUS ROG STRIX X299-E GAMING II / Motherboard / ATX / LGA2066 Socket / X299 / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / Bluetooth, Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi / HD Audio (8-channel) | 90MB11A0-M0EAY0
Description
With comprehensive cooling options and upgraded power delivery to fuel powerful CPUs, plus faster storage and memory, ROG STRIX X299-E GAMING II provides all the essentials you need to harness the full potential of components in your build for a superior gaming performance.

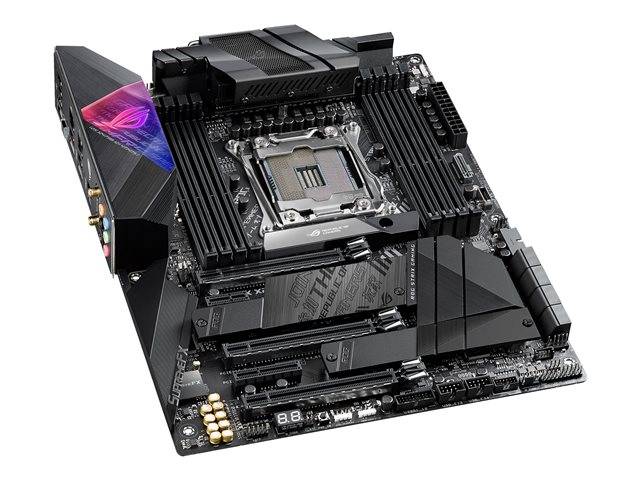

ASUS ROG STRIX X299-E GAMING II / Motherboard | 90MB11A0-M0EAY0
Special Features
- Optimal power solution
- Comprehensive cooling
- AI overclocking
- Gaming audio
- Gaming enhanced
- Design customization
Product features
- Optimal power solution
12 power stages with ProCool II power connector, high-quality chokes and durable capacitors to support powerful processors. - Comprehensive cooling
Active cooling VRM heatsink, stacked-fin heatsink, with 8 mm heatpipe, dual on-board M.2 heatsinks and a water pump + header. - AI overclocking
Quickly optimizes your CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts. - Gaming audio
High-fidelity audio with SupremeFX S1220A, DTS sound and Sonic Studio III to draw you deeper into the action. - Gaming enhanced
ROG STRIX X299-E GAMING II is engineered with modern connectivity for better gaming experiences. Transfer files faster and banish lag as you secure more victories. - Design customization
A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, make building and personalizing a gaming rig wonderfully easy.
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel X299 |
| Processor Socket | LGA2066 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core X |
| Max Size | 256 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Type | HD Audio (8-channel) |
| Audio Codec | SupremeFX (S1220A) |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
| Network Controller | Intel I219V / Realtek RTL8125-CG / Intel AX200 |
| Network Interfaces | Bluetooth, Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ax |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 3 x PCIe 3.0 x16 (44-lane CPU (x16, x16/x16, x16/x16/x4 modes), 28-lane CPU (x16, x16/x8, x16/x8/x4 modes)) ¦ 1 x PCIe 3.0 x4 ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 2 x M.2 |
| RAID Features | Intel Smart Response Technology |

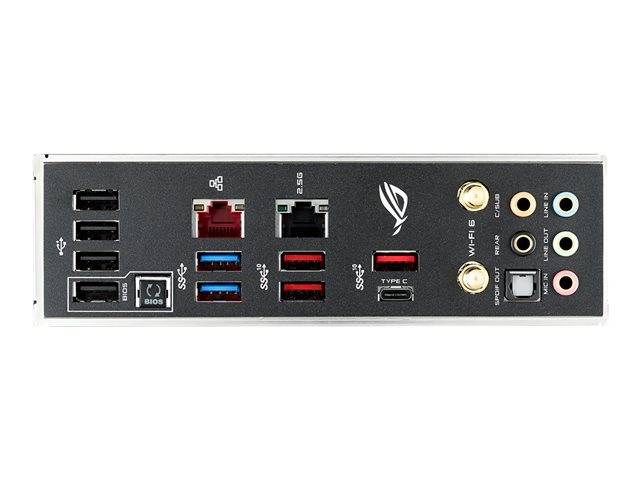

| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 2.0 ¦ 1 x TOSLINK ¦ 2 x USB 3.2 Gen 1 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x USB-C Gen2 ¦ 3 x USB 3.2 Gen 2 |
| Internal Interfaces | 1 x audio - header ¦ 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, Multilingual BIOS, USB BIOS Flashback, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3.2 support, ACPI 6.2 support |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), NVIDIA 3-way SLI Technology Support, NVIDIA 2-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Q-Code, SupremeFX Shielding technology, AMD CrossFireX technology support, AMD 3-way CrossFireX technology support, Preboot eXecution Environment (PXE), dual headphone amplifiers, Dual Intelligent Processors 5, LANGuard, AURA RGB Lighting Control, ASUS Fan Xpert 4, Sonic Radar III, Sonic Studio III, ASUS LiveDash, Intel VROC support, ASUS PRO Clock II Technology, Armoury Crate, ASUS Node |

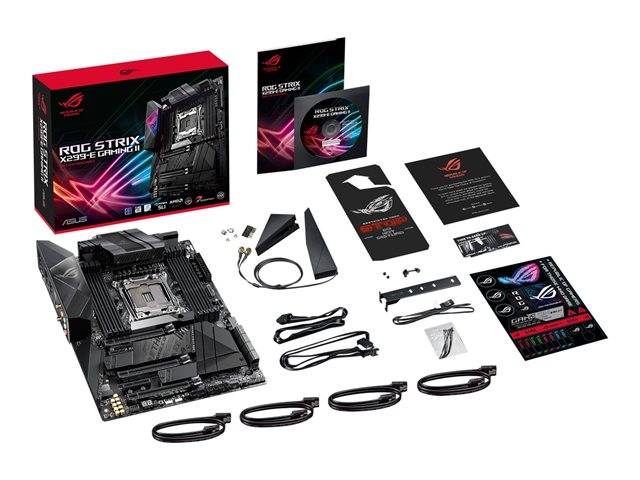

| Included Accessories | External antenna, cable ties, ROG Door Hanger, 1 x M.2 screw, ROG fan stickers, RGB (RGBW) LED strip extension cable, vertical M.2 bracket set, thermal sensor cable pack, ROG thank you card, RGB Addressable LED extension cable |
| Cables Included | 4 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, Antivirus (OEM version), Overwolf, ASUS Turbo Core App, ROG GameFirst V, Sonic Studio Virtual Mixer |
| Compliant Standards | Plug and Play |
| Width | 30.5 cm |
| Depth | 24.4 cm |
