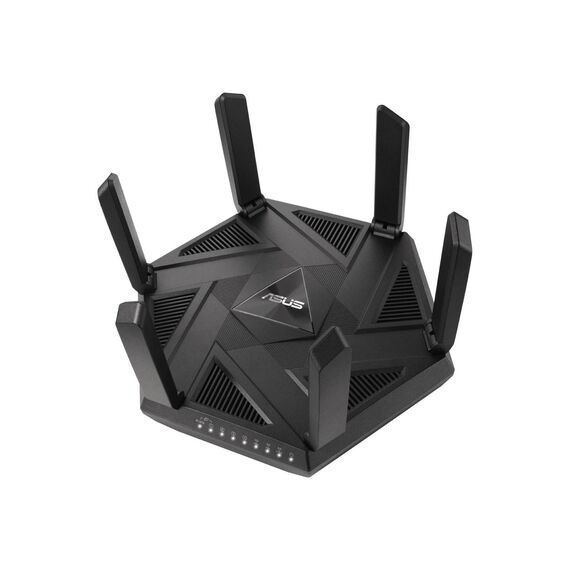

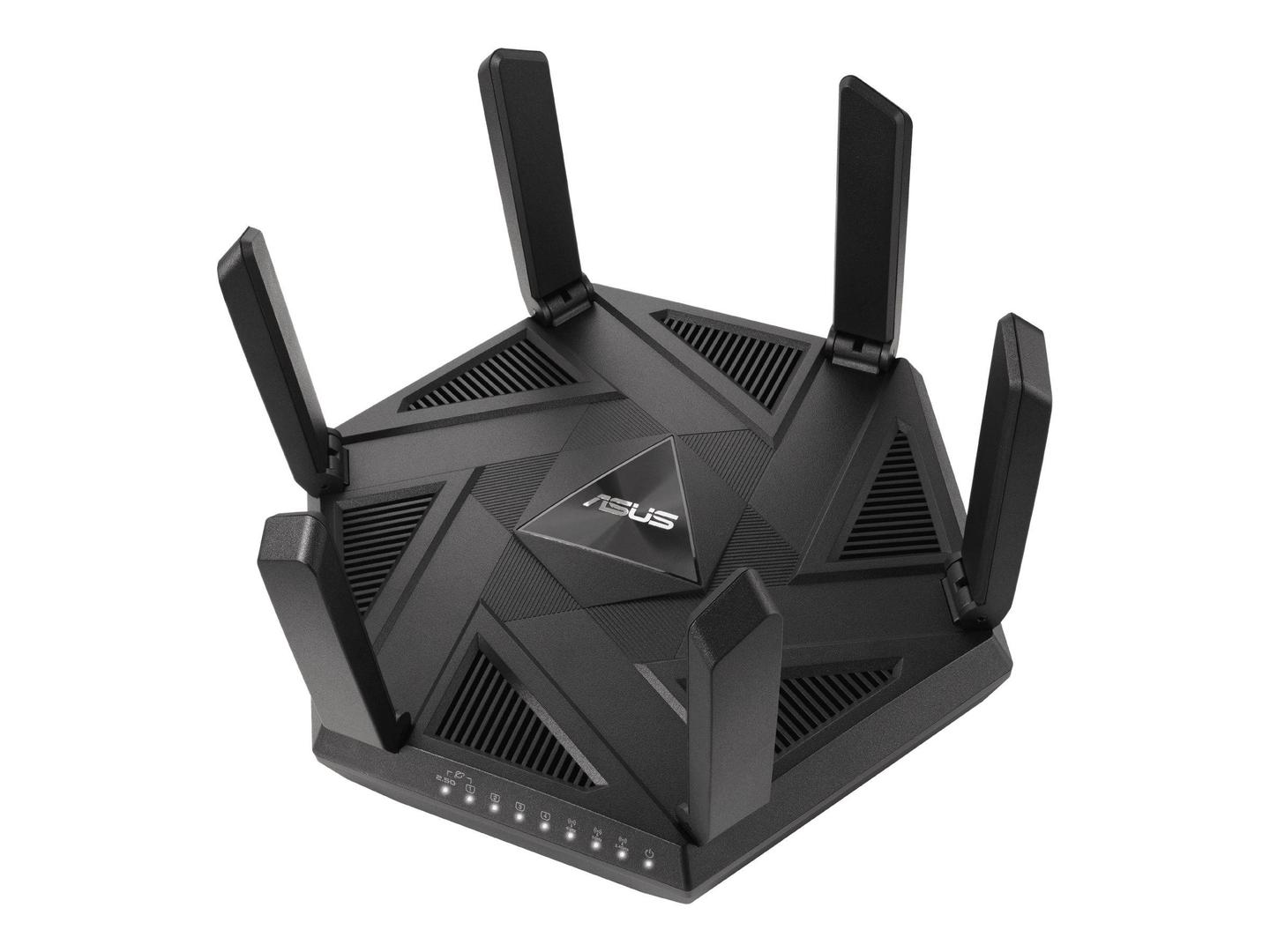

ASUS RT-AXE7800 / Wireless router / 4-port switch / GigE, 2.5 GigE, 802.11ax (Wi-Fi 6E) / WAN ports: 2 / 802.11a/b/g/n/ac/ax (Wi-Fi 6E) / Multi-Band | 90IG07B0-MU9B00
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E) |
| Frequency Band | 2.4 GHz / 5 GHz / 6 GHz |
| Data Transfer Rate | 7800 Mbps |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 4804 Mbps ¦ Maximum data rate (6 GHz): 2402 Mbps |
| Capacity | QoS rules/classes: 32 ¦ MAC filter entries: 64 ¦ Firewall keyword filters: 64 ¦ Firewall network service filters: 32 ¦ Firewall URL filters: 64 |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, RTSP |
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPS, WPA3-Personal, WPA2-Personal, WPA-Personal |
| Wi-Fi Rating | AX7800 |
| Features | Wake on LAN (WOL), MAC address filtering, IPv6 support, URL filtering, parental control, dual WAN connection, RADIUS support, SSH support, IPSec passthrough, DHCP server, Samba support, FTP server, port forwarding, ASUS AiDisk, reset button, port triggering, 3G/4G USB Dongle Support, ASUS AiCloud, ASUSWRT, L2TP passthrough, ASUS AiProtection, MU-MIMO technology, system log, beamforming technology, Adaptive QoS, Link Aggregation, Wireless Scheduler, Tri-Band, VPN Fusion, Airtime Fairness, DMZ support, Traffic Analyser, traffic monitoring, ASUS AiMesh, Explicit Beamforming, Bandwidth Limiter, ASUS AiProtection Pro, OpenVPN client, PPTP VPN client, Orthogonal Frequency Division Multiple Access (OFDMA), OpenVPN server, IPTV support, WPS button, NAT passthrough, 160MHz bandwidth support, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay, auto firmware update, Guest Network, AiMesh node mode, ASUS Instant Guard, Android tethering, Let's Encrypt, Quad-core CPU, external HDD hibernation, Bandwidth Monitor, Malicious Site Blocker, shared folder permission, DDNS (Dynamic Domain Name Service), L2TP VPN client, IPSec VPN server, PPTP VPN server, login captcha |
| Compliant Standards | REACH, FCC Part 15 Class B |
| Processor | 1 x 1.7 GHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | Power, WAN, LAN, 5 GHz, 2.4 GHz, 6 GHz |
| Internet of Things (IoT) | Internet of Things (IoT) |
| Internet of Things (IoT) Compatible | Yes |
| Intelligent Assistant | Alexa |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | WAN / LAN: 1 x 2.5GBase-T - RJ-45 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.2 Gen 1: 1 x 9 pin USB Type A |
| Aerial | Aerial |
| Aerial | External |
| Antenna Qty | 6 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 110-240 V (50/60 Hz) |
| Miscellaneous | Miscellaneous |
| Enclosure Colour | Black |
| Cables Included | 1 x network cable |
| Dimensions & Weight | Dimensions & Weight |
| Weight | 1.03 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 50 - 90% |
Features - Asus - 90IG07B0-MU9B00
More Details
Product Code
03:200500
EAN Code
4711081632917
Manufacturer
Asus
