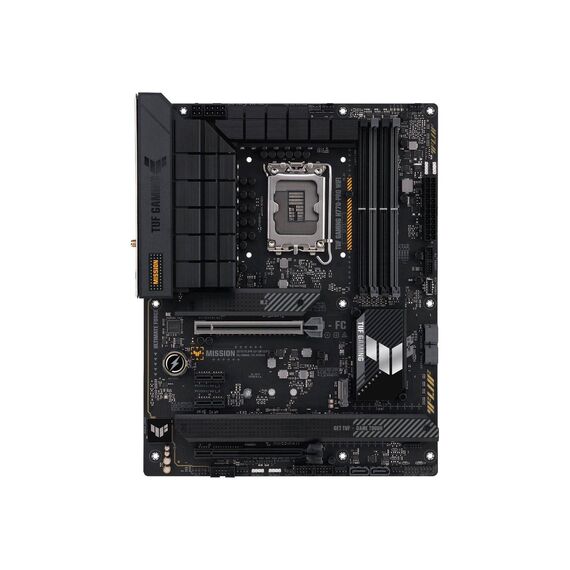

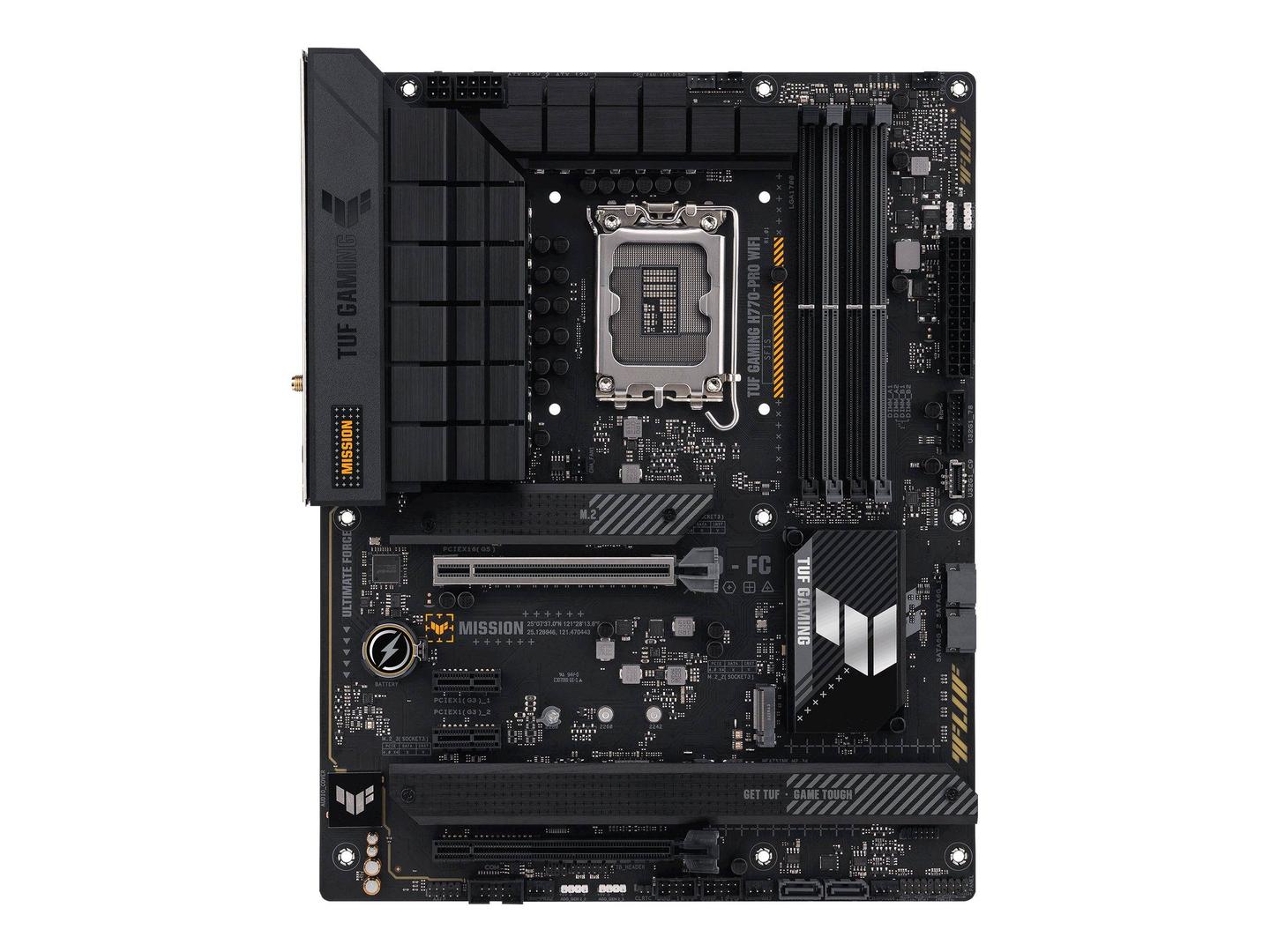

ASUS TUF GAMING H770-PRO WIFI / Motherboard / ATX / LGA1700 Socket / H770 Chipset / USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1 / 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1D50-M0EAY0
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel H770 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 ¦ 3 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x aerial ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x SPDIF out |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x Thunderbolt 4 - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, 6 Layer PCB, overvoltage protection, M.2 heatsink, ASUS ProCool, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, M.2 Q-Latch, 5K Black Metallic Capacitors, SafeDIMM, 14+1 DrMOS power stages, CPU Socket lever protector, VRM heatsink design |
| Miscellaneous | Miscellaneous |
| Included Accessories | ASUS Wi-Fi moving aerial, 2 x M.2 rubber package, 2 x M.2 SSD screw package, TUF GAMING sticker |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 4, Norton 360 for Gamers, DTS Audio Processing |
| Compliant Standards | DisplayPort 1.4 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB1D50-M0EAY0
CPU Socket
- Socket 1700
More Details
Product Code
07:129809
EAN Code
4711387008249
Manufacturer
Asus
