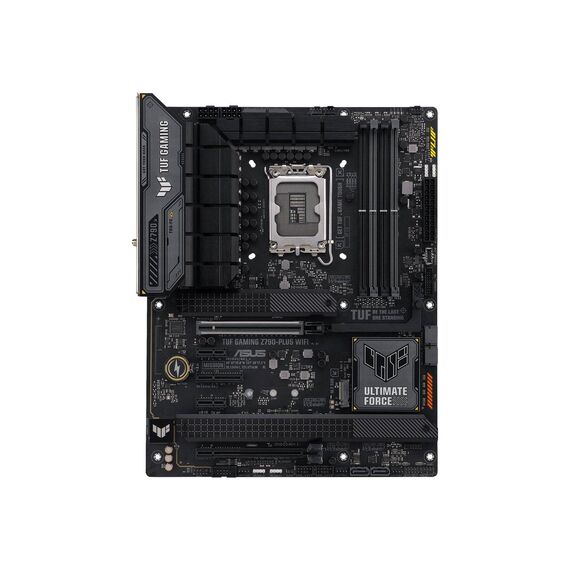

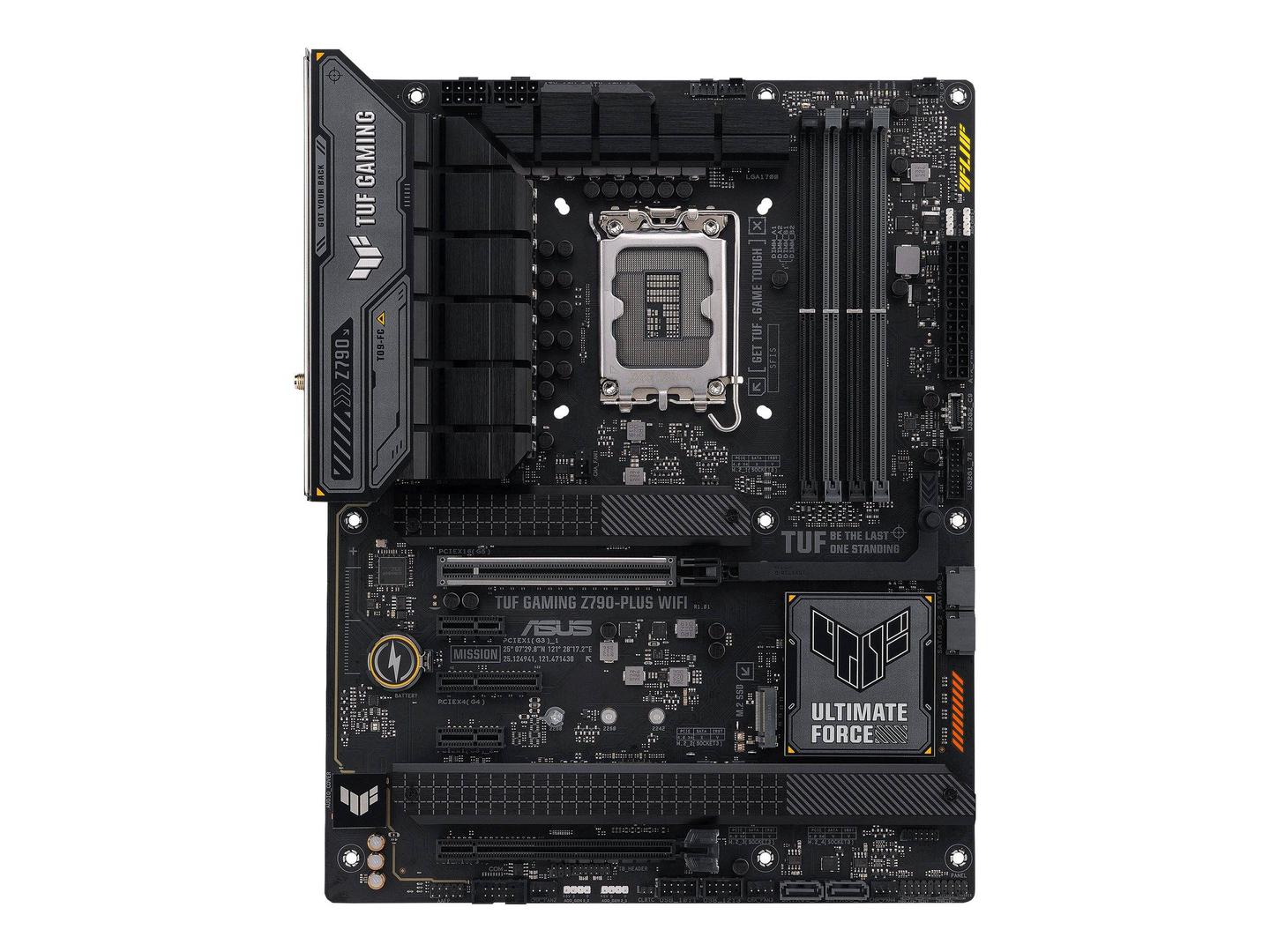

ASUS TUF GAMING Z790-PLUS WIFI / Motherboard / ATX / LGA1700 Socket / Z790 Chipset / USB 3.2 Gen 2, USB4, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 / 2.5 Gigabit LAN, Bluetooth, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1D80-M0EAY0
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z790 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALCS1220A |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x4 ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x SPDIF out ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x aerial |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ESD Guards, Q-DIMM, Q-LED, Q-Slot, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, 6 Layer PCB, Dr.MOS MOSFET, TUF LANGuard, TUF Components, overvoltage protection, ASUS SafeSlot, M.2 heatsink, ASUS ProCool, Water Pump Header, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, 16+1 Phase Power Design, M.2 Q-Latch, SafeDIMM, PCIe Slot Q-Release, CPU Socket lever protector, VRM heatsink design, 60A Power Stage |
| Miscellaneous | Miscellaneous |
| Included Accessories | ASUS Wi-Fi moving aerial, 2 x M.2 rubber package, M.2 screw package, TUF certification card, TUF GAMING sticker |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASUS TurboV EVO Utility, ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 4, Norton 360 for Gamers, DTS Audio Processing |
| Compliant Standards | DisplayPort 1.4 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB1D80-M1EAY0
CPU Socket
- Socket 1700
More Details
Product Code
04:420281
EAN Code
4711387014509
Manufacturer
Asus
