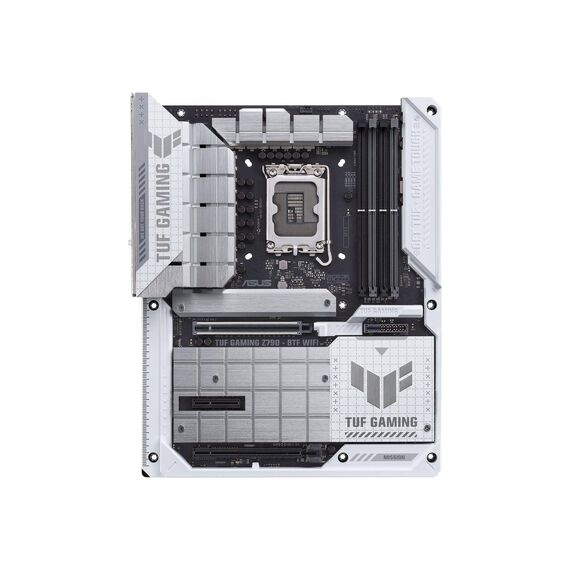

ASUS TUF GAMING Z790-BTF WIFI / Motherboard / ATX / LGA1700 Socket / Z790 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 / 2.5 Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1GU0-M0EAY0
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z790 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220P |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x4 ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 2 x aerial ¦ 1 x audio line-out (rear) ¦ 1 x audio line-out (center/subwoofer) ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ SPDIF out |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header |
| Power Connectors | 6-pin auxiliary power connector, 24-pin main power connector, 2 x 8-pin ATX12V connectors, 3 x 8-pin ATX12V connectors, high-power PCI Express connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Hardware Features | ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, 6 Layer PCB, TUF LANGuard, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, pre-mounted I/O shield, ASUS OptiMem II, DIY Friendly Design, 16+1+1 Phase Power Design, M.2 Q-Latch, PCIe Slot Q-Release, CPU Socket lever protector, VRM heatsink design, ASUS Enhanced Memory Profile (AEMP) II, TUF Chokes military-grade, TUF 5K black metallic capacitors, Q-Antenna, Advanced BTF design, AI Cooling II |
| Miscellaneous | Miscellaneous |
| Included Accessories | 2 x M.2 rubber package, M.2 screw package, TUF certification card, TUF GAMING sticker, ASUS Wi-Fi Q-antenna |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASUS CPU-Z, ASUS AI Suite III, MyAsus, Armoury Crate, DTS Audio Processing, Norton 360 for Gamers (60 days trial), WinRAR (40 days trial) |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB1GU0-M0EAY0
CPU Socket
- Socket 1700
More Details
Product Code
03:230052
EAN Code
4711387468159
Manufacturer
Asus
