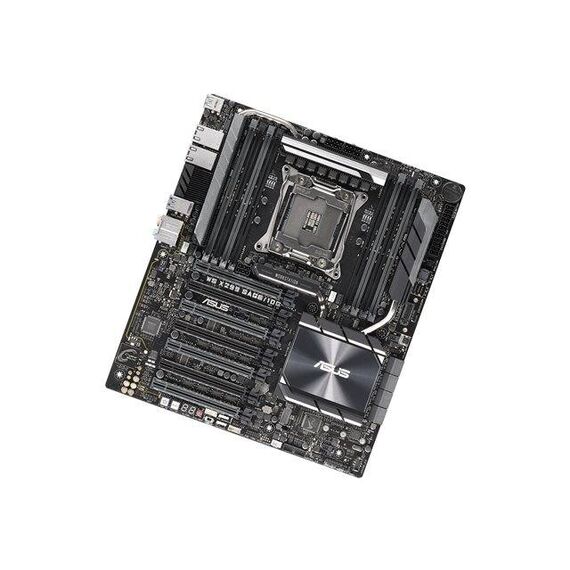

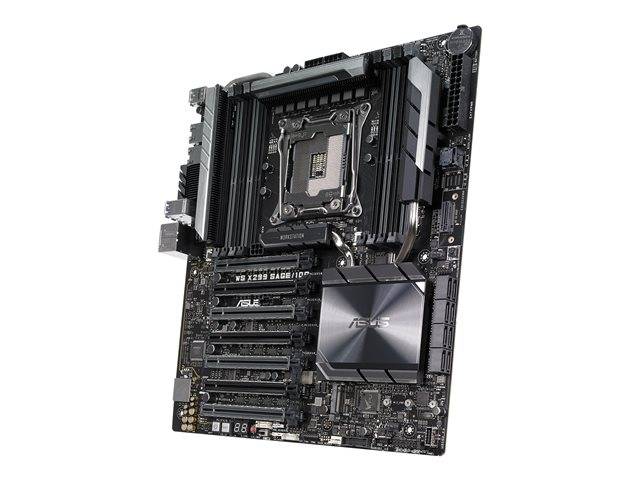

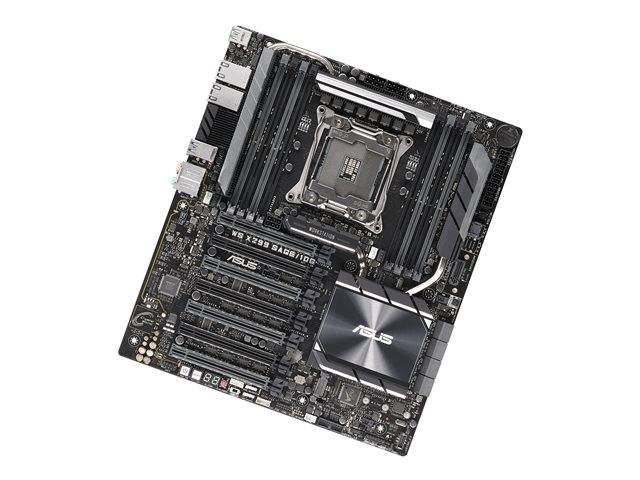

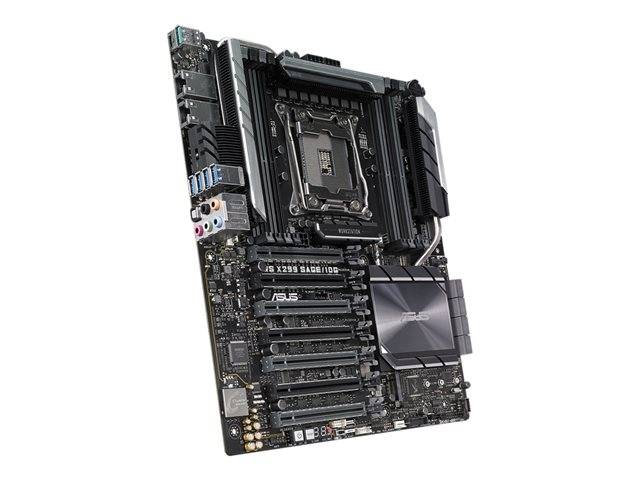

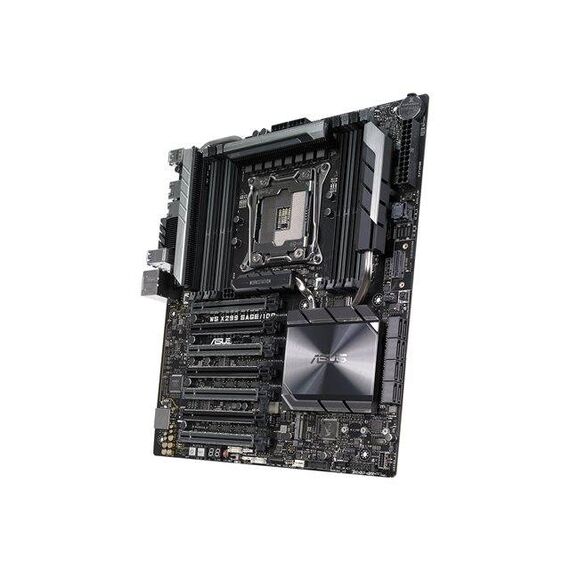

ASUS WS X299 SAGE/10G / Motherboard / SSI CEB / LGA2066 Socket / X299 / USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 / 2 x 10 Gigabit LAN / HD Audio (8-channel) | 90SW00H0-M0EAY0

Description

The WS X299 Sage/10G motherboard delivers a blend of tremendous GPU performance with up to Quad-SLI support, server-grade validation and comprehensive cooling options to provide the perfect system build for training neural networks and crunching other scalable compute loads. It shares the same refined aesthetics as WS X299 Sage/10G and adds dual 10 Gigabit Ethernet ports with the Intel X550AT2 10GBase-T controller for uncompromising networking performance. Dual PLX chips extend the number of PCIe lanes to provide additional expansion slots, giving you robust connectivity options to configure your system with the tools you need to get your job done.

ASUS WS X299 SAGE / 10G | 90SW00H0-M0EAY0

Special Features

• Dual onboard 10G LAN
• ASUS Control Center
• 5-Way Optimization
• CPU performance boost
• All-round energy efficiency
• Flexible cooling controls for air or liquid
• Precise digital power control
• Make your memory go faster
• OC Design - ASUS PRO Clock II technology
• Flexible Cooling Controls
• Advanced thermal design for maximized performance
• ProCool power connector
• Dual Onboard M.2

Product features

• Dual onboard 10G LAN
  Featuring dual onboard 10G LAN ports backed by the Intel X550AT2 10GBase-T Ethernet controller, WS X299 Sage/10G provides server-class connectivity that supports high-density, high-bandwidth and low-latency access-layer networks. With data-rates up to 10Gbps, WS X299 Sage/10G is able to transfer 4K videos and other large files in a fraction of the time required by conventional networking gear. The onboard controller negates the need to allocate a PCI Express slot to a dedicated network card, saving valuable space for other components.
• ASUS Control Center
  WS X299 Sage/10G features ASUS Control Center (ACC), a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
• 5-Way Optimization
  ASUS 5-Way Optimization makes your workstation smart. One click takes care of complex tuning, dynamically optimizing essential aspects of the system to provide overclocking and cooling profiles that are tailored for your rig.
• CPU performance boost
  Unleash your workstation's full performance with the ASUS Al Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind the automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclocking parameters for optimal performance.
• All-round energy efficiency
  With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode - a smart setting that creates an extreme energy- saving scenario by shutting down unused I/O controllers.
• Flexible cooling controls for air or liquid
  With WS X299 Sage/1 OG, you have comprehensive control over fans, water pumps and even all-in-one (AIO) coolers - all via Fan Xpert 4 or media-acclaimed UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also Extreme Quiet mode, which reduces all fan speeds to below the default minimum - keeping your system whisper-quiet when performing light tasks.
• Precise digital power control
  Digi+ delivers real-time control over voltage droop, switching frequency and power- efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.
• Media-acclaimed UEFI BIOS
  Ultra smooth, slick mouse-controllable graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes will help you find your way with ease.
• Make your memory go faster
  With optimized trace paths for time-aligned signaling and minimal crosstalk, third-generation ASUS T-Topology offers enhanced memory stability and compatibility.
• OC Design - ASUS PRO Clock II technology
  WS X299 Sage/10G includes a dedicated base-clock (BCLK) generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and BCLK overclocking control, providing the flexibility to extract every ounce of performance from Intel Core X-series processors.
• Flexible Cooling Controls
  WS X299 Sage/10G features comprehensive cooling controls, configurable via Fan Xpert 4 or the UEFI BIOS.
• Advanced thermal design for maximized performance
  Designed for the all-around workstation, WS X299 Sage/10G features a robust thermal solution that dissipates heat from the VRM, Ethernet controller and PLX chips to prevent throttling. An additional heatsink array covers these components and heatpipes lie within the path of maximum chassis airflow to provide optimal cooling for your workstation, ensuring maximum performance and system stability.
• ProCool power connector
  ASUS ProCool is the power connector reinvented. Compared with traditional power connectors, ProCool connectors provide a more secure, low resistance connection, enabling better heat dissipation and improved reliability.
• Dual Onboard M.2
  WS X299 Sage/10G features dual onboard M.2 slots, each operating at X4 PCI Express 3.0 to provide an abundant 32Gbps of bandwidth.
• USB 3.1 Gen2 front-panel connector
  WS X299 Sage/10G's front panel USB 3.1 connector is ready for next-gen PC cases and devices.
• USB 3.1 Gen2 Type-A and Type-C
  With backward-compatible USB 3.1 Gen2 Type-A and reversible USB 3.1 Gen2 Type-C ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.
• Server-grade memory validation
  WS X299 Sage/10G supports up to 128GB of quad-channel DDR4 RAM to readily handle the larger data sets found in professional workloads. Strict validation with a wide variety of memory types and operating conditions - including factors such as time, temperature and voltage ranges - ensures that WS X299 Sage/10G provides the reliability and stability professionals depend upon to get their work done.
• Protect your graphics card investment
  SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide protect your graphics card investment. Manufactured in a single step using an insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
