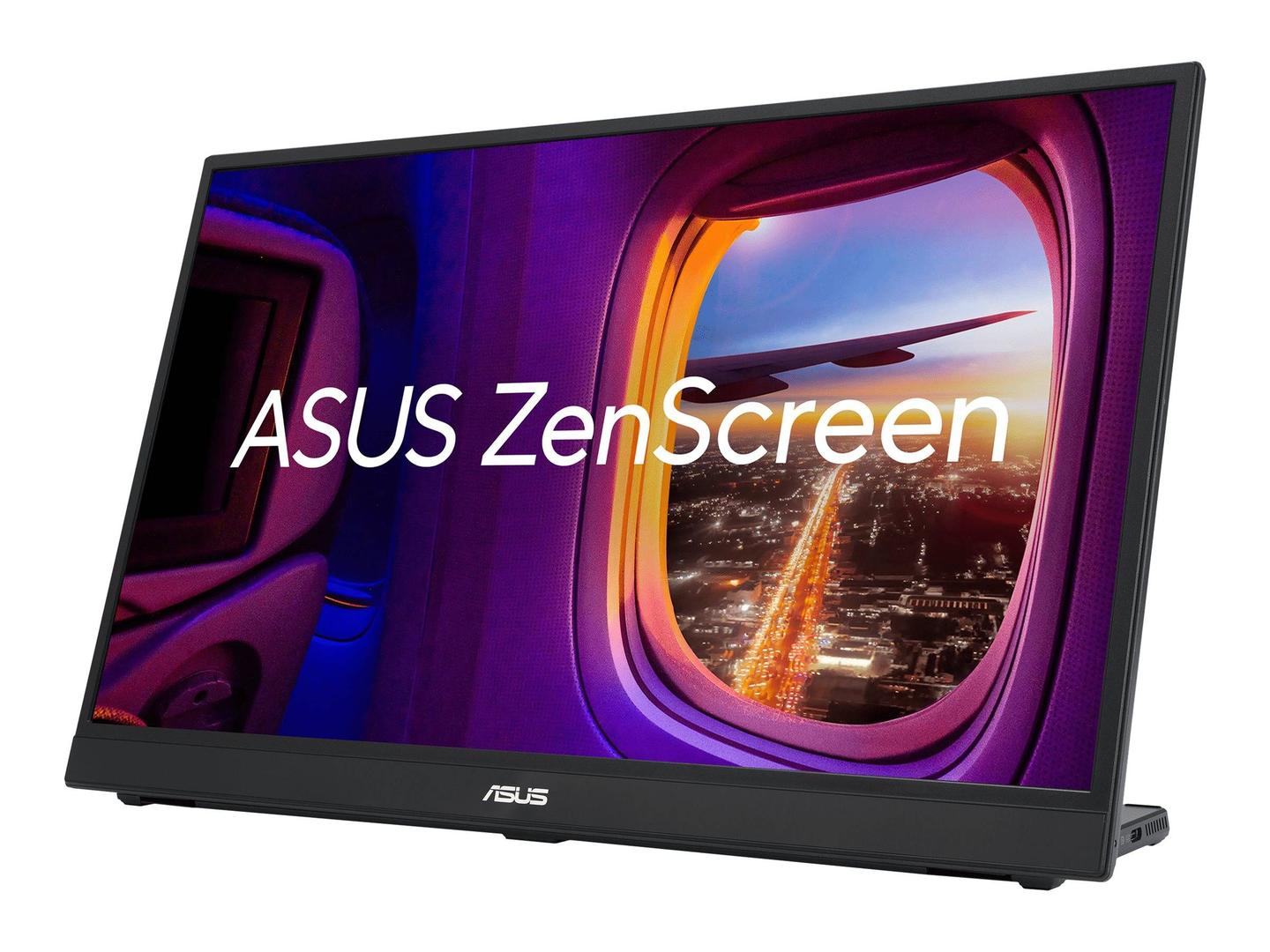

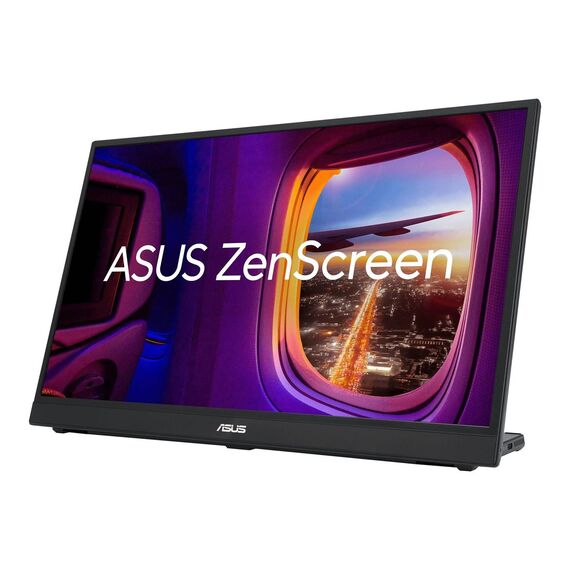

ASUS ZenScreen MB17AHG / LED monitor / 18" (17.3" viewable) / portable / 1920 x 1080 Full HD (1080p) @ 144 Hz / IPS / 300 cd/m² / 800:1 / 5 ms / HDMI, 2xUSB-C | 90LM08PG-B01170
Product Features
- Astoundingly smooth visuals
With up to 144 Hz SmoothMotion refresh rate, everything from scrolling through webpages to gaming on ZenScreen MB17AHG feels fluid and responsive. Built-in FreeSync Premium technology automatically adjusts frame rates to match onscreen content for the smoothest, most detailed visuals. - Wide viewing angles for better collaborations
ZenScreen MB17AHG features an IPS panel that delivers stunning visuals and 178° viewing angles, ensuring superb color and contrast - even when viewed from off-center positions. - Flexible viewing
positions to support multitasking
ZenScreen MB17AHG offers exceptional versatility, allowing you to create a setup that best suits your needs, wherever you are. Lay it flat on a table in landscape mode for collaborative work. A built-in tripod socket also makes it compatible with a standard tripod, allowing you to vary the height of the display according to preference. - Design ergo in mind
The display makes it easy for you to get the view you need, the foldable L-shaped kickstand to securely prop it up at any angle, making it easy for you to get the view you need. - Ultraslim and lightweight for great portability
Weighing light and featuring an ultrathin profile at its edges, ZenScreen MB17AHG slips easily into any bag, ensuring you're ready to get work done or be entertained, wherever you are. - Expansive, near-seamless viewing
USB-C ports on both sides of ZenScreen MB17AHG allow you to place it close to either side of your laptop for an almost seamless extended-screen experience. - One cable does it all
A single USB-C cable is all you need to duplicate or extend your laptop screen. USB-C handles both power and video signal transmission, so it's simply a matter of plug-and-play when it's time to conduct group presentations. - Extensive connectivity
A rich selection of connectivity options rounds out the MB17AHG's feature set. Two USB Type-C ports - one on both sides of the monitor, and each wired for display signals - provide versatility. Plus, an HDMI port provides broad connectivity with various devices and a 3.5 mm audio jack is ready for wired headsets. - ASUS Blue Light Filter
The TÜV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light. It's easy to access, intuitive and flexible with seamless adjustment (0 to Maximum) via the OSD menu. ASUS displays have undergone stringent performance tests and has been certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services. - ASUS Flicker Free technology
TÜV Rheinland-certified ASUS Flicker Free technology eliminates flicker, ensuring comfortable viewing experiences. This technology helps minimize eyestrain and other ailments typically associated with extended hours of viewing.
Special Features
- 17.3-inch FHD panel featuring 144 Hz SmoothMotion refresh rate
- Supports FreeSync Premium for supersmooth visuals
- Sleek, ultrathin profile enable effortless portability
- L-shaped kickstand props the display up at the ideal height, so it can serve as a laptop screen extender
- Rich connectivity with two full-function USB-C ports on either side of the monitor for better cable management, plus HDMI and earphone jack
- Standard tripod socket allows the display to be easily mounted for comfortable eye-level viewing
Product Specification
Display Type | LED-backlit LCD monitor / TFT active matrix |
Energy Class | Class E |
Diagonal Size | 18" |
Viewable Size | 17.3" |
Adaptive-Sync Technology | AMD FreeSync Premium |
Built-in Devices | Kickstand |
Panel Type | IPS |
Aspect Ratio | 16:9 |
Native Resolution | Full HD (1080p) 1920 x 1080 at 144 Hz |
Pixel Pitch | 0.199 mm |
Pixel Per Inch | 127 |
Brightness | 300 cd/m² |
Contrast Ratio | 800:1 |
Colour Support | 16.7 million colours |
Colour Gamut | 100% sRGB |
Response Time | 5 ms (grey-to-grey) |
Vertical Refresh Rate | 60 - 144 Hz |
Horizontal Refresh Rate | 30 - 180 kHz |
Horizontal Viewing Angle | 178 |
Vertical Viewing Angle | 178 |
Screen Coating | Anti-glare |
Backlight Technology | LED backlight |
Features | HDCP, ASUS Splendid Video Intelligence Technology, Trace Free Technology, ASUS QuickFit Virtual Scale, ASUS GamePlus, Flicker Free technology, Colour Temperature Selection, Low Blue Light technology, Display Widget, tripod socket, Variable refresh rate (VRR) |
Dimensions (WxDxH) | 38.99 cm x 2.06 cm x 24.905 cm - with stand |
Weight | 1.29 kg |
Connectivity | Connectivity |
Interfaces | 2 x USB-C/DisplayPort Alt Mode ¦ HDMI 1.4 ¦ Headphones |
Miscellaneous | Miscellaneous |
Compliant Standards | TUV Rheinland Flicker Free Certification, HDCP 2.2, TUV Rheinland Low Blue Light (Software Solution) |
Power | Power |
Input Voltage | AC 100-240 V (50/60 Hz) |
Power Consumption SDR (On mode) | 12 kWh/1000h |
Power Consumption (Typical) | 18 Watt |
Power Consumption Stand by | 0.5 Watt |
Power Consumption (Off Mode) | 0.5 Watt |
Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
Shipping Width | 47.3 cm |
Shipping Depth | 11.9 cm |
Shipping Height | 32.3 cm |
Shipping Weight | 3.75 kg |
Environmental Parameters | Environmental Parameters |
Humidity Range Operating | 20 - 90% RH |
