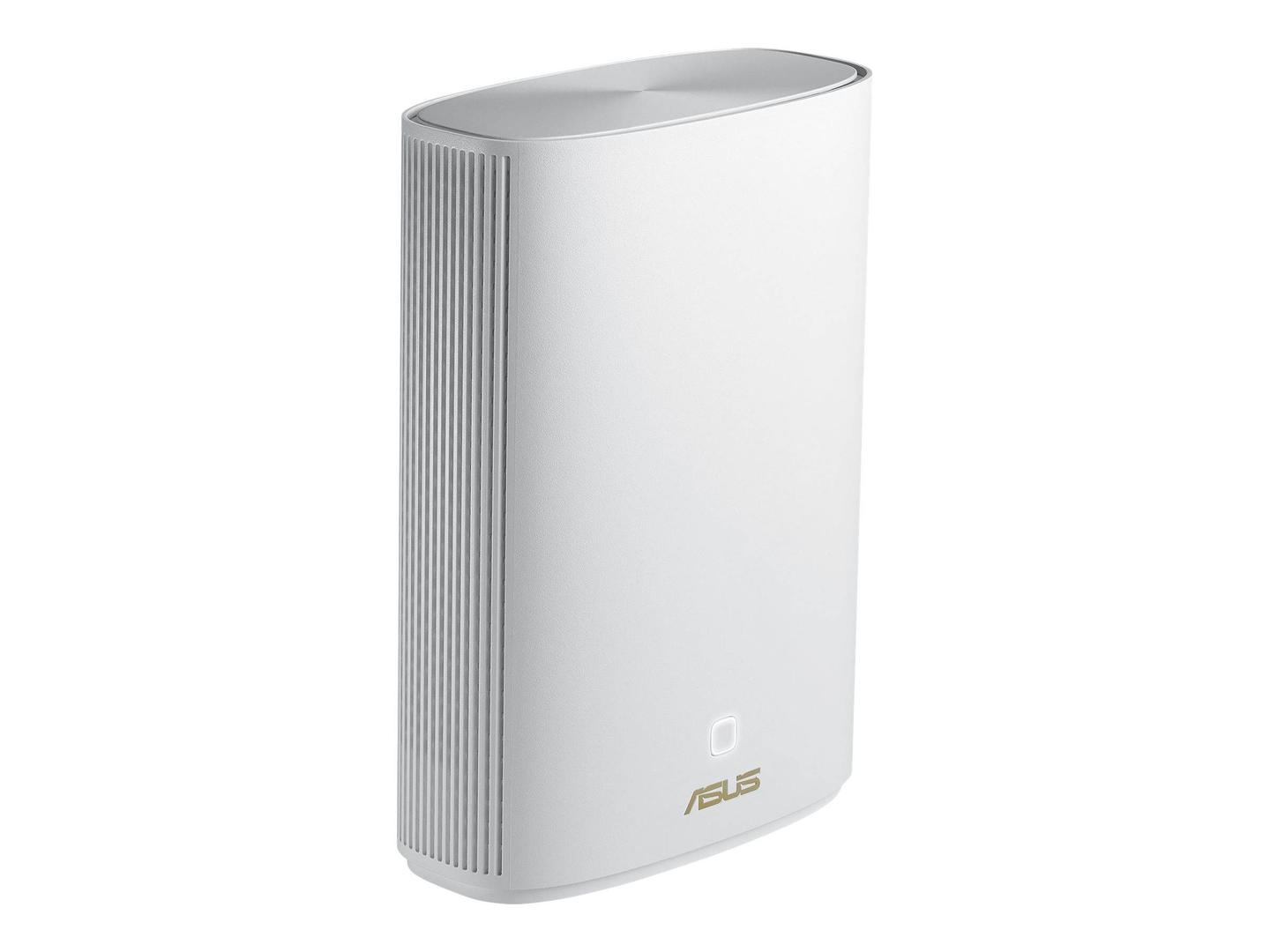

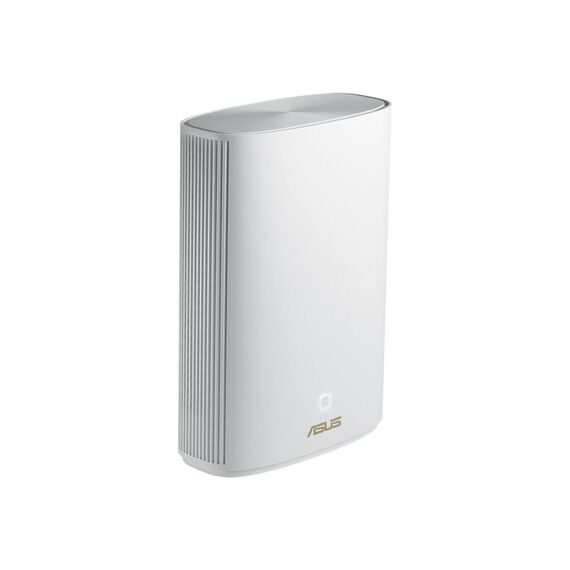

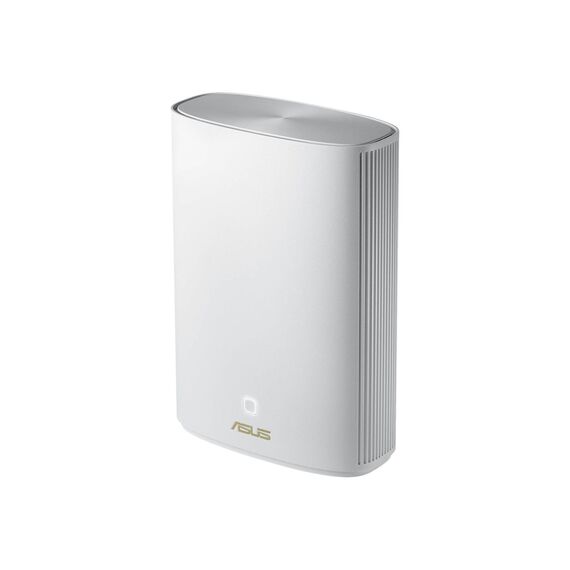

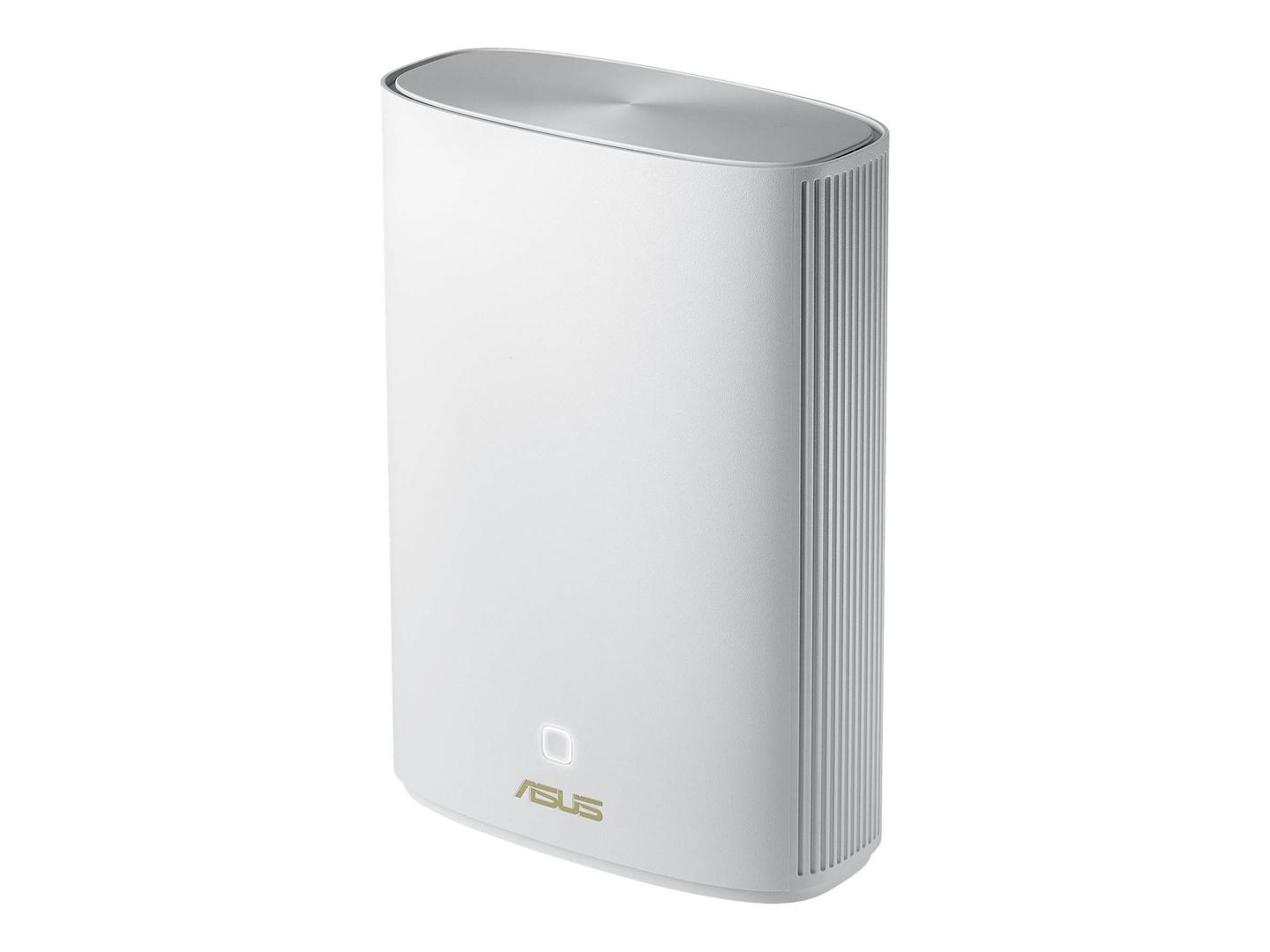

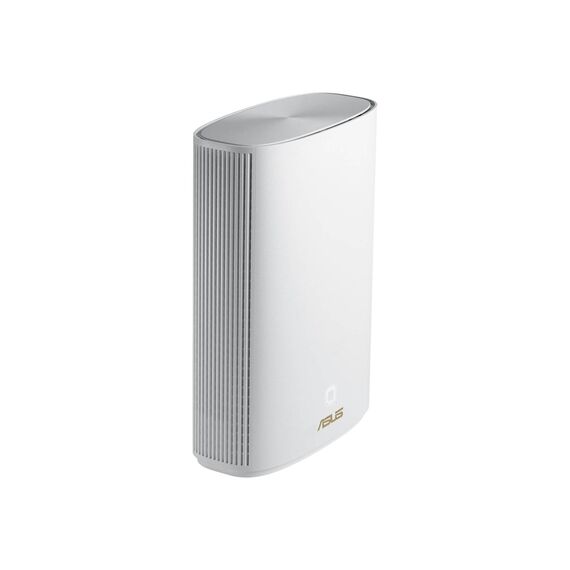

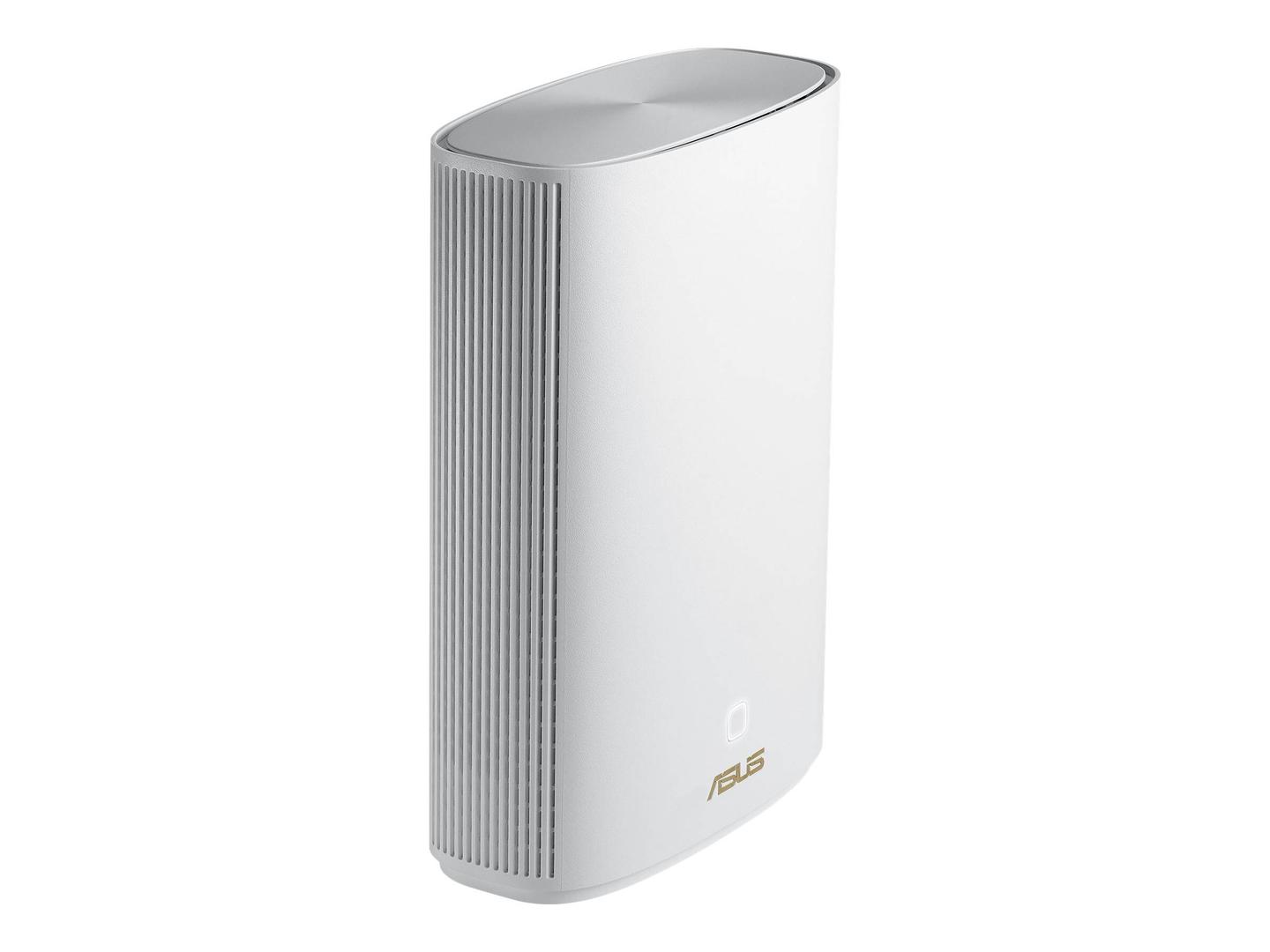

ASUS ZenWiFi AX Hybrid (XP4) / Wi-Fi system (router) / GigE, HomePlug AV (HPAV) 2.0 / 802.11a/b/g/n/ac/ax / Dual Band | 90IG05T0-BM9100
Product Features
- Whole-home coverage
The ZenWiFi AX Hybrid system includes a pair of ASUS AX1800 Wi-Fi routers with built-in 1300 Mbps HomePlug AV2 powerline networking. It features unique technologies that give you superfast, reliable and secure Wi-Fi connections - inside or outside your home! - Ideal for overcoming thick walls
The ZenWiFi AX Hybrid combines Wi-Fi and powerline technologies, providing the ideal solution for homes with thick or metal-reinforced walls that cause Wi-Fi backhaul problems. Backhaul data for the mesh network can be sent via powerline over your home's electrical wiring, so home devices can connect at full AX1800 Wi-Fi 6 speeds. The HomePlug AV2 MIMO standard is almost 2x faster than the previous standard. - Instant Guard makes public Wi-Fi secure
ASUS Instant Guard uses the power of your ZenWiFi AX Hybrid to add rock-solid VPN security to any public Wi-Fi connections you use. It helps protect your private information such as credit card details, business data, emails and more. - Flexible network naming
Uniquely, ZenWiFi lets you choose how you name your Wi-Fi networks: a single name for everything, or separate names for each frequency band. The choice is yours! - Make the internet a safer place for everyone
AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app. - Easy setup and flexible management
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
Special Features
- Whole-home coverage
- Ideal for overcoming thick walls
- Instant Guard makes public Wi-Fi secure
- Flexible network naming
- Make the internet a safer place for everyone
- Easy setup and flexible management
Product Specification
Device Type | Wi-Fi system - 2-port switch (integrated) |
Wi-Fi System Components | Router |
Enclosure Type | Desktop |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, HomePlug AV (HPAV) 2.0, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Frequency Band | 2.4 GHz / 5 GHz |
Capacity | Guest networks: 6 |
Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, DHCP, DDNS |
Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPS, WPA3-Personal, WPA2-Personal, WPA-Personal |
Wi-Fi Rating | AX1800 |
Features | Firewall protection, wake on LAN (WOL), IGMP snooping, MAC address filtering, IPv6 support, parental control, Quality of Service (QoS), dual WAN connection, RADIUS support, IPSec passthrough, static IP mode, port forwarding, ASUS AiDisk, reset button, IPv4 support, port triggering, 3G/4G USB Dongle Support, VPN Server, ASUS AiCloud, PPTP passthrough, L2TP passthrough, MU-MIMO technology, system log, beamforming technology, Adaptive QoS, Link Aggregation, Wireless Scheduler, VPN client, ASUS Router App, ASUS Guest Network, Airtime Fairness, DMZ support, Traffic Analyser, traffic monitoring, ASUS AiMesh, Bandwidth Limiter, ASUS AiProtection Pro, OpenVPN client, Orthogonal Frequency Division Multiple Access (OFDMA), OpenVPN server, IPTV support, WPS button, NAT passthrough, H.323 Pass-Through, SIP Pass-Through, AiMesh node mode, Android tethering, Let's Encrypt |
Compliant Standards | IEEE 802.3z, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, HomePlug AV 2.0, IEEE 1901, IEEE 802.11ac, IEEE 1905.1, IEEE 802.11ax |
Processor | 1 x 1.2 GHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Power |
Line Properties | Line Properties |
Line Coding Format | 1024 QAM, OFDMA |
Internet of Things (IoT) | Internet of Things (IoT) |
Internet of Things (IoT) Compatible | Yes |
Intelligent Assistant | Alexa ready |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | WAN / LAN: 1 x 1000Base-T - RJ-45 ¦ LAN: 2 x 1000Base-T - RJ-45 ¦ USB 3.2 Gen 1: 1 x |
Aerial | Aerial |
Aerial | Internal |
Antenna Qty | 4 |
Power | Power |
Power Device | External power adapter |
Miscellaneous | Miscellaneous |
Enclosure Colour | White |
Localisation | United Kingdom, Europe |
Dimensions & Weight | Dimensions & Weight |
Width | 14.8 cm |
Depth | 7.1 cm |
Height | 20.8 cm |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 3 years |
