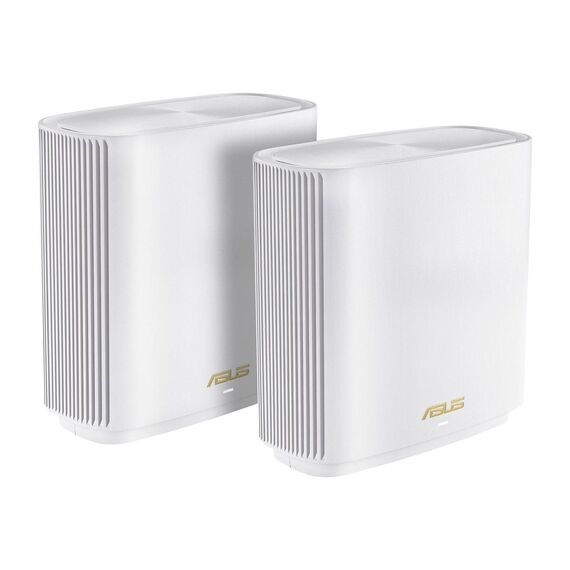

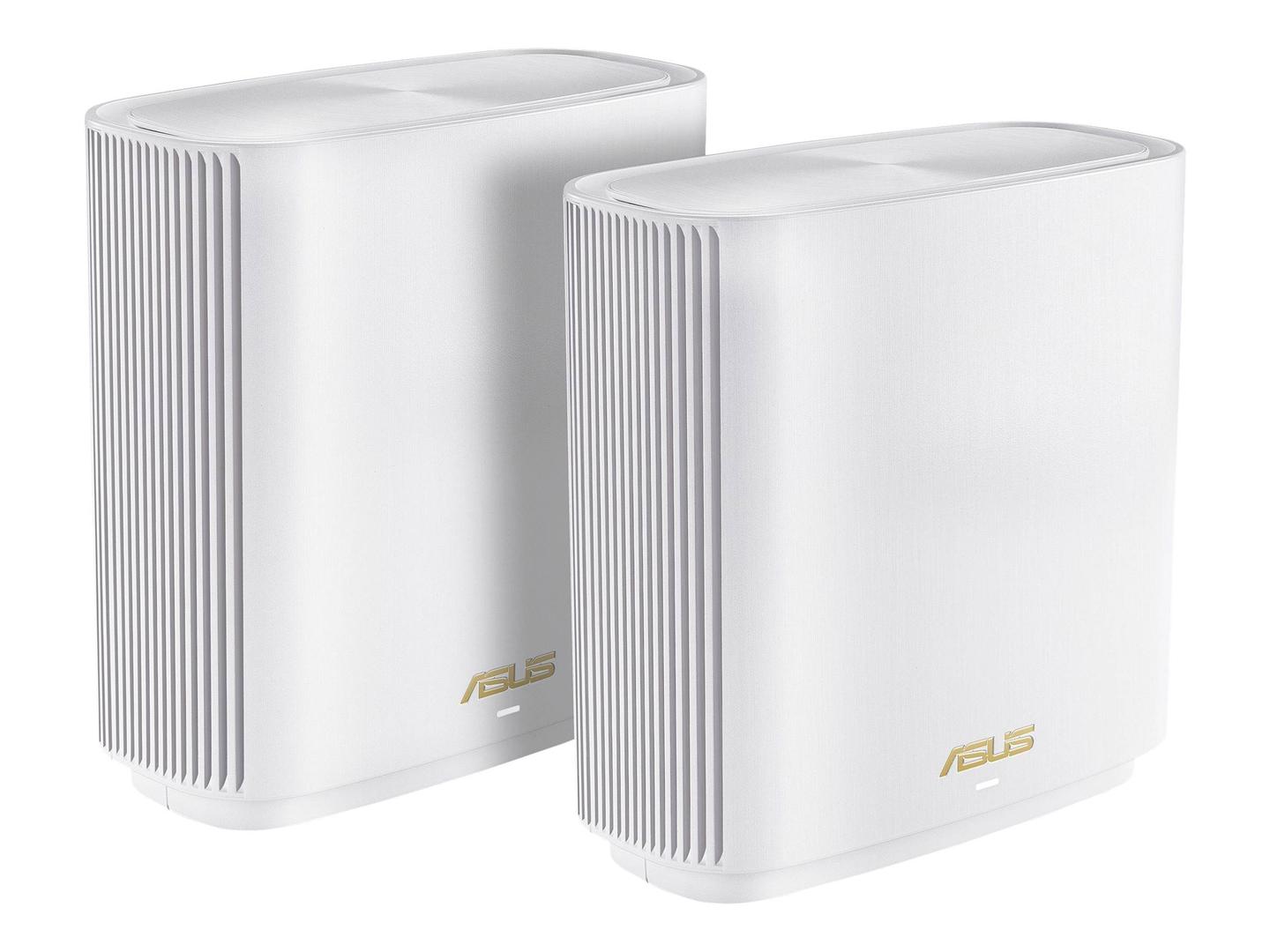

ASUS ZenWiFi XT9 / Wi-Fi system (2 routers) / up to 5,700 sq.ft / mesh / GigE, 2.5 GigE / 802.11a/b/g/n/ac/ax / Tri-Band | 90IG0740-MO3B40
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Wi-Fi system - mesh - 3-port switch (integrated) |
| Wi-Fi System Components | 2 routers |
| Wi-Fi System Coverage | Up to 5,700 sq.ft |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax |
| Frequency Band | 2.4 GHz (1 band) / 5 GHz (2 bands) |
| Capacity | MAC filter entries: 64 ¦ Firewall keyword filters: 64 ¦ Firewall network service filters: 32 ¦ Firewall URL filters: 64 |
| Network / Transport Protocol | PPTP, L2TP, IPSec, DDNS |
| Encryption Algorithm | WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPS, WPA3-PSK |
| Wi-Fi Rating | AX7800 |
| Mesh Networking | Yes |
| Features | Wake on LAN (WOL), IGMP snooping, MAC address filtering, IPv6 support, parental control, Access Point operational mode, dual WAN connection, RADIUS support, Samba support, FTP server, ASUS AiDisk, reset button, IPv4 support, ASUS AiCloud, system log, beamforming technology, Adaptive QoS, Link Aggregation, Wireless Scheduler, Tri-Band, ASUS Router App, VPN Fusion, Airtime Fairness, DMZ support, Traffic Analyser, traffic monitoring, ASUS AiMesh, Bandwidth Limiter, ASUS AiProtection Pro, OpenVPN client, PPTP VPN client, Orthogonal Frequency Division Multiple Access (OFDMA), OpenVPN server, IPTV support, WPS button, 160MHz bandwidth support, auto firmware update, Guest Network, AiMesh node mode, ASUS Instant Guard, Let's Encrypt, external HDD hibernation, Bandwidth Monitor, Malicious Site Blocker, shared folder permission, DDNS (Dynamic Domain Name Service), L2TP VPN client, IPSec VPN server, PPTP VPN server, login captcha |
| Compliant Standards | REACH, FCC Part 15 Class B |
| Processor | 1 x 1.7 GHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | Power |
| Line Properties | Line Properties |
| Line Coding Format | 1024 QAM |
| Internet of Things (IoT) | Internet of Things (IoT) |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Wi-Fi |
| Intelligent Assistant | Alexa |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | WAN: 1 x 2.5GBase-T - RJ-45 ¦ LAN: 3 x 1000Base-T - RJ-45 ¦ USB 3.1 Gen 1: 1 x 9 pin USB Type A |
| Aerial | Aerial |
| Aerial | Internal |
| Antenna Qty | 6 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 110-240 V (50 - 60 Hz) |
| Miscellaneous | Miscellaneous |
| Enclosure Colour | White |
| Cables Included | RJ-45 cable |
| Dimensions & Weight | Dimensions & Weight |
| Weight | 740 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 50 - 90% |
Features - Asus - 90IG0740-MO3B40
More Details
Product Code
03:200087
EAN Code
4711081471394
Manufacturer
Asus
