Special Fetures
- Supports DisplayPort resolution up to 4K DCI (4096 x 2160 @ 30Hz) at both the local and remote consoles
- A mini USB port in the front panel can serve as a Virtual Media USB port or a Laptop USB Console (LUC) port
- Compact and slim design for space utility optimization
- Supports a 5-pin Relay/DI control terminal for environment monitoring
- Provides an FPGA graphics processor for better image quality and enhanced fps (frames per second) throughput for crisp video display response
- Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
- Dual power supply and dual LAN for backup
- Provides over IP capability to DisplayPort KVM switches without over IP functionality
- Allows access to the CN9950 via a built-in serial viewer, or via third-party software (such as PuTTY) for Telnet and SSH sessions
Product Specification
| Device Type | Remote control device |
| Width | 20 cm |
| Depth | 14.93 cm |
| Height | 2.85 cm |
| Weight | 850 g |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | Telnet, HTTP, SSH |
| Status Indicators | Power |
| Features | MAC address filtering, IPv6 support, IP address filtering, firmware upgradable, Virtual Media support, event log, reset button |
| Encryption Algorithm | DES, Triple DES, RC4, 256-bit AES, 2048-bit RSA, TLS 1.2 |
| Authentication Method | RADIUS, LDAP, Active Directory |
| Expansion / Connectivity | |

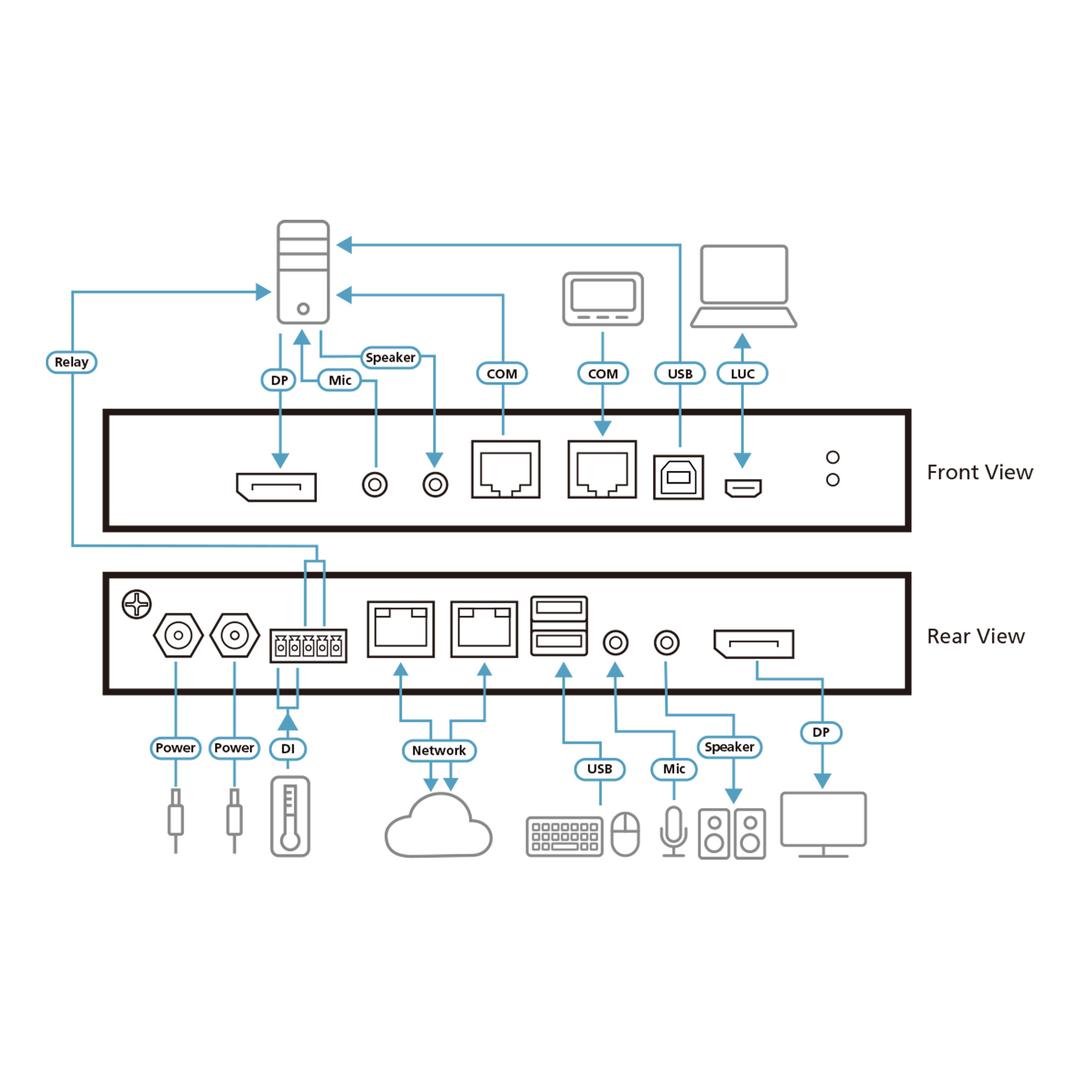

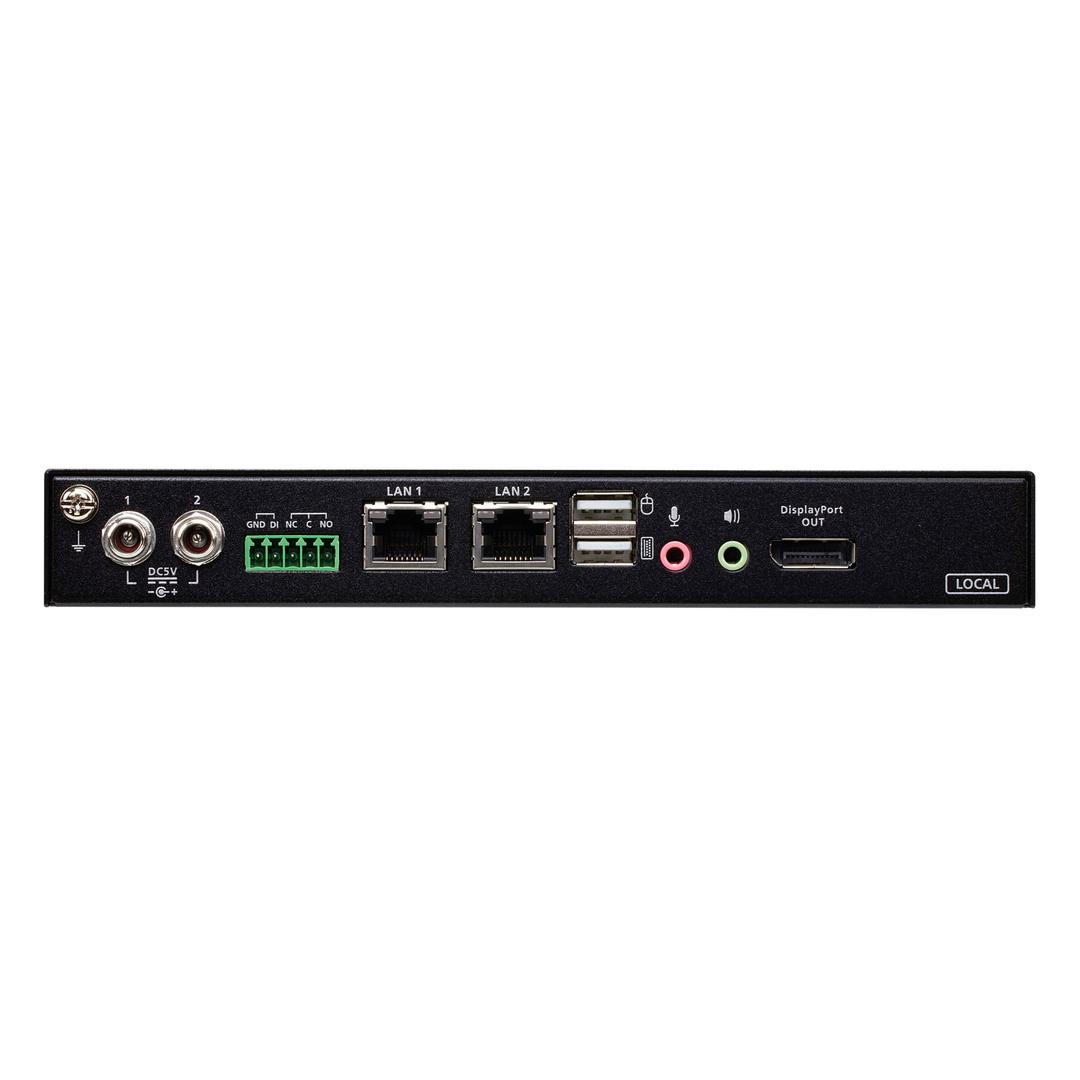

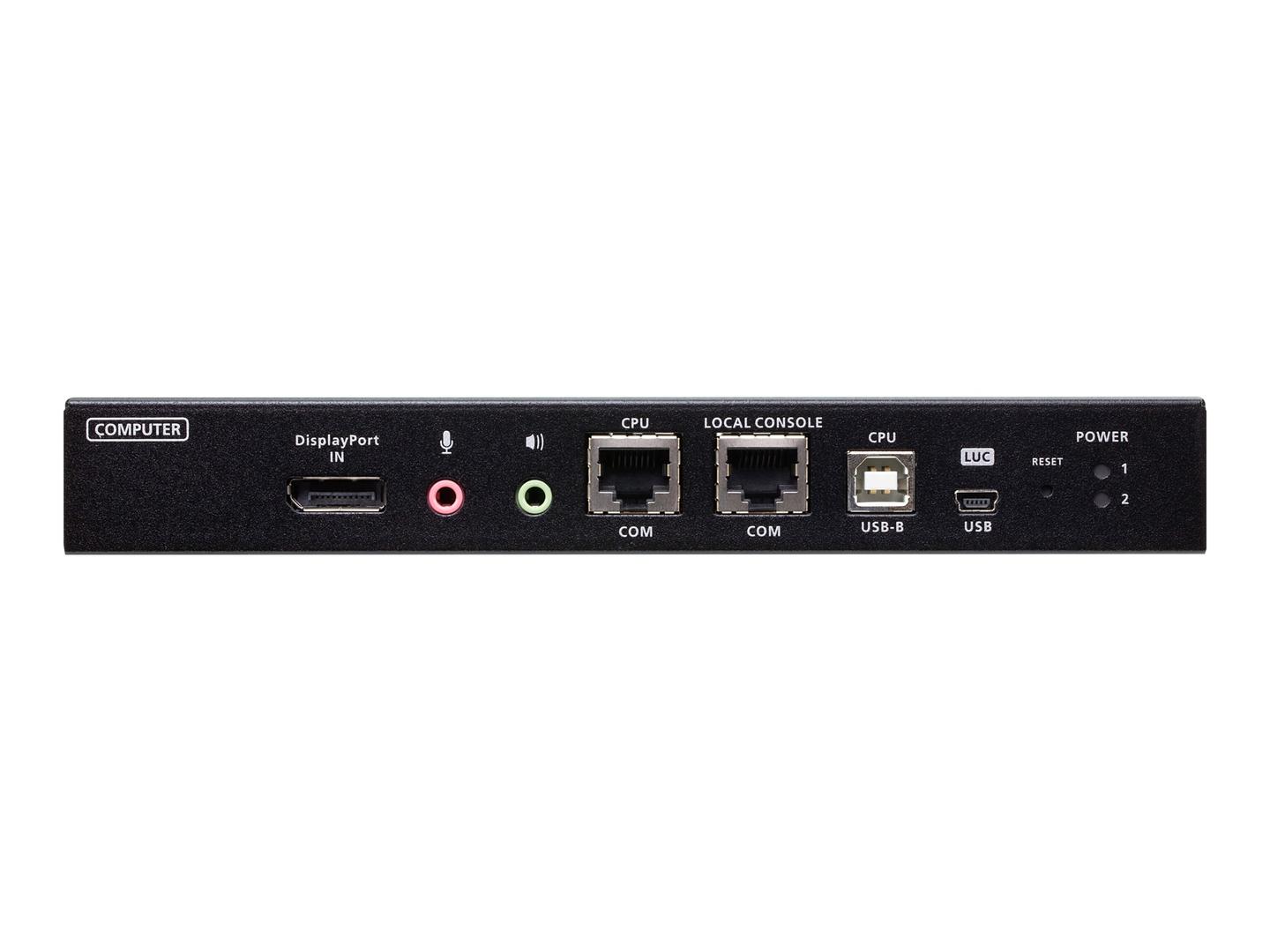

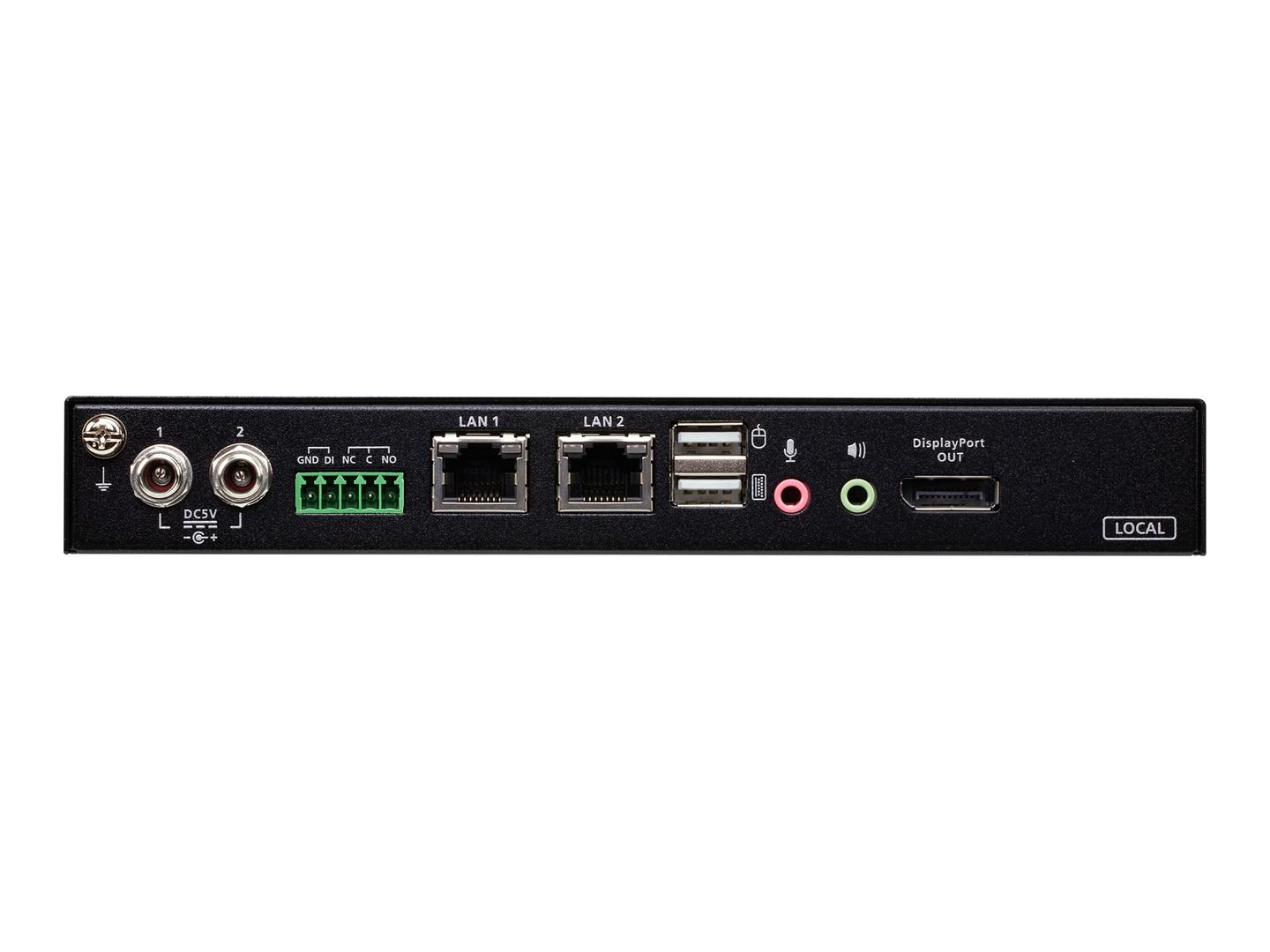

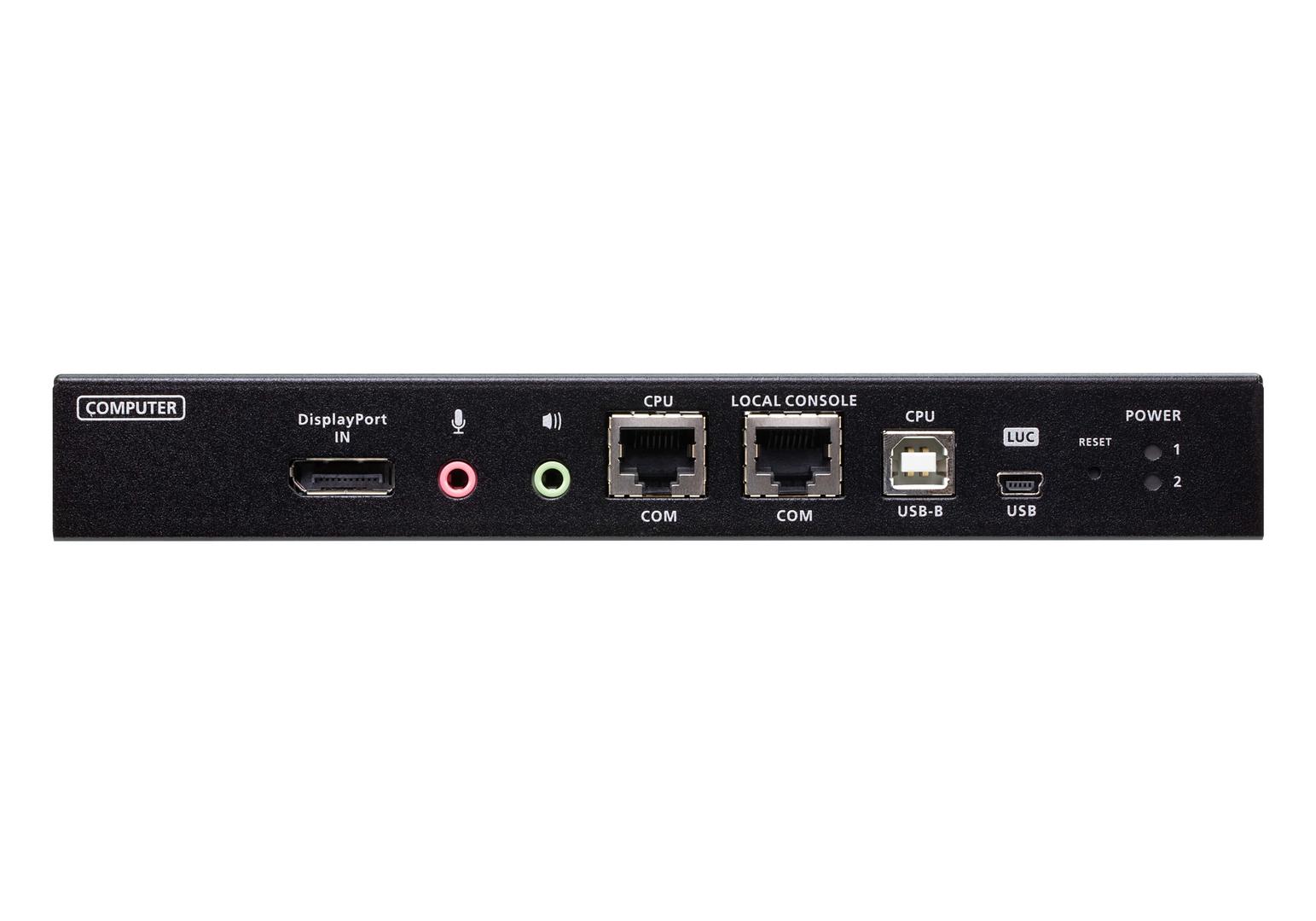

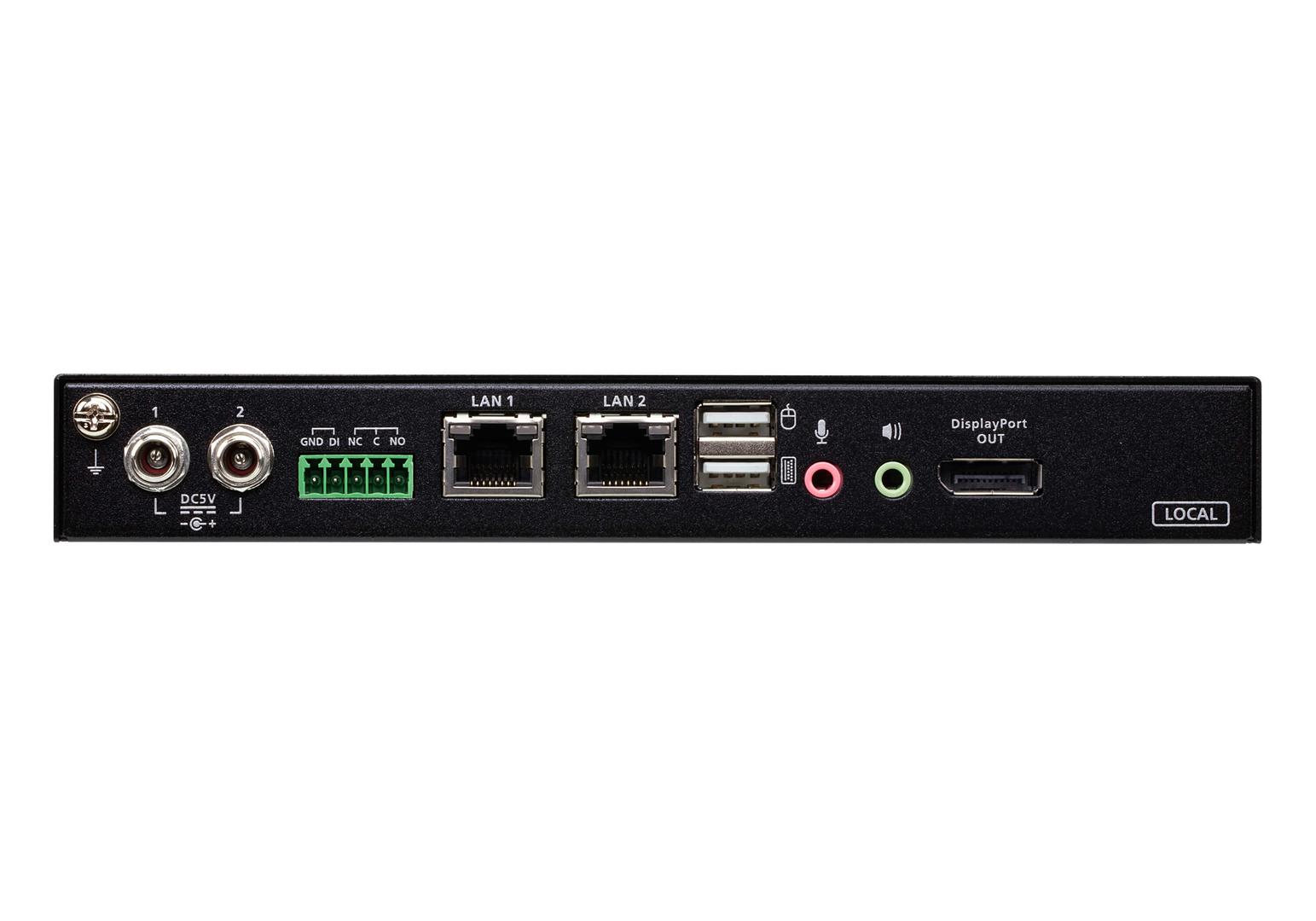

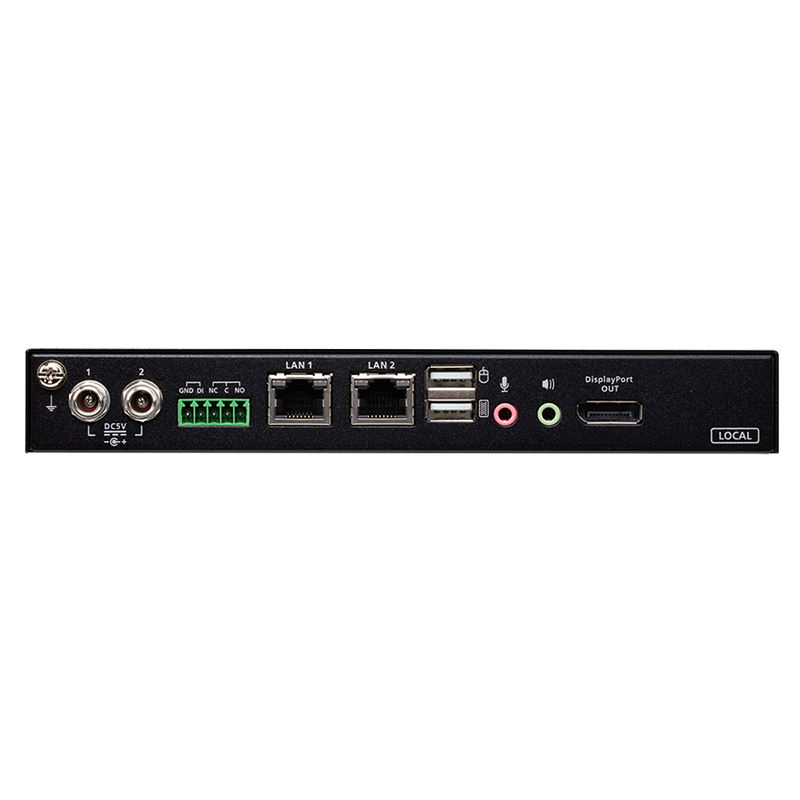

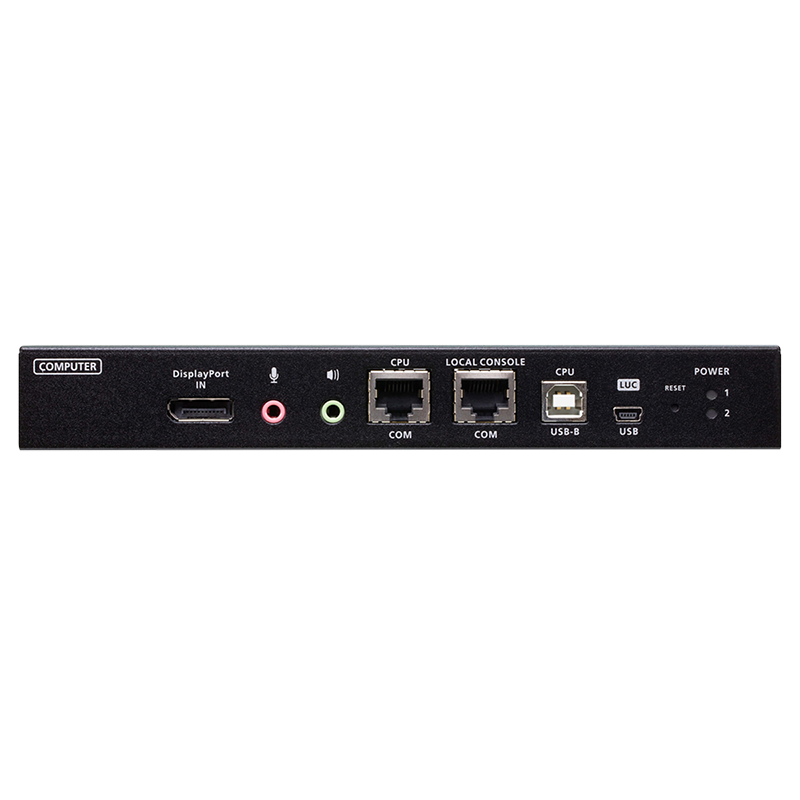

| Interfaces | 1 x DisplayPort input ¦ 1 x DisplayPort output ¦ 2 x RS-232 - RJ-45 ¦ 1 x USB - Type B ¦ 2 x 1000Base-T - RJ-45 ¦ 2 x audio line-out - mini-jack ¦ 2 x microphone - mini-jack ¦ 2 x USB - Type A ¦ 1 x console - mini-USB |
| Miscellaneous | |
| Included Accessories | Removable terminal block, foot pad set, mounting kit |
| Cables Included | 1 x DisplayPort cable ¦ 2 x USB cable |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 9.76 Watt |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
Features - Aten - CN9950
More Details
Product Code
03:209341
EAN Code
4710469340666
Manufacturer
Aten
