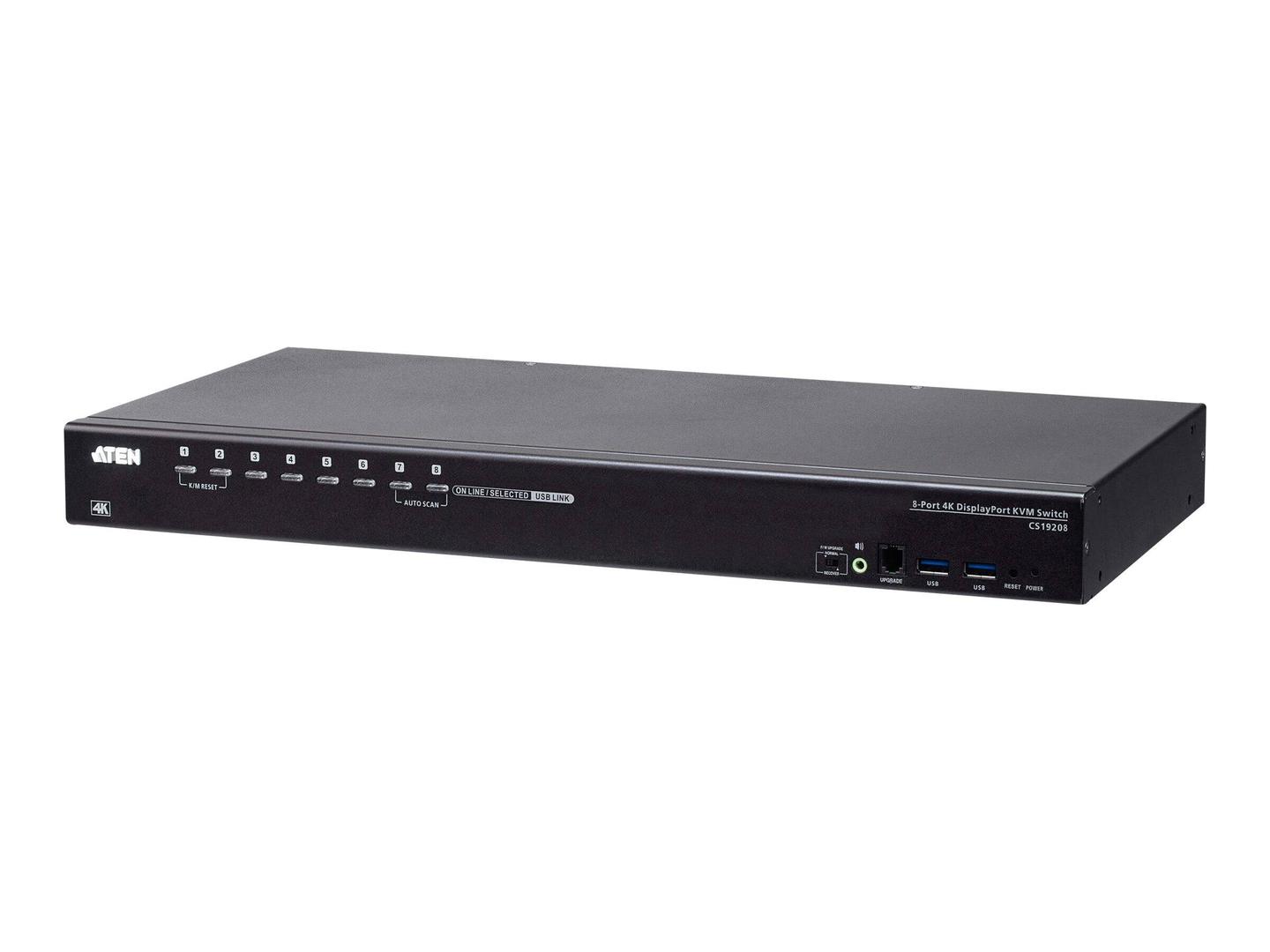

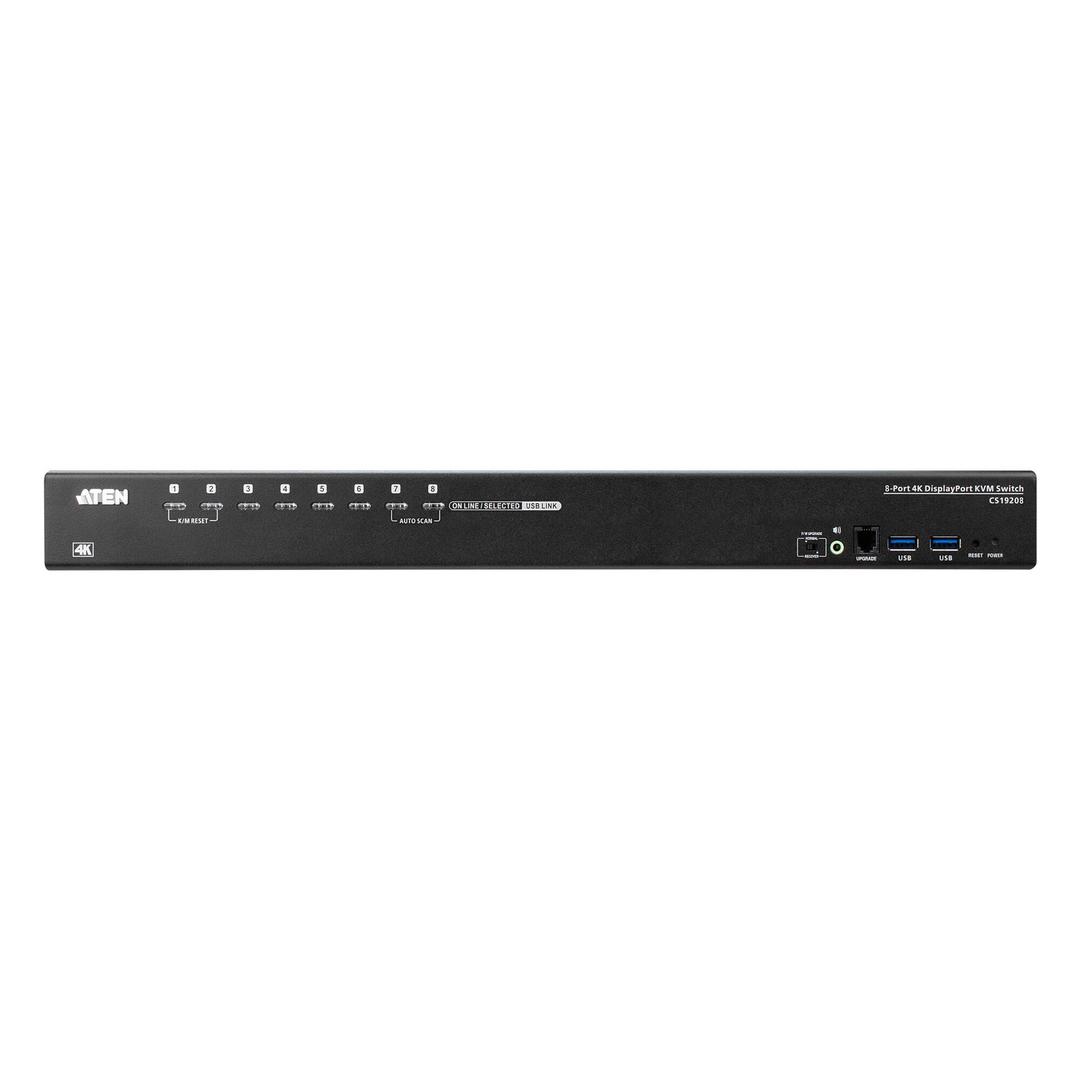

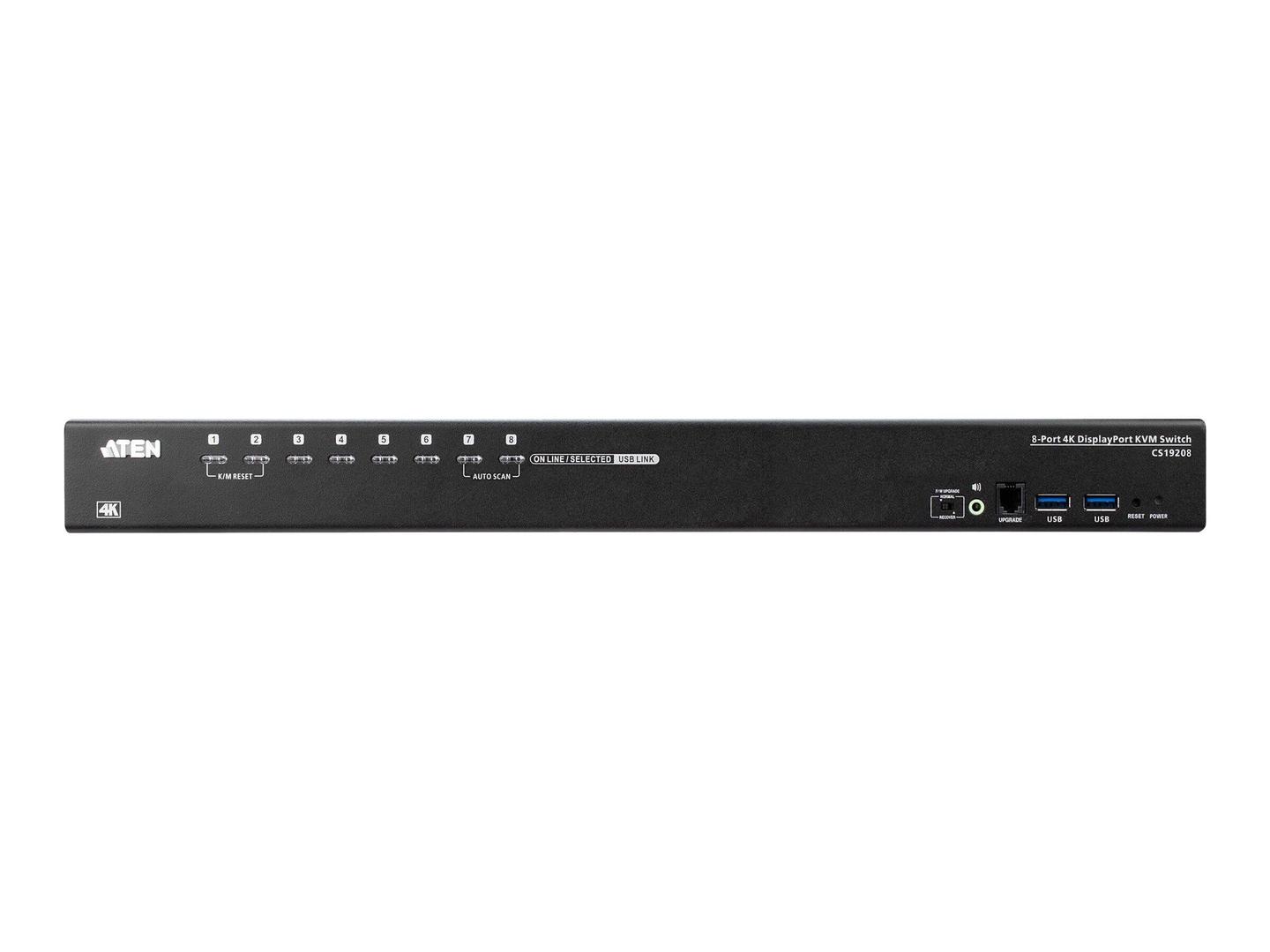

ATEN CS19208 - KVM / audio / USB switch - 8 x KVM / audio / USB - 1 local user - desktop, rack-mountable | CS19208
ATEN CS19208 - KVM / audio / USB switch - 8 x KVM / audio / USB - 1 local user - desktop, rack-mountable | CS19208
€1277.32 inc. VAT
CS19208
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Superior video quality
- Full bass response provides a rich experience for 2.1 channel stereo sound
- Cascadable to two levels
- One USB console controls up to eight DisplayPort interface computers and two USB 3.0 peripheral devices
- Two-level (administrator/user) password authorization for enhanced security protection
- Broadcast mode
- Auto scan mode for monitoring all computers
- Console mouse port emulation/bypass feature
- Firmware upgradable
- Supports multimedia, wireless keyboards and mouse
Product Specification
| Device Type | KVM / audio / USB switch - 8 ports - cascadable |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | DisplayPort |
| Ports | 8 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Units In A Stack | 8 |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Features | Firmware upgradable, metal housing, EDID Expert, password protection, broadcast mode, ATEN Video DynaSync, Auto Scan mode |
| Compliant Standards | USB 3.1 Gen 1 |
| Built-in Devices | USB 3.1 Gen 1 hub |
| Status Indicators | Power, select, USB, online |
| Expansion / Connectivity | |

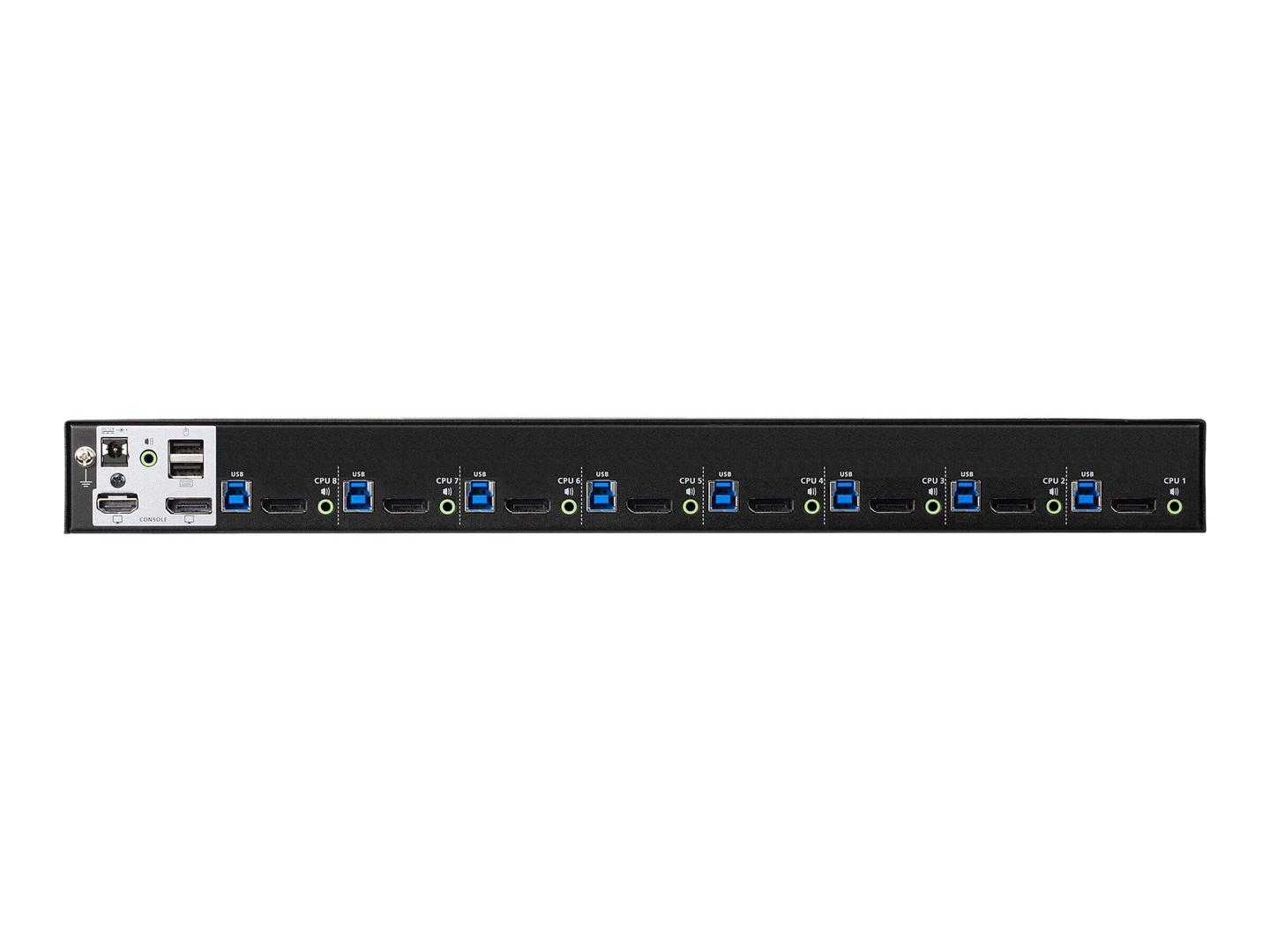

| Interfaces | 1 x keyboard (USB) Type A ¦ 1 x mouse (USB) Type A ¦ 1 x DisplayPort console ¦ 1 x HDMI console ¦ 2 x audio mini-jack console ¦ 8 x DisplayPort ¦ 8 x USB 3.1 Gen 1 Type B ¦ 8 x audio mini-jack ¦ 1 x management RJ-11 ¦ 2 x USB 3.1 Gen 1 Type A |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 18.44 Watt |
| Miscellaneous | |
| Included Accessories | 4 foot pads |
| Cables Included | 2 x DisplayPort cable ¦ 2 x SuperSpeed USB cable ¦ 2 x audio cable ¦ 1 x firmware upgrade cable |
| Rack Mounting Kit | Included |
| Compliant Standards | RoHS, DisplayPort 1.4, HDCP 2.2 |
| Dimensions & Weight | |
| Width | 43.24 cm |
| Depth | 21.43 cm |
| Height | 4.4 cm |
| Weight | 3.11 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 60 °C |
Features - Aten - CS19208
More Details
Product Code
03:217092
EAN Code
4719264649257
Manufacturer
Aten
