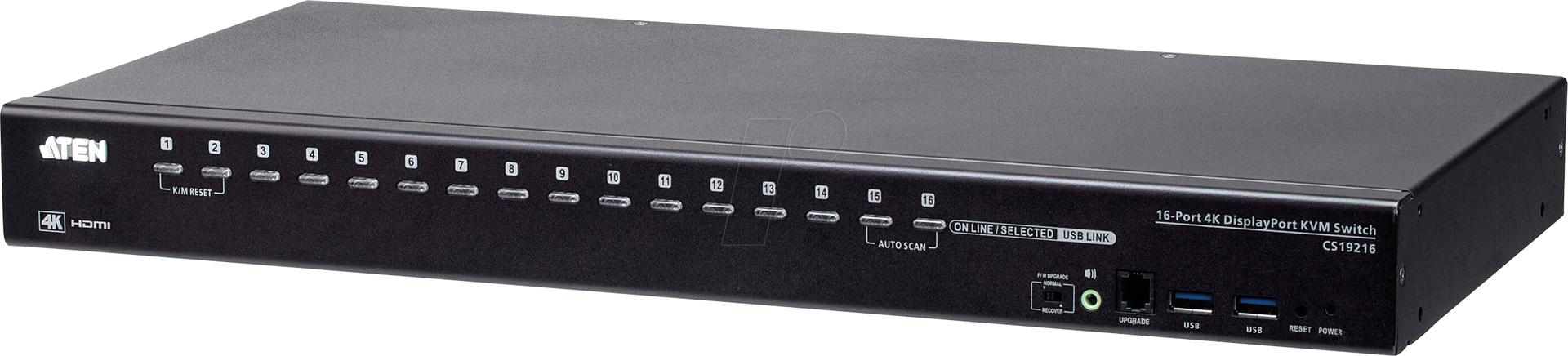

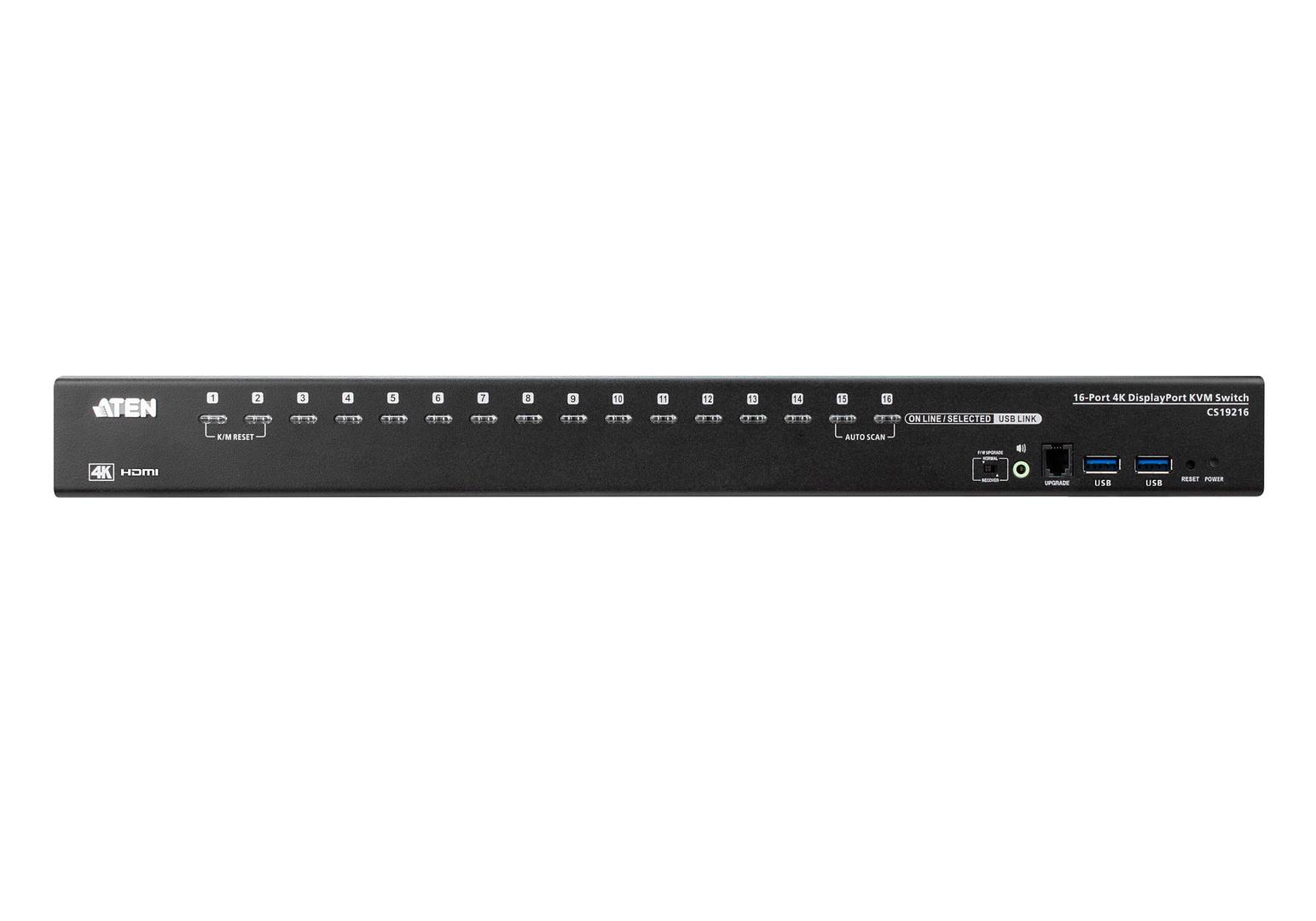

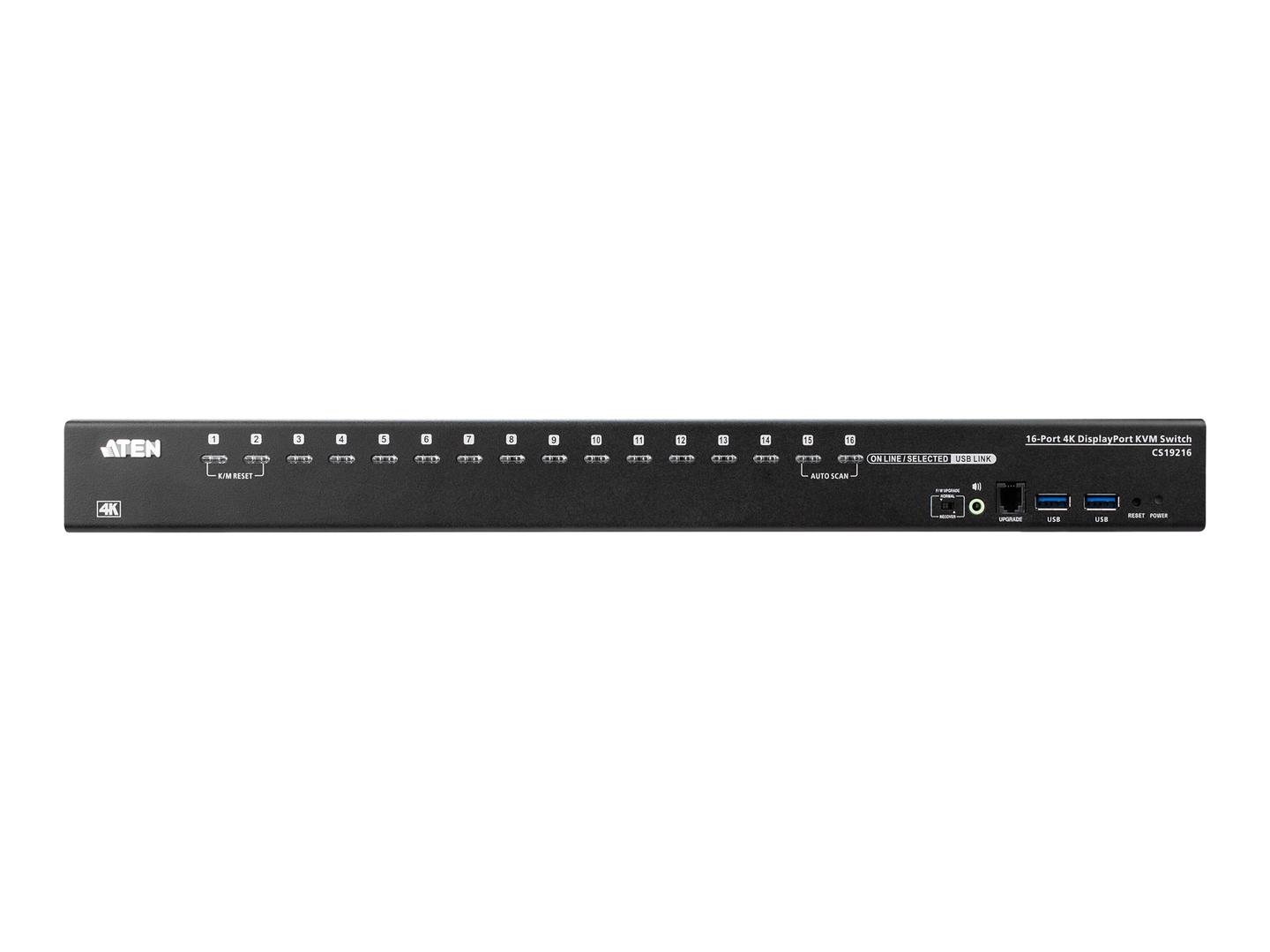

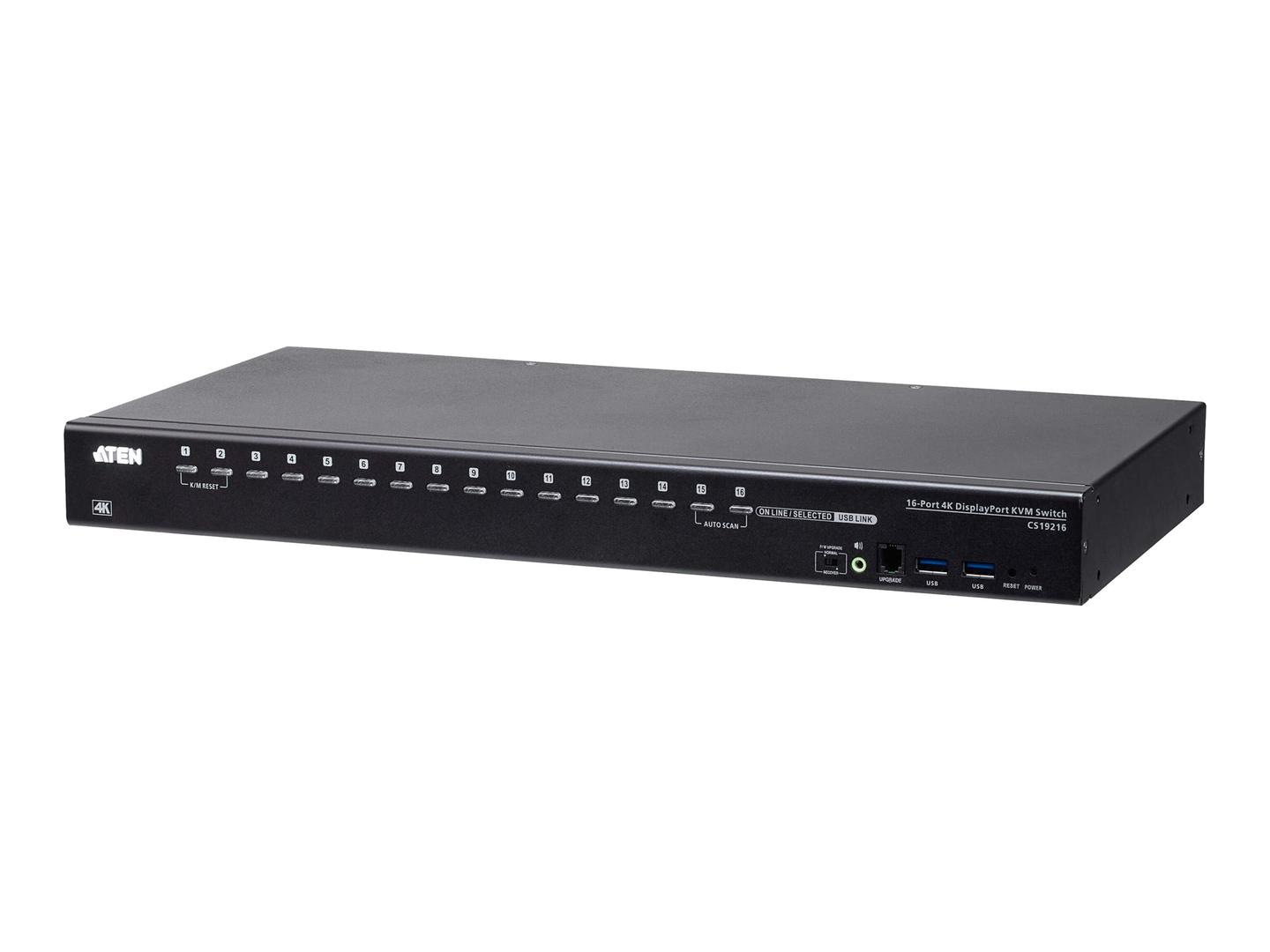

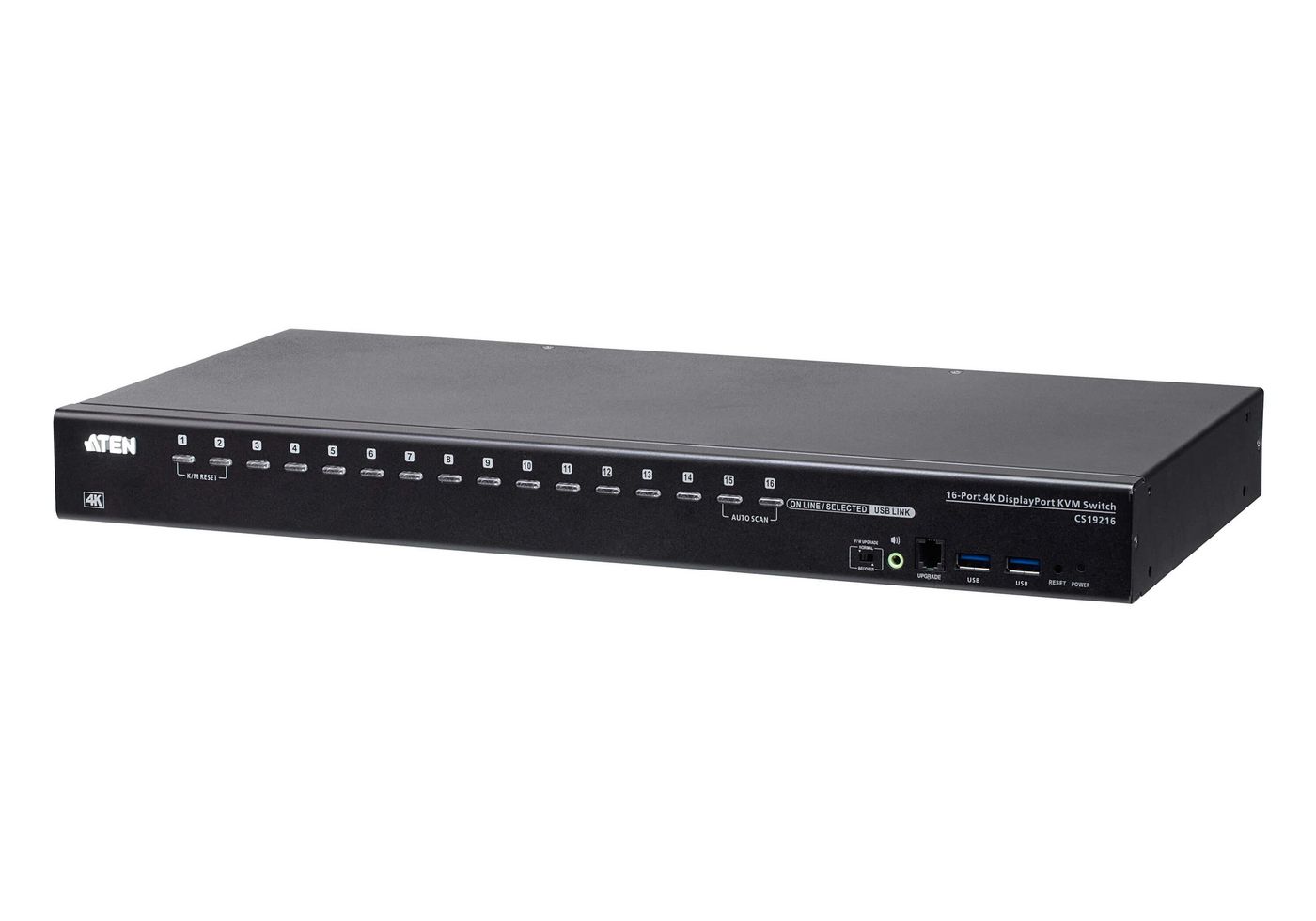

ATEN CS19216 / KVM / audio / USB switch / 16 x KVM / audio / USB / 1 local user / desktop, rack-mountable | CS19216
ATEN CS19216 / KVM / audio / USB switch / 16 x KVM / audio / USB / 1 local user / desktop, rack-mountable | CS19216
€1854.88 inc. VAT
CS19216
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Superior video quality - up to 4K DCI (4096 x 2160 @ 60Hz) and built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Cascadable to two levels - controls up to 256 computers
- Multi-Display feature - stack up to eight CS19216 units and display video from up to 8 monitors (dual display/triple display/quad display/multi-display)
- Video DynaSync - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
Product Specification
| Device Type | KVM / audio / USB switch - 16 ports - cascadable |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | DisplayPort |
| Ports | 16 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Features | Firmware upgradable, metal housing, EDID Expert, password protection, broadcast mode, ATEN Video DynaSync, Auto Scan mode |
| Compliant Standards | USB 3.1 Gen 1 |
| Built-in Devices | 2-port USB 3.1 Gen 1 hub |
| Status Indicators | Power, select, USB, online |
| Expansion / Connectivity | Expansion / Connectivity |

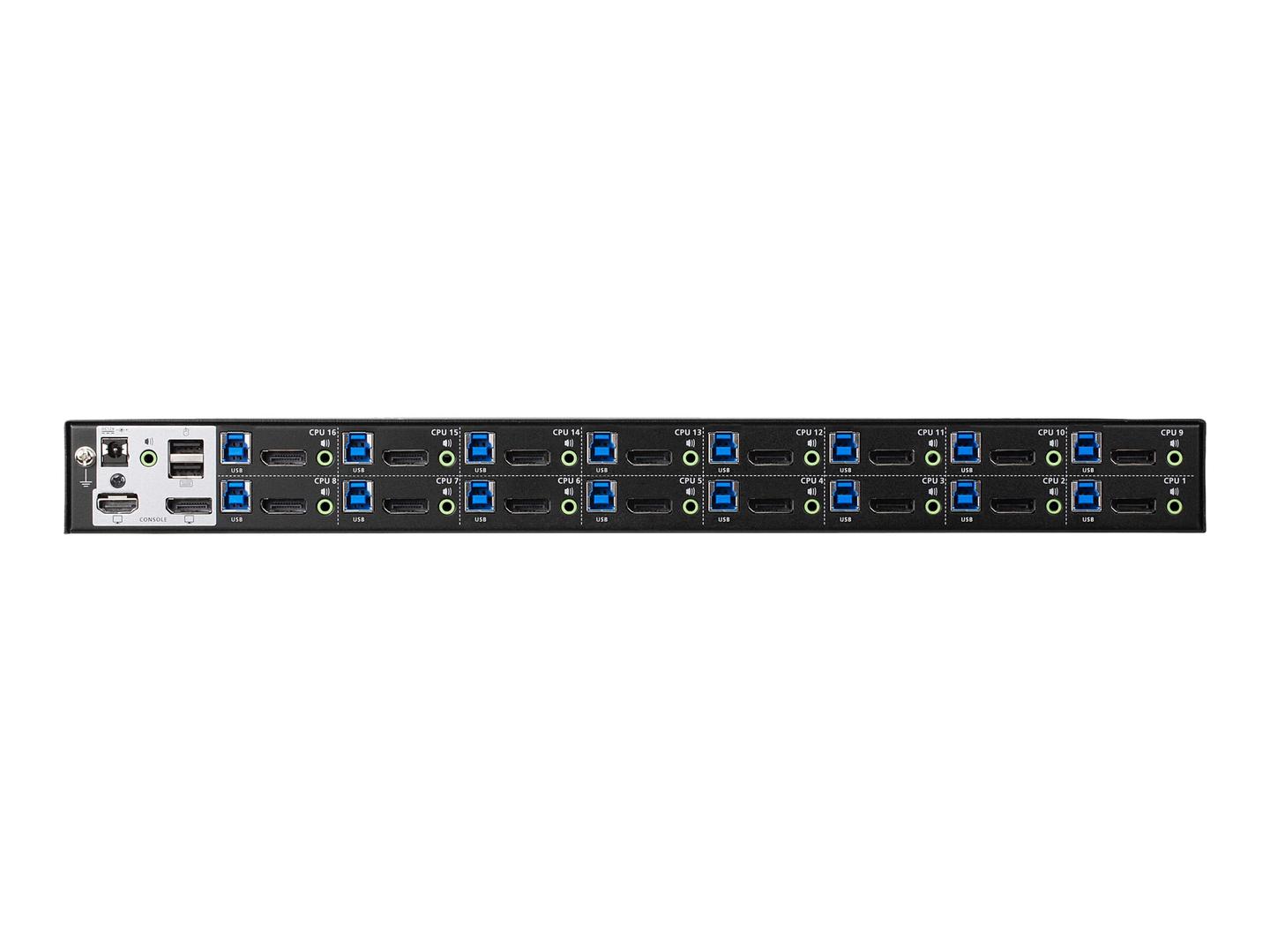

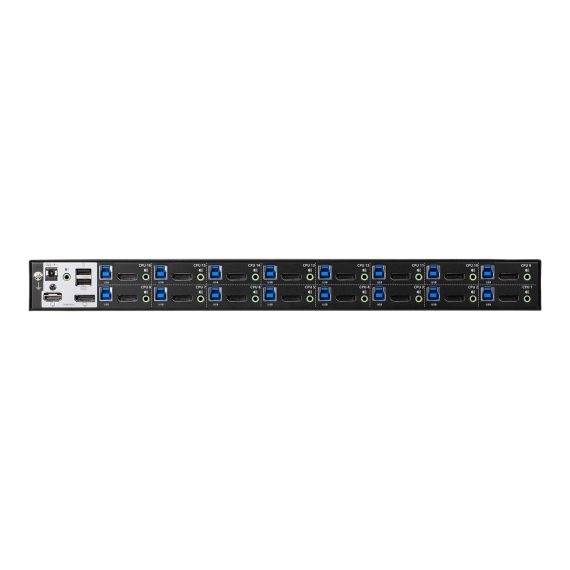

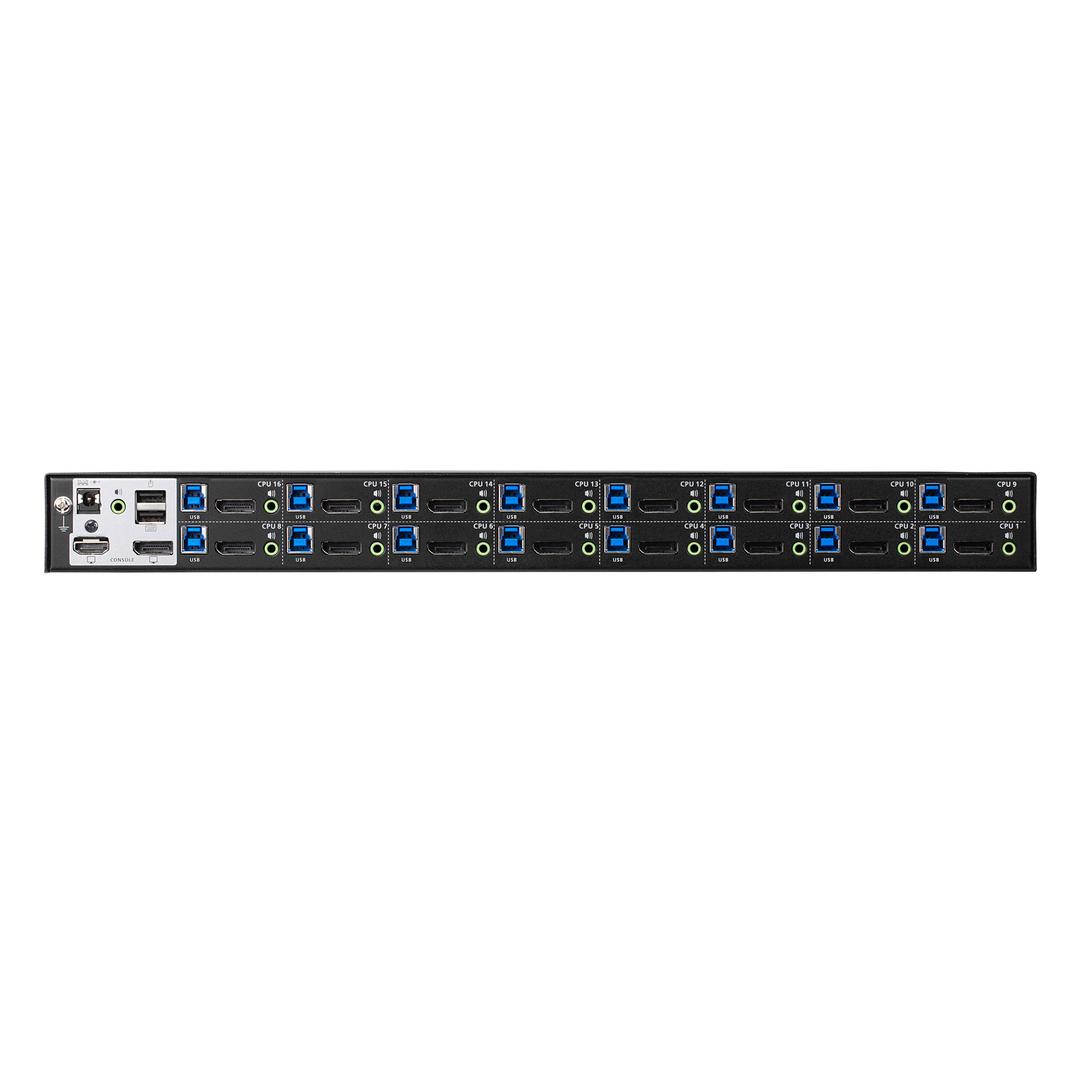

| Interfaces | 1 x keyboard (USB) Type A console 1 x mouse (USB) Type A console 1 x DisplayPort console 1 x HDMI console 2 x audio mini-jack console 16 x DisplayPort 16 x USB 3.1 Gen 1 Type B 16 x audio mini-jack 1 x management RJ-11 2 x USB 3.1 Gen 1 Type A |
| Power | Power |
| Power Device | External power adapter |
| Power Consumption Operational | 26.66 Watt |
| Miscellaneous | Miscellaneous |
| Cables Included | 2 x DisplayPort cable 2 x SuperSpeed USB cable 2 x audio cable 1 x firmware upgrade cable |
| Rack Mounting Kit | Included |
| Compliant Standards | RoHS, DisplayPort 1.4, HDCP 2.2 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 43.24 cm |
| Depth | 21.43 cm |
| Height | 4.4 cm |
| Weight | 3.54 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 60 °C |
Features - Aten - CS19216
More Details
Product Code
03:272559
EAN Code
4719264649264
Manufacturer
Aten
