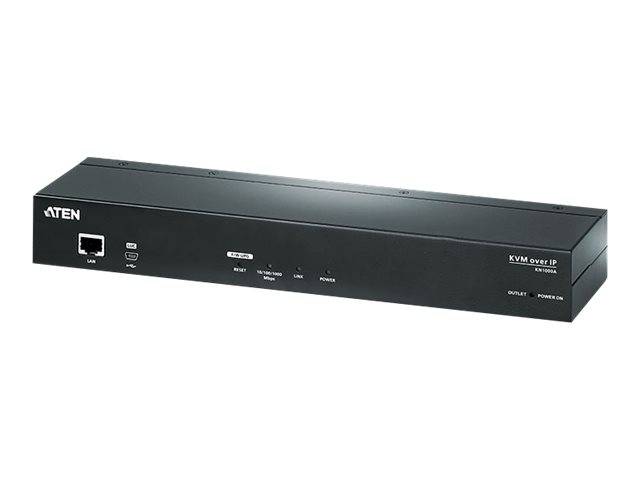

ATEN KVM over IP KN1000A / Remote control device / GigE | KN1000A
KN1000A
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Provides over-IP capability to servers or KVM switches that do not have built-in over-IP functionality
- Built in single port Power Switch (PDU)
- High video resolution - up to 1920 x 1200 @ 60 Hz with 24 bit color depth for the local console; up to 1920 x 1200 @ 60 Hz with 24 bit color depth for remote sessions
- Virtual Media Support
Product Specification
| Device Type | Remote control device |
| Width | 31 cm |
| Depth | 8.39 cm |
| Height | 4.2 cm |
| Weight | 880 g |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, SMTP |
| Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS, SSH |
| Status Indicators | Port transmission speed, power, link/activity |
| Features | Syslog support, MAC address filtering, IP address filtering, firmware upgradable |
| Encryption Algorithm | DES, Triple DES, RC4, 128-bit AES, 2048-bit RSA, TLS 1.2 |
| Authentication Method | RADIUS, LDAP, Active Directory |
| Expansion / Connectivity | Expansion / Connectivity |

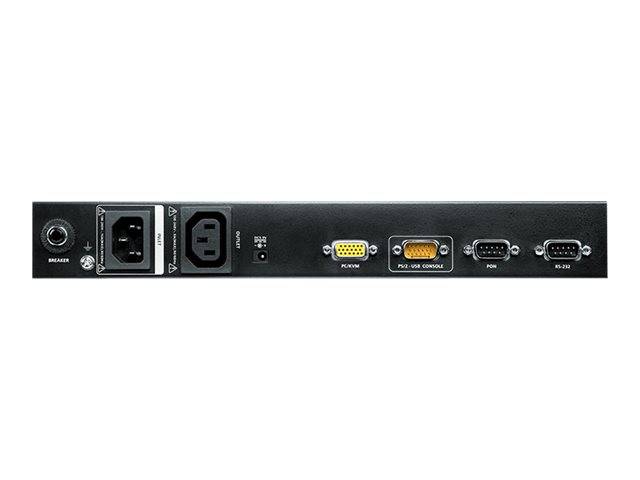

| Interfaces | 1 x console - SPHD-18 ¦ 1 x keyboard / video / mouse (KVM) - SPHD-18 ¦ 1 x PON - DB-9 ¦ 1 x RS-232 - DB-9 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x mini-USB - Type B |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x console cable - 27 cm ¦ 1 x keyboard / mouse / video cable - 1.2 m ¦ 1 x USB cable - 1.8 m |
| Compliant Standards | RoHS |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 4.48 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| OS Required | Apple MacOS, Linux, Microsoft Windows |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
Features - Aten - KN1000A
More Details
Product Code
03:188497
EAN Code
4719264645174
Manufacturer
Aten
