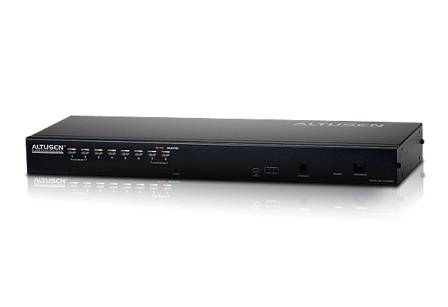

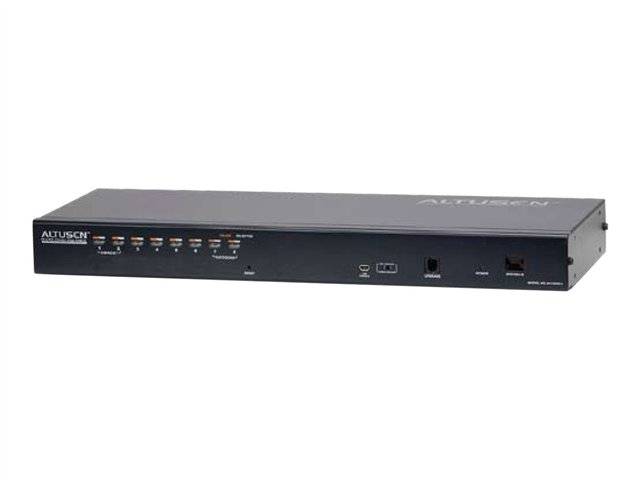

ATEN KVM over IP KH1508AI / KVM switch / 8 x KVM port(s) / rack-mountable | KH1508AI-AX-G
ATEN KVM over IP KH1508AI / KVM switch / 8 x KVM port(s) / rack-mountable | KH1508AI-AX-G
Description The KH1508Ai Cat 5 High-Density Over the NET KVM switch is an 8-port device in a 1U-high housing allowing local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser. A special Message Board feature - similar to an internet chat program - lets all logged in users exchange information and communicate with each other to manage the installation cooperatively. ATEN KVM over IP KH1508AI / KVM switch / 8 x KVM port(s) | KH1508AI-AX-GSpecial Features
|
Product Specification
Device Type | KVM switch - 8 ports - stackable |
Enclosure Type | Rack-mountable 1U |
Subtype | KVM |
Ports | 8 x KVM port(s) |
Keyboard / Mouse Interface | PS/2, USB |
Max Units In A Stack | 32 |
Max Resolution | 1600 x 1200 @ 60 Hz |
Features | Firmware upgradable |
Interfaces | 8 x KVM RJ-45 ¦ 1 x keyboard (PS/2) ¦ 1 x mouse (PS/2) ¦ 1 x VGA HD-15 ¦ 1 x keyboard (USB) Type A ¦ 1 x mouse (USB) Type A ¦ 1 x cascading DB-25 ¦ 1 x RJ-11 management |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 12.5 Watt |
Rack Mounting Kit | Included |
Compliant Standards | RoHS |
Width | 43.7 cm |
Depth | 16.1 cm |
Height | 4.4 cm |
Service & Support | Limited warranty - 3 years |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 - 80% (non-condensing) |
Min Storage Temperature | -20 °C |
Max Storage Temperature | 60 °C |
