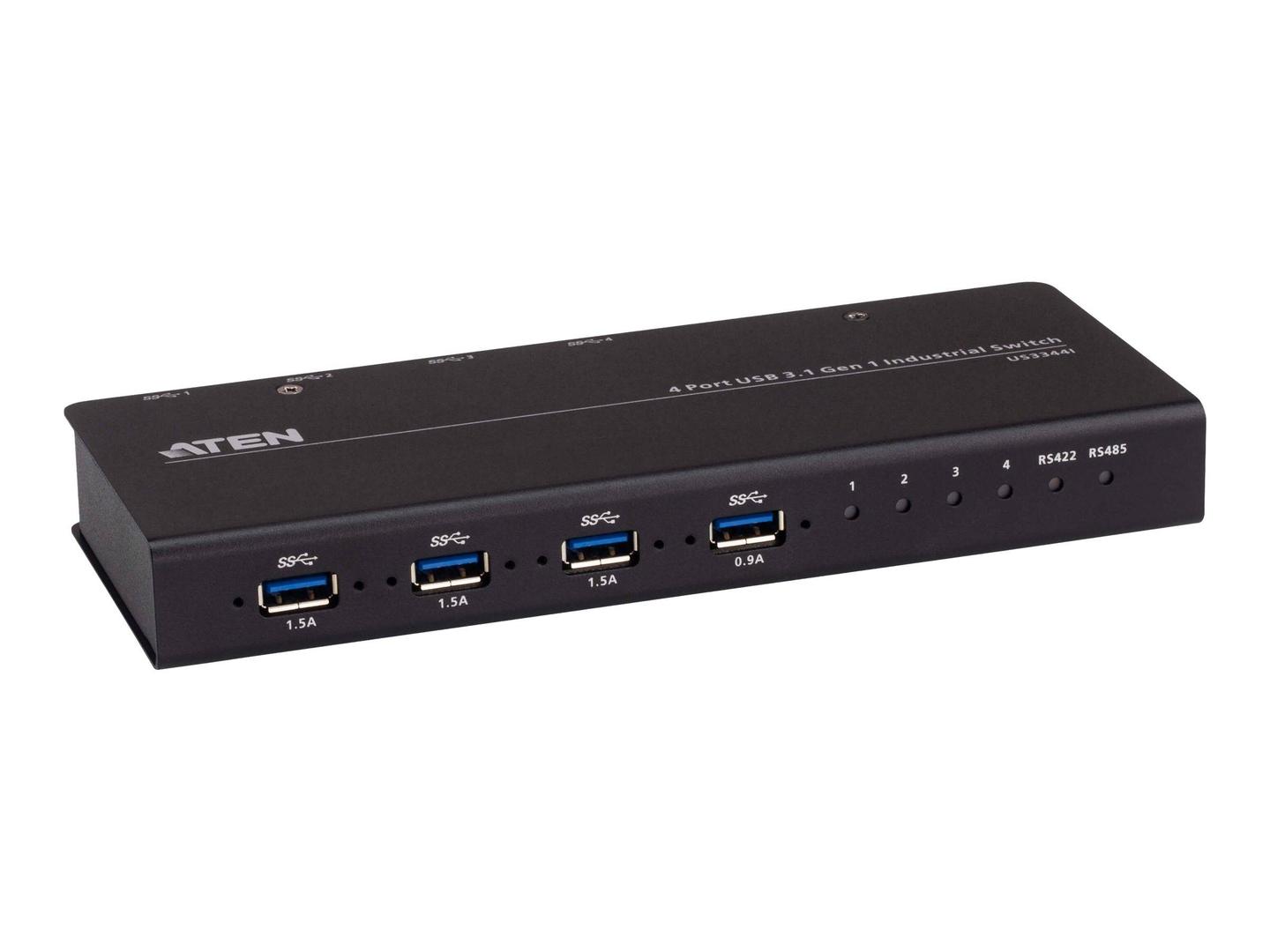

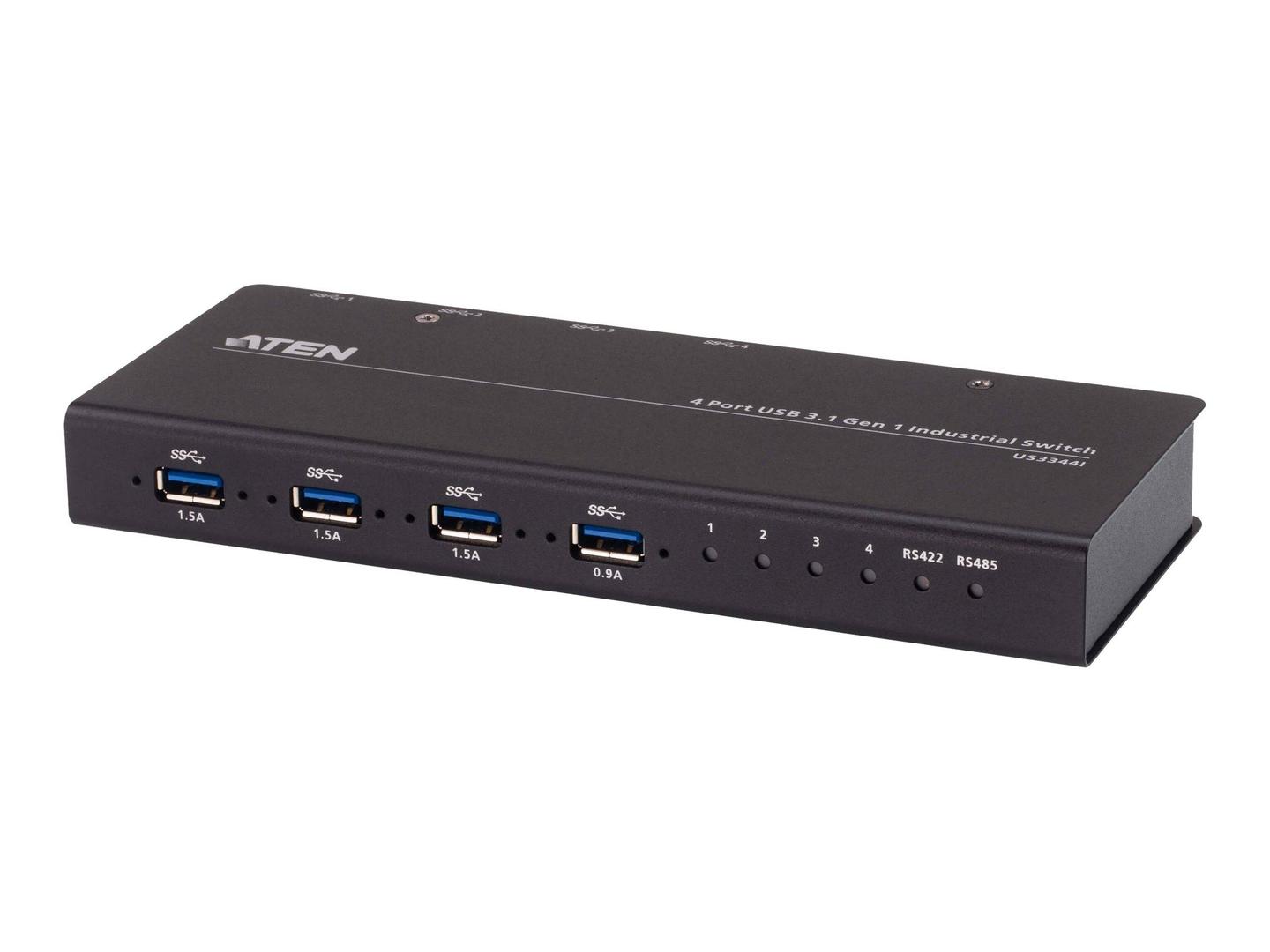

ATEN US3344I / USB peripheral sharing switch / 4 x USB 3.2 Gen 1 / desktop, rack-mountable / DC power | US3344I
Please sign in so that we can notify you about a reply
Special Features
- Enables 4 computers to share 4 USB 3.2 Gen 1 devices
- Support port selection via remote controller or RS-422/RS-485 link through 5-pin terminal block
- Supports DC 9-24V power input by terminal block
- Supports USB BC 1.2 and over current protection
Product Specification
| Device Type | USB peripheral sharing switch - 4 ports |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | USB |
| Ports | 4 x USB 3.2 Gen 1 |
| Features | Metal housing |
| Status Indicators | Select, serial |
| Expansion / Connectivity | Expansion / Connectivity |

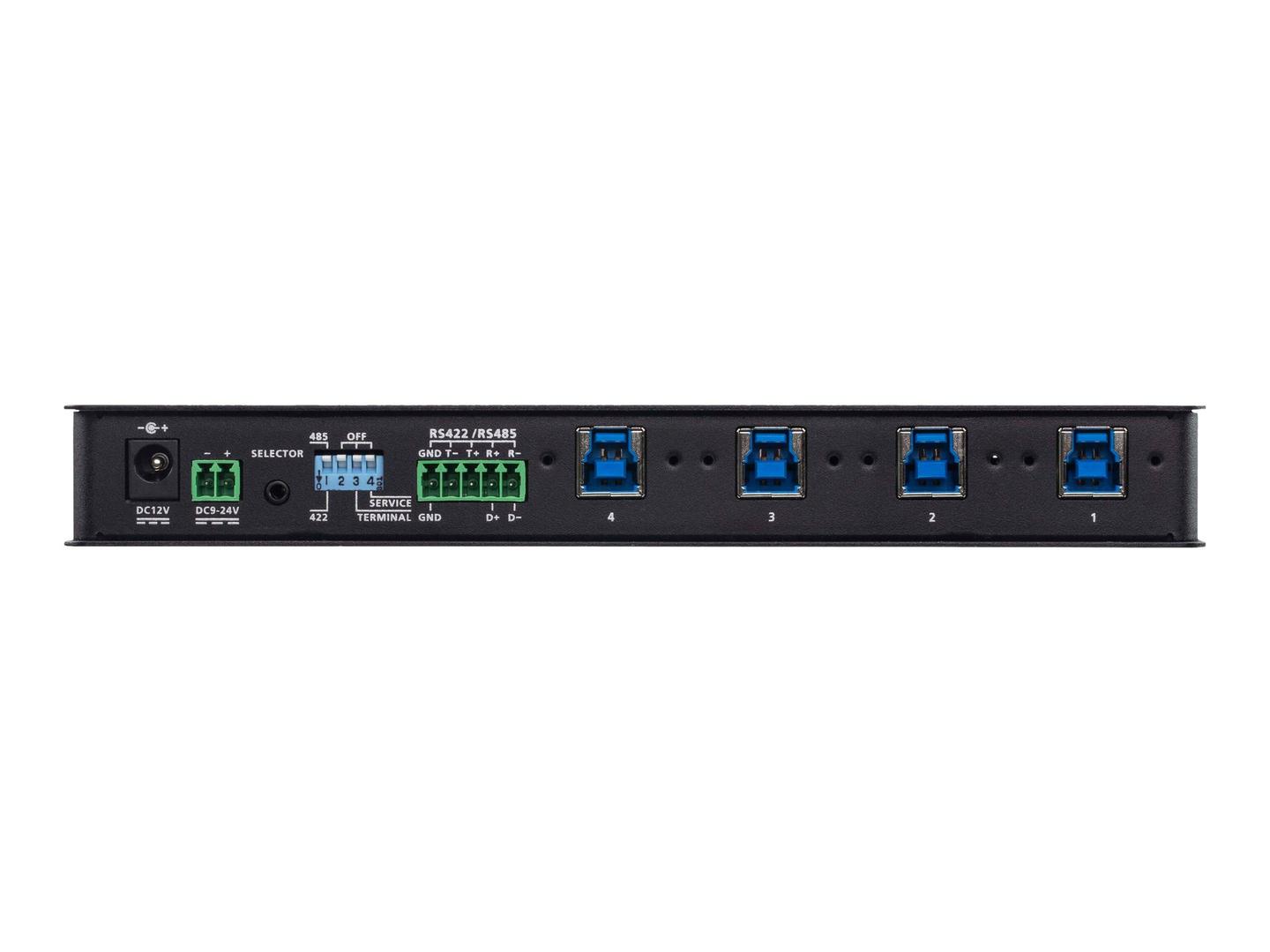

| Interfaces | 4 x USB 3.2 Gen 1 Type A ¦ 4 x USB 3.2 Gen 1 Type B ¦ 1 x serial (RS-485/RS-422) terminal block |
| Power | Power |
| Voltage Required | DC 9 - 24 V |
| Miscellaneous | Miscellaneous |
| Included Accessories | Remote port selector switch, mounting kit, terminal block adapter set |
| Cables Included | 2 x USB 3.2 Gen 1 Type A to Type B cable - 1.2 m ¦ 2 x USB 3.2 Gen 1 Type A to Type B cable - 1.8 m |
| Dimensions & Weight | Dimensions & Weight |
| Width | 20 cm |
| Depth | 8 cm |
| Height | 2.5 cm |
| Weight | 510 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 60 °C |
Features - Aten - US3344I
More Details
Product Code
03:186201
EAN Code
4719264647574
Manufacturer
Aten
