Product Features
- High-resolution support
Experience visual clarity with support for video resolutions up to 4096 x 2160, making it suitable for high-definition content creation, gaming, and video streaming. - Advanced audio features
With support for DTS Digital Surround 5.1, Dolby Digital, and LPCM 2.0, users can enjoy a rich audio experience that complements the high-quality video output. - Comprehensive HDR compatibility
The device supports a wide range of HDR formats including Dolby Vision HDR, HDR10, and HDR10+, ensuring vibrant and lifelike colors across a broad spectrum of content. - Robust connectivity
Featuring HDMI and audio input/output connections, this device offers versatile connectivity options for a seamless integration into any multimedia setup. - Durable and reliable
Encased in a sturdy metal housing and compliant with RoHS standards, this device is built to last while minimizing its environmental impact.
Special Fetures

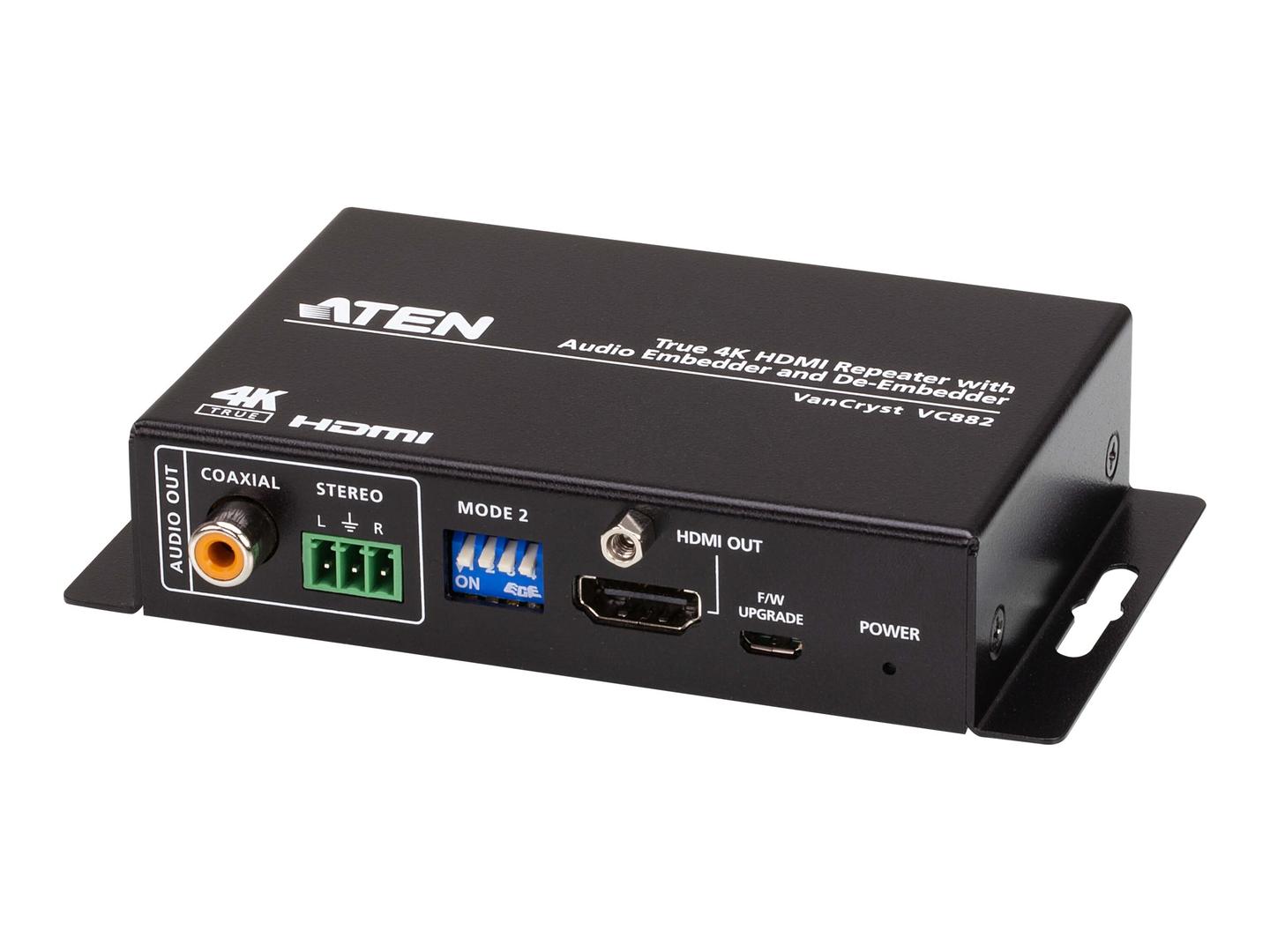

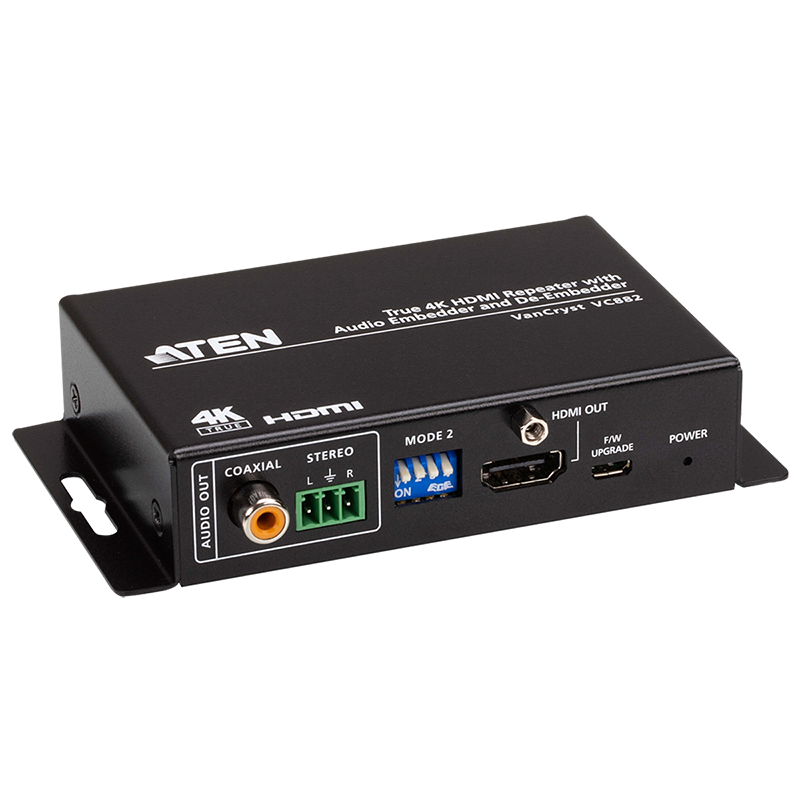

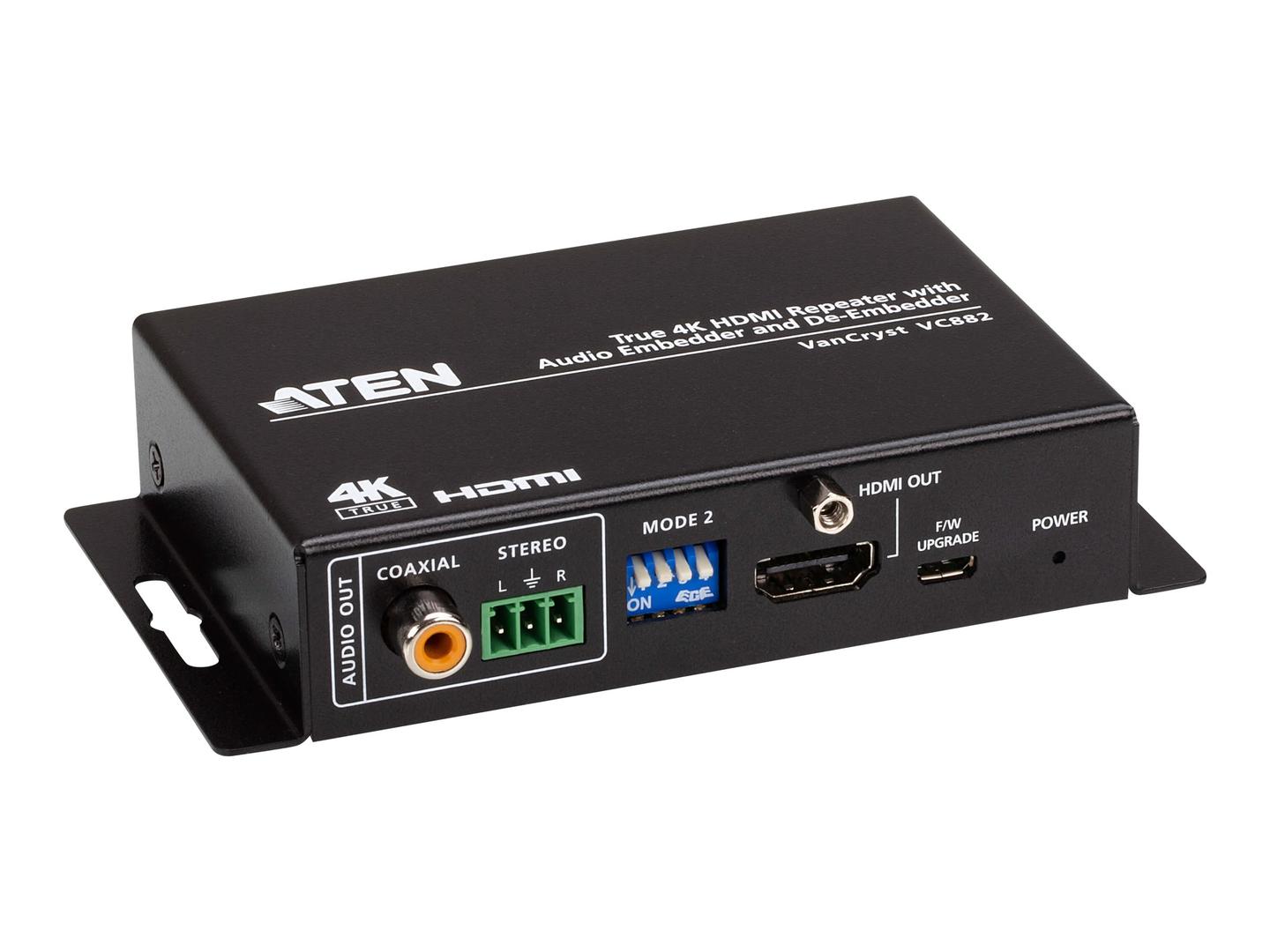

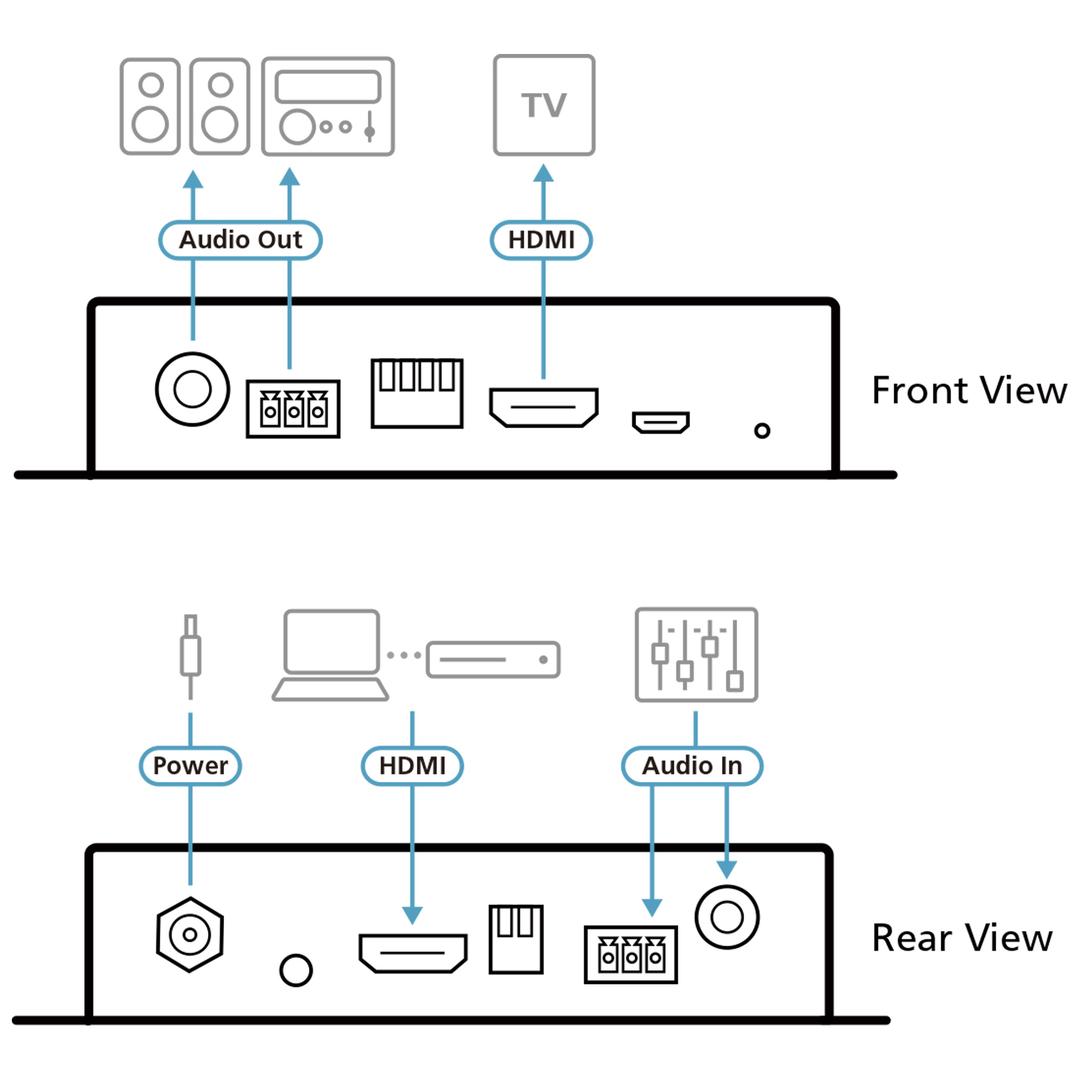

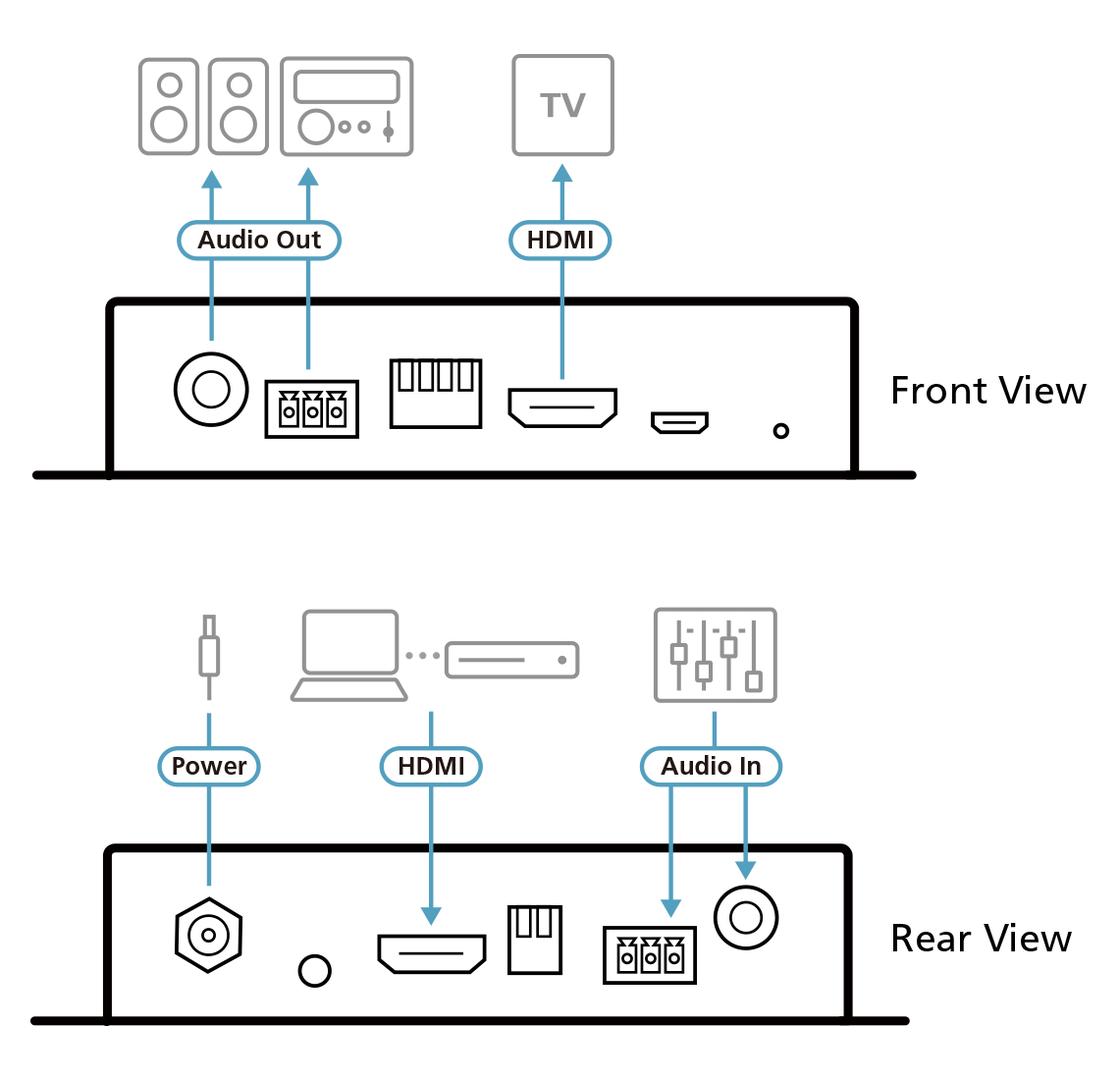

- Embeds audio to the HDMI output or de-embeds audio from the HDMI signal and outputs the extracted signal through an alternative audio system
- Easy embedding / de-embedding mode selection via 2 / 4-pin DIP switches
- True 4K video quality – supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
- Supports 4K / HDR formats:HDR10, HDR10+, Dolby Vision and Hybrid Log-Gamma (HLG)
Product Specification
| Device Type | Repeater |
| Form Factor | External |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Max Transfer Distance | 5 m |
| Status Indicators | Power |
| Features | Firmware upgradable, 3D support, 4K resolution support, metal housing, DTS Digital Surround 5.1 support, Dolby Digital support, audio embedding/de-embedding, HDR10 support, Dolby Vision HDR support, HDR10+ support, Hybrid Log-Gamma (HLG) support, 18 Gbps bandwidth, LPCM 2.0 support |
| Compliant Standards | HDCP 2.2 |
| Expansion / Connectivity | |

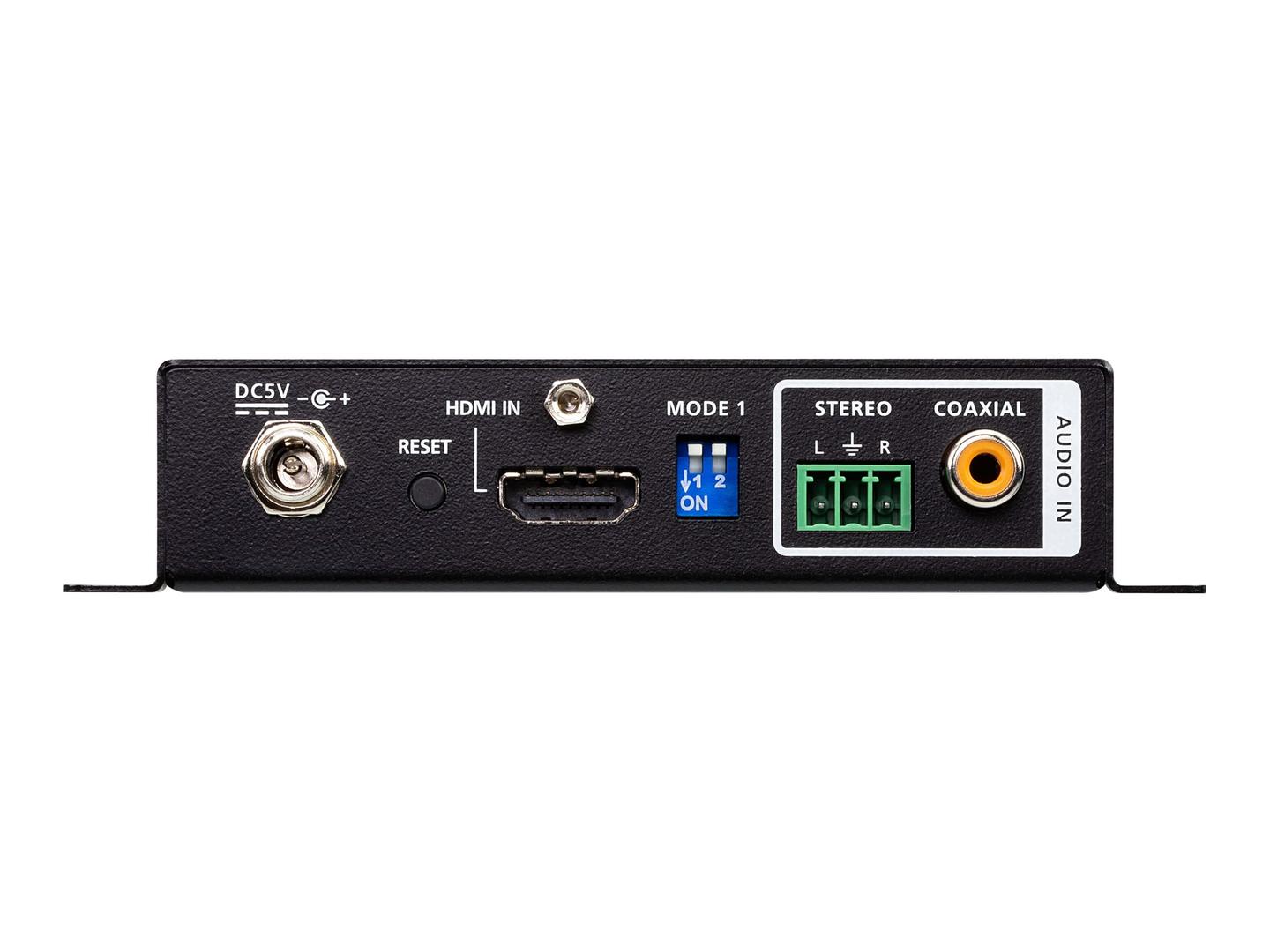

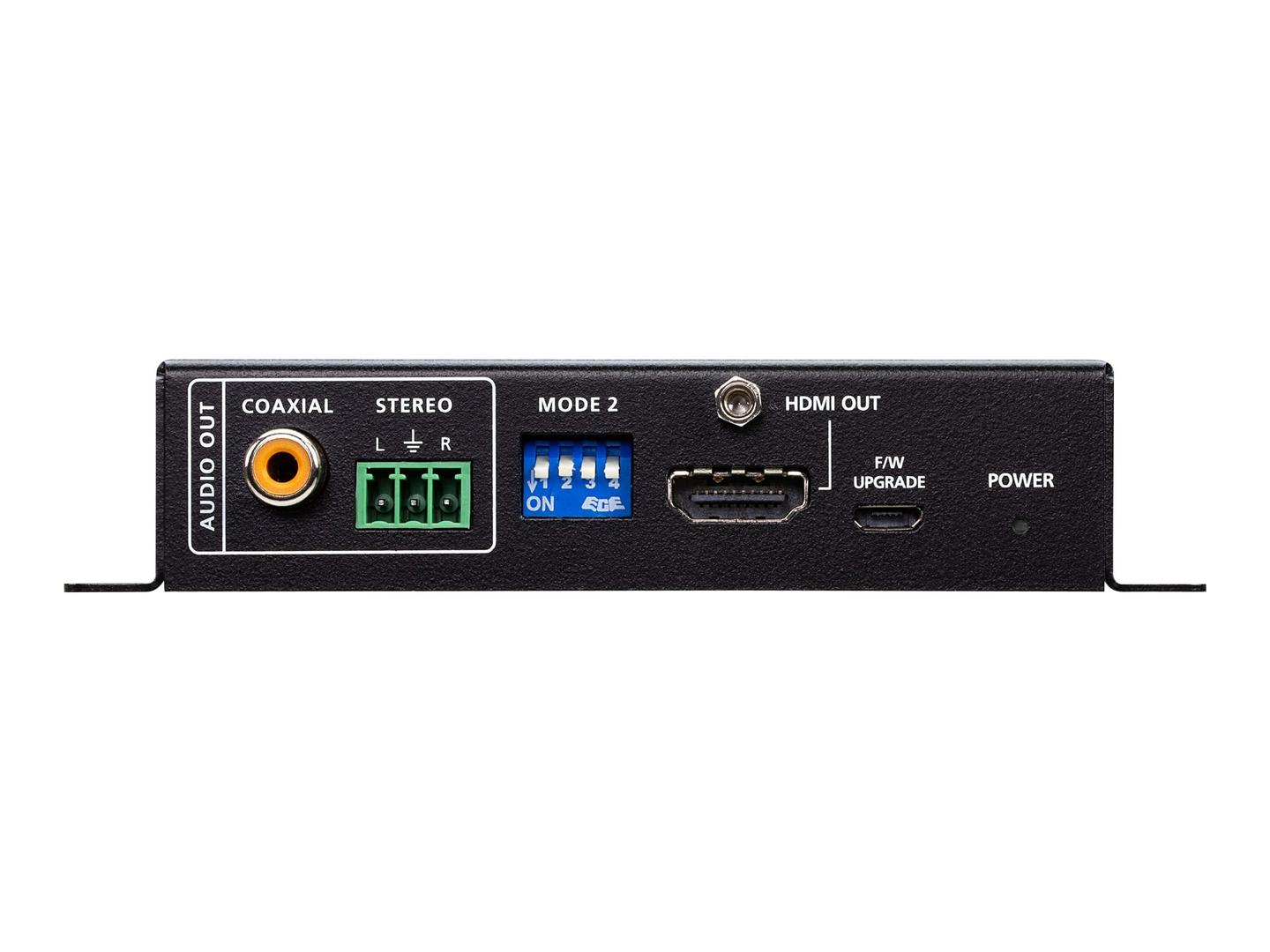

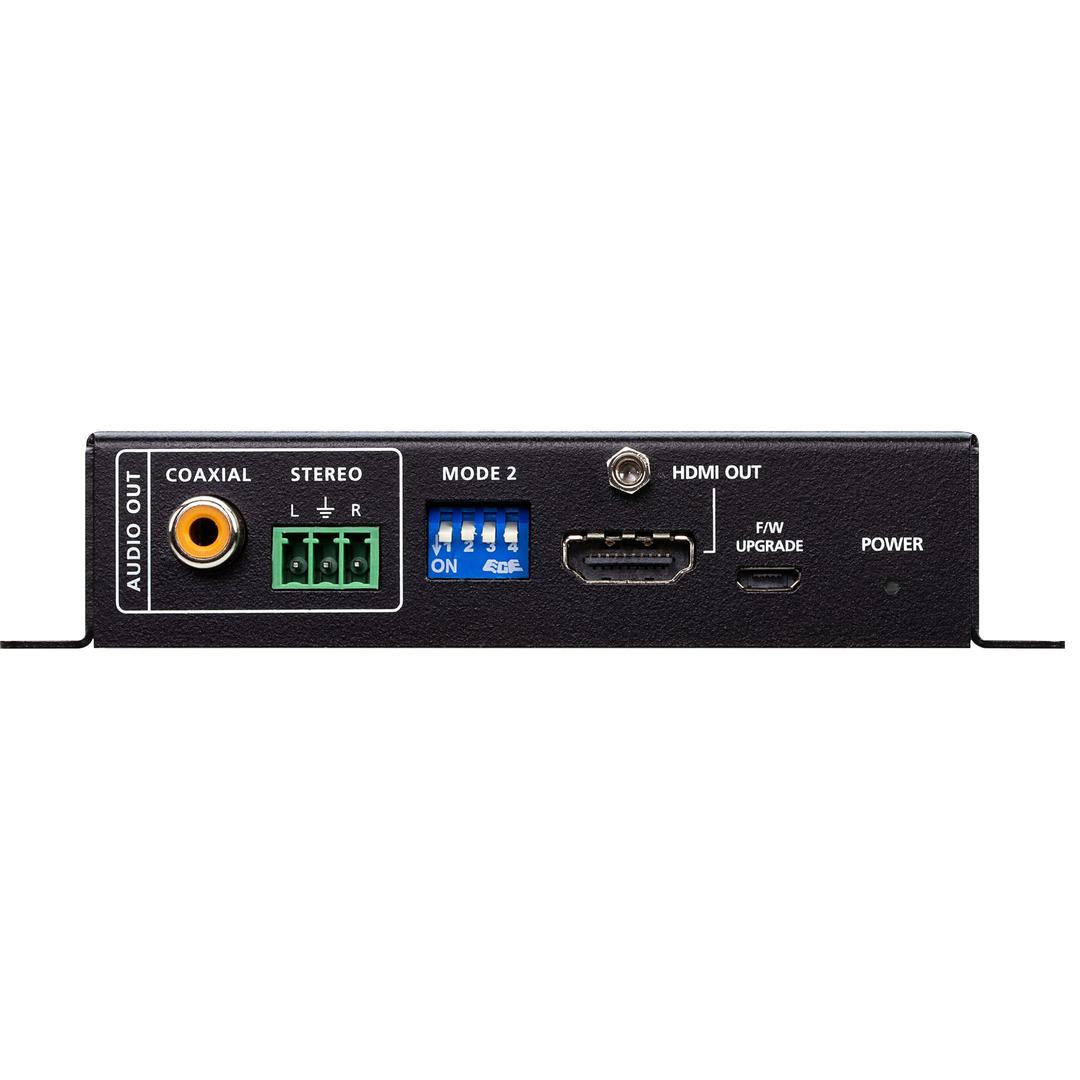

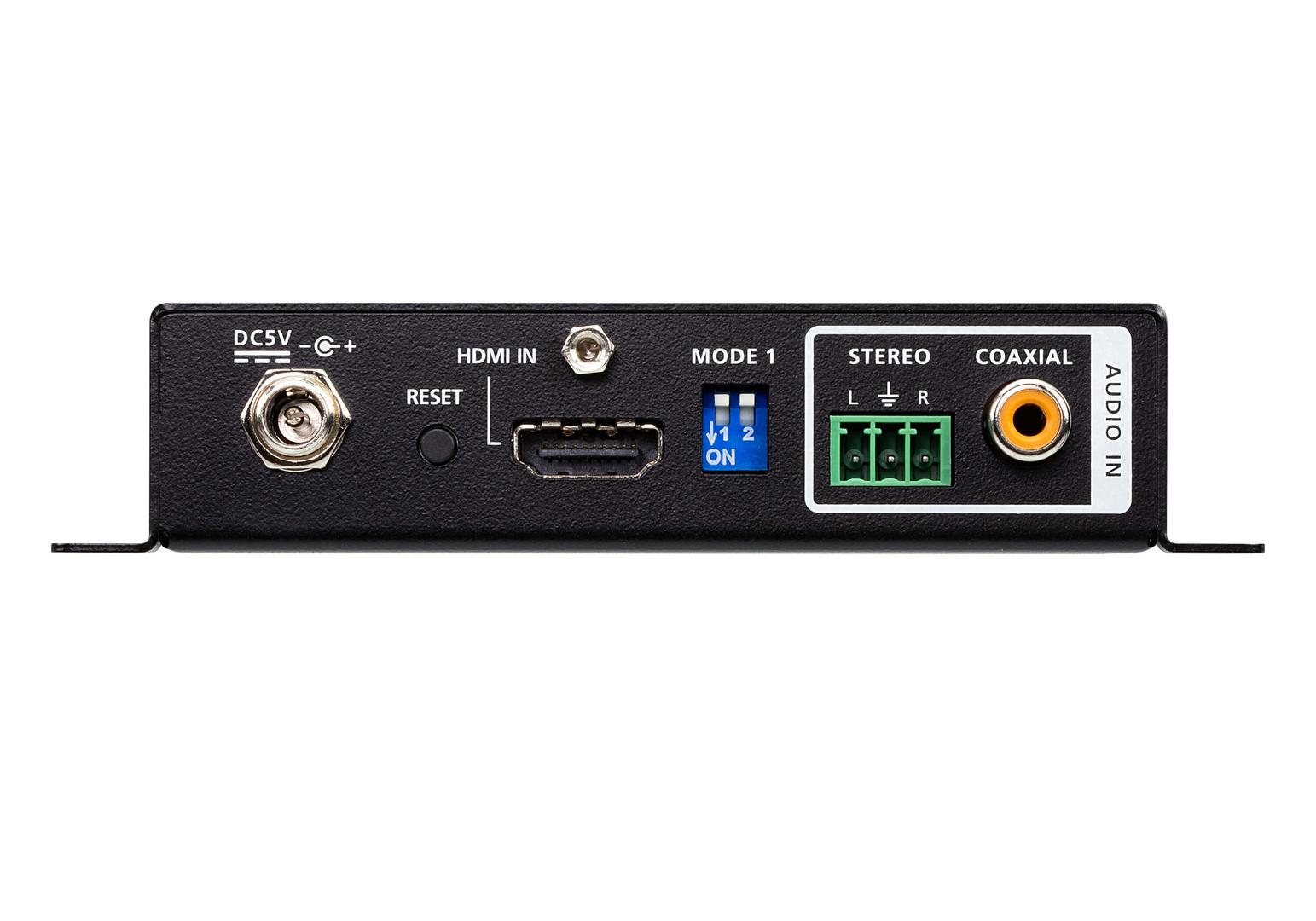

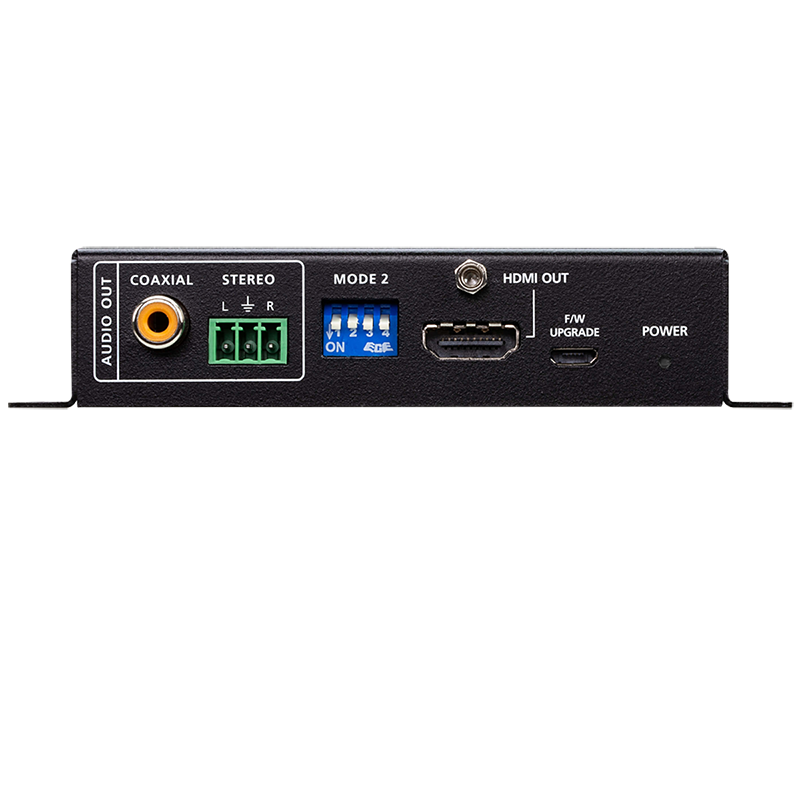

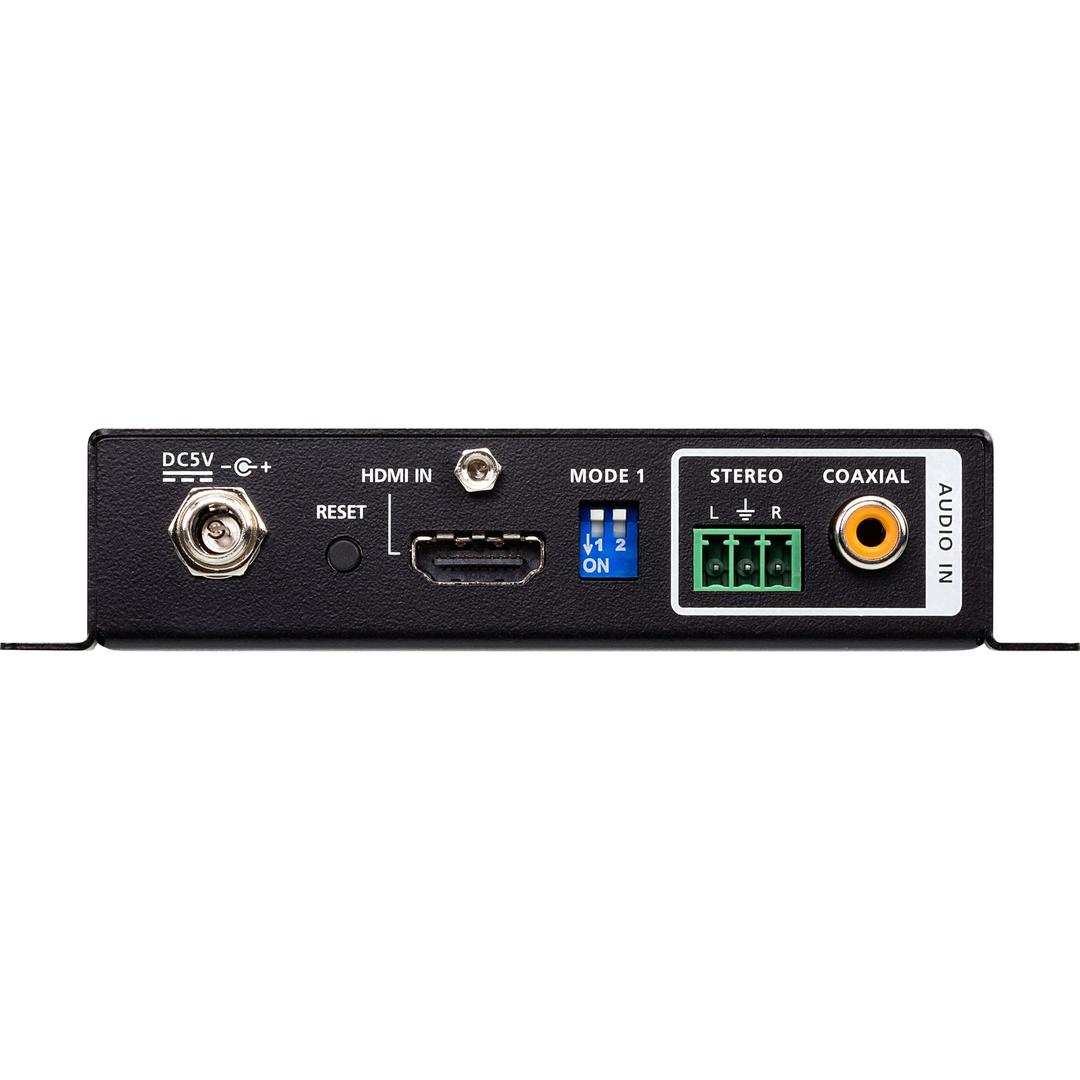

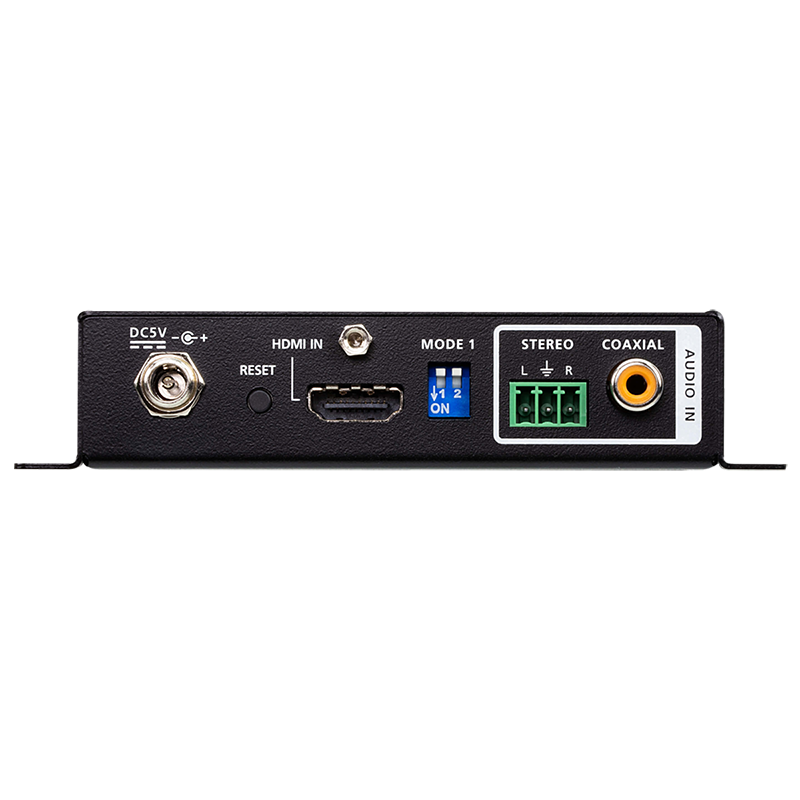

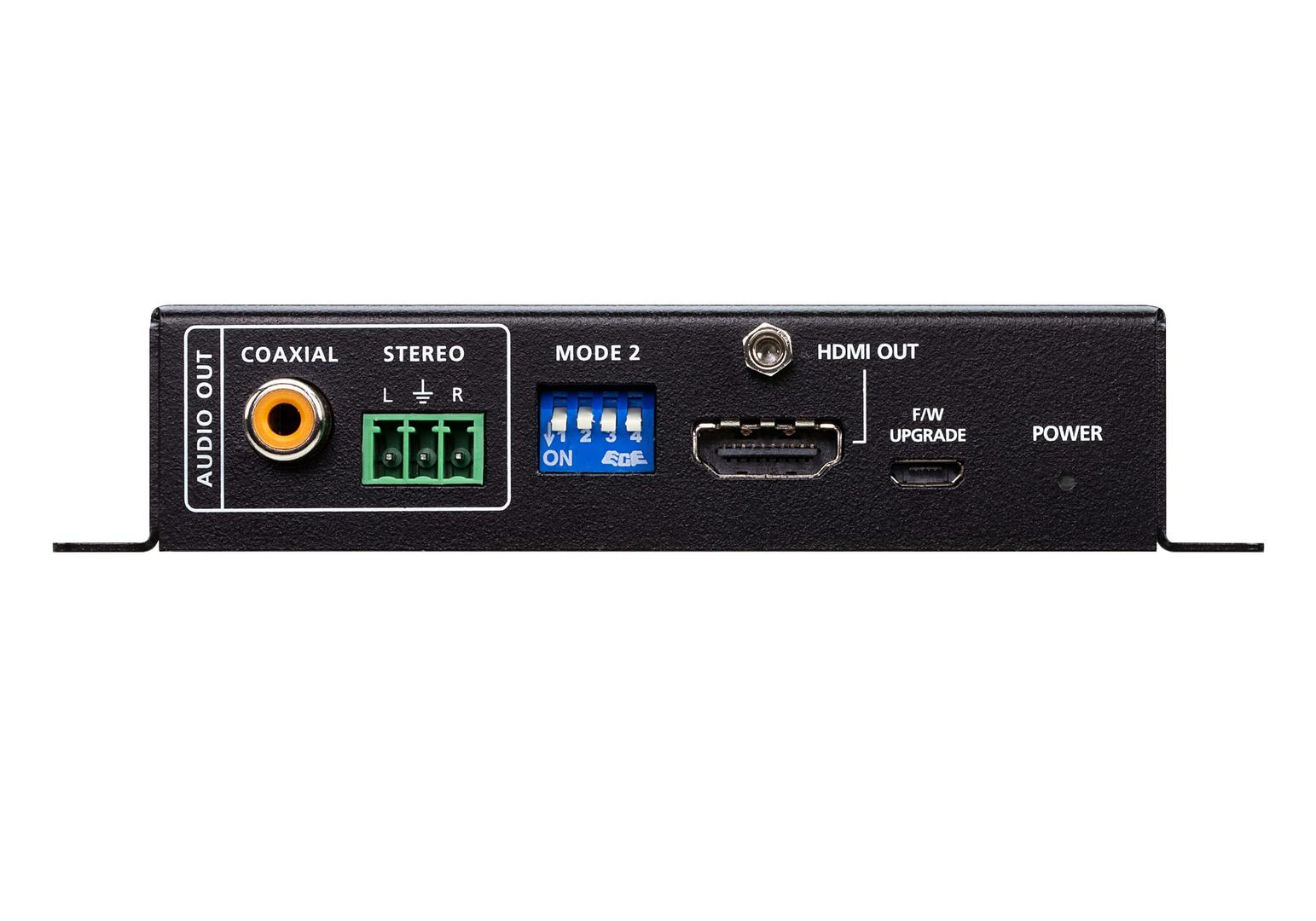

| Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A ¦ 1 x HDMI (output) - 19 pin HDMI Type A ¦ 1 x audio (output) ¦ 1 x audio (input) ¦ 1 x audio (output) - 3 pin terminal block ¦ 1 x audio (input) - 3 pin terminal block |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 2.905 Watt |
| Dimensions & Weight | |
| Width | 12.2 cm |
| Depth | 8.22 cm |
| Height | 2.5 cm |
| Weight | 240 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
Features - Aten - VC882
Length
5m
More Details
Product Code
03:217800
EAN Code
4710469341076
Manufacturer
Aten
