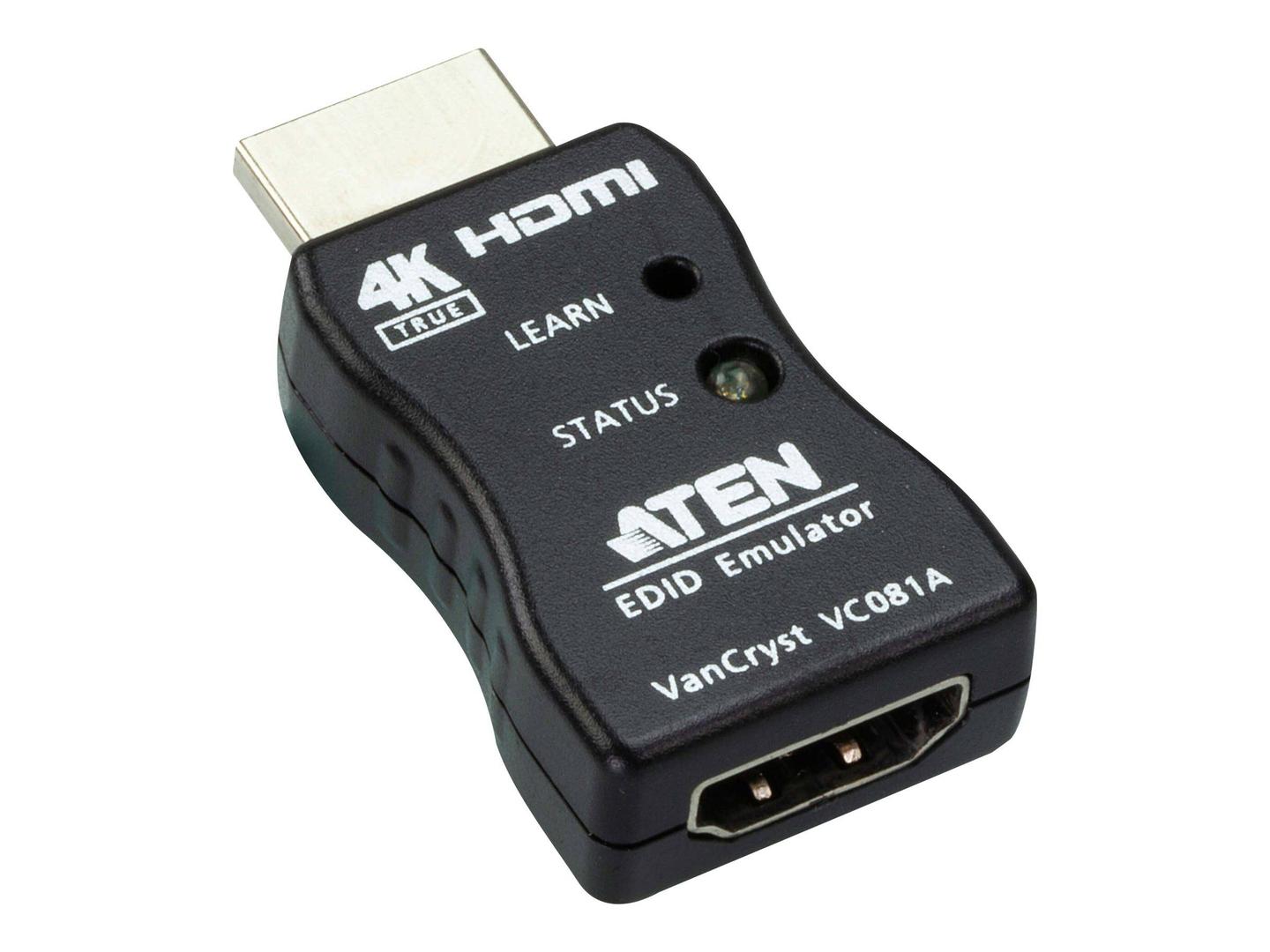

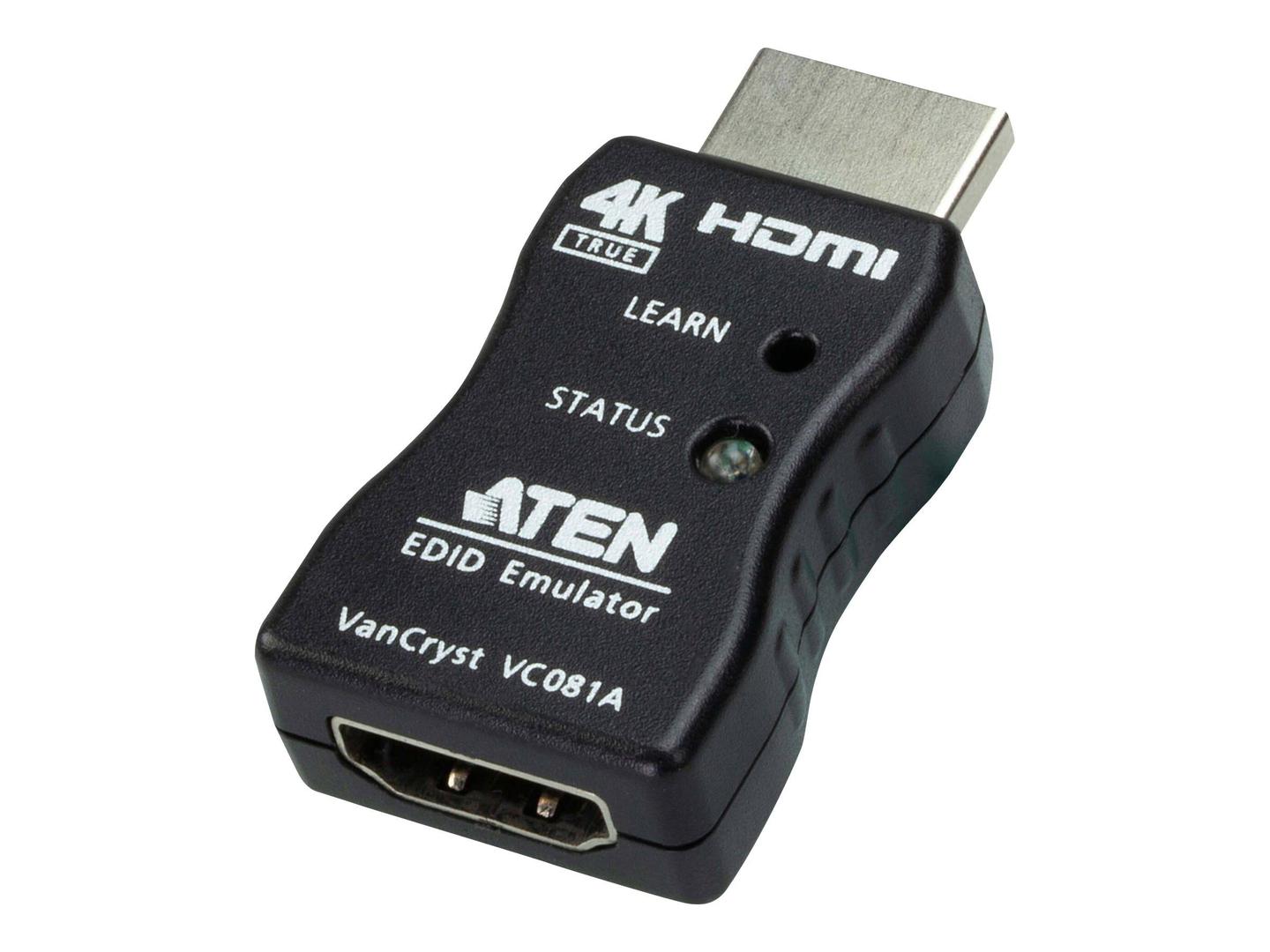

ATEN VC081A / EDID emulator | VC081A
VC081A
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Manages EDID communication between connected devices
- Effectively learns and saves the EDID from the connected HDMI display via a single push button and relays it to the video source
- HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
- Superior video quality - up to 3840 x 2160 @ 60Hz (4:4:4)
- LED indicators to show the learning status
- Powered by an HDMI source
- Compact and lightweight design
Product Specification
| Type | EDID emulator |
| Width | 4.4 cm |
| Depth | 2.4 cm |
| Height | 1.18 cm |
| Weight | 80 g |
| Studio & Production Equipment | Studio & Production Equipment |
| Features | 3D Ready, 4K resolution support, HDCP 2.2 compliant, HDMI powered |
| Terminals | Terminals |
| Terminals | (1) x HDMI input - 19 pin HDMI Type A ¦ (1) x HDMI output - 19 pin HDMI Type A |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
Features - Aten - VC081A
More Details
Product Code
03:217793
EAN Code
4710469340314
Manufacturer
Aten
