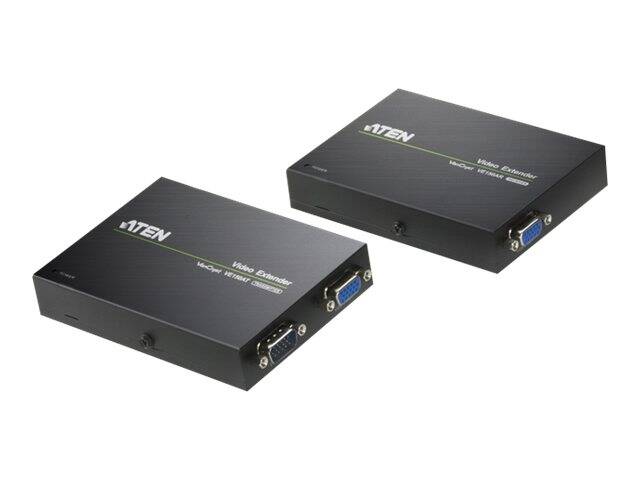

ATEN VE150A Local and Remote Units / Video extender / up to 150 m | VE150A
VE150A
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Uses Cat 5e cables to connect the local and remote units
- Supports one local and one remote display
- Long distance transmission - up to 150 m
- Adjustable gain control - manually adjust signal strength to compensate for distance
- Superior video quality
- Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
- Supports wide screen formats
- Supports hot-plugging
- Built-in 8KV/15KV ESD protection
- Supports DDC for the local monitor
- Easy installation
- Rack mountable
- Plug-and-Play - no software installation required
Product Specification
| Device Type | Video extender |
| Form Factor | External |
| Networking | Networking |
| Connectivity Technology | Wired |
| Max Resolution | 1920 x 1200 @ 60 Hz |
| Max Transfer Distance | 150 m |
| Status Indicators | Power |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x VGA (output) - HD-15 female ¦ 1 x VGA (input) - HD-15 male ¦ 1 x VGA (output) - HD-15 female |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x VGA cable |
| Mounting Kit | Included |
| Compliant Standards | Plug and Play, RoHS |
| Power | Power |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12.77 cm |
| Depth | 9.04 cm |
| Height | 2.26 cm |
| Weight | 240 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
Features - Aten - VE150A
Length
150m
More Details
Product Code
03:508777
EAN Code
4710423778894
Manufacturer
Aten
