Special Fetures

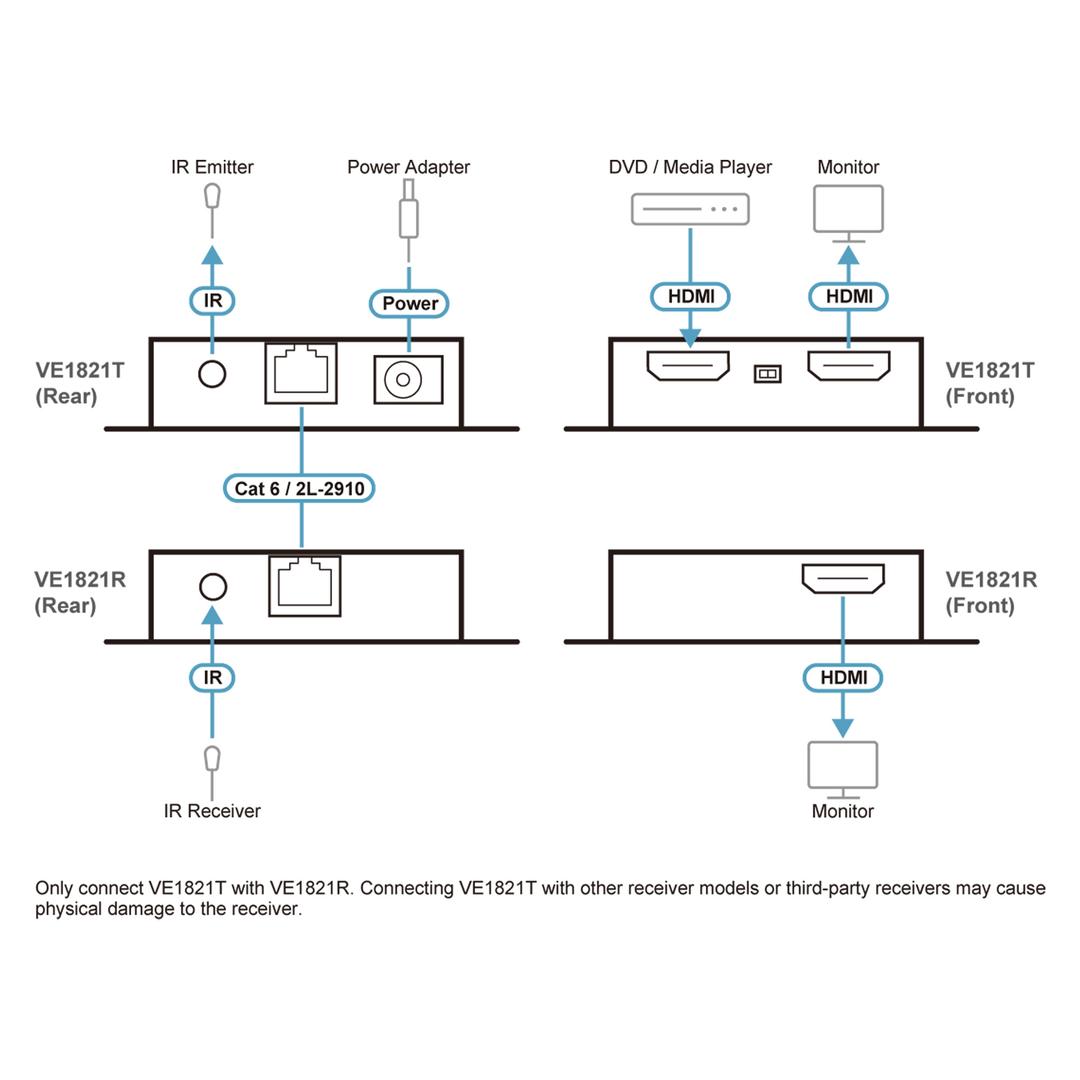

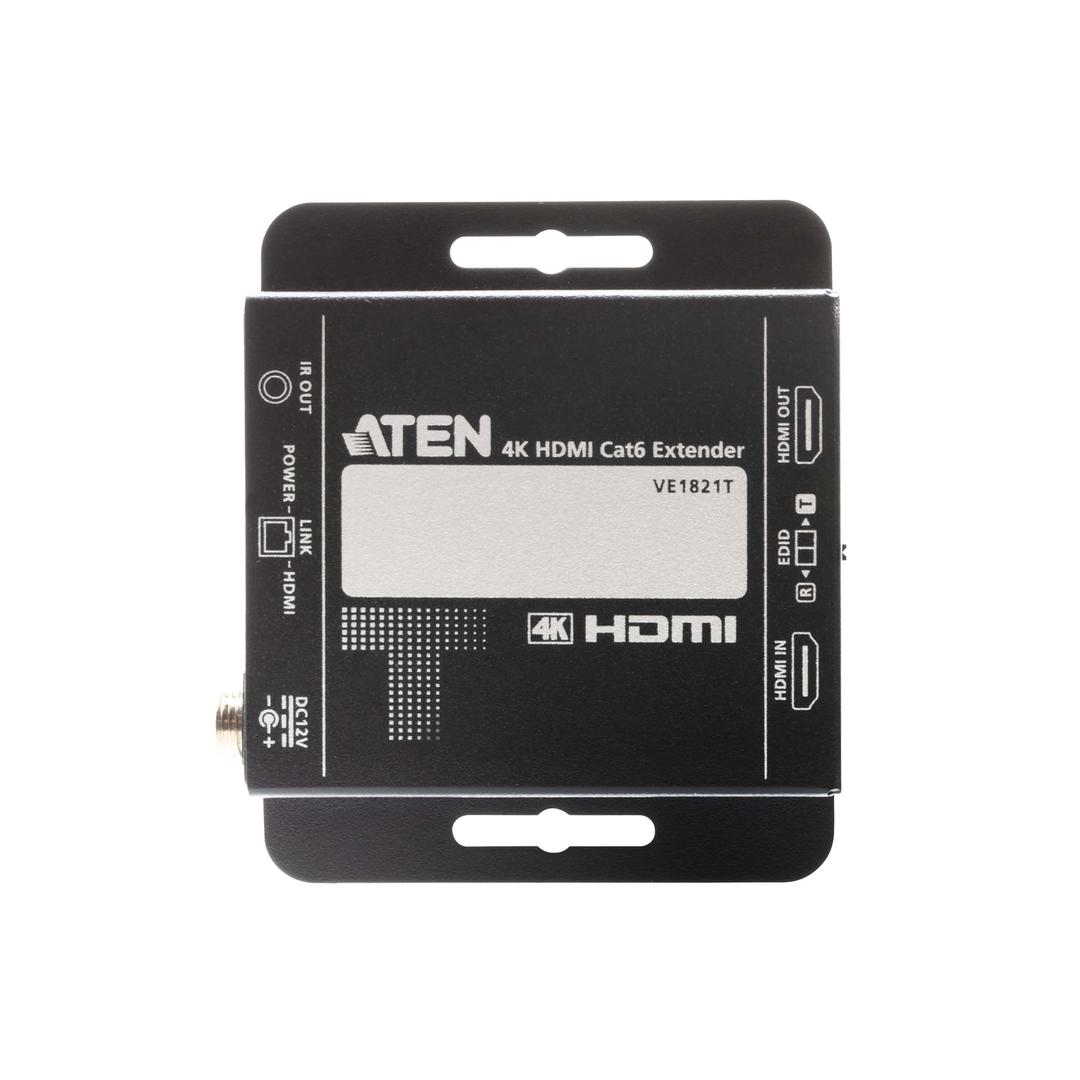

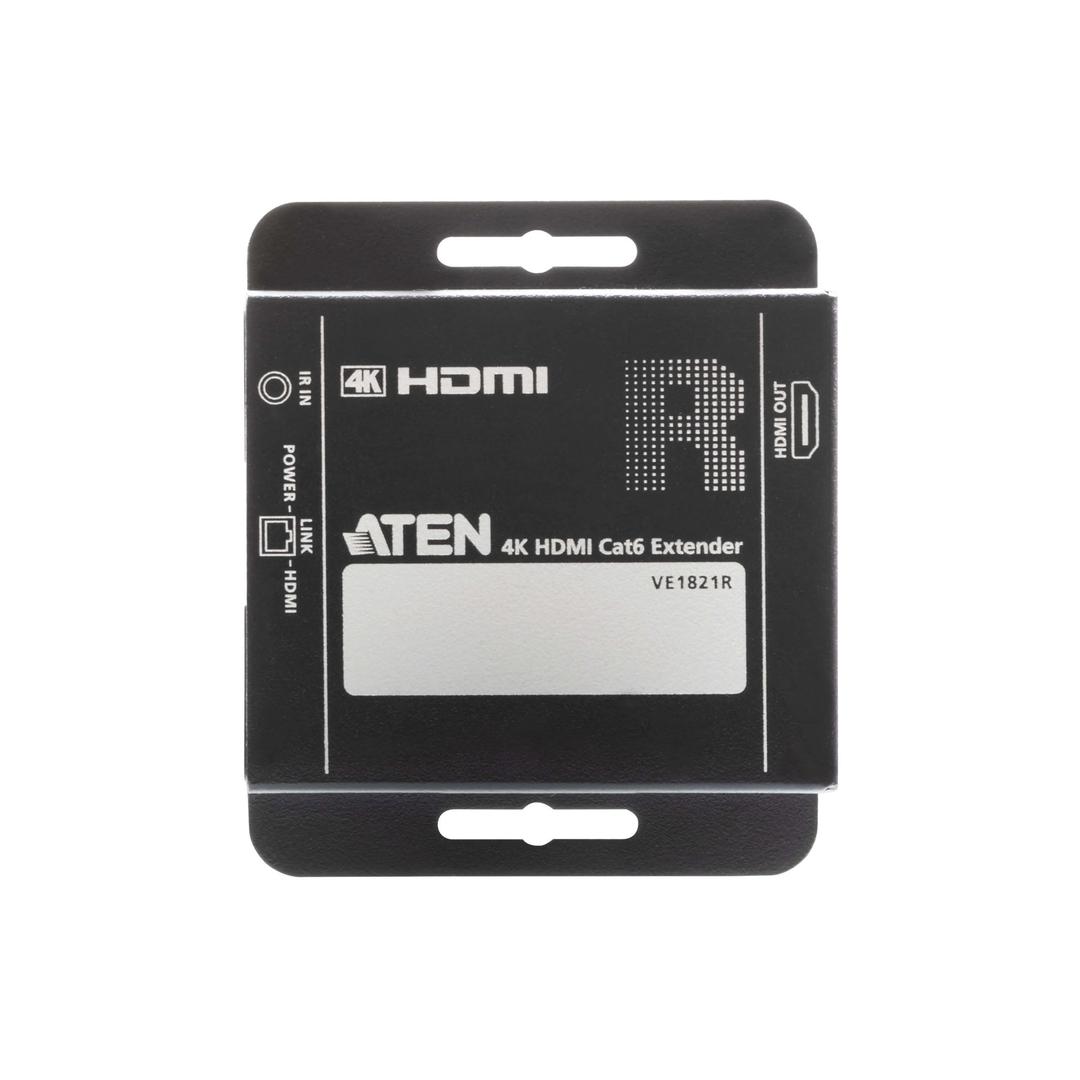

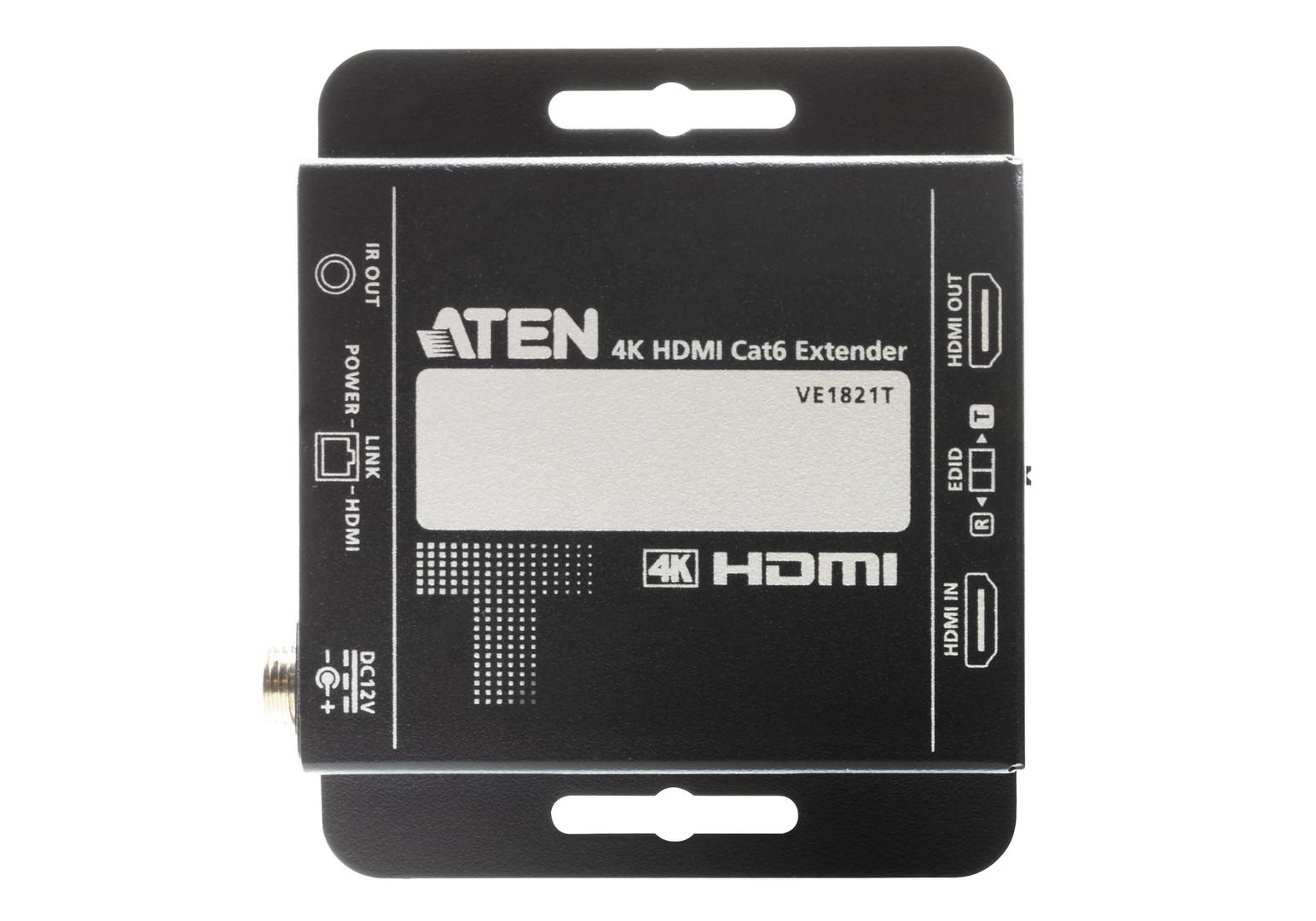

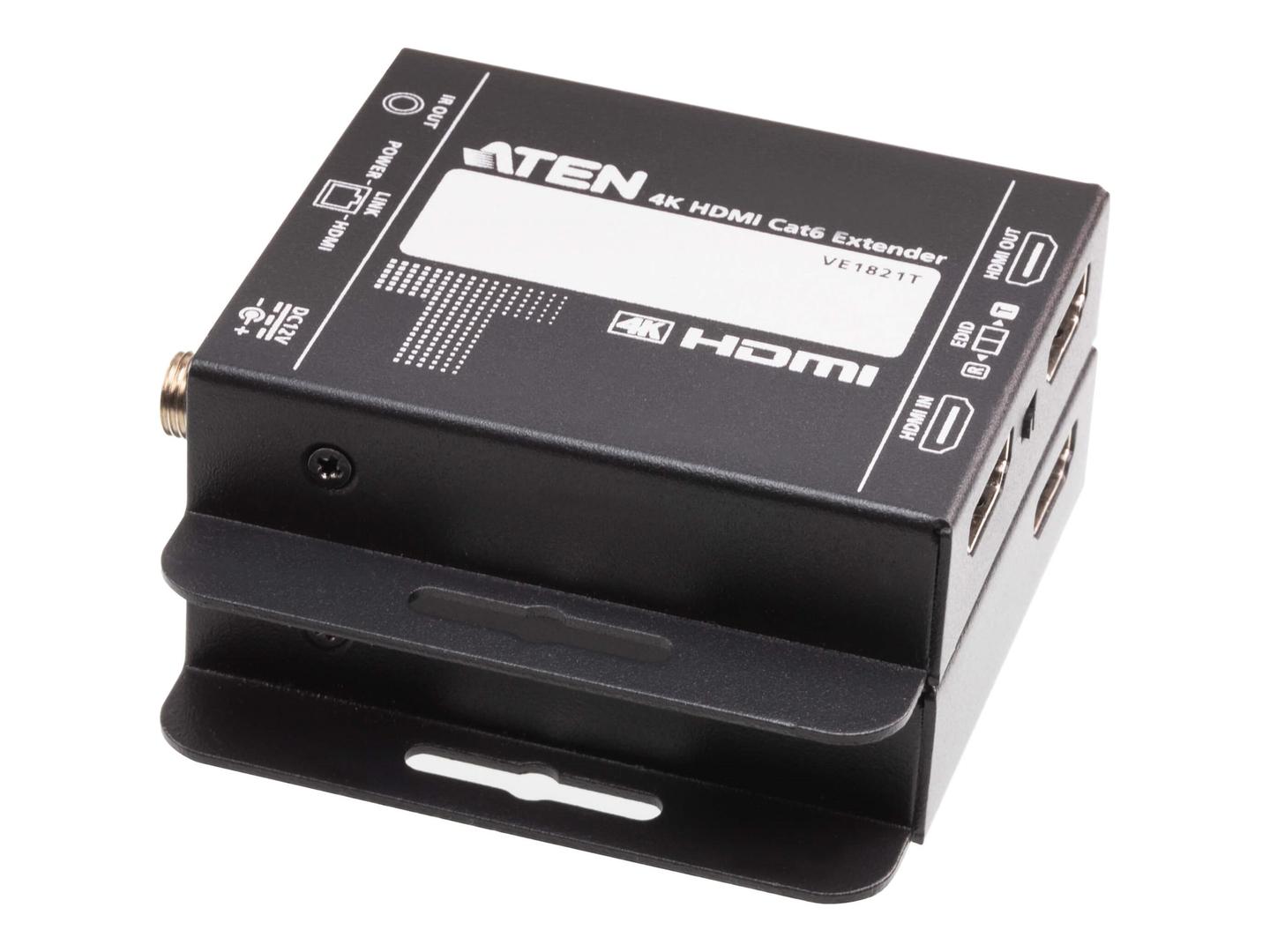

- Includes a transmitter and a receiver to work in tandem to extend 4K HDMI signals over a Cat 5e 6 cable

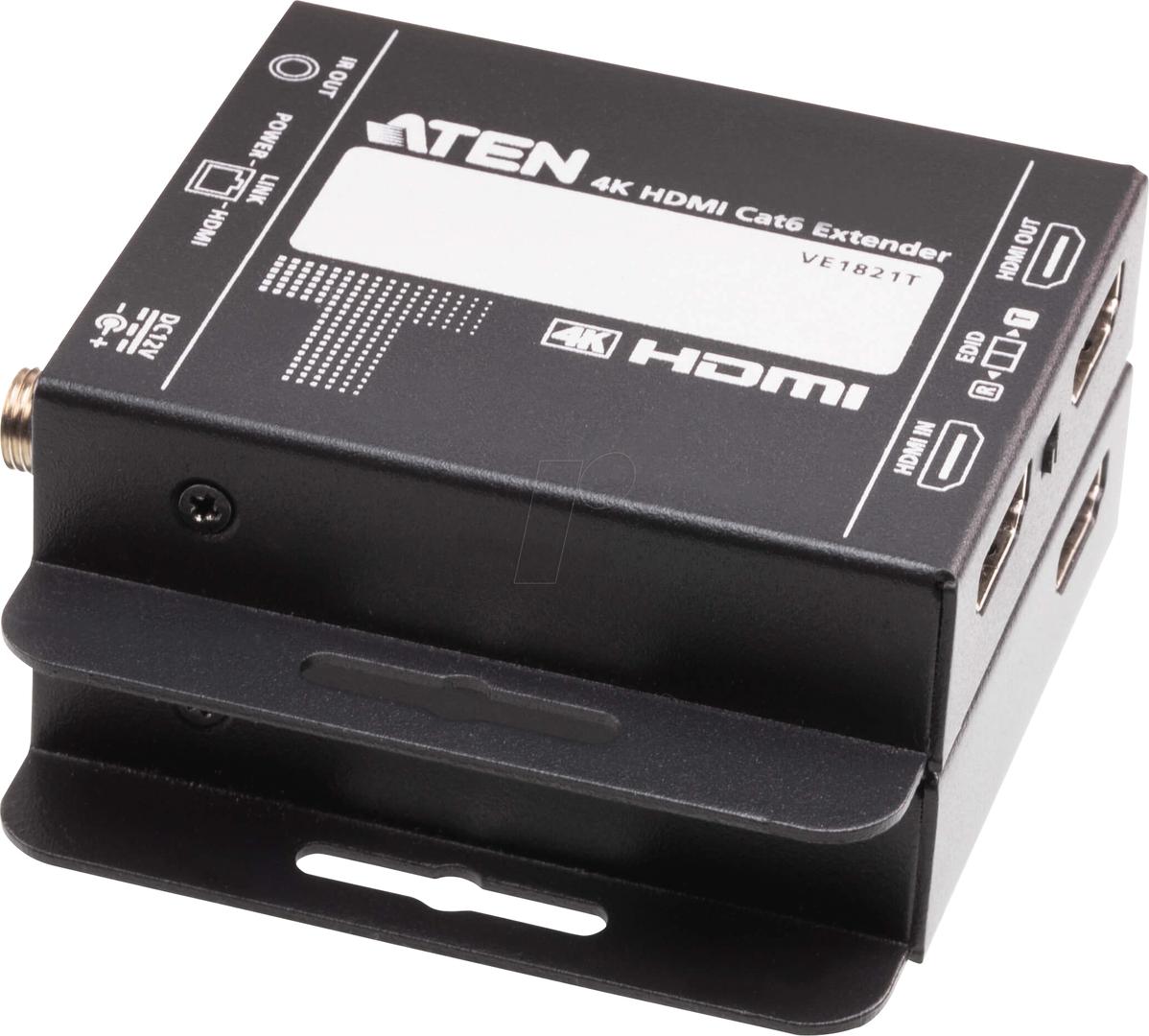

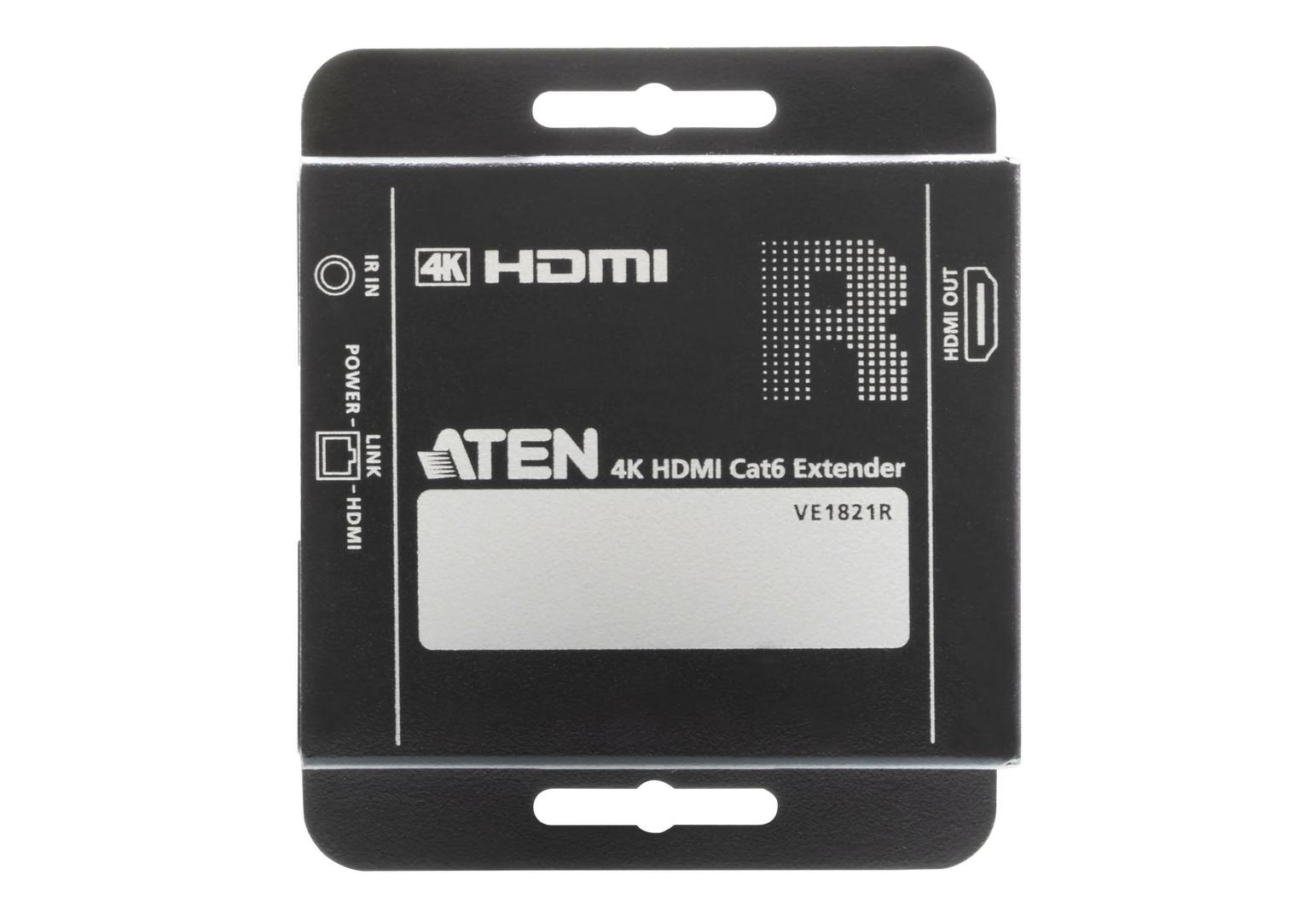

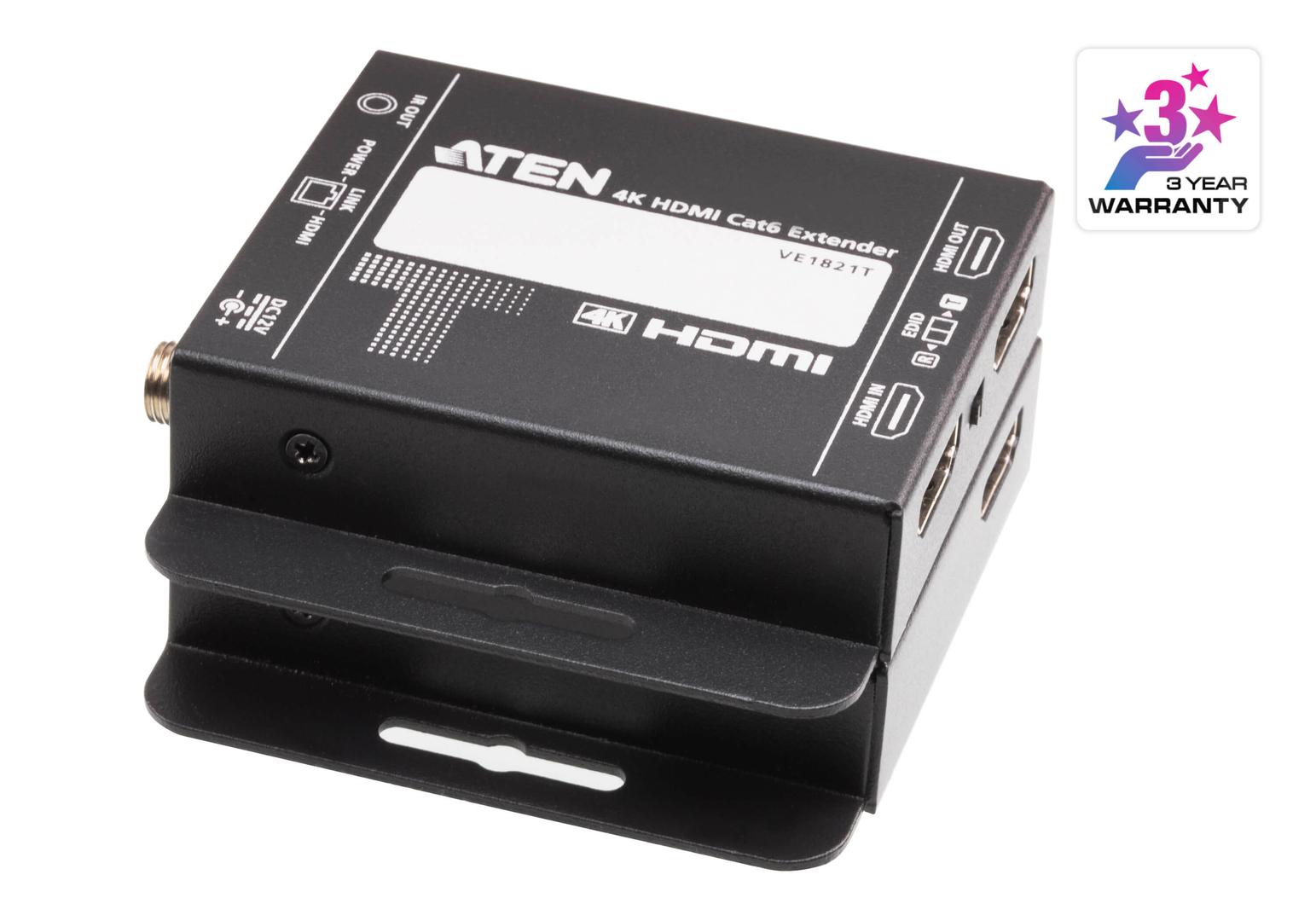

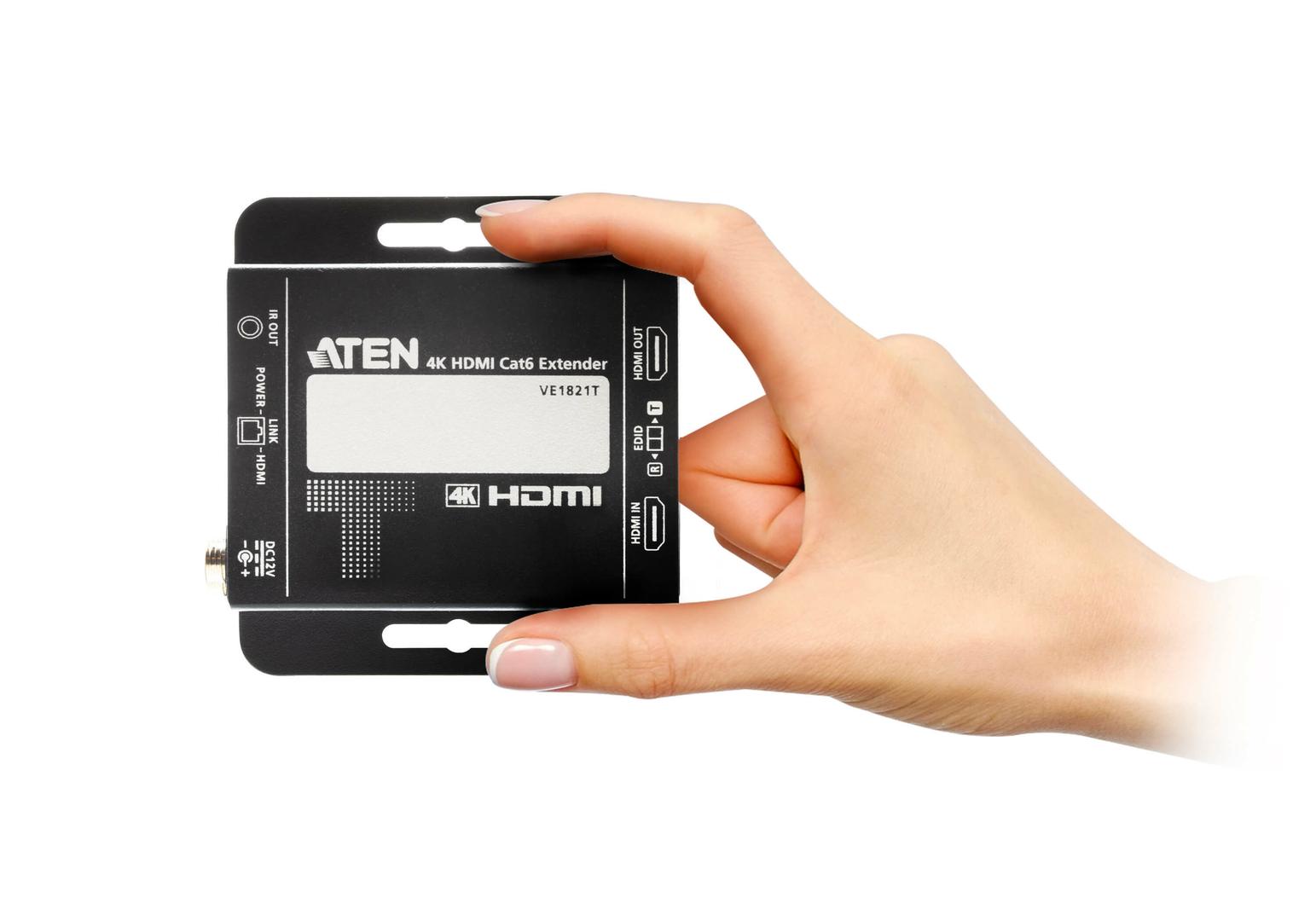

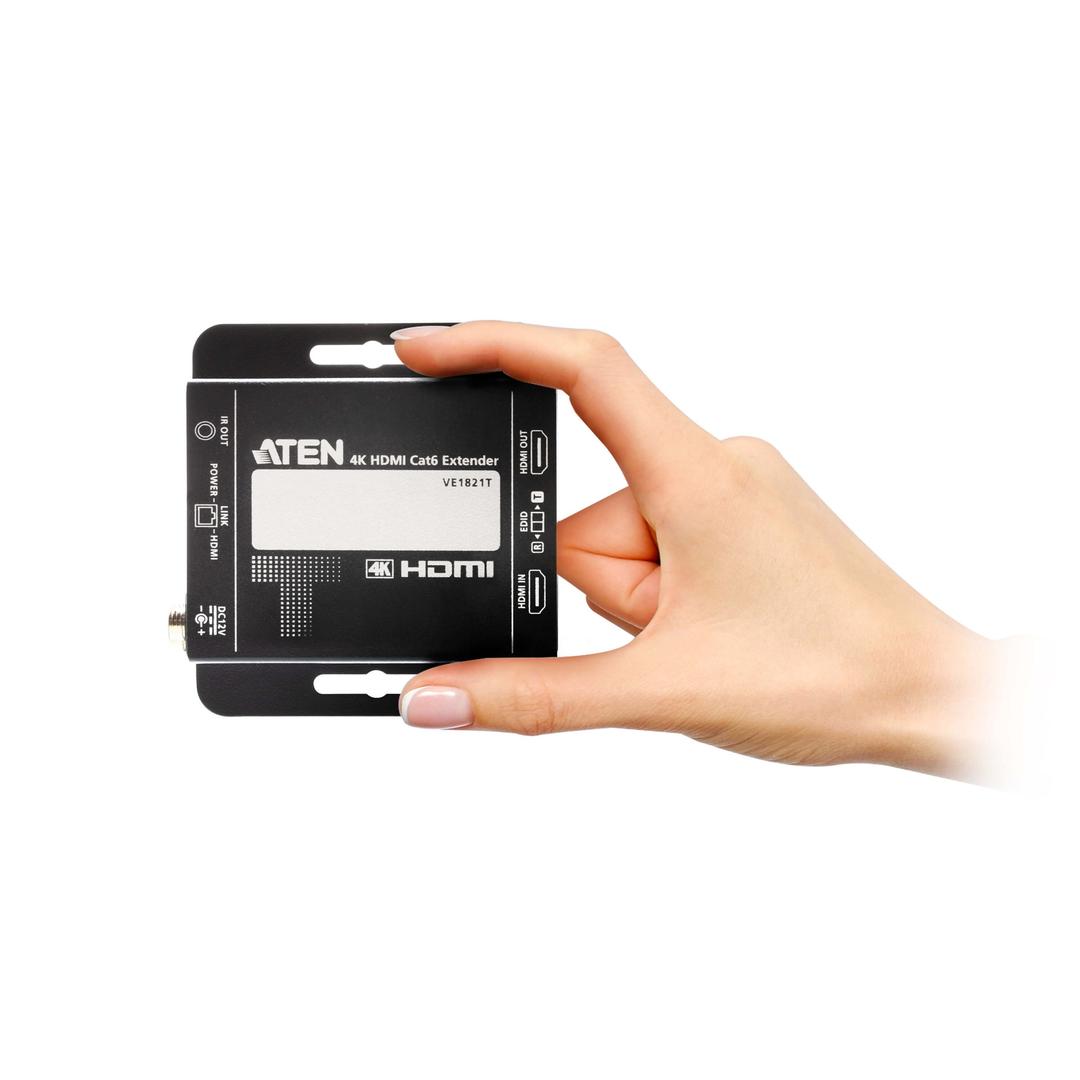

- Ultra-lightweight, palm-sized enclosure for easy mounting or placement in tight spaces
- Crystal-clear 4K HDMI transmission with zero latency across up to 40 m via a Cat 6 cable/30 m via a Cat 5e cable

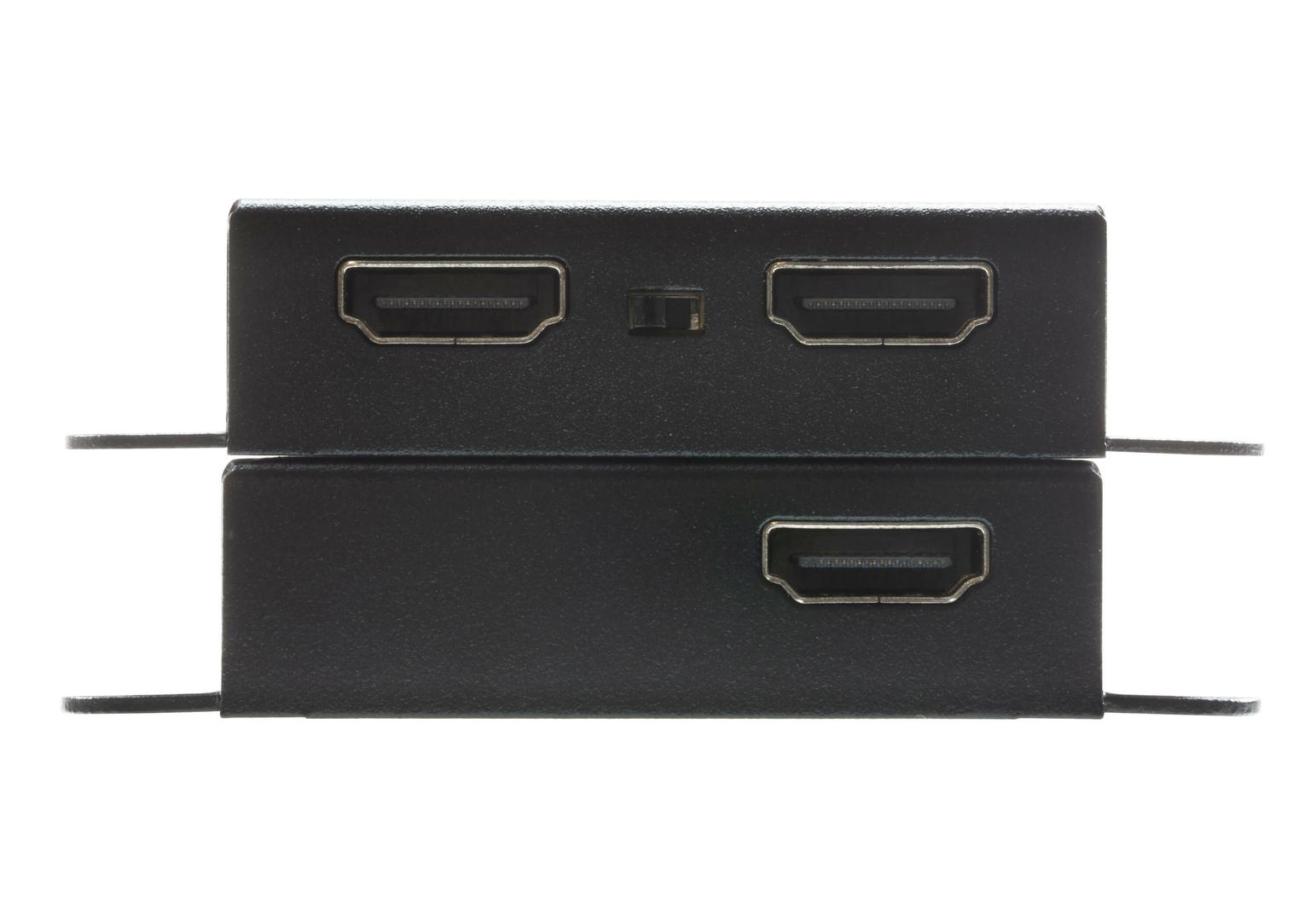

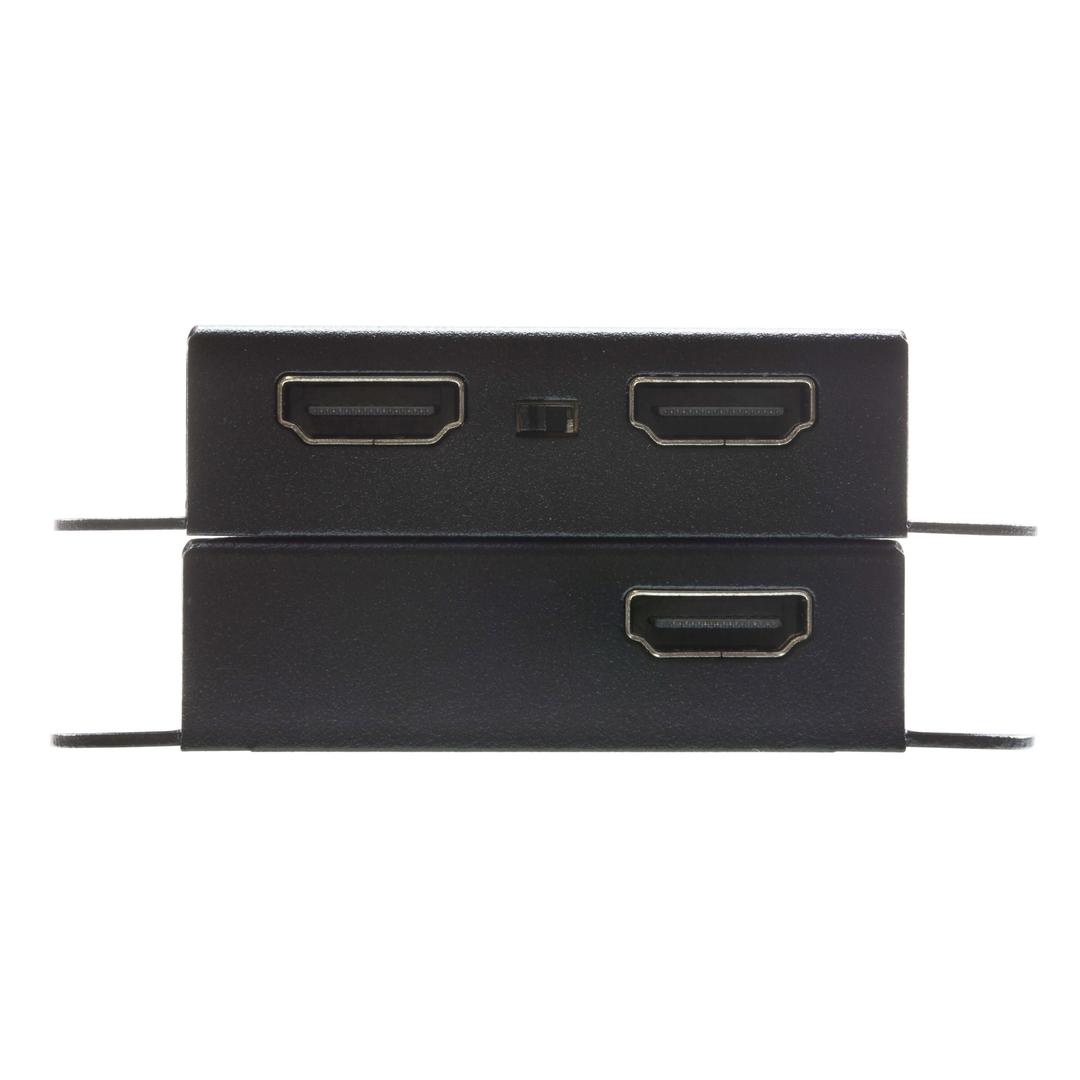

- Local HDMI output port on the transmitter unit - enables cascading or users to monitor the UHD signal being extended to the receiver
- Built-in EDID switch - users can control which EDID is taken from either display
- EDID Copying Mode - HDMI source can be displayed at the optimal resolution based on the capabilities of the connected display
- IR signal transmission - the source device connected to the transmitter can be seamlessly controlled from the receiver side
- PoC (Power over Cable) technology - power can be delivered from the transmitter to the receiver via a Cat 5e/6 cable to eliminate the need for a bulky external power supply
- HDMI (3D, Deep Color, 4K), HDCP 1.4-compliant
- Built-in ESD protection
- Plug-and-play - no additional software needed
Product Specification
| Device Type | Video/audio/infrared/power extender |
| Form Factor | External |
| Networking | |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 30 Hz |
| Max Video Bandwidth | 340 MHz |
| Max Transfer Distance | 40 m |
| Features | Cascadable, 3D support, 4K resolution support, metal housing, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, 4:4:4 chroma subsampling support, Deep Colour support, EDID mode |
| Compliant Standards | HDCP 1.4 |
| Expansion / Connectivity | |

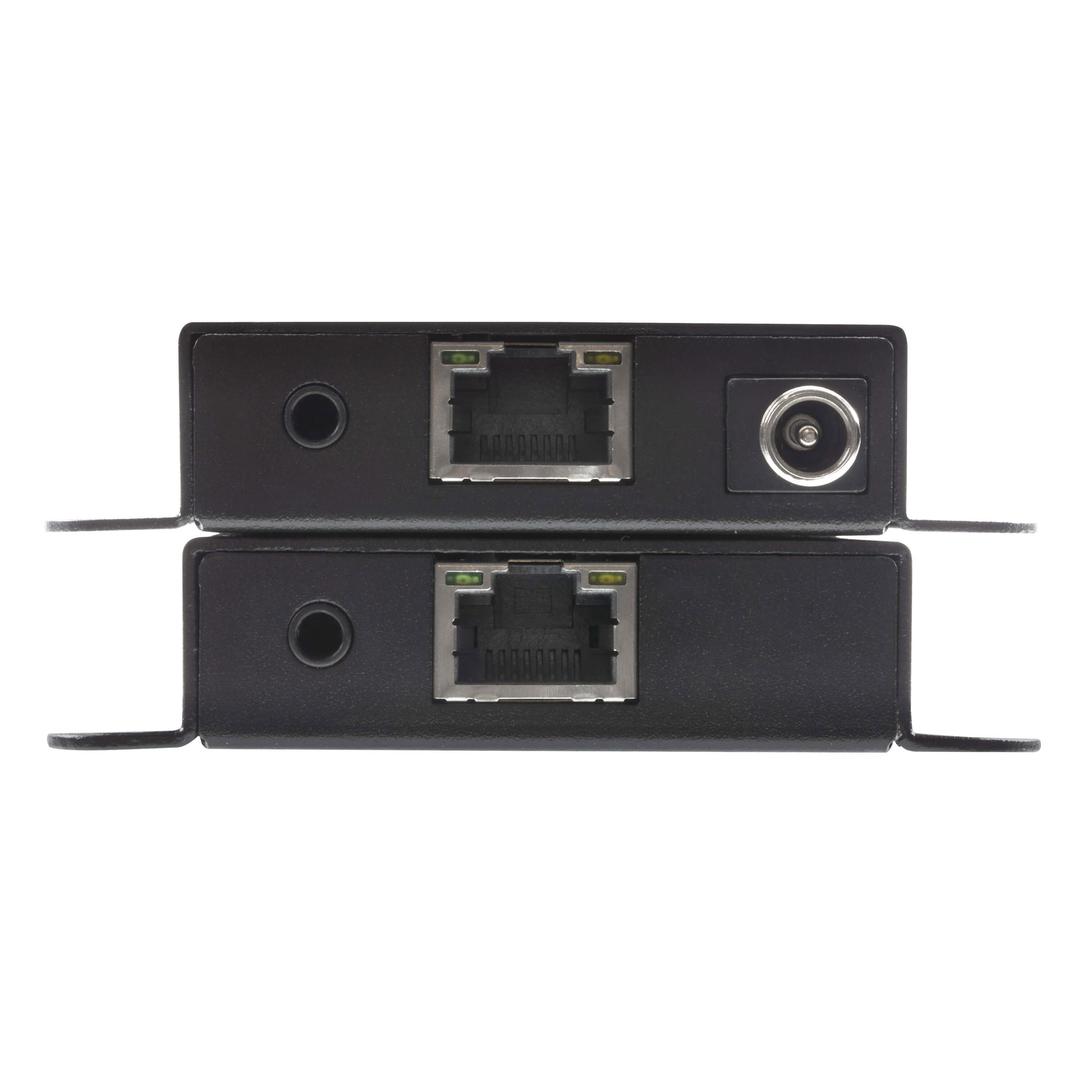

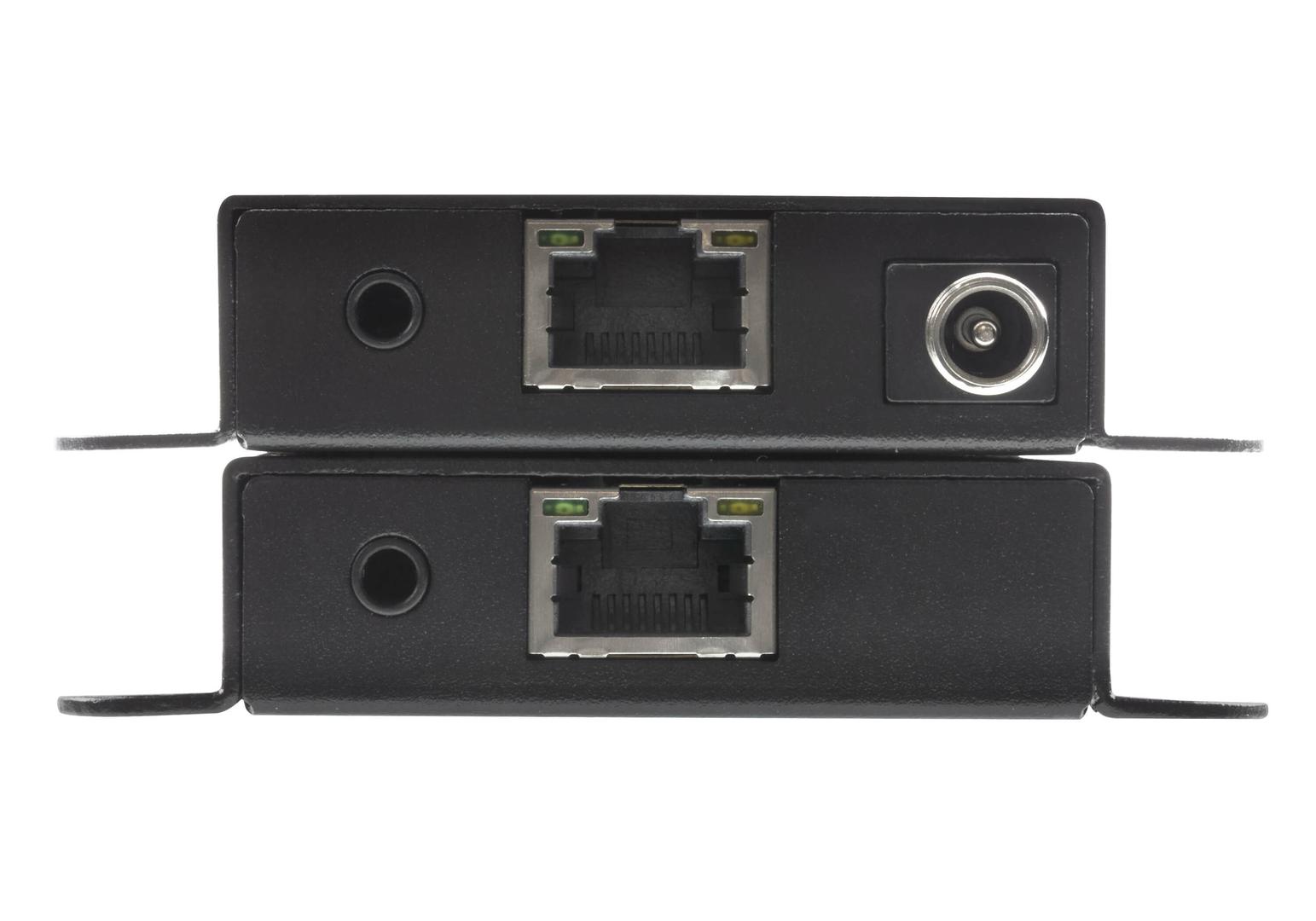

| Interfaces | 1 x HDMI (transmitter input) - Type A female <br /> 1 x HDMI (transmitter output) - Type A female <br /> 1 x HDMI (receiver output) - Type A female <br /> 1 x IR (transmitter output) - mini jack female <br /> 1 x IR (receiver input) - mini jack female <br /> 1 x power / control (receiver) - RJ-45 female - 0.87 W <br /> 1 x management - RJ-45 female |
| Miscellaneous | |
| Included Accessories | 4 power plug adapters, IR receiver cable, power adapter, IR emitter cable |
| Compliant Standards | Plug and Play, ESD |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
| Dimensions & Weight | |
| Width | 6.8 cm |
| Depth | 7.95 cm |
| Height | 1.65 cm |
| Weight | 120 g |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
Features - Aten - VE1821
Length
40m
More Details
Product Code
03:253137
EAN Code
4710469342790
